1200°C Muffle Furnace w/ Kanthal Elements ETL/CE Certified

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Mitsubishi refractory lining, Shimaden 40-seg PID controller, overheat/power failure protections, safety switch, PC interface, 5 crucibles. ETL/CE certified, standard.

$2,990.00$4,490.00

Clear
SKU: 698 Category:

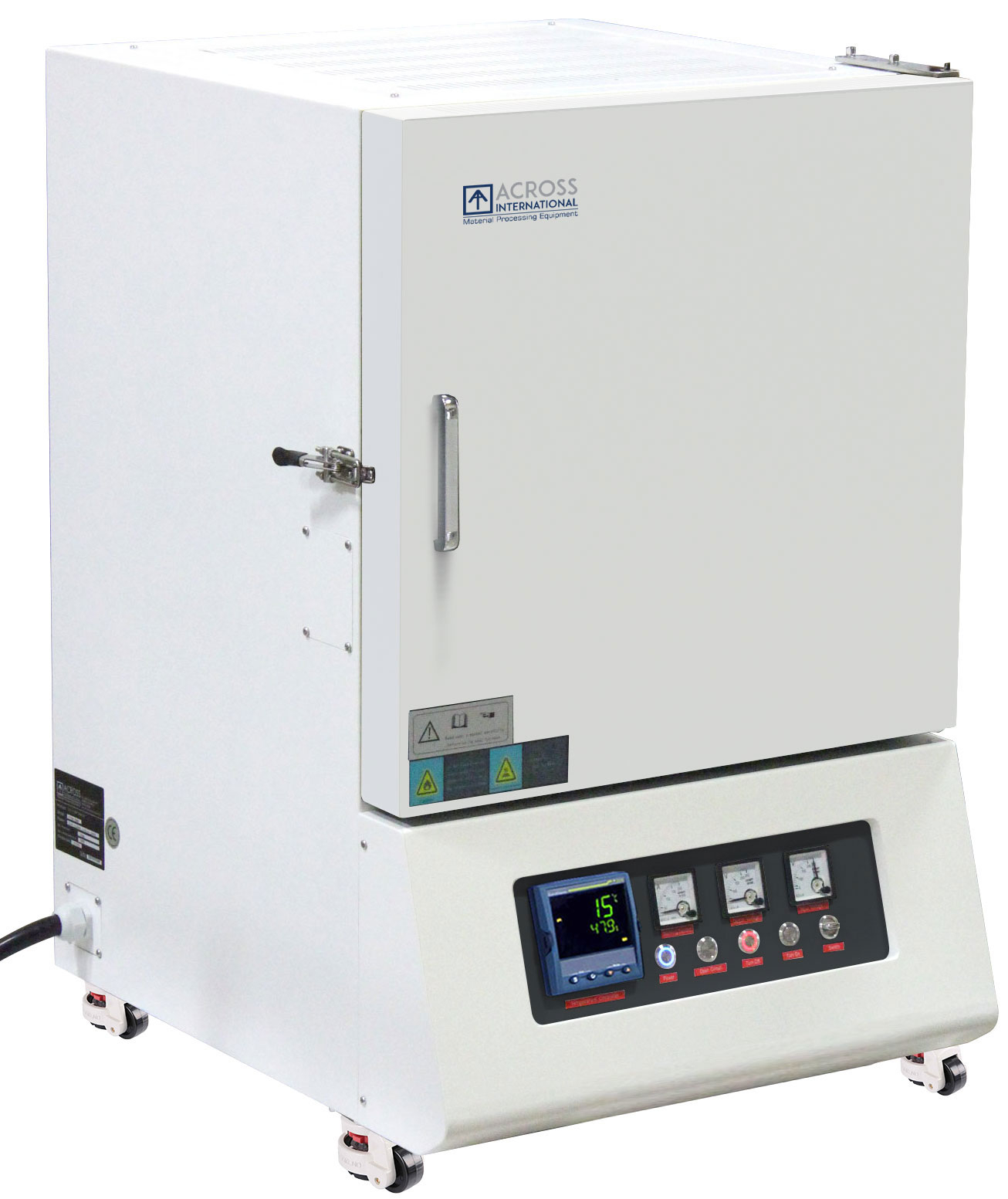

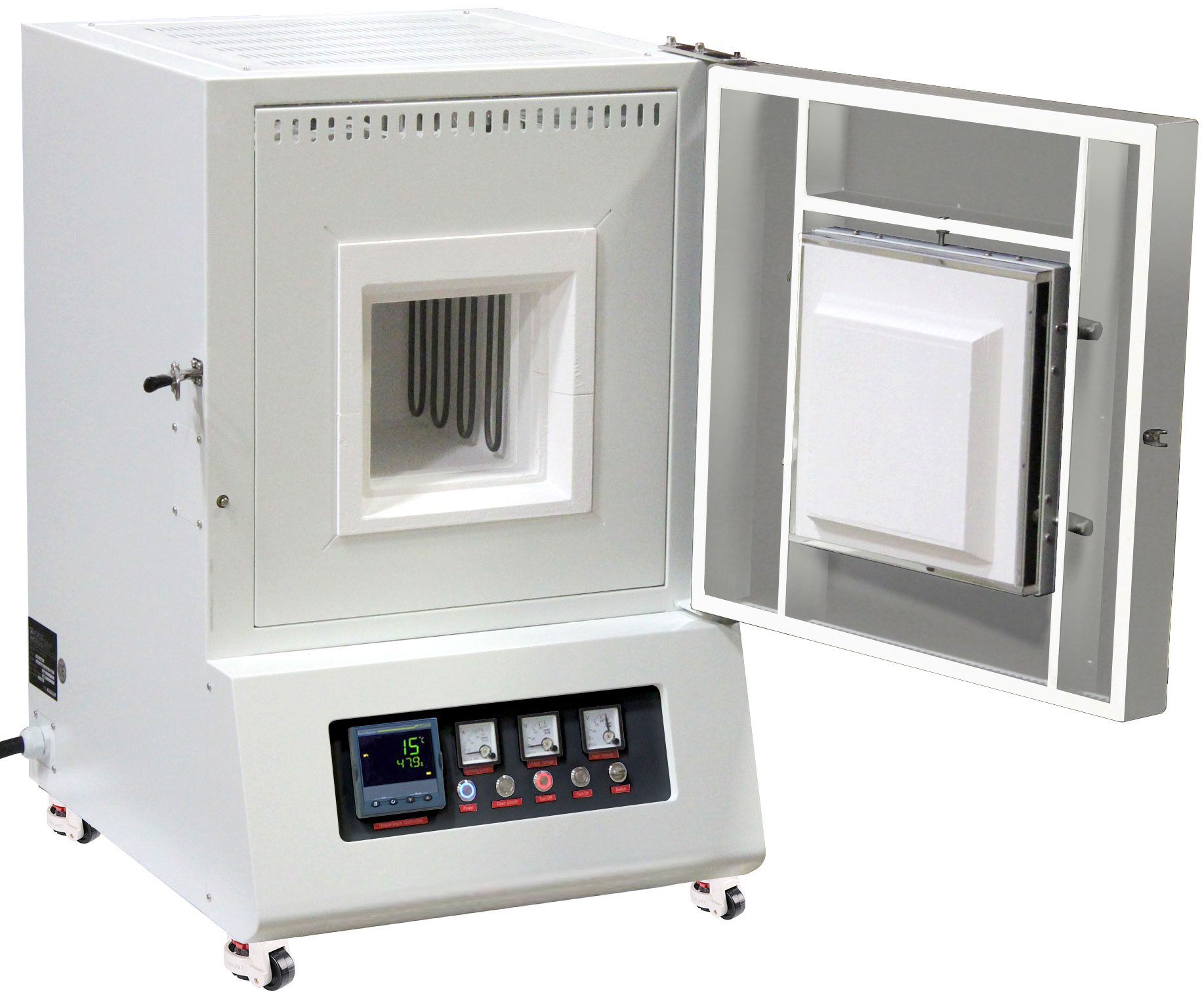

CF1200 series muffle furnaces feature the famous Kanthal (Sweden) spiral wire coils embedded in Mitsubishi (Japan) high quality alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Shimaden (Japan) 40-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

  • Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
  • Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
  • Built-in computer interface.
  • Long life type K thermocouple.
  • ETL and CE certified, standard

Safety

  • Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
  • Power failure protection resumes furnace operation right after the point of failure when power is reestablished.



Specifications

 Electrical requirements  208-240VAC, 50/60Hz, single phase
 Min. working temperature  Ambient
 Max. working temperature
 1200°C (2192°F)
 Max. constant working temperature  1100°C (2012°F)
 Refractory lining
 Mitsubishi (Japan) high quality 1500 grade fiber alumina
 Heating element type
 Kanthal (Sweden) A1 2.0 resistance coil wire
 Thermocouple type
 K
 Temperature controller
 Shimaden fp93 (Japan) with 4 patterns and 40 segments
 (ie. 4 x 10 segments or 2 x 20 segments)

 Max heating rate
 < 15°C (59°F) / min
 Temperature accuracy
 +/- 1°C
 Certification

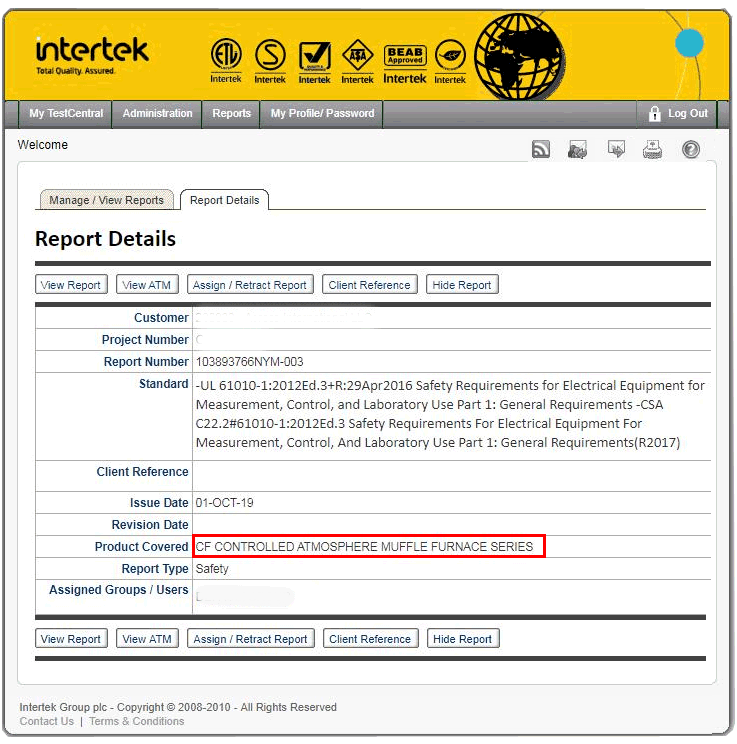

 ETL tested to UL and CSA standards, CE

 Download

 Product brochure


Size comparison

 Chamber size (DxWxH)
 12x8x8″  16x12x12″
 Usable chamber space (DxWxH)  10x7x7″  14x11x11″
 Chamber capacity (cu ft)  0.44  1.33
 Maximum output  4 kW  9 kW
 Furnace dimensions (LxWxH)  22x25x34″  26x29x39″
 Shipping dimensions (LxWxH)  27x32x42″  36x32x48″
 Unit/shipping weight (Lb)  400/420  250/270















How to Program Across International Furnaces

Standard Package


Part description




  Quantity



Part image


 CF1200 muffle furnace
 1 pc


 Type K thermocouple
 1 pc

 Stainless steel tongs
 1 pc

 Alumina thermal cushion block
 1 pc

 Thermal gloves  1 pair

 Spare fuse 2 pcs

 USB/RS485 computer interface kit  1 set

 Furnace operation manual  1 pc


 Shimaden fp93 temperature controller manual & software   1 pc
