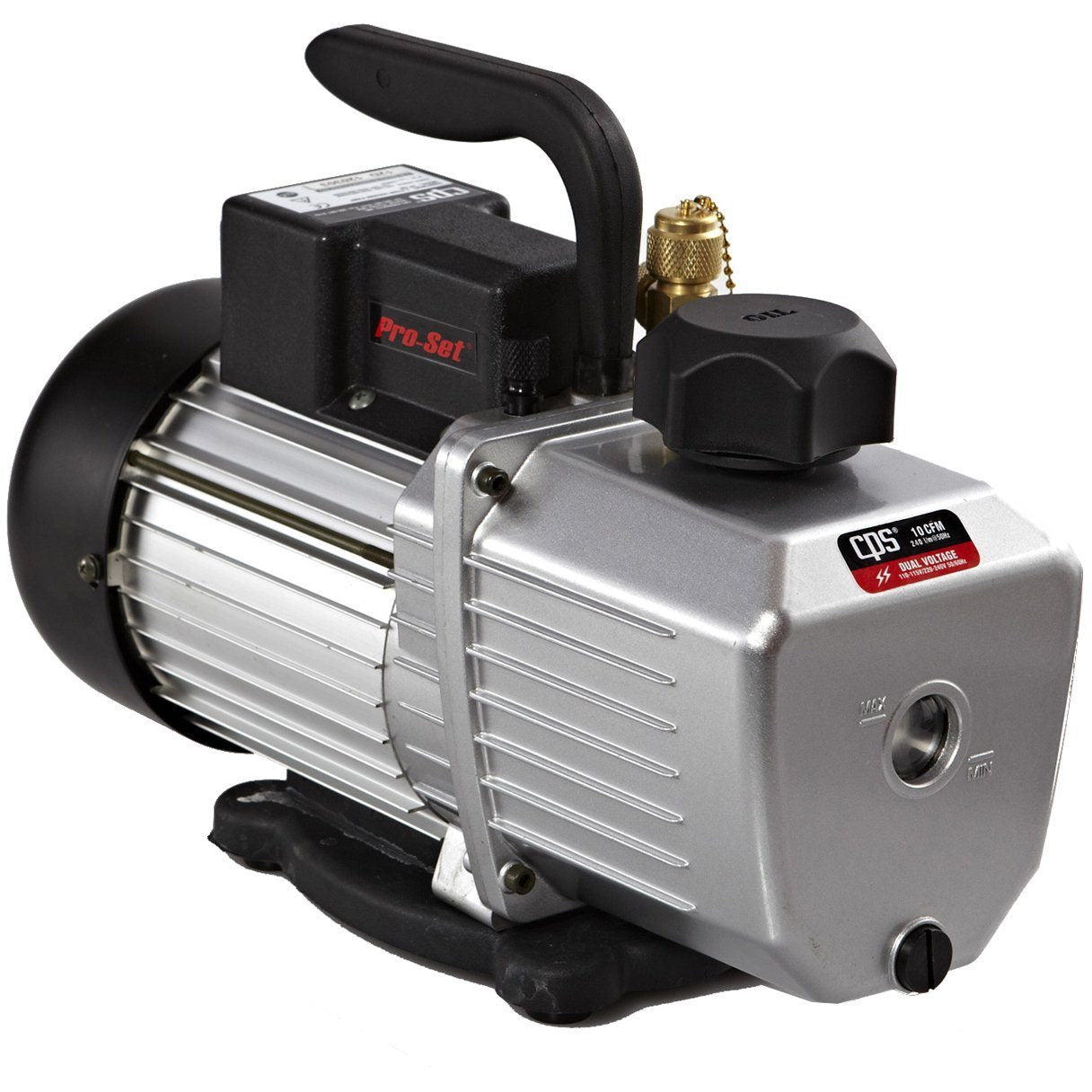

CPS 10CFM Two Stage Vacuum Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare


CPS 10CFM Two Stage Vacuum Pump

(Pump holds a 30-day limited warranty)


The VP10D Pro-Set® vacuum pump is a powerful 10 CFM, 2 stage unit with a versatile dual voltage 3/4HP motor. The unit boasts the same high quality, high value features engineered into all of our Pro-Set® Premium Series vacuum pumps providing performance excellence and years of reliable service.

Key Features:

30-Day Limited Warranty

  • Dual voltage operation 110-120V / 220V 50/60Hz
  • Exceptional ultimate vacuum rating as low as 10 microns
  • Advanced air cooled motor design for operation in high ambient temperatures
  • Proprietary oil mist free exhaust port cap for clean, safe job environment
  • Gas ballast valve speeds achievement of deep vacuum
  • Multiple port connections for ¼”, ⅜” and ½” ACME
  • Easy maintenance with large oil sight glass and fill port with easily accessible oil drain port.
  • Solid rubber base provides extreme shock resistance
  • Sure grip handle ergonomically designed for superior comfort and portability


    No. of Stages: 2
    Motor Size (HP) RPM @ 50/60Hz 3/4 (HP) 2880 / 3440
    Dimensions (Inches): 14.9 x 5.7 x 10.6
    Weight: 30.3 lb / 13.7kg
    Operating Temperature Range: 0˚C (32˚F) to 52˚C (125˚F)
    Power Source: 110-120V / 220V 50/60Hz
    Ultimate Vacuum: as low as 10 Microns
    Oil Capacity: 28 oz / 830 ml
    Construction Heavy Gauge Aluminum Chasis with hard rubber base and rubber lined steel handle
    Overload Protection: Motor Thermally Protected, Dual Voltage units have extra IEC fuse
    Control System: ON-OFF power switch
    Free Air Displacement: 10 CFM @ 60Hz, 240l/m @ 50Hz
    Intake Fittings: 1/4, 3/8 and 1/2 SAE
    Gas Ballast Valve: Yes
