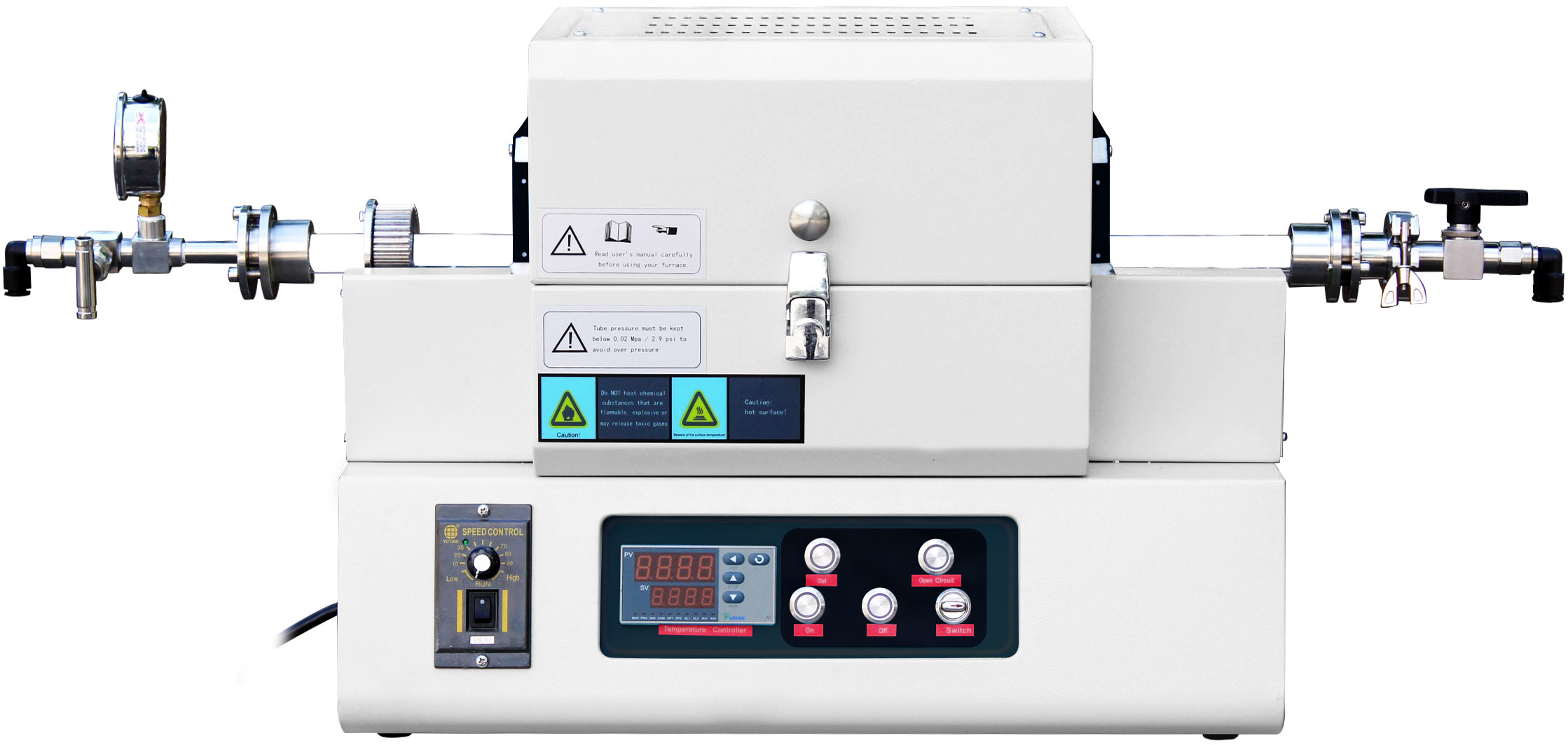

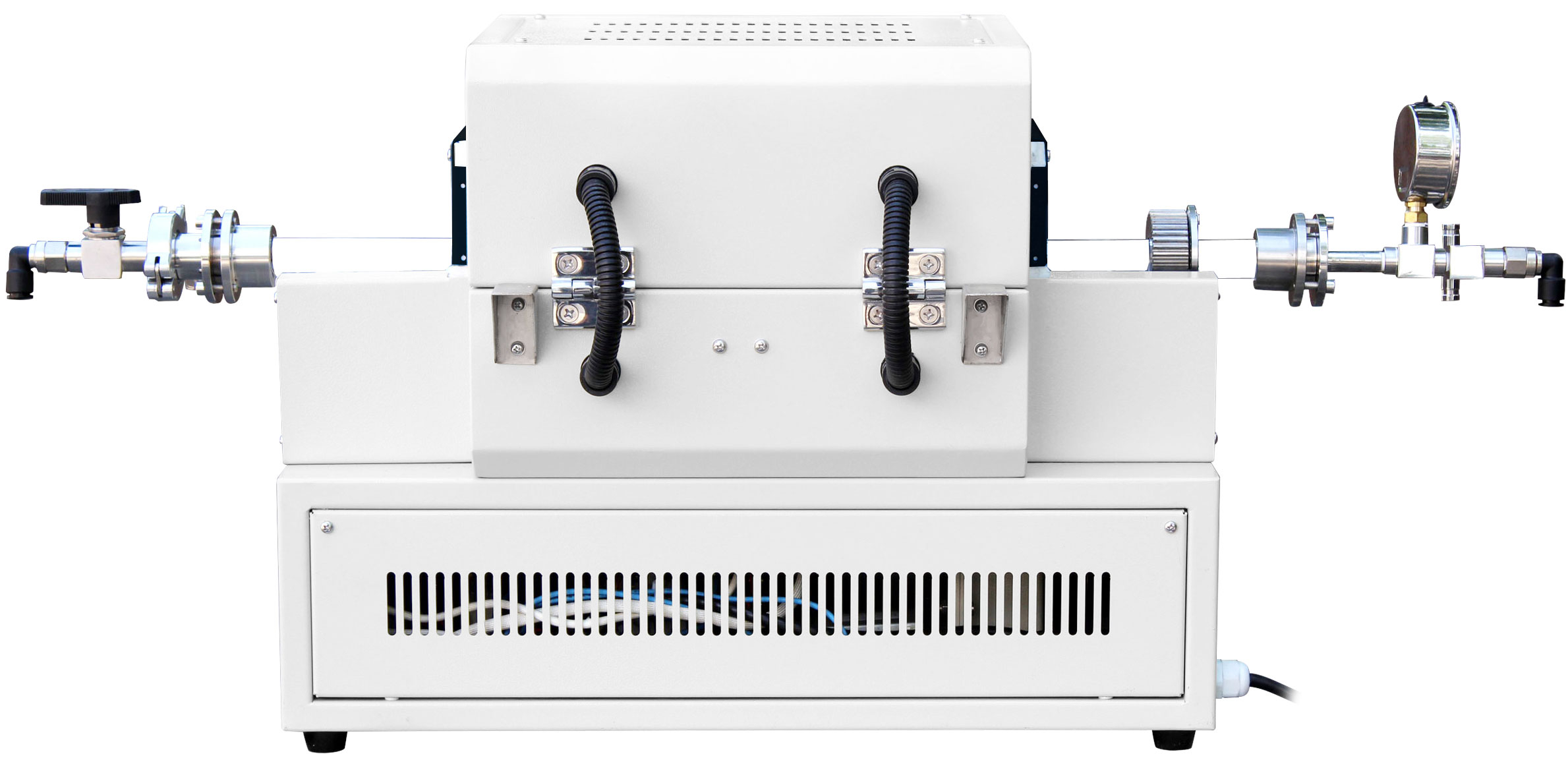

1200C 1-Zone 25mm OD Compact Rotary Top-Open Tube Furnace

STF1200 25mm OD compact top-open rotary tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a multi-segment digital controller.

Features

• Compact, portable and lightweight design.

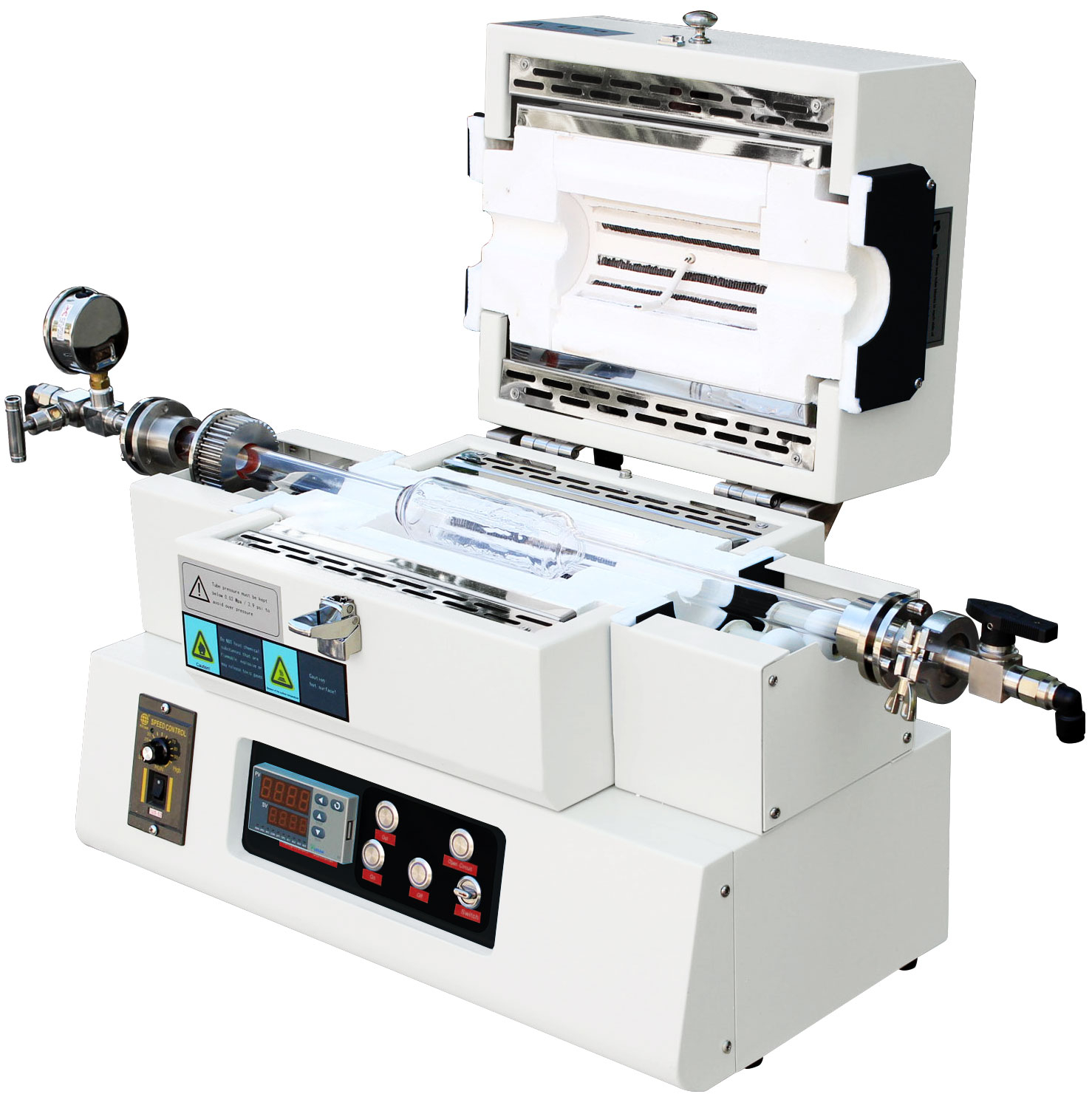

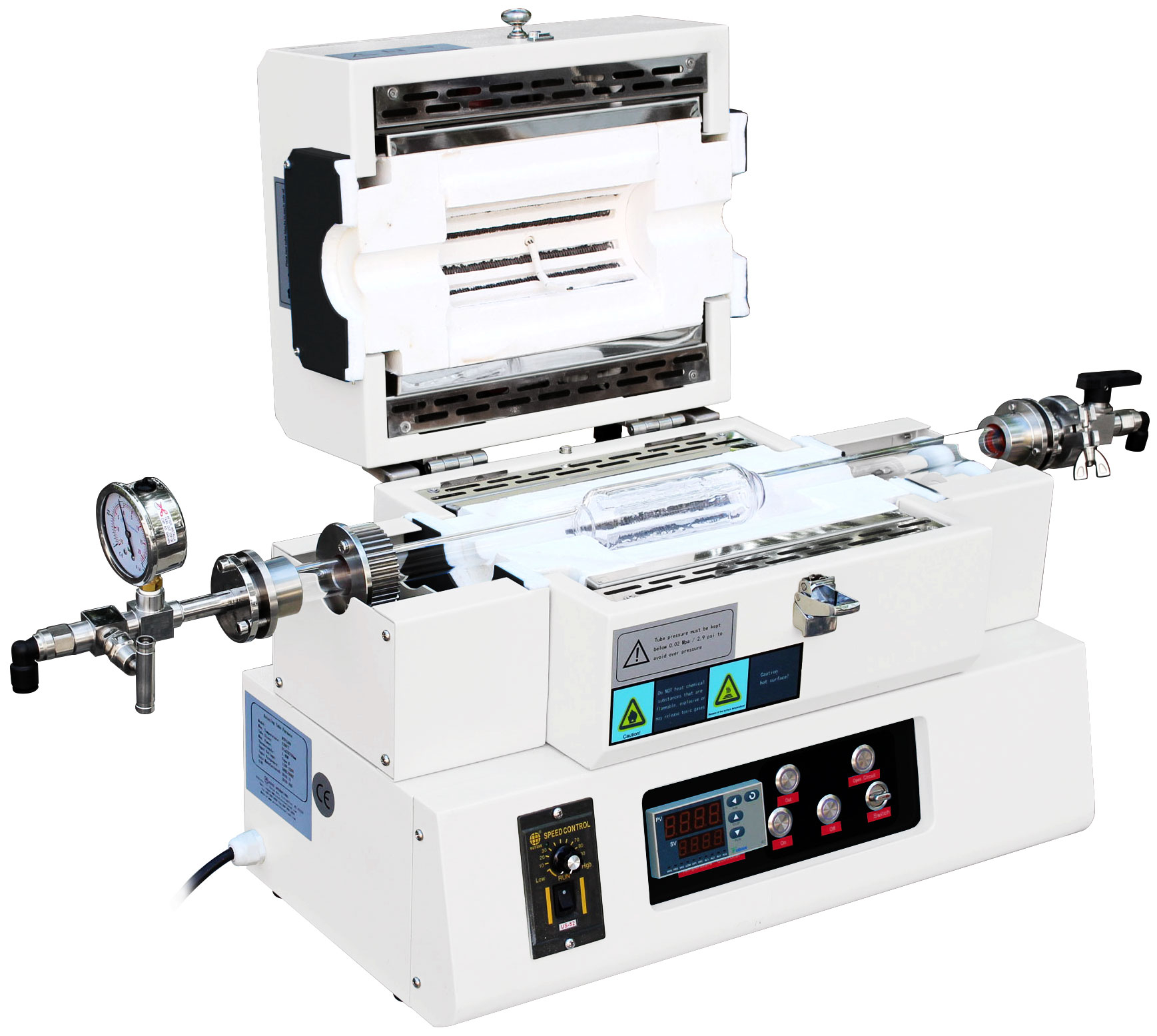

• Top-open furnace chamber for fast and easy tube access.
• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Long life type K thermocouple.


Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Limit switch turns off furnace once top is open


Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

Specifications

How to Install an Across International Tube Sealing Flange

Standard package

Part description	Quantity	Part image
STF1200 25mm OD top-open rotary tube furnace	1 pc
Quartz tube 25mm OD x 700mm L   * 2″ diameter x 5″ L in the center with baffle	1 pc
Stainless steel vacuum sealing flanges w/ pressure meter	1 set
Stainless steel hook	1 pc
Tube thermal block	4 pcs
Spare fuse	2 pcs
Thermal gloves	1 pair
Furnace operation manual	1 pc
