USA Lab 5LB Vulcan Rack Mounted Closed Loop Extractor
Original price was: $8,945.00.$8,495.00Current price is: $8,495.00.
***Solvent not included***
DISCLAIMER: This machine is intended for legal purposes only. It is only to be used in accordance with local laws. Please use this machine in well-ventilated areas.

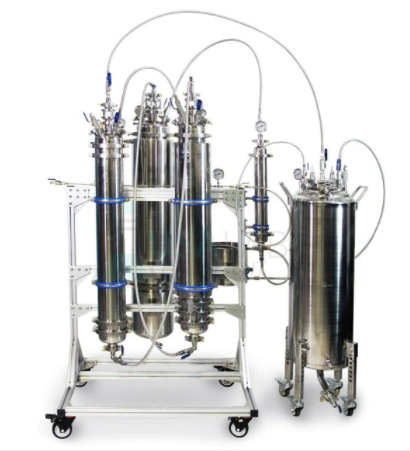

The 5lb Vulcan Closed Loop system comes mounted to a rack for ease of use and ultimate performance. The extractor comes fully upgraded with high quality superlok valves, borosilicate sight glasses, jacketed collection vessel, 100lb solvent tank on wheels, and a nitrogen manifold.
The Vulcan solvent starts in the jacketed 100lb solvent tank with an inner condensing coil, dip tube and drain (With optional cap). The solvent then heads into the 6”x36” extraction column with a filter plate on top for solvent disbursement, and a filter plate on bottom for material separation. The solvent now flows into the dewaxing column where dry ice can be inserted into the sleeve allowing fats in the solution to coagulate. Solution is then run through 2 filter plates and into the 8”x48” fully jacketed collection vessel. The jacketed collection vessel can then be heated to reclaim your solvent with ease. The solvent then enters through the 3”x18” molecular sieve and into the 10” jacketed rack mounted condensing coil. Once through the coil, the solvent is then reclaimed back into the 100lb solvent tank. Oil is then left at the bottom of your collection vessel which is very convenient to drain due to its hemispherical shape down to a ½” FPNT port.
Each vessel has hemi lids with sight glasses, and inlet sight glasses for ease of visuals and use. The Vulcan is equipped with high quality 1000psi at -65°F superlok valves that will always provide superior quality. Each vessel has a ¼” compression line attached with a ball valve connected to a ¼” compression manifold that can be connected to a nitrogen regulator for ease of nitrogen assisting.
No expense has been spared with our 5lb Vulcan system, providing a high quality rack mounted system with all the bells and whistles so you don’t have to think about or add them later.
Features:
- High polish 304 Stainless Steel
- Buna-n Gaskets
- 6”x36” Material column – ½” FNPT Inlet , ½” FNPT Drain
- 6”x36” Sleeved dewaxing column – ½” FNPT Inlet , ½” FPNT Drain, ½” FNPT Sleeved drain
- 8”x36” Jacketed column and 8”x12” Jacketed Hemi reducer to ½” FNPT (Total 8”x48”) – ½” FNPT Inlet, ½” FNPT Drain, ½” FNPT to Sieve
- 3”x18” Molecular Sieve ½” FNPT
- 10”x10” Rack Mounted Condensing Coil – ¼” FNPT
- 100lb Jacketed Solvent Tank with Sight Glasses
- Compression ¼” Nitrogen Manifold
- High pressure clamps
- Borosilicate inlet sight glasses and lid sight glasses
5LBVULCAN PACKING LIST |
|
USA Lab Rack System with Wheels |
1 pc |
USA Lab 100Lb Jacketed Solvent tank w/ Drain and Wheels |
1 pc |
6″x36″ Spool |
1 pc |
6″x36″ Sleeved Spool |
1 pc |
8″x36″ Jacketed Spool with 1/2″ FNPT |
1 pc |
8″x12″ Jacketed Hemi reducer to 1/2″ FNPT |
1 pc |
3″x18″ Spool |
1 pc |
6″ Hemi Lid with 3x 1.5″TC, 2x 1/2″ FNPT, 2x 1/4″ FNPT |
2 pcs |
8″ Hemi Lid with 2x 1.5″TC, 1x 2″TC, 2x 1/2″ FNPT, 2x 1/4″ FNPT |
1 pc |
6″ Filter plate (3pcs with 150 Mesh and Ring) |
4 pcs |
3″ to 1.5″ TC Hemi Reducer |
2 pcs |
6″ x 2″ TC Hemi Reducer |
1 pc |
1.5″ TC to 1/2″ FNPT End Cap |
5 pcs |
2″ TC to 1/2″ FNPT End Cap |
3 pcs |
1.5″ Buna-N Gasket |
8 pcs |
2″ Buna-N Gasket |
4 pcs |
3″ Buna-N 2500Mesh Gasket |
2 pcs |
6″ Buna-N Gasket |
8 pcs |
8″ Buna-N Gasket |
2 pcs |
1.5″ High Pressure TC Clamp |
14 pcs |
2″ High Pressure TC Clamp |
4 pcs |
3″ High Pressure TC Clamp |
2 pcs |
6″ High pressure TC Clamp |
8 pcs |
8″ High Pressure TC Clamp |
2 pcs |
3″ Rack Side Mount Clamp |
2 pcs |
6″ Rack Mount Clamp |
2 pcs |
8″ Rack Mount Clamp |
2 pcs |
10″ Rack Mount Clamp |
4 pcs |
1/4″ MNPT Gauge |
4 pcs |
1/4″ MNPT Back Mount Gauge |
1 pc |
1.5″ TC Borosilicate Sight Glasses |
6 pcs |
1.5″ TC Short Sight Glass |
2 pcs |
2″ TC Short Sight Glass |
1 pc |
1/4″ Superlok 1000psi -65°F Ball Valves |
3 pcs |
1/2″ Superlok 1000psi -65°F Ball Valves |
17pcs |
1/4″ MNPT Nipple |
2 pcs |
1/4″ MNPT to 1/4″ FNPT 90° |
1 pc |
1/4″ MNPT to 3/8″ Barb |
1 pc |
1/4″ MNPT to 1/4″ MJIC |
3 pcs |
1/2″ MNPT Nipple |
11 pcs |
1/2″ MNPT 90° |
6 pcs |
1/2″ MNPT to 1/2″ MJIC |
16 pcs |
1/2″ MNPT to 1/2″ Barb |
10 pcs |
1/4″ MNPT to 1/2″ MJIC |
2 pcs |
1/2″ MNPT to 1/4″ FNPT Bushing |
2 pcs |
1/2″ FNPT 3 Way |
1 pc |
1.5″ TC by 12″ 90° Bend for solvent tank |
1 pc |
1.5″ TC end cap for solvent tank |
1 pc |
1/4″ Compression Gauge |
1 pc |
1/4″ Compression 3-way |
4 pcs |
1/4″ Compression Valve |
3 pcs |
1/4″ Compression to 1/4″ MNPT |
5 pcs |
1/4″ JIC Line 48″ |
1 pc |
1/2″ JIC Line 24″ |
2 pcs |
1/2″ JIC Line 48″ |
1 pc |
1/2″ JIC Line 72″ |
4 pcs |
Specification: USA Lab 5LB Vulcan Rack Mounted Closed Loop Extractor
Weight | 1000 lbs |
---|
