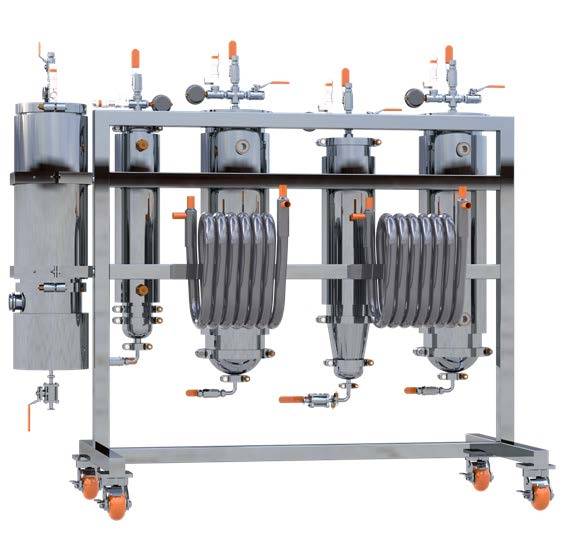

5.HX is a closed-loop, passive recovery hydrocarbon extractor capable of processing up to 10 lbs . per hour. The 6” x 24”pressure-rated material column and jacketed solvent vessel can be cooled using traditional chillers , CO2 or liquid nitrogen. System features in-line CRC with 30 lbs. stainless steel jacketed surge tank. Tube-in-tube condenser with molecular sieves for fresh biomass processing. All Decimal systems are constructed using the highest quality materials available, resulting in the industry’s only Lifetime Warranty.
Process up to 80lbs. of biomass in 8 hours
• Fully jacketed material column and solvent vessel
• In-line CRC column with 30 lbs. surge tank
• Solvent recovery up to 1 lbs./min.
• Built-in molecular sieves for moisture removal
• Secondary access ports allow for distillation
of solvents, rapid depressurization in case of
emergency, and continuous flow processing
• Integrated solvent vessel load sensors eliminate
need for C1D1 scale
• Internal temperature
probes and C1D1 gauges
enable precise temp
monitoring and control
• On-site training and
installation included
• Peer reviewed, 50
state compliant, C1D1
compliant, ASME certified
Jacketed Material Column
6”x 24” 5 lbs. capacity,
(incl. valves, sight glasses, PRVs, and gauges) Jacketed Solvent Tank
25 lbs. (butane) rated at 80% capacity per ASME (incl.
valve, sight glass, PRV, gauge, thermocouple sensor), 25L
total volume Jacketed Surge Tank
30 lbs. capacity (incl. valve, sight glass, PRV), 25L total
volume Solvent Recovery
Up to 1 lbs./min. tube in tube exchanger, molecular sieves CRC
4″ x 24″ column (valves, sights glasses,
PRVs, gauges) Tubing
PTFE/SS feed hosing (UL-21 compliant)
Dimensions (approx.) 30”W x 78”L x 62”H Working Area 17 sq. ft. Vacuum Welch CRVPro 4 Explosion Proof Warranty** Lifetime Warranty against pitting or corrosion. Gauges, gaskets, valves 1 Year
Solvents Butane, Propane, Isobutane Recovery Method Passive Per Hour Processing 10 lbs. Cycle Time Approx. 30 minutes (Note: Runtimes vary according to factors such as solvent blend, operating temps, solvent to material ratio, other factors) Capacity Approx. 80 lbs. per 8 hour shift Solvent Recovery Rate 1 lbs. per minute Peer Reviewed Pressure Safety Inspectors Certifications Meets or exceeds all industry listed standards for: ASME Section VIII, GMP, IFC 3904.4, NFPA 1: 38.6.1.5.6.1, 3-A Sanitary Standard, Class 1 Division 1, NSF and UL21. C1D1
