40.HX

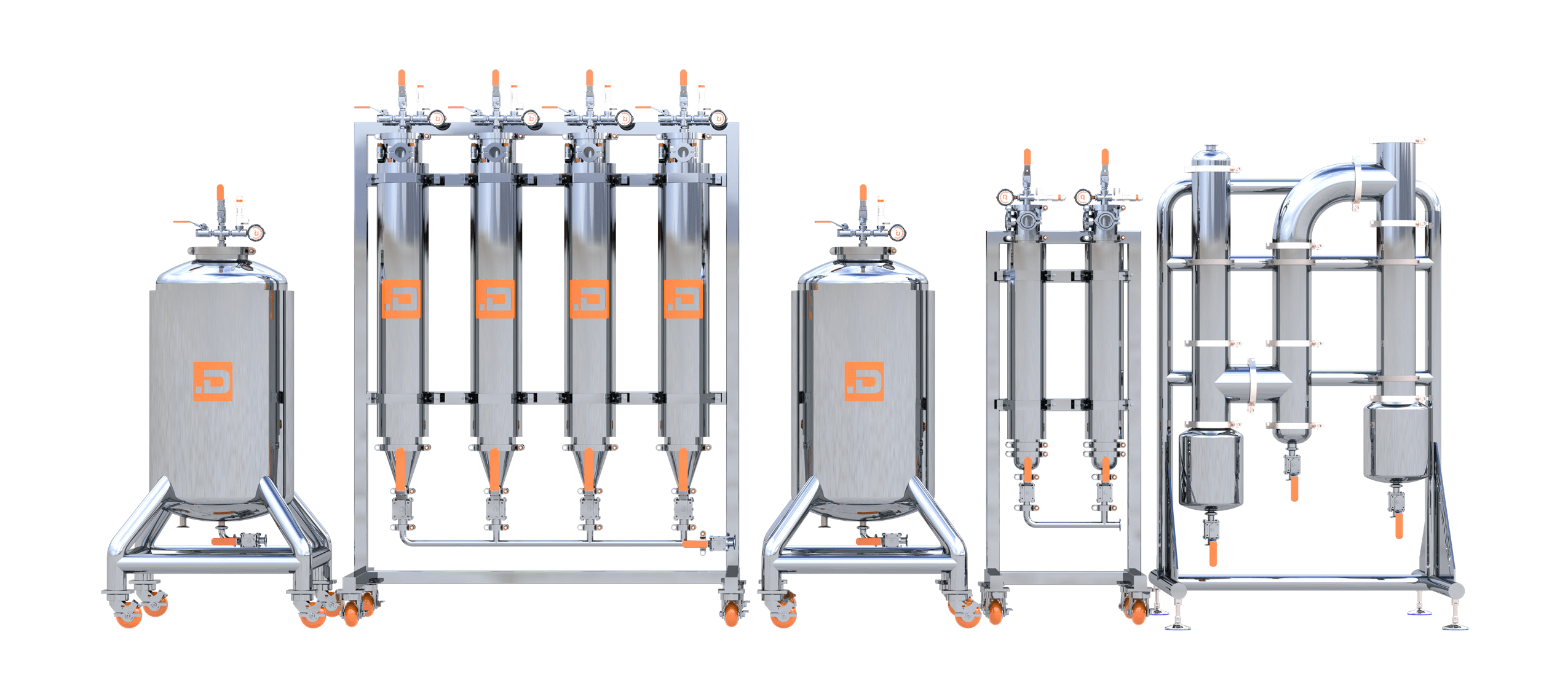

40.HX is a closed-loop, passive recovery hydrocarbon extractor capable of processing up to 80 lbs . per hour. Four 6” x 48” pressure-rated material columns and jacketed solvent vessel can be cooled using traditional chillers, CO2, or liquid nitrogen. System features in-line CRC with 150 lbs. stainless steel jacketed surge tank. Tube-in-shell falling film recovery system with molecular sieves for fresh biomass processing. All Decimal systems are constructed using the highest quality materials available, resulting in the industry’s only Lifetime Warranty.

Process up to 1,900 lbs. biomass in 24 hrs.
• Fully jacketed material column and solvent vessel
• In-Line CRC with 150 lbs. surge tank
• Built-in molecular sieves for moisture removal
• Secondary access ports allow for distillation of solvents, rapid depressurization in case of emergency, and continuous flow processing
• Integrated solvent vessel load sensors eliminate need for C1D1 scale
• Internal temperature probes and C1D1 gauges enable precise temp monitoring and control
• On-site training and installation included
• Peer reviewed, 50 state compliant, C1D1 compliant, ASME certified

Jacketed Material Column
(4) 6”x48”, approx. 10 lbs. capacity ea., (incl. valves, sight glasses, PRVs, gauges and thermocouples)
Jacketed Solvent Tank
150 lbs. (butane) rated at 80% capacity per ASME (incl. valves, sight glasses, PRV, gauge, temp coil, thermocouple sensor), 160 L total volume
Jacketed Surge Tank
150 lbs. capacity (incl. valves, sight glass, PRVs and gauges), 70 L total volume
Falling Film Recovery
4-5 lbs./min. tube in shell, molecular sieves
CRC
(2)4″ x 32″ column (valves, sights glasses, PRVs, gauges)
Tubing
PTFE/SS feed hosing (UL-21 compliant)

Dimensions (approx.) 15’ L x 5.5’ W x 7.5’ H
Working Area 140 sq. ft.
Vacuum Welch CRVPro 16 Explosion Proof
Warranty** Lifetime Warranty against pitting or corrosion. Gauges, gaskets, valves 1 Year

Solvents Butane, Propane, Isobutane
Recovery Method Passive
Per Hour Processing Approx 80 lbs.
Cycle Time Approx. 30 minutes (Note: Runtimes vary according to factors such as solvent blend, operating temps, solvent to material ratio, other factors)
Capacity Approx. 640 lbs. per 8 hour shift
Solvent Recovery Rate 4-5 lbs. per minute
Peer Reviewed Pressure Safety Inspectors
Certifications Meets or exceeds all industry listed standards for: ASME Section VIII, GMP, IFC 3904.4, NFPA 1: 38.6.1.5.6.1, 3-A Sanitary Standard, Class 1 Division 1, NSF and UL21. C1D1
