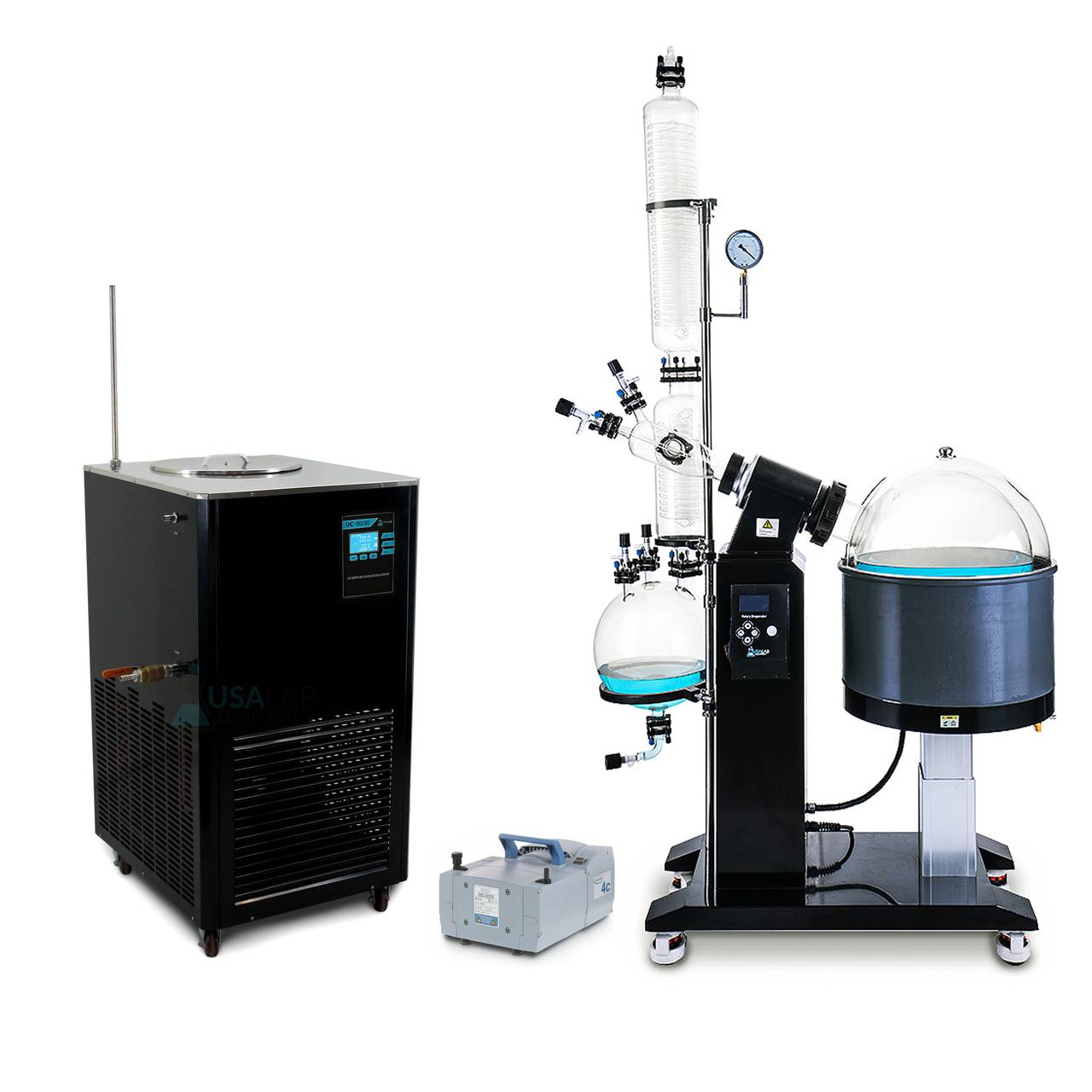

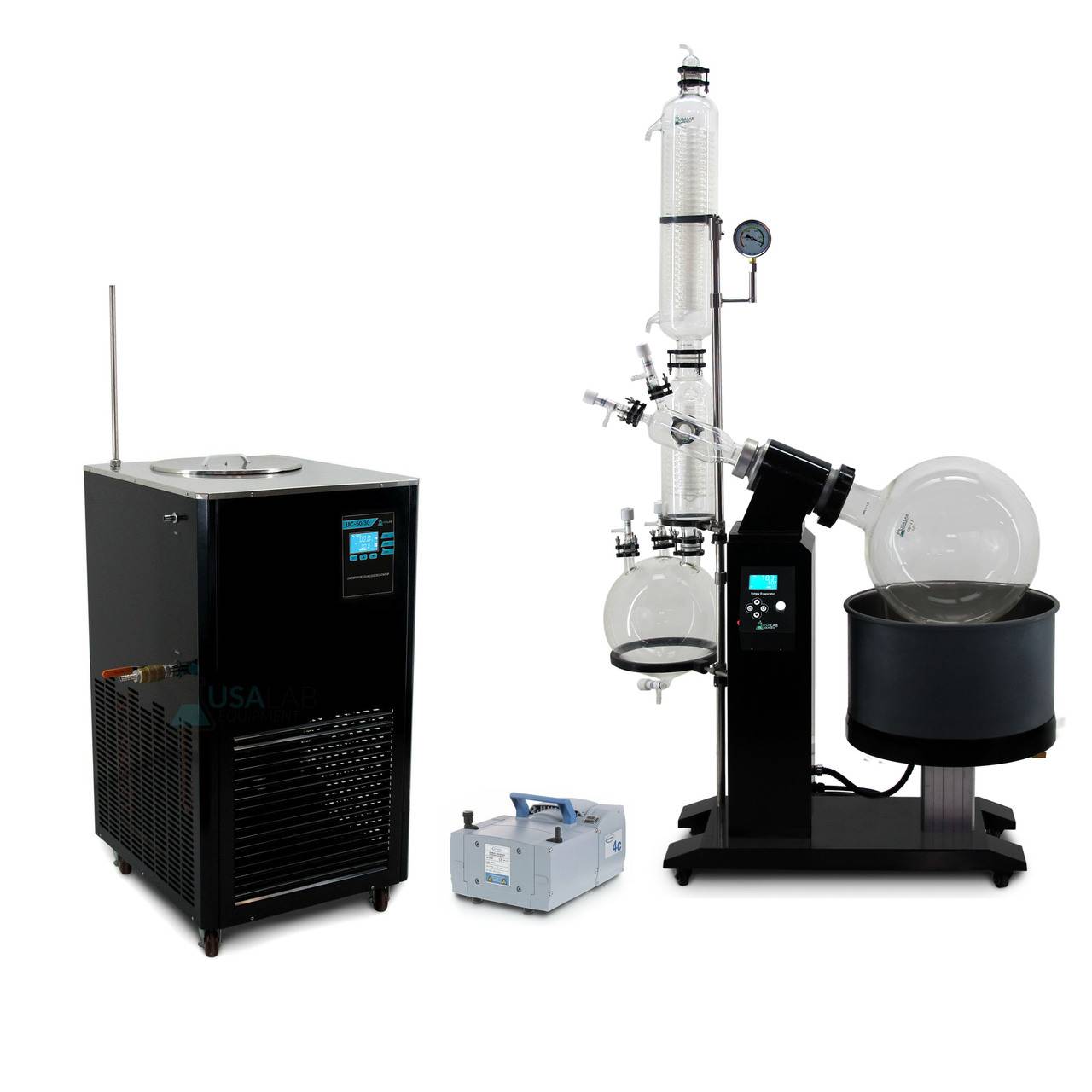

USA Lab 50L Rotary Evaporator Turnkey Rotovap RE-1050 w/ Vacuubrand MD 4C NT

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Warranty: 1 Year (Does Not Included Glassware)

$15,899.00$17,899.00

SKU: Rotary-Evaporator-Turnkey Category: Brand:
The USA Lab 50L RE-1050 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.

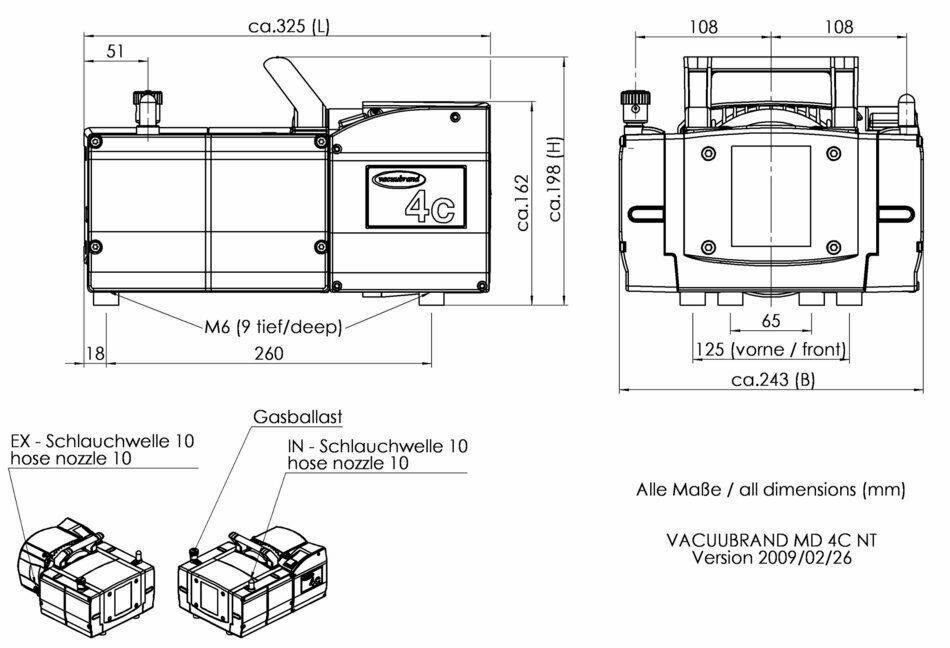

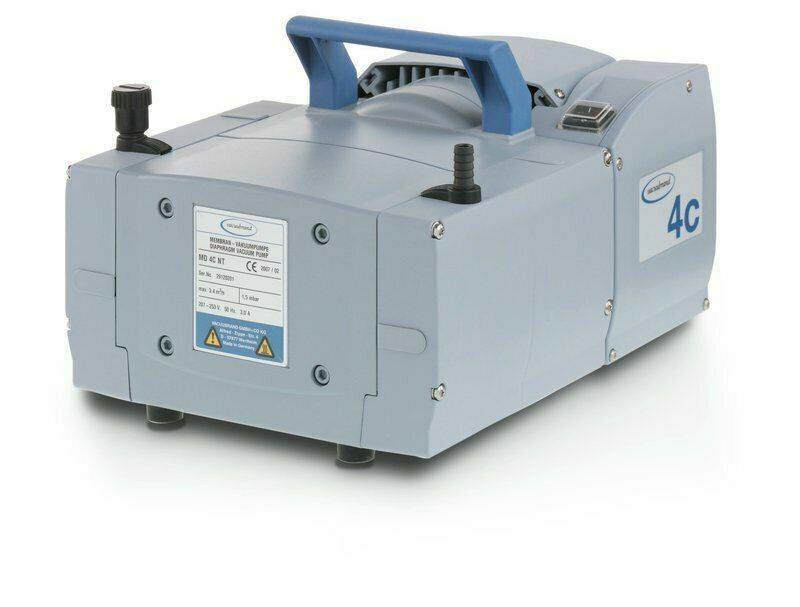

The RE-1050 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum. This kit includes a Vacuubrand MD 4C NT 2.2CFM Diaphragm Pump that is rated for 15,000 Hours of use before maintenance. This pump is made from the highest quality parts and will work great with a USA Lab 2L rotary evaporator system.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer servicelocal product support and a 1 year warranty.



RE-1050 Specifications

Glass Material: GG-17 Borosilicate Glass

Evaporation Flask Capacity: 50L

Collection Flask Capacity: 20L

Rotary Speed: 20-120RPM

Bath Temperature Range: Room Temp to 180°C /356°F

Lifting Mechanism: Electric

Power Requirements: 220-240V 60Hz 30A Single Phase L6-30P Plug Installed

Temperature Control Accuracy: +/-1°C

Motor Wattage: 250W

Heater BTUs: 22,000BTU

Achievable Vacuum: 399.9Pa

Evaporating Capability: Water≥7L/H; Alcohol≥15L/H

Water Bath Volume: 77L (require about 15 gallons)

Dimensions: 52″L x 30″W x 84″H

Condensing Glass Volume: Main: 0.91㎡ ; Auxiliary: 0.52㎡

Speed Regulation: Digital Step-Less

Vacuum Barb: 13.3mm

Condenser Barb: 15.5mm



UC-50/30 SPECIFICATIONS

Model

UC-5030

Reservoir Capacity

50L

Reservoir Dimensions

17.8″ x 13.7″

Temperature Range

Room Temperature to -30°C / -22°F

Power Requirements

220-240V 60Hz 20A 1800W Single Phase

Refrigerating BTUs

12,000BTU – 25,500BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Pump Pressure

2.2bar

Barb Size

5/8″

Refrigerant

R404

Dimensions

31″ x 26″ x 46″

Weight

174lbs



UC-5030 Packing List

USA Lab UC-5030 Chiller



Specification: USA Lab 50L Rotary Evaporator Turnkey Rotovap RE-1050 w/ Vacuubrand MD 4C NT

ETL to UL and CSA

No, Yes
