BVV™ 6CFM Dual Stage Spark Free Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$250.00

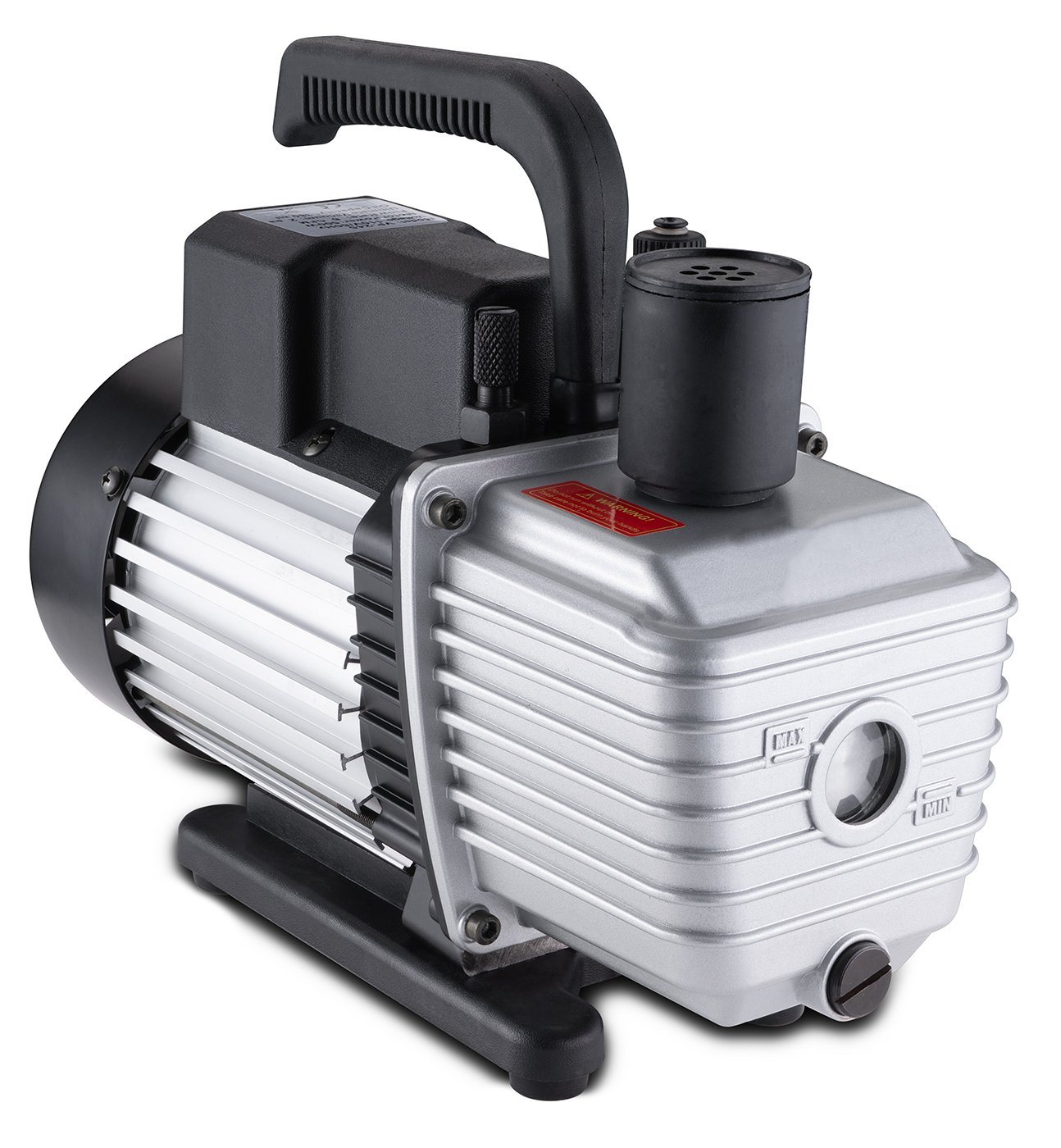

BVV™ 6CFM Dual Stage Spark Free Pump



 This is the brand new BVV™ 6CFM Dual Stage Spark Free Pump. It is is a reliable and efficient pump that is designed for use in hazardous locations without the risk of ignition.

Please Refer to these charts for vacuum specifications at altitude and conversions:





Key Features:

  • Spark Free Operation
  • 1/4″ and 3/8″ Flared connections.
  • Internal Check Valve
  • Oil Mist Filter Cap
  • Larger Oil Reservoir for longer Oil life
  • Lightweight
  • Rubber Feet for noise dampening
  • Reliable, Economical and Efficient.



Specifications
No. of Stages: 2
Free Air Dispalcement – (CFM) 6CFM
Voltage 110v / 60Hz
Ultimate Vacuum 15 Micron
Motor Speed 2880 rpm
Free Air Displacement: 6 CFM @ 60 Hz
Oil Capacity 530ml
Weight 22.5LB
Intake Connection 1/4″ SAE, 3/8″ SAE



Pump Warranty Information:

  • Customers using solvents such as stabilization resins (MinWax™, Gator Venom™ etc.), alcohol and other polar solvents must use the vacuum pumps in conjunction with a cold trap for evacuations in excess of 5 minutes. (Excludes Cactus Juice™)
  • If the consumer is using the pump for prolonged periods of time exceeding 5 minutes we require that a cold trap is used or the pump warranty is void.
  • These stabilization resins have the ability to break down the internal components of the pump that are plastic resulting in a seized motor voiding all warranties.
  • When evacuation exceeds 5 minutes these solvents begin to vaporize and then re-condense in the vacuum pump reservoir. Once enough solvent re-condenses in the pump displacing the oil the plastic internal components may begin to warp, melt or seize. The use of a cold trap will condense the vapors prior to making their way to the vacuum pump preventing pump damage due to excessive use. Furthermore, Minwax Wood Hardener™ is not to be used with any vacuum pumps, EVER. (A seized motor will result within the first use.)
  • To prevent these issues from happening to your process, change the Oil after each vacuum pump use, Even if the use time is only 5min.
