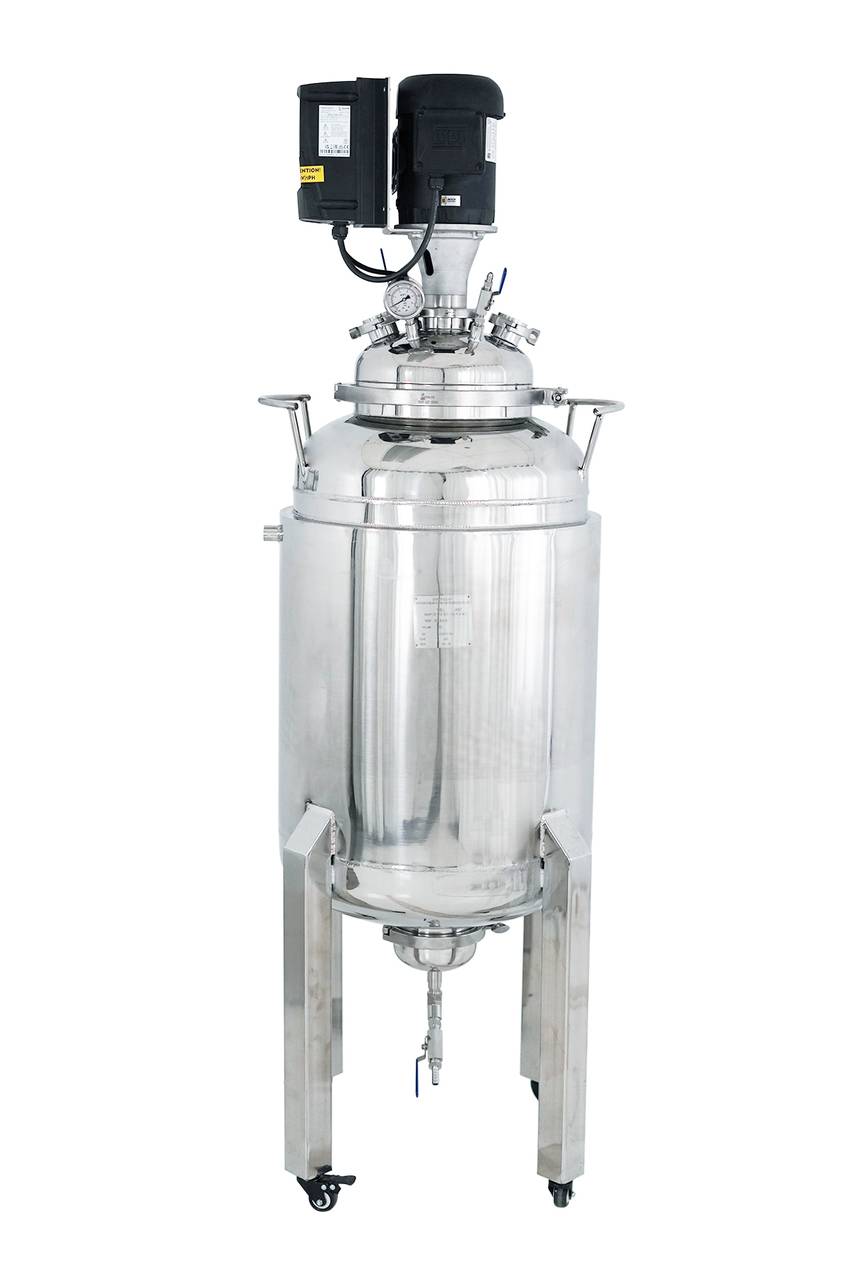

USA Lab 150L Storage Vessel W/ Tri-Clamp Mixing Motor

S-150L-SV Specifications

Material

304 Stainless Steel

Jacket Connections

1/2″ FNPT

Top Tri-Clamp Connection

12″ Tri-Clamp

Bottom Tri-Clamp Connection

6″ Tri-Clamp

Jacket Capacity

25.6L

Tank Capacity

150L

Shell PSI Rating

150 PSI @ 100°C
150 PSI @ -80°C

Jacket PSI Rating

14.5 PSI @ 100°C

*NOTE* Top Connection is 12″ Tri-Clamp. Our 12″ High Pressure Tri-Clamps are pressure rated to
150 PSI @ 70°F | 100 PSI @ 250°F

Weight

150lbs

Caster Weight Limit

440lbs per wheel
(1760lbs total)

Diameter – Outer Legs

26.5″

Diameter – Outer Tank

22″

Diameter – Inner Tank

19.5″

Height – Total

55″

Height – Tri-Clamp to Tri-Clamp

37.5″

Height – Inner Vessel

34″

Height – 6″ Tri-Clamp to Floor

17″

Mixing Motor Specifications

Horse Power

0.5

Impeller Diameter

4″ (2 included)

Power Requirements

110-120V 50-60Hz 15A

Motor

1/2 HP, TEFC, IP55

RPM:

350-1750

Mount Connection

3″ Tri-Clamp

Bearing

SS, Carbon Steel Coupler

Seal

FDA Lip Seal, Duralast 4331 Seal w/ Duraloy 5163 Case, Max 3PSI Continuous

Shaft

.625″ Diameter x 32″ Exposed – 316SS, No Polish

Impeller

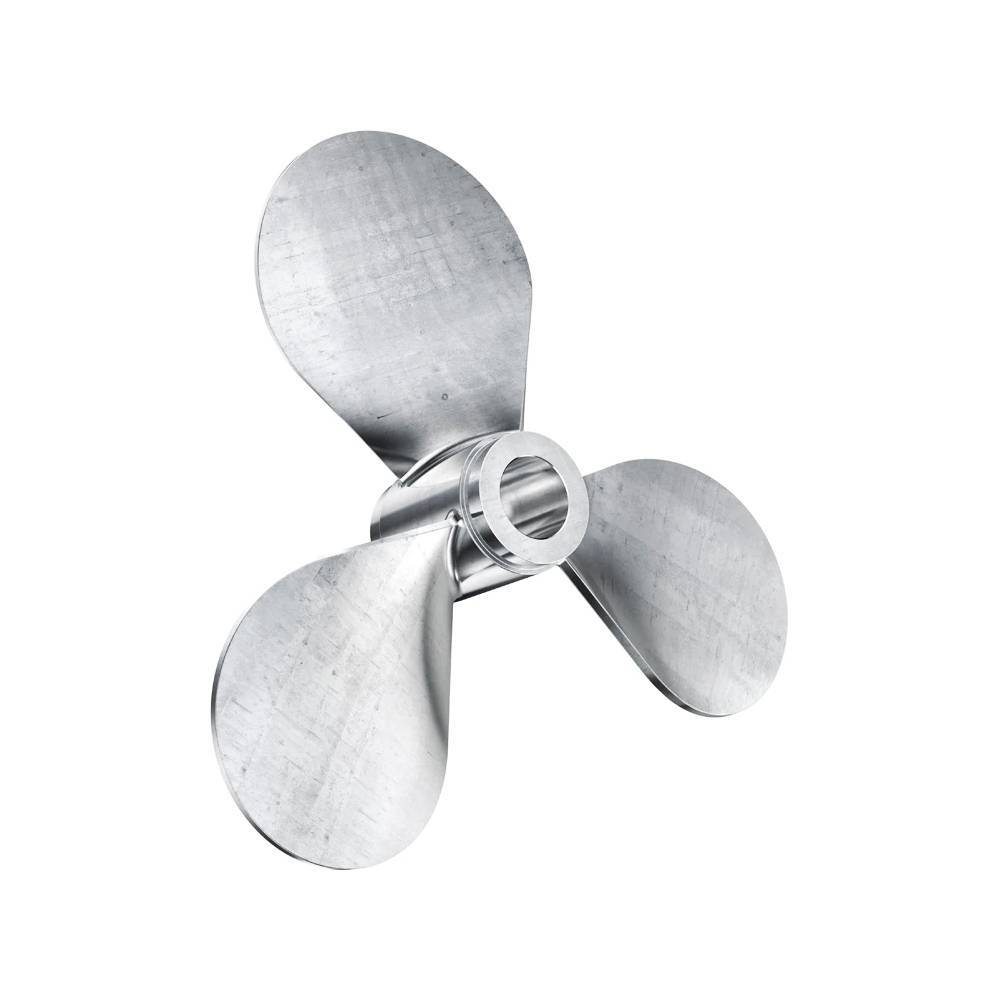

(2) 4″ Marine Propeller, 3 Blades, Low Shear, 316SS, Set Screw

S-150L-SV-MIX Packing List

USA Lab 150L Storage Vessel

1

12″ Hemispherical Lid 2x 2″ Tri-Clamp 1x 3″ Tri-Clamp 2x 1/4″ FNPT 2x 1/2″ FNPT

1

USA Made 1/2 HP Variable Speed Electric Direct Drive 3″ Tri-Clamp Mount Mixer 1750RPM – 250PSI and Ultimate Vacuum

1

Standard Pressure Tri-Clamp – 6″

1

Standard Pressure Tri-Clamp – 3″

1

Standard Pressure Tri-Clamp – 2″

2

Standard Pressure Tri-Clamp – 12″

1

Buna-N Gasket – 3″

1

Buna-N Gasket – 12″

1

Buna-N Gasket – 6″

1

Meta Sight Glass – 2″

2

USA Lab Glycerin Compound Gauge- 1/4″ NPT

1

1/2″ to 1/2″ NPT Union

2

1/4″ to 1/4″ NPT Union

1

1/2″ to 1/2″ NPT Male to Female 45 Degree Elbow

1

1/2″ Plug

1

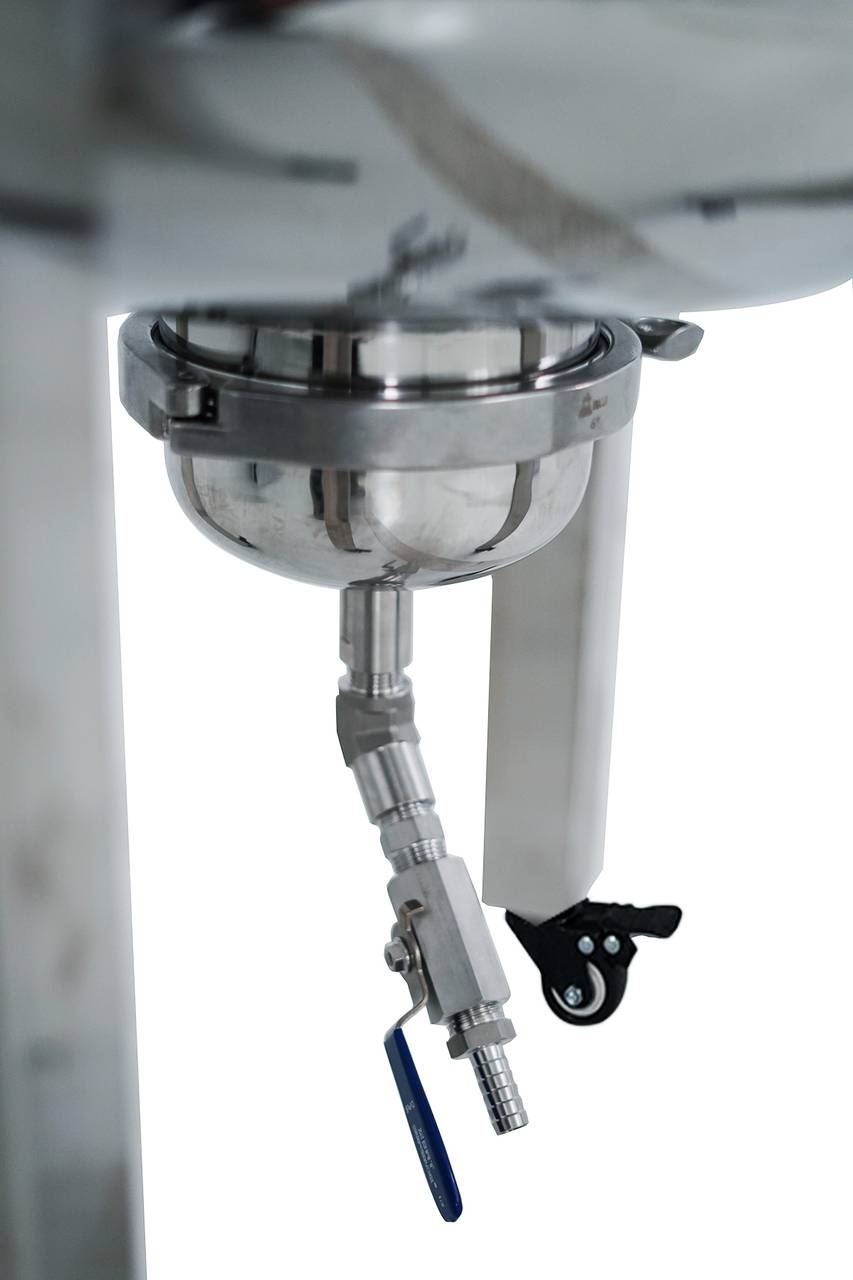

Hemispherical Reducer – Tri Clamp 6″ to 1/2 FNPT

1

Superlok FNPT 210 Series Ball Valve – 1/4″

1

Superlok FNPT 210 Series Ball Valve – 1/2″

2

MNPT To MJIC Adapter – 1/4″ X 1/4″

1

MNPT To Barb Adapter – 1/2″ Barb x 1/2″ MNPT

2
