Sale!

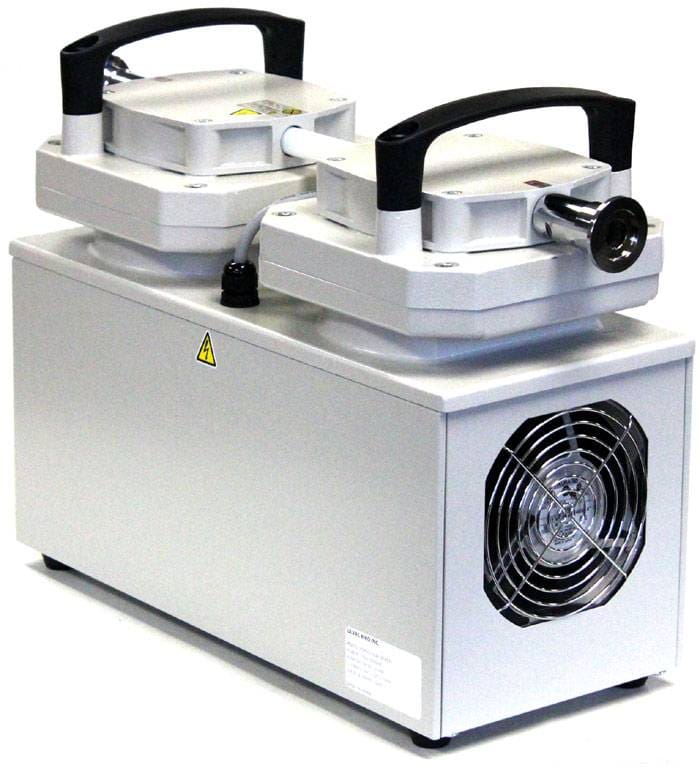

ULVAC UDP-6 6 cfm Full Chemical-Resistant 2-Head Diaphragm Pump

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$3,975.00

SKU: UDP-6 Categories: ,

Compact, lightweight, manufactured and imported directly from Japan, ULVAC UDP-6 is a high capacity full chemical-resistant 2-head pump that creates deep vacuum by reciprocate movement of rubber diaphragms. These pumps are oil-free, which means less maintenance and no more frequent and costly oil change, or cross contamination.

Applications

  • UL/CSA listed
  • Moisture & solvent evaporation
  • Vacuum chucks, wafer and tip handling devices
  • Vacuum tweezers, medical appliances
  • Printing equipment
  • Automatic packing machines
  • Optical appliances
  • Semiconductor industry




Specifications

 Model  ULVAC UDP-6 (DA-170DA)
 Electrical requirements
 110V 50/60Hz or 220V 50/60Hz single phase
 400 watts, 5.6 amp rated current
 Pumping rate
 6 cfm
 Ultimate vacuum level
 6 torr
 Inlet/Outlet
 KF25 flange
 Adjustable vac./gas ballast  No
 Unit/shipping dimensions (LxWxH)
 16 x 7 x 13″ / 18 x 11 x 14.5″
 Noise level  110 dB(A) at atmosphere
 Unit/shipping weight
 58 Lb / 63 Lb
 Working environment  32°F to 104°F (0°C to 40°C)
 Compliance  UL, CSA





History of ULVAC





Standard package



 Part description

 Quantity

Part image

 ULVAC UDP-6 6 cfm oil-free diaphragm pump
1 pc

 KF25 wing nut flange quick clamp
1 pc

 KF25 flange centering ring
 1 pc

 110V stardard 3-prong US power cord
1 pc
 User’s manual in a CD
1 pc



Specification: ULVAC UDP-6 6 cfm Full Chemical-Resistant 2-Head Diaphragm Pump

Weight 63 lbs
