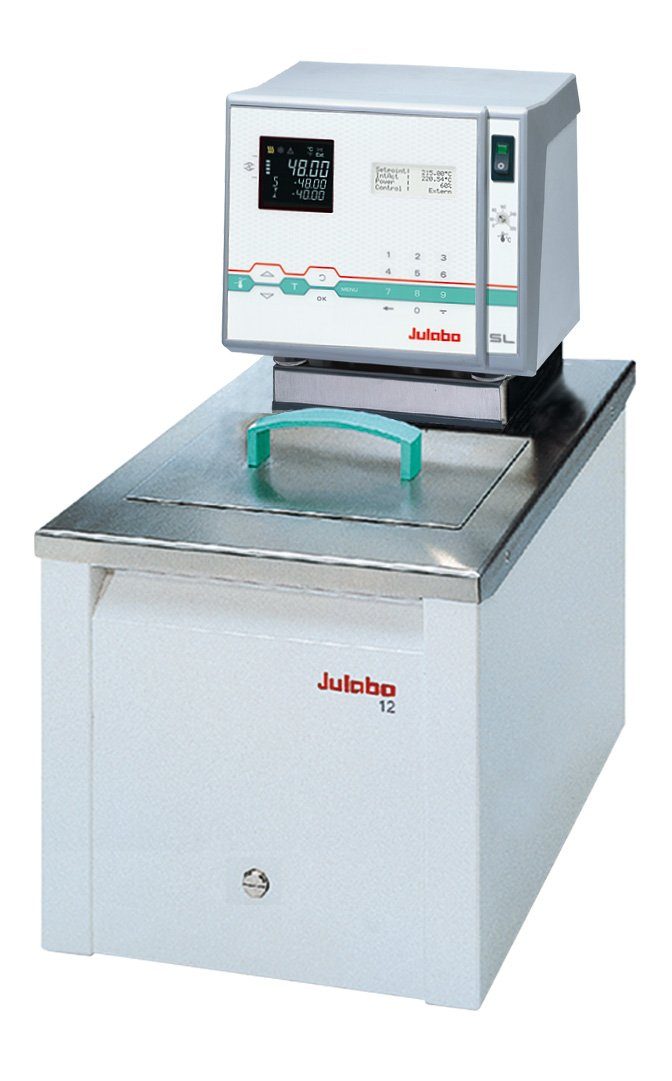

Julabo SL-12 Heating Circulator

JULABO constant temperature circulators with a stainless steel bath tank for internal and external temperature control tasks. They are designed primarily for external temperature control. They have elevated performance for controlling the temperature of large or open systems. Smaller objects may be inserted directly into the circulator’s bath at the same time. Models of the TopTech and HighTech series are available with a variety of bath sizes and functional characteristics. Bath covers and a variety of bath inserts for laboratory glassware are available as accessories

Specifications
Order No. 9352512
Model series HighTech
Category Heating Circulators
Working temperature range (°C) +20 … +300
Temperature stability (°C) ±0.01
Setting / display resolution 0.01 °C
Integrated programmer 6×60 steps
Temperature Display VFD , LCD
Heating capacity (kW) 3
Pump capacity flow rate (l/min) 22-26
Pump capacity flow pressure (psi) 5.8-10.2
Pump capacity flow suction (psi) 2.9-5.8
Bath opening / bath depth (W x L / D inch) 8.7 x 5.9 x 7.9
Pump connections M16x1
Barbed fittings diameter (inner dia. / mm) 8 / 12
Filling volume (liters) 12

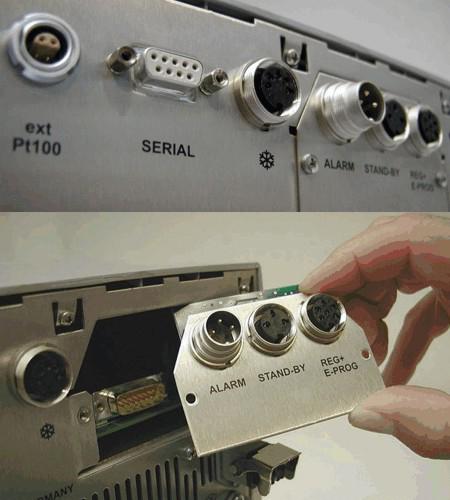

External Pt100 sensor connection integrated
Digital interfaces RS232
RS485
Optional Profibus
Ambient temperature 5…40 °C
Dimensions W x L x H (inch) 11.8 x 16.9 x 18.5
Weight (LBS) 30.8
Classification according to DIN12876-1 Classification III (FL)
Description Built-in cooling coil for tap water connection for temperature applications below or near ambient temperatures are integrated.
Included with each unit 2 each barbed fittings for tubing 8 and 12 mm inner dia. (pump connections M16x1 male).
Cooling coil integrated
Bath tank Stainless steel
Power requirement V / Hz / A 230/50-60/13 Additional voltage versions available

Specification: Julabo SL-12 Heating Circulator

Options

200-230V/50-60Hz, 230V/60Hz (Canadian and US NRTL Certified), 200-230V/50-60Hz, 230V/60Hz (Canadian and US NRTL Certified), SL-12 with HST Booster 230V/3Ph/50-60Hz, SL-12 with HST Booster 230V/3Ph/60Hz (Canadian and US NRTL Certified)
