Huber Unichill 300T

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Call for Price

SKU: N/A Category: Brand:

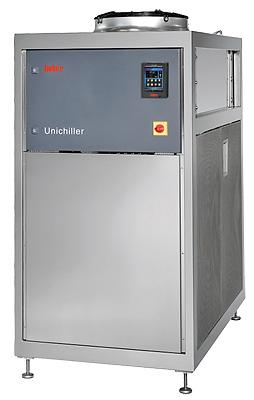

Huber Unichiller 300T

(Please Note: There is a 2 -3 weeks lead time)

Description:

Huber Unichillers offer better efficiency, stable pressure and delivery performance with a constant cooling water temperature compared to traditional tap water cooling. Chillers also reduce water consumption and help conserve the environment whilst lowering operating costs. Unichillers are suitable for the removal of heat from chemical processes, cooling technical plants or as a central cooling water supply for laboratories. All Unichillers are designed for continual operation at ambient temperatures up to +40°C. Installation in an outside areas is possible with optional weather protection and winter operation packages. Pumps are available with an extended pressure and flow rate for applications with a high pressure drops.

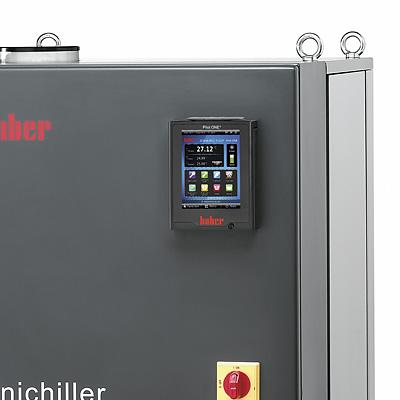

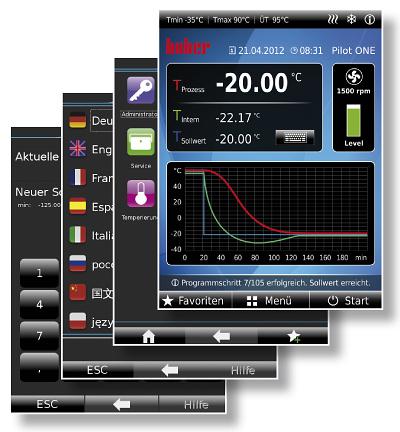

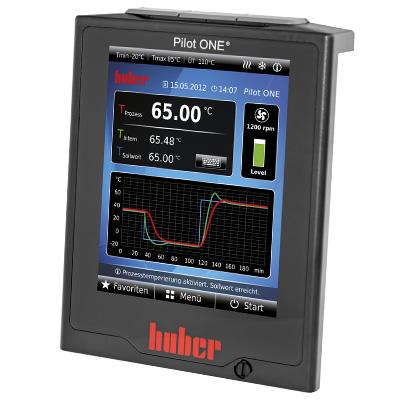

The new multi-touch controller Pilot ONE offers a brilliant 5.7″ touchscreen with graphic functions and a comfortable navigation menu. All important operating parameters and temperature values are neatly displayed on the touchscreen. Thanks to the new favorites menu, the one-click operation and the integrated technical glossary the operation is very easy, just like on a smartphone. Integrated USB and Ethernet ports allows connection to a PC or network, e.g. for remote control or data transmission.

  • Environmentally-friendly, economic cooling solution
  • High efficiency
  • Precise temperature control
  • Powerful circulation pump
  • Intelligent energy management
  • Reliable continuously operation with warning functions
  • Pilot ONE controller with 5.7″ touchscreen
  • Digital filling level indicator
  • 2 x USB (Host and Device), Ethernet and RS232 interfaces
  • Heater options available



General information & temperature controller
Temperature range -20…40 °C
Temperature stability ±0.5 °C
Controller Pilot ONE (E-grade “Basic”)
Safety class I / NFL
Protection class IP20
Dimensions (W x D x H) 905 x 2172 x 1900 mm | 35.63 x 85.51 x 74.8 inches
Weight — kg | pounds
Heating / cooling capacity
Cooling capacity 15  0  -10  -20  °C

____________

30  18  11  6  kW

Cooling machine air-cooled
Refrigerant (ASHRAE, GHS) R449A (A1, H280)
Circulation pump
Pressure pump max. 210 lpm ; 4.7 bar | 55.48 gpm ; 68.15 psi
Pump connection G1 1/4 AG male
Connections
Pt100 connection Pt100
Digital interface RS232, Ethernet, USB Device, USB Host
Operating data
Old Sku 3020.0027.01
Permissible ambient temp. 5…40 °C
Filling volume min. 14 Liters | 3.7 gal
Volume of expansion 39 Liters | 10.3 gal
Power supply 460V 3~ 60Hz
