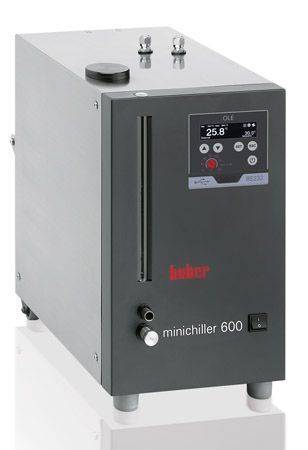

HUBER -20C to 100C Minichiller 600-H Chiller/Heater OLED Display

The new Huber OL controller combines state-of-the-art technology with simple operation. OL models are suitable for routine tasks in research and industry and are convincing as practice oriented basic equipment. Option: Pt100 sensor connection #10519 to display (not control) e.g. of the process temperature (only available factory fitted, additional charge).

The compact Minichillers are an economic and environmentally friendly cooling solution for many laboratory applications. A calculation of water and waste water costs shows that a Minichiller can save up to 48,000 litres of water in a working week and due to its low procurement price, return on investment is achieved within a very short time. The units have small footprints, only requiring 225 x 360 mm on the laboratory bench and are therefore suitable for cooling reactor blocks, vacuum pumps, rotary evaporators or heat exchangers. Minichillers allow stable application conditions due to constant values for temperature, pressure and throughflow quantities. They are also perfect for continuous operation at ambient temperatures up to 40C. Despite the economic purchase price the coolers are well equipped and have a large temperature indicator, fill level indicator, as well as status LEDs for the pump, cooling and heating. A 1 kW heater is optionally available with which the temperature range can be extended to +100C. Minichillers are available as bothair and water cooled models and use natural refrigerants.

Huber Minichiller features

• Environmentally-friendly, economic cooling solution
• High efficiency
• Precise temperature control
• Simple operation with menu navigation
• Robust stainless construction
• Reliable continuously operation with warning functions
• Easy to fill and empty
• Illuminated filling level indicator
• Bright, large OLED display
• USB and RS232 interfaces
• Natural refrigerant

Click here to download product brochure

Click here to visit Huber website for details

General information & temperature controller
Temperature range	-20…100C
Temperature stability	0,5C
Temperature display	OLED Display
Display resolution	0,1C
Alarm message	optical, acoustical
Controller	OL
Safety class	III / FL
Protection class	IP20
Dimensions(W x D x H)	280 x 490 x 424mm
Weight	35kg
Heating / cooling capacity
Heating capacity	2kW
Cooling capacity	15 0 -10 -20 C 0,6 0,5 0,35 0,15 kW
Cooling machine	air-cooled
Refrigerant	R290 (0,085 kg)
Circulation pump
Pressure pump max.	24 l/min;0,7 bar
Suction pump max.	18 l/min;0,4 bar
Pump connection	M16x1 AG male
Connections
Digital interface	USB, RS232
Operating data
Permissible ambient temp.	5…40C
Sound pressure level	56dB(A)
Filling volume min.	2,8Litres
Volume of expansion	2,2Litres
Power supply	230V 1~ 50/60Hz
Current max.	12A
Fusing	16 A
