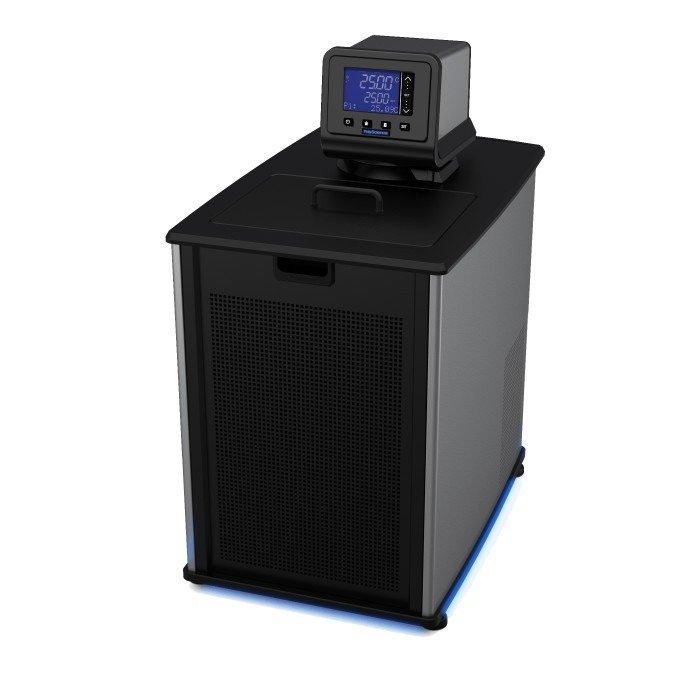

Polyscience 15 Liter Advanced Digital Refrigerated Circulator (-40°C/200°C)

Key Specifications:

  • Controller Type: Advnaced Digital
  • Display: 3.75″ Touch-Pad LCD
  • Connectivity: Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
  • Languages Supported: 4; French, German, Spanish, English
  • Swivel 180 Rotating Controller: Yes
  • Working Temperature C: -40C to 200C
  • Temperature Stability C: +/- 0.01
  • Fluid Optimization/Specific Heat Tuning: Automatic and/or user-adjustable
  • Temperature Calibration Capability: 1-point
  • Working Access (LxWxD cm): 21.2×27.6×14 cm
  • Pump Type: Pressure/Suction
  • External Temperature Control Capability: Yes
  • Flammability Class (DIN 12876-1): III (FL)

Key Features:

  • Intuitive 3.75″ (9.5cm) display with touch-pad control
  • 4 Languages: French, German, Spanish, English
  • Swivel 180 Rotating Controller
  • On-board connectivity: Ethernet, USB A & B, RS232/addressable RS485, External Temperature Probe
  • On-screen prompts
  • Automatic performance optimization and specific heat tuning
  • Single-point calibration capability

Common Specifications:

  • Working Temperature Range F: -40F to 392F
  • Working Temperature Range C: -40C to 200C
  • Nominal Cooling Capacity @ +20C (W): 915
  • Reservoir Capacity (gallons): 3.96
  • Reservoir Capacity (liters): 15
  • Reservoir/Tank Material: Stainless Steel
  • Reservoir Cover: Inlcuded
  • DuraTop: Yes
  • LidDock: Yes
  • Cleanable Air Filter: Yes
  • Working Access (LxWxD in): 8.35×10.88×5.5in
  • Working Access (LxWxD cm): 21.2×27.6×14 cm
  • Temperature Stability F: +/- 0.02
  • Temperature Stability C: +/- 0.01
  • Display: 3.75″ Touch-Pad LCD
  • Display Resolution (Set): 0.01
  • Display Resolution (Read): 0.01
  • Pump Type: Pressure/Suction
  • Pump Speed: Variable
  • Process Connections: 1/4″ FNPT
  • External Temperature Control Capability: Yes
  • Flammability Class (DIN 12876-1): III (FL)
  • Over-Temperature Protection / Failsafe Heater Control: Yes
  • Low Liquid Level Protection: Yes
  • WhisperCool Environmental Control Technology: Yes
  • Cool Command Refrigeration Technology: Yes
  • Reservoir Drain: Yes
  • Included Software: PolyTemp viewer, USB driver
  • Maximum Ambient Temperature F: 95
  • Maximum Ambient Temperature C: 35
  • Overall Dimensions (LxWxH in): 22.4×14.5×26.9 in
  • Overall Dimensions (LxWxH cm): 56.9×36.8×68.3 cm
  • Refrigerant: R404A
  • Environmental Compliance: RoHS, WEEE
  • Shipping Weight (pounds): 118
  • Shipping Weight (kilograms): 53.5

60Hz Only:

  • Part Number: AD15R-40-A11B
  • Maximum Pressure (psi): 4.3
  • Maximum Pressure (bar): 0.30
  • Maximum Pressure Flow Rate (gpm): 5.30
  • Maximum Pressure Flow Rate (l/min): 20.1
  • Maximum Suction Flow Rate (gpm): 3.9
  • Maximum Suction Flow Rate (l/min): 14.7
  • Cooling Capacity @ -20C (W): 265
  • Cooling Capacity @ 0C (W): 650
  • Cooling Capacity @ +20C (W): 1000
  • Cooling Capacity @ +100C (W): 1000
  • Included Hardware: Nylon hose adapters for 3/8″, 1/4″ and 3/16″
  • Heater Wattage: 1100
  • Electrical Requirments (VAC/Hz/Ph/A): 120/60/1/13
  • Regulatory Approvals: ETL

Operators Manual: https://www.polyscience.com/system/files/product-pdfs/110-513%2520PSC%2520EN_Advanced%2520Digital%2520Operator%2520Manual_English.pdf
