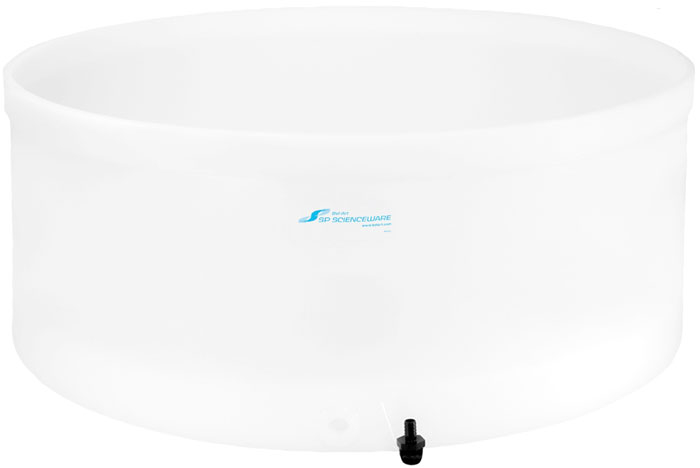

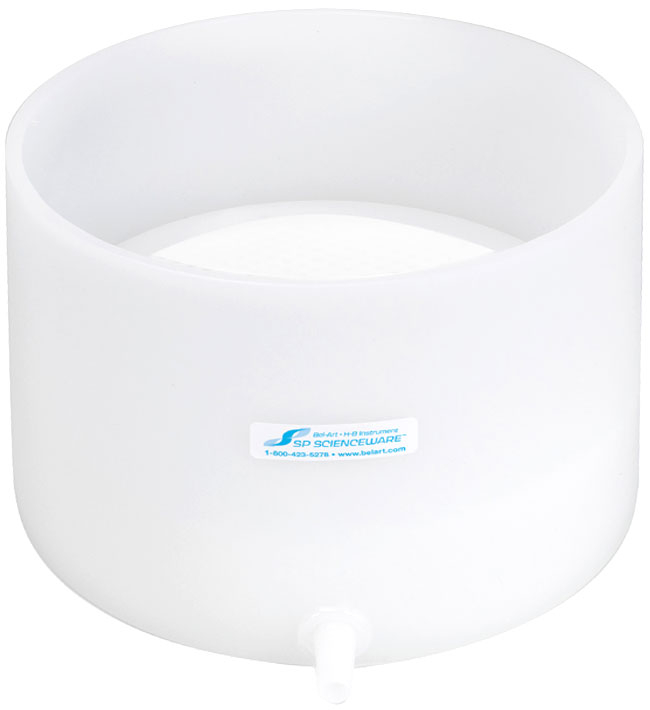

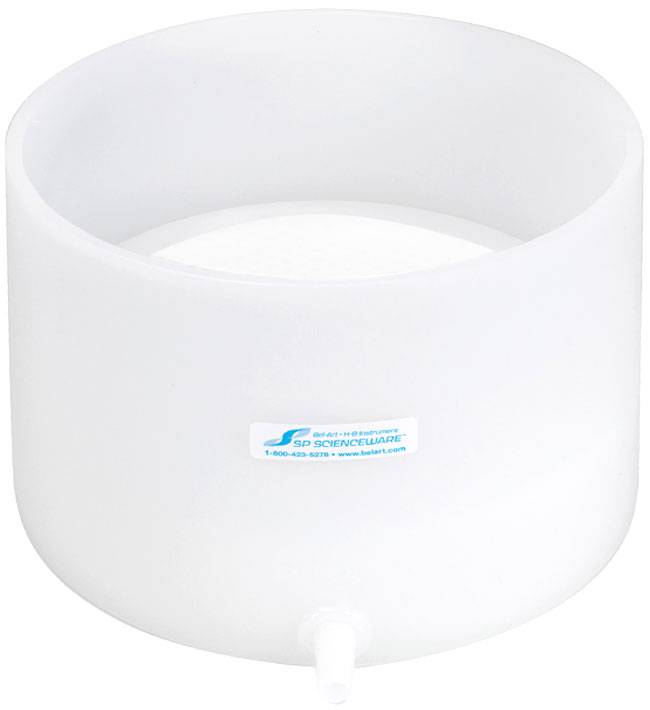

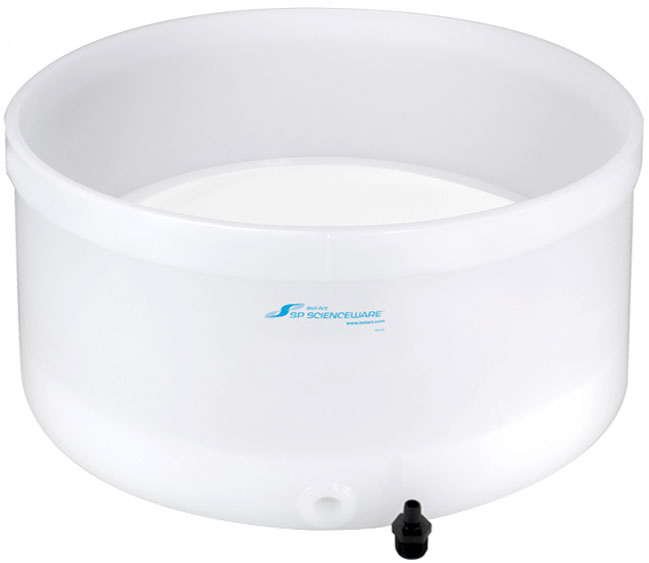

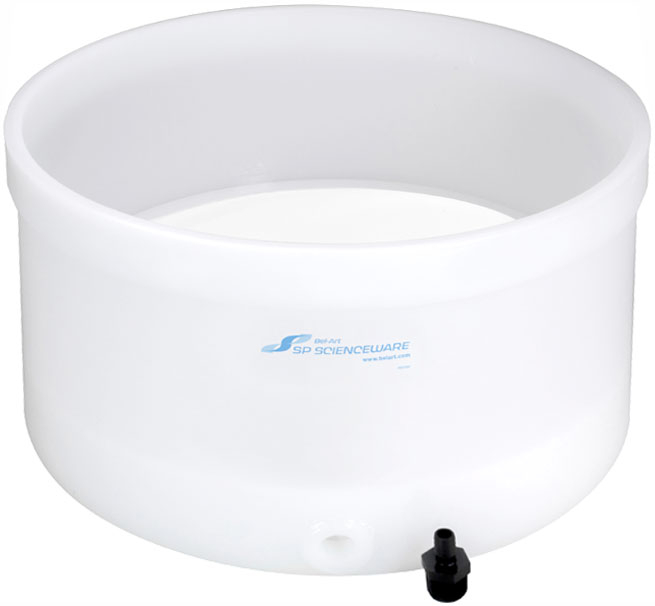

Bel-Art Polyethylene Buchner Funnel with Fixed Filter Plate
$435.30 – $3,528.25
Filter large volumes quickly with a Bel-Art polyethylene plastic table-top Buchner funnel using your choice of Fritware or Perforated filter plate.
Features
- Removable hose barbed connector accepts 12.7mm (½”) I.D. tube and threads into ¾” NPT bung on the funnel
- Fixed or removable Fritware® Porous Filter Plates supported by a multiple ring grid; HDPE, 6.4mm (¼”) thick, with a non-porous ring at the periphery of the plate which seals filter paper when used
- Fritware® Porous Filter Plates available in two porosities (medium and coarse)
- Medium is 45-90 microns
- Coarse is 90-130 microns
- Use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
- Fixed or removable Perforated Filter Plates are made of 4.8mm (³/₁₆”) thick HDPE with 4.8mm (³/₁₆”) perforations on 11mm (⁷/₁₆”) centers
- Perforated Filter Plates available in two versions (fixed or removable)
- Fixed for coarse filtration or use with a cloth or paper filter
- Removable for use in precious metals recovery; use temperature range maximum 52ºC (125ºF), minimum -20ºC (-4ºF)
- Use the F36820-0118 Funnel Trowel to quickly and efficiently smooth fissures appearing during the filtration process
Top volume
Diameter |
Liters |
10.25″ | 9.5L |
18″ | 48.0L |
24″ | 96.4L |
36″ |
246.1L |
