200C 4.4 CF 20x20x20 Vacuum Oven w/ 6 Aluminum Shelves – Refurb.

All Ai refurbished Elite vacuum ovens have been fully tested to meet Ai performance standards before shipment. Unit may have minor cosmetic damage which will not affect its performance. All refurbished Elite vacuum ovens carry the same 2-year Ai warranty.

The E44 ELITE series digital vacuum ovens feature our 5-side chamber jacket heating system that covers left, right, up, down and backside of the chamber; all metal internal vacuum tubing (compare to rubber hose) for better vacuum levels and durability; and build-in secondary over-temp dial for enhanced over temperature protection. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.

Every one of our vacuum ovens goes through a 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.

Attention: Before initial use, run oven at 400°F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.

IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.

Features

Re-designed 5-side jacket heating system covers left, right, up, down and backside of the oven, it provides perfect temperature uniformity and fast heating rates.
All metal internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
Built-in secondary over-temp dial for added protection.
Exceptional build and finish quality.
Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
Adjustable gas back fill capability via vent port
Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
Built-in swivel casters with locks for ultra portability.
All ovens shipped from our New Jersey or Nevada location for quick delivery.
Guarantee US based phone and email assistance within 30 minutes (except holidays and weekends) from our engineers.
2-year warranty and lifetime US-based parts and service support.

Vacuum oven specifications

Electrical requirements	220V +/-10% 50/60Hz single phase, 3000 watts
Temperature control	Controller: Low gain microcomputer PID control for heater output Temperature range: Ambient to 200°C UL units can only be certified up to 150°C Timer range: 0 to 99 hours 59 minutes
Chamber	Dimensions: 19.7 x 19.7 x 19.7″ Capacity: 4.41 cubic foot (125 liters) Material: Polished heavy duty type 304 stainless steel Heating method: 5 sided heated jacket
Dimensions (WxDxH)	Unit: 32 x 29.5 x 41″ Shipping: 39 x 36 x 48″
Weight	Unit: 515 Lbs Shipping: 530 Lbs
Vacuum	Level: Better than 500 microns/millitorrs Vacuum port: KF25 flange Vent port: 3/8″ hose barb

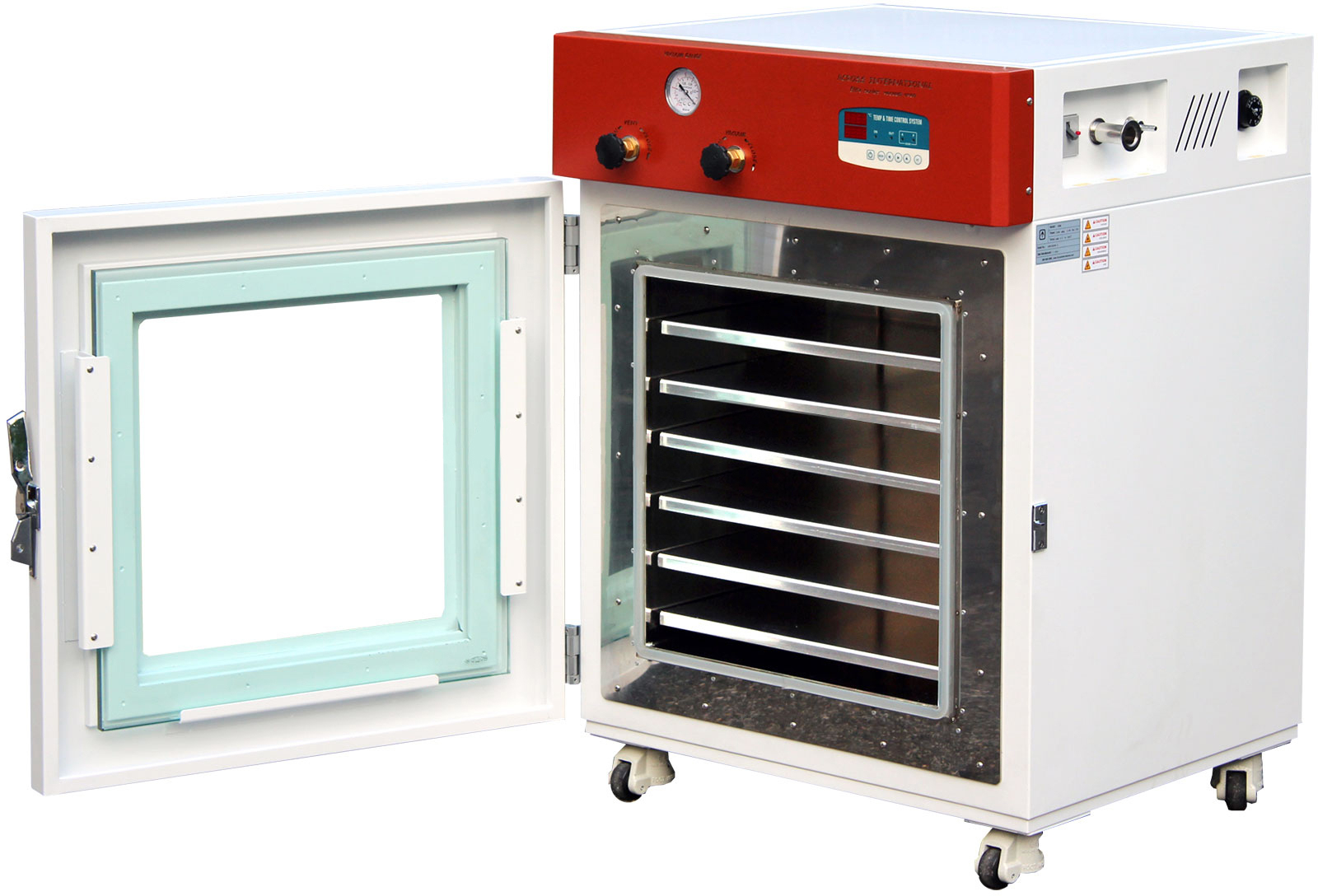

Shelf	Included: 6 aluminum slide-in shelves Shelf size: 19 x 19 inches Total area: 361 x 6 = 2166 inch² Distance between shelves: 3 inches
Door gasket material	Silicone
Safety	Built-in safety switch Circuit breaker Overheat protection Power failure auto reset Time up buzzer
Observation window	1/2″ tempered safety glass

Standard package

Part description	Quantity	Part image
4.4 Cu Ft Elite series vacuum oven – 220V	1 pc
Aluminum shelves	6 pcs
KF25/NW25 quick clamp and centering ring	1 set
User’s manual	1 pc
