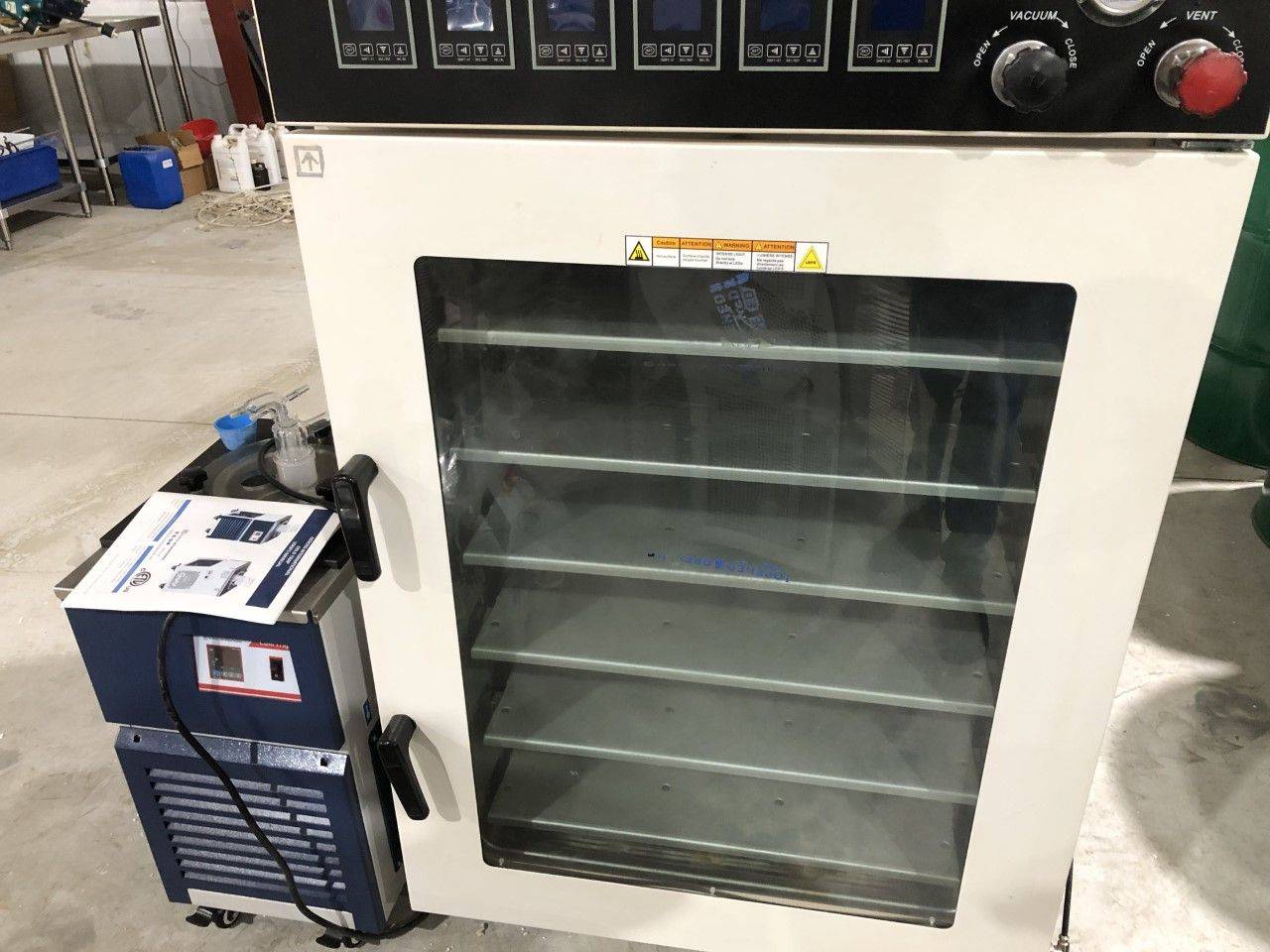

Pre-Owned AI Accutemp 160 Vacuum Oven with t40 cold trap and vacuum pump
** Specs for Reference Only – Call for Details **
$11,000.00
Vacuum Oven
Introducing the new Across International UL certified 16 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, 2.5X larger internal tubing for a quicker vacuum purge and release, and a secondary door handle to provide a better sealing on the door gasket. Come in 110V or 220V and backed by our 2-year warranty.
The AT160 series digital vacuum oven features a gigantic 16 cubic feet easy-to-clean stainless steel chamber with a large 3/4″ tempered glass safety window. With our new internal shelf heating technology, each shelf in these lab and industrial ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- UL certified
- New stainless steel, easy-open handle with tension adjustable latch (110V model).
- New re-enforced stainless steel door hinges (110V model).
- KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- Thermo-conductive to thermally conductive.
- All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
- Oil-filled mechanical vacuum gauge ensures the most accurate and stable measurements.
- Built-in secondary over-temp dial for added protection.
- Adjustable vacuum and vent port with needle valves gives you control over vacuum and vent rates, while also largely enhanced durability.
- 4th gen low proportional gain temperature controller keeps your oven temperature accurate.
- Built-in white LED lights
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4″ tempered safety glass.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual
The new Ai 3rd Gen -40C/F T40 cold traps all come ETL certified, standard. They have a small footprint, but at the same time, offering you the same cooling power. New features include a large 316L SST 4.6 liter trap, 316L corrosion-resistant trapping layers and vacuum connections, PTFE encapsulated silicone sealing gasket, upward KF25 vacuum connections provide you safer and easier vacuum tubing connection and removal. No chilling fluid required, just plug and play.
Grade 316, also called “The Food Grade Stainless” or “Marine Grade Stainless”, is the standard molybdenum-bearing grade, second in importance to 304 amongst the austenitic stainless steels. The molybdenum gives 316 better overall corrosion resistant properties than Grade 304, particularly higher resistance to pitting and crevice corrosion in chloride environments.
Grade 316L, the low carbon version of 316 and is immune from sensitisation (grain boundary carbide precipitation). Thus it is extensively used in heavy gauge welded components (over about 6mm). The austenitic structure also gives these grades excellent toughness, even down to cryogenic temperatures. Compared to chromium-nickel austenitic stainless steels, 316L stainless steel offers higher creep, stress to rupture and tensile strength at elevated temperatures. 316L are used to avoid corrosion problems caused by welding.Stainless steel valves and cylinders manufactured in 316L grade stainless steel have proved to offer exceptional resistance in acidic and hard water areas.
Cold Trap
316L grade has the following adventage compare to regular 304 grade SST:
- Extremely stains, corrosion, oxidation and pitting resistant
- Considerably more resistant to humidity, chlorine, sulfuric acid, chlorides, bromides, iodides and fatty acids
- Excellent formability
- Easier to clean
- Rupture and tensile strength at high temperatures
- Excellent toughness and pressure performance at cryogenic temperatures
- 316L stainless steels (containing molybdenum) are required in the manufacture of certain pharmaceutical, medical, surgical or chemical equipment in order to avoid excessive metallic contamination
- Longer equipment life expectancy
Ai T40x-UL -40°C/°F cold trap features
- No chilling fluid needed, just plug and play
- ETL tested to UL and CSA standards
- Corrosion-resistant 316L grade stainless steel for trap and all vacuum connections
- Large 4.6 liter trap capacity
- No dry ice or liquid nitrogen needed
- Drain port with open/close value allows easy liquid removal
- Small footprint, built-in swivel casters for mobility
Vacuum PumpÂ
The new corrosion resistant Ai SuperVac 21 cfm commercial grade vacuum pumps are now UL certified (115V model), this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. These pumps are designed for reliable long time continuous operation, they will take your equipment’s vacuum down to 0.3 micron in minutes. Comes standard with all necessary fittings and a high capacity exhaust oil mist filter which also returns trapped pump oil back to the pump and makes the pump quieter to run.
Multi-level gas ballast is designed to allow purposefully pull a less deep and slower vacuum by opening the gas ballast, allowing dry air to go directly into the pump and diluting the vacuum pull, and it also helps keep moisture, solvent, and other contaminants from getting stuck in the pump, and instead passing through to the exhaust.
It is important to note that pumps should always be ran in a well ventilated area.
