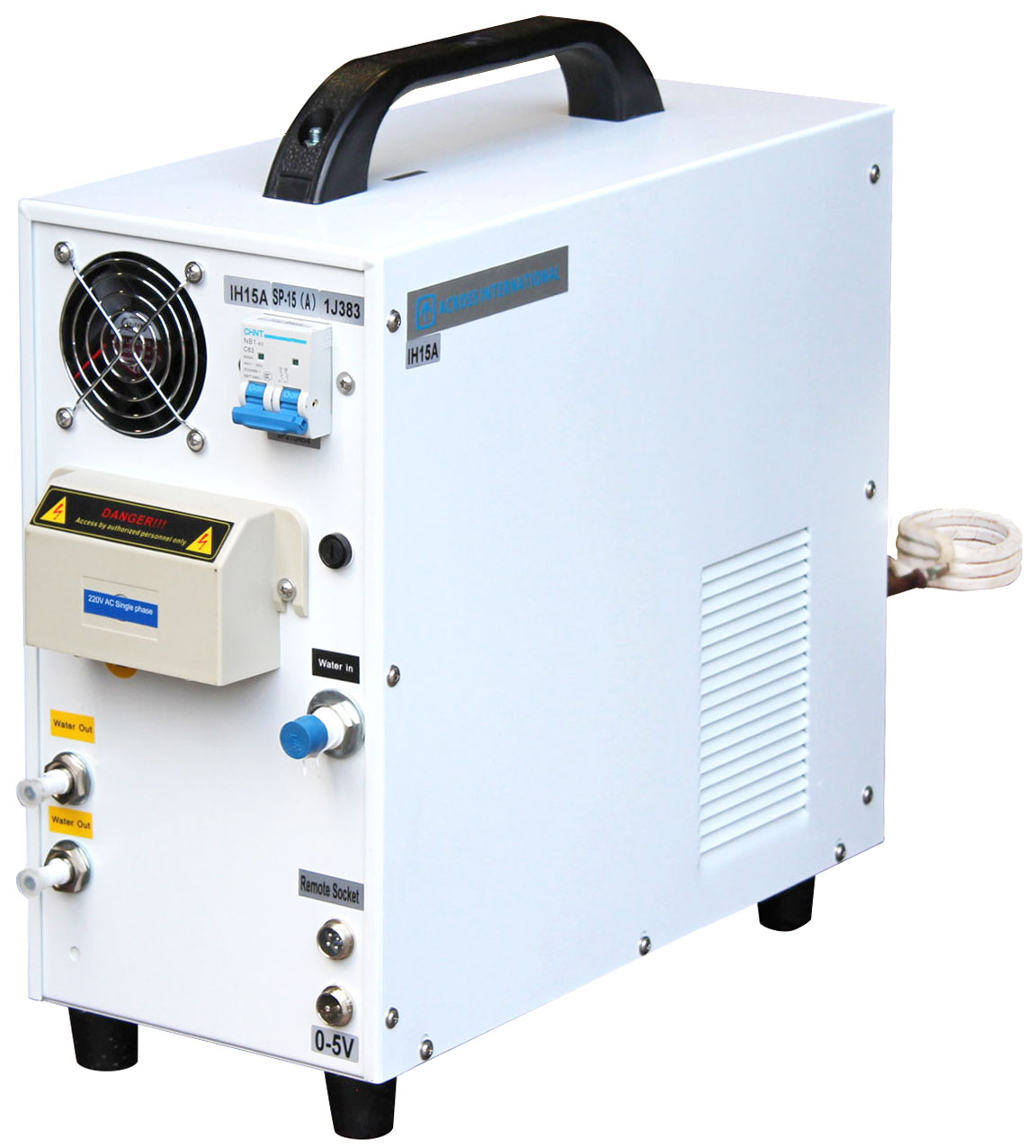

15KW Mid-Frequency Compact Induction Heater w/ Timers 30-80KHz

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Our most popular model with 3 timers in 220V 1PH (Item# IH15A)


SKU: 277 Category:



Note: This model only available in 208-240 volt single phase.

Across International IH series mid-frequency induction heaters are designed to operate between 30 and 80 kHz. Mid-frequency heaters are excellent for small parts heating, cutting, diamond tool brazing, soldering copper plumbing fittings, auto parts heat-treating, annealing of stainless steel containers and more.

Mid-frequency induction heaters are the simplest in terms of design and implementation. With their low cost of ownership and maintenance, they are the most popular and reliable machines. The 15kW models are especially popular for their large power capacity and small footprint at an affordable price. This makes them standard equipment for many factories, labs and workshops where 230V AC is available.

Main Features

  • Ease of use: just plug in the power and connect the water cooling system, our simple instruction allows you to use the heater in 15 minutes.
  • Light weight (only 40 Lb), portable (with handle), instant heat and up to 90% energy savings
  • Precise control with digital time and current displays.
  • Remote foot switch for safer operation.
  • Dual automatic and manual modes.
  • Optional graphite, MgO and SiO2 crucibles available. (melting material decides crucible type, weight and size of the material decide crucible size)
  • Custom coil design available (fixed coil or coil on a cable so it can be used by hand like a wand)
  • Frequency is non-adjustable, it depends on the coil design (diameter of turns, numbers of turns, copper tubing diameter and total length).
  • ISO 9001:2008 registered manufacturer.
  • We provide sample testing and custom made coils in our New Jersey facility


  • Overvoltage protection: machine shuts down when input voltage is over 245V. Overvoltage light will turn on and buzzer will sound continuously. Alarm and light shut off automatically when voltage goes below 245V.
  • Overheat protection: if sensor detects heat radiator temperature is over 55°C, machine will shut down, overheat light will turn on and buzzer will sound continuously. Increase water pressure or lower water temperature until alarm goes off itself.
  • Overcurrent/malfunction protections: machine will shut down, indicator light turned on and buzzer sounds continuously if one of these situations occurs:
    • One of the machine parts becomes overheated
    • Interfering signal detected
    • Short circuit between work pieces and induction coils
    • Machine malfunctions
    • Induction coils touching each other
    • Input voltage is too low
  • Low water pressure protection: if water pressure goes below 29 PSI, machine will shut down, water protection light will turn on and buzzer will sound continuously.


  • Always wear protective gear and goggles when operating the machine. Crucibles must be covered all the time during operation. Across International is not responsible for any damage caused by misuse.
  • Do not run no-load operation for a long period of time, it might cause damage to the machine.
  • Circulating water must be pure, clean and below 45°C.
  • Machine must be grounded properly all the time during operation.
  • Do NOT use single-turn coil if coil diameter is smaller than 4 inches, it will cause high frequency damage to the machine.
  • Thread tape (or related material) is absolutely prohibited during installation of induction coils.


 Max. input current  32 A (48A single-phase circuit breaker required)
 Power  208-240V, 50/60Hz, single-phase
 Power distribution cord  8-gauge 3-conductor Max 40A (8/3 SOOW)
 Output frequency
 30-80 KHz
 Heating/retaining current
 200-600 A (displayed on control panel)
 Max. oscillating power
 15 KW
 Max input power  7 KW
 Duty cycle


 Heating/dwelling/cooling timers
 1-99 seconds
 Water pressure
 ≥ 29 PSI (0.2 Mpa) you may use tap water
 and water pump (>1/4HP & >240 Gph)
 Water flow
 0.5-1.3 gallons (2-5 liters) per minute
 Water temperature
 Induction coil
 See detail specs below, we will make coils
 according to your requirements

 Unit: 40 Lb, shipping: 58 Lb
 Unit: 19x8x18″, shipping: 21x13x22″
 Remote foot switch
 7 feet
 Max. melting capacity
 4 Lb (gold, silver, copper), 1 Lb (steel, aluminum)

Standard package

 Part description


Part image

 IH15A induction heater
1 pc

 Foot switch (7 ft)
 1 pc

 Induction coil
 2 pcs

 Stainless steel hose clamp
 8 pcs

 Fuse 5 pcs

 Induction coil adapter (to protect the coil connectors on the machine, good for users who change coils frequently)
2 pcs

 Operation manual  1 pc
