12″ Buchner Funnel With Lid For Top Pressure – SS304 – 90PSI

12PBF Specifications

Material

304 Stainless Steel

Capacity

22L

Filter Micron (Mesh)

100 Micron (150 Mesh)

Filter Plate Size

12″ Tri-Clamp

PSI Rating

90psi

Lid Connections

(2x 2″ Tri-Clamp) (1x 3″ Tri-Clamp)
(2x 1/4″ FNPT) (2x 1/2″ FNPT)

Bottom Connections

(1x 2″ Tri-Clamp)

Exterior Dimensions

24.5″ L x 24.5″ W x 38″ H

Weight

72lbs

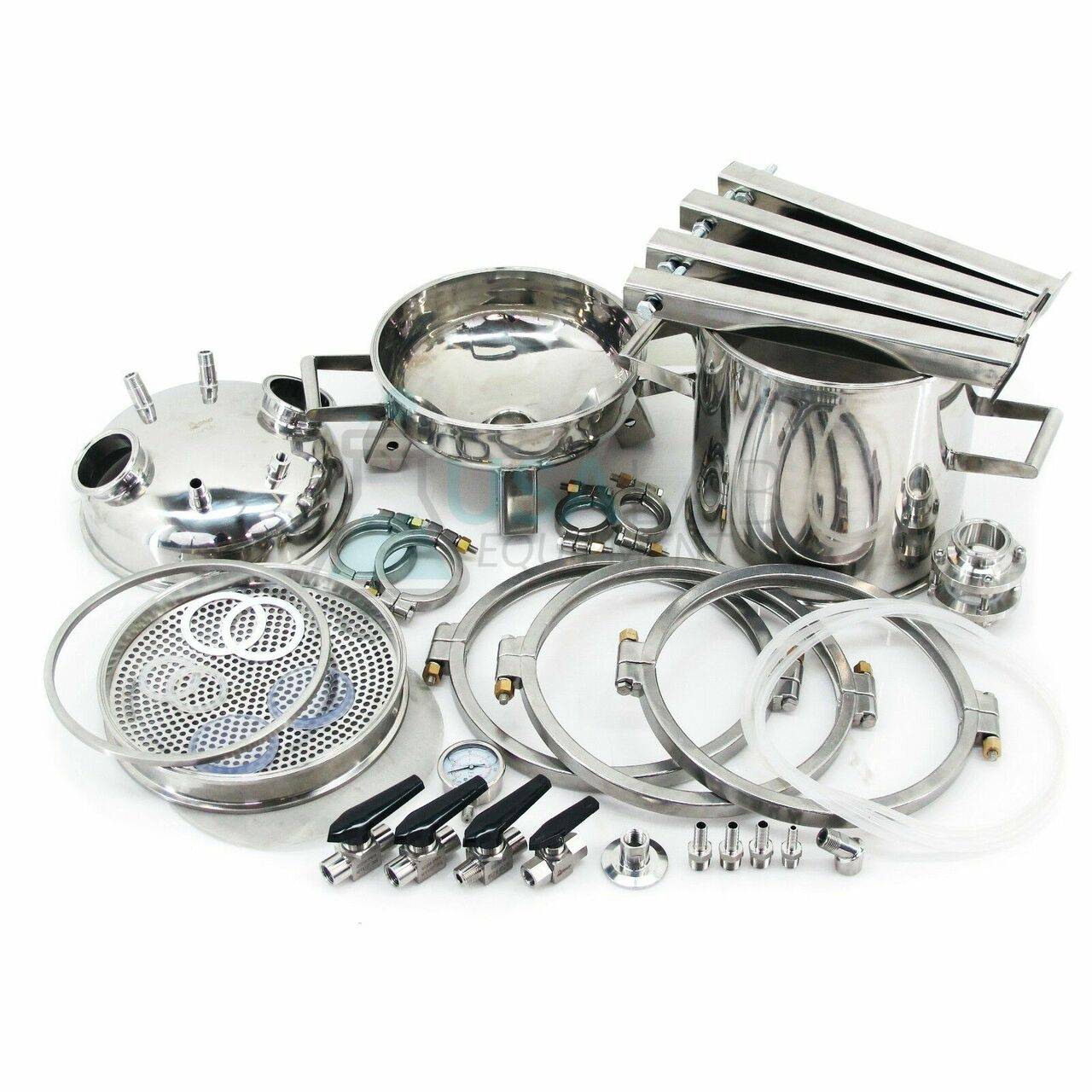

12PBF Packing List

Item

QTY

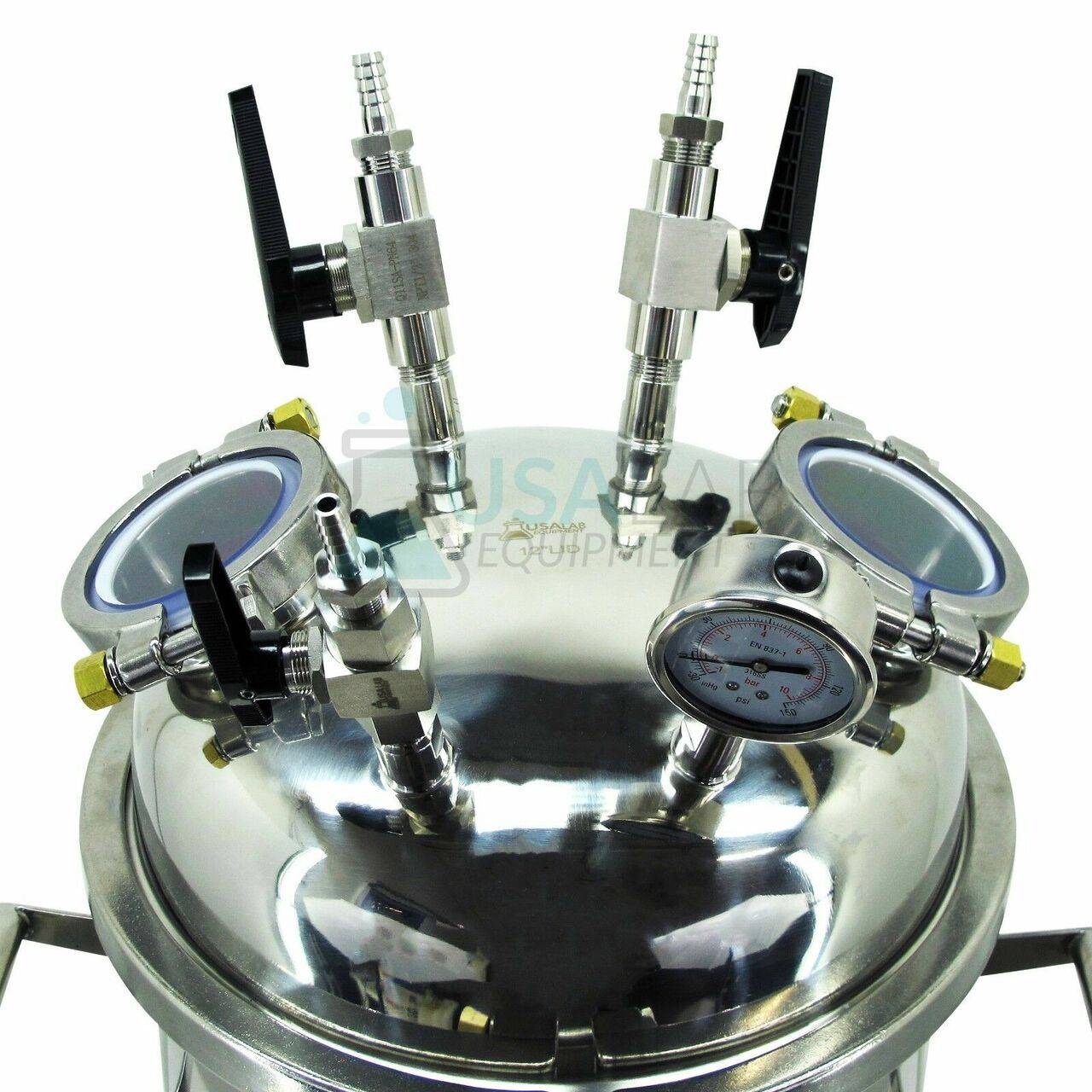

12″ Tri-Clamp Hemispherical Lid with (2x 2″ Tri-Clamp)

(1x 3″ Tri-Clamp) (2x 1/4″ FNPT) (2x 1/2″ FNPT)

1

Spool with Handles – 12″ Tri-Clamp

1

Filter Plate Kit with 100 Micron Mesh and Compression

Ring – 12″ Tri-Clamp

1

Hemispherical Reducer with Handles and Legs –
12″ Tri-Clamp to 2″ Tri-Clamp

1

End Cap with 1/2 FNPT – 2″ Tri-Clamp

1

Solid End Cap – 3″ Tri-Clamp

1

Meta Sight Glass – 2″ Tri-Clamp

2

Short Sight Glass – 2″ Tri-Clamp

1

Glycerin Compound Gauge – 1/4″ NPT Bottom Mount

1

Superlok FNPT 210 Series Ball Valve – 1/2″

3

Superlok FNPT 210 Series Ball Valve – 3/8″

1

High Pressure Tri Clamp – 12″ Tri-Clamp

3

High Pressure Tri Clamp – 3″ Tri-Clamp

1

High Pressure Tri Clamp – 2″ Tri-Clamp

2

Buna-N Tri Clamp Gasket – 12″ Tri-Clamp

3

Buna-N Tri Clamp Gasket – 3″ Tri-Clamp

1

Buna-N Tri Clamp Gasket – 2″ Tri-Clamp

2

Street Elbow 90 Degrees – 1/2″ MNPT x 1/2″ MNPT

1

1/2″ Barb x 1/2″ MNPT Adapter

3

3/8″ Barb x 3/8″ MNPT Adapter

1

1/2″ MNPT x 1/2″ MNPT Hex Nipple Union

2

3/8″ MNPT x 1/4″ MNPT Hex Nipple Union

1
