100mm Diameter ID Dry Pressing Die Set
Highly polished hardened steel construction with detachable push rod handle and pellet ejector (Item# SDS100)
$1,500.00
A set of 100mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 100mm diameter cylinder-shape pellets.
Specifications
- Maximum Pressure: Â Â Â 250 metric tons
- Rockwell Hardness:Â Â Â Â Â Rc 62
- Diameter (ID):Â Â Â Â Â Â Â Â Â Â Â Â Â 100 mm
- Height: Â Â Â Â Â Â Â Â Â Â Â Â 300 mm (assembled with handle and without sample)
- Sleeve Height:Â Â Â Â Â Â Â Â Â Â Â Â 120 mm
- Sleeve Diameter (OD): Â 150 mm
- Weight: Â Â Â Â Â Â Â Â Â Â Â Â 62 lb
- Tolerance:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â 0.01-0.02 mm (10-20 micron)
- Die Material:Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Cr12 hardened carbon mold steel
- Max sample fill height: Â Not to exceed 1/3 of the sleeve height

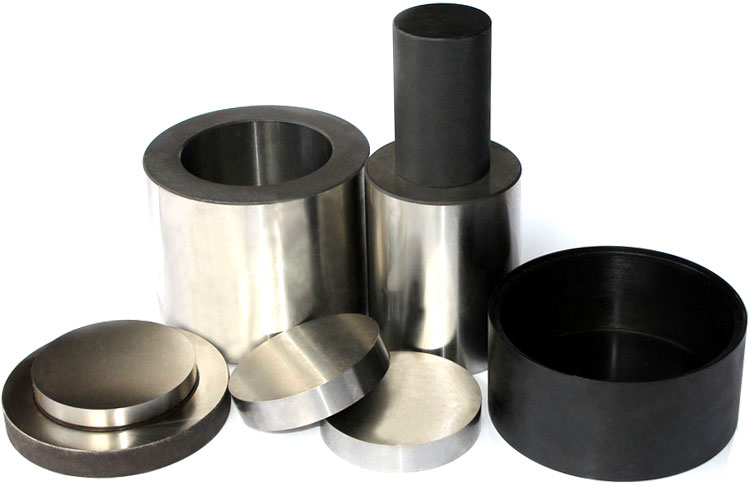

Die set includes
- Two 100mm diameter cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve
- One steel support plate
- One push rod with detachable handle
- One pellet ejector
Important
- Always wear protection goggles and gear during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 250 tons. Across International is not responsible for any damage caused by misuse.
