15mm Diameter ID Dry Pressing Die Set

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

Highly polished hardened steel construction with pellet ejector (Item# SDS15)


SKU: 113 Category:

A set of 15mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 15mm diameter cylinder-shape pellets.


  • Maximum Pressure:      20 metric tons
  • Rockwell Hardness:       Rc 62
  • Diameter (ID):              15 mm
  • Height:                         90 mm (assembled without sample)
  • Sleeve Height:              40 mm
  • Sleeve Diameter (OD):  39 mm
  • Tolerance:                    0.01-0.02 mm (10-20 micron)
  • Material:
    • Core die & push rod:          W18Cr4V hardened carbon tool steel
    • Sleeve, ejector & support:  Cr12 hardened carbon tool steel
  • Max sample fill height:        Not to exceed 1/3 of the sleeve height

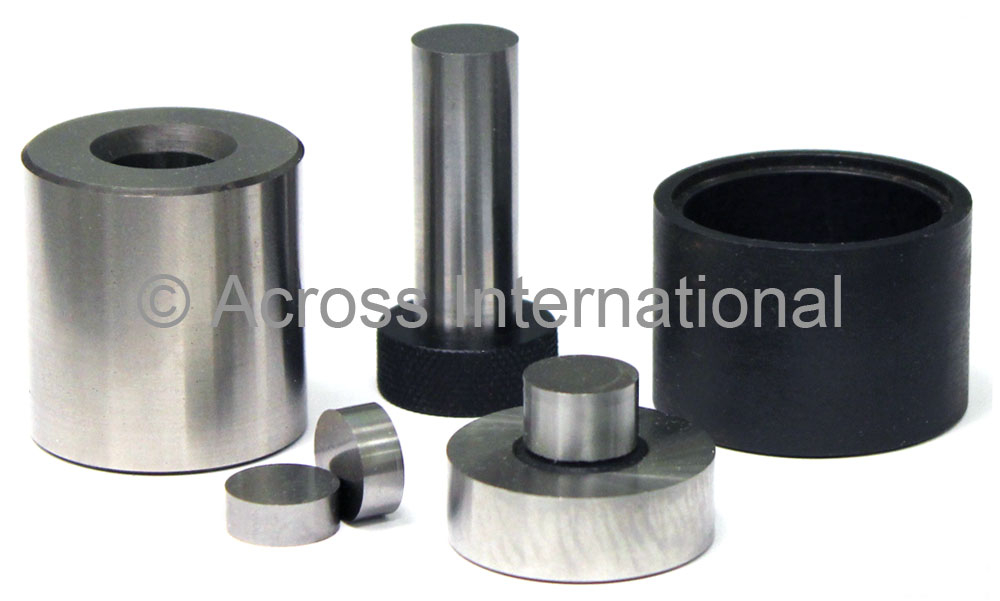

Die set includes

  • Two 15mm ID cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One pellet ejector


  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 20 tons. Across International is not responsible for any damage caused by misuse.
