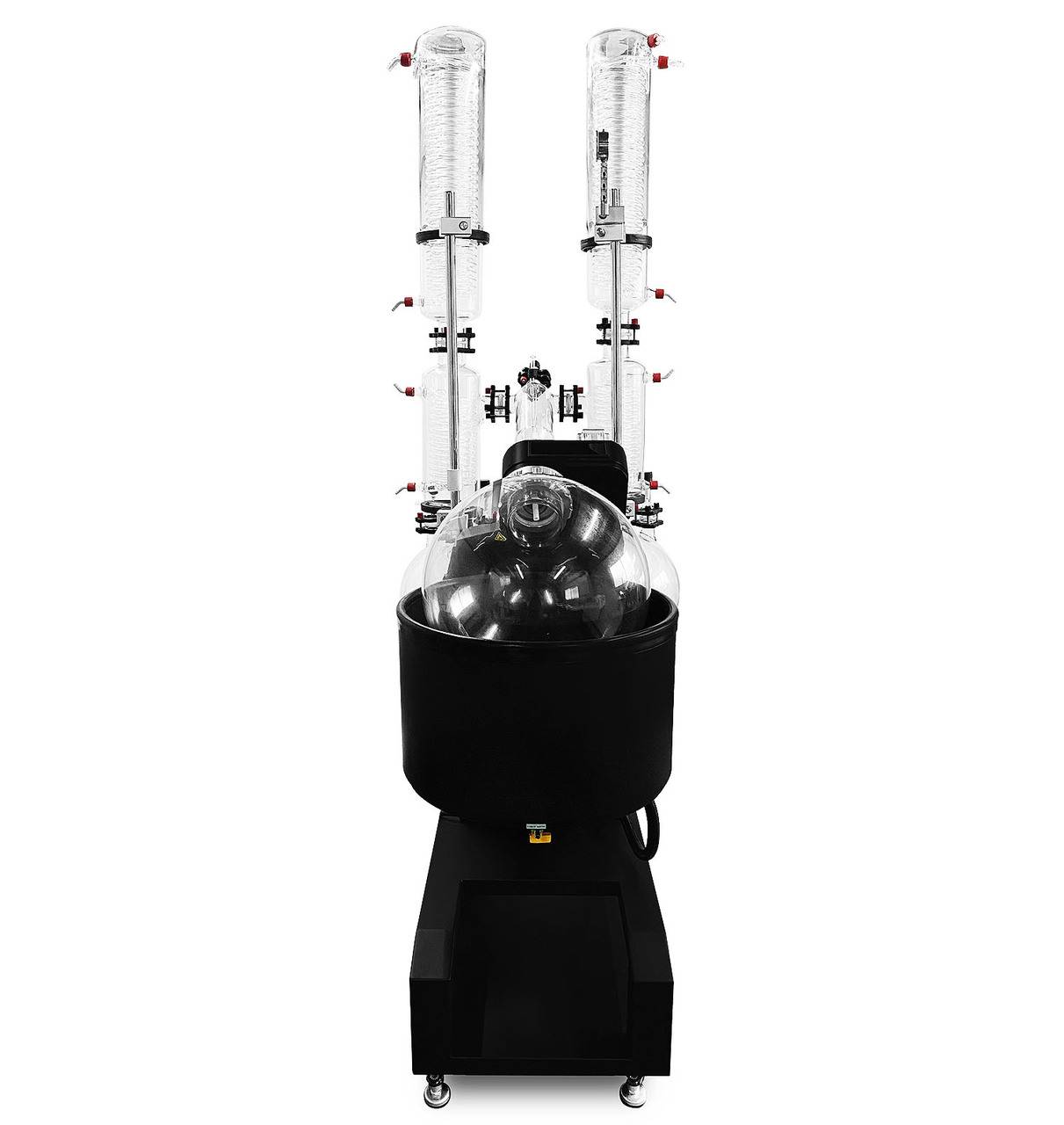

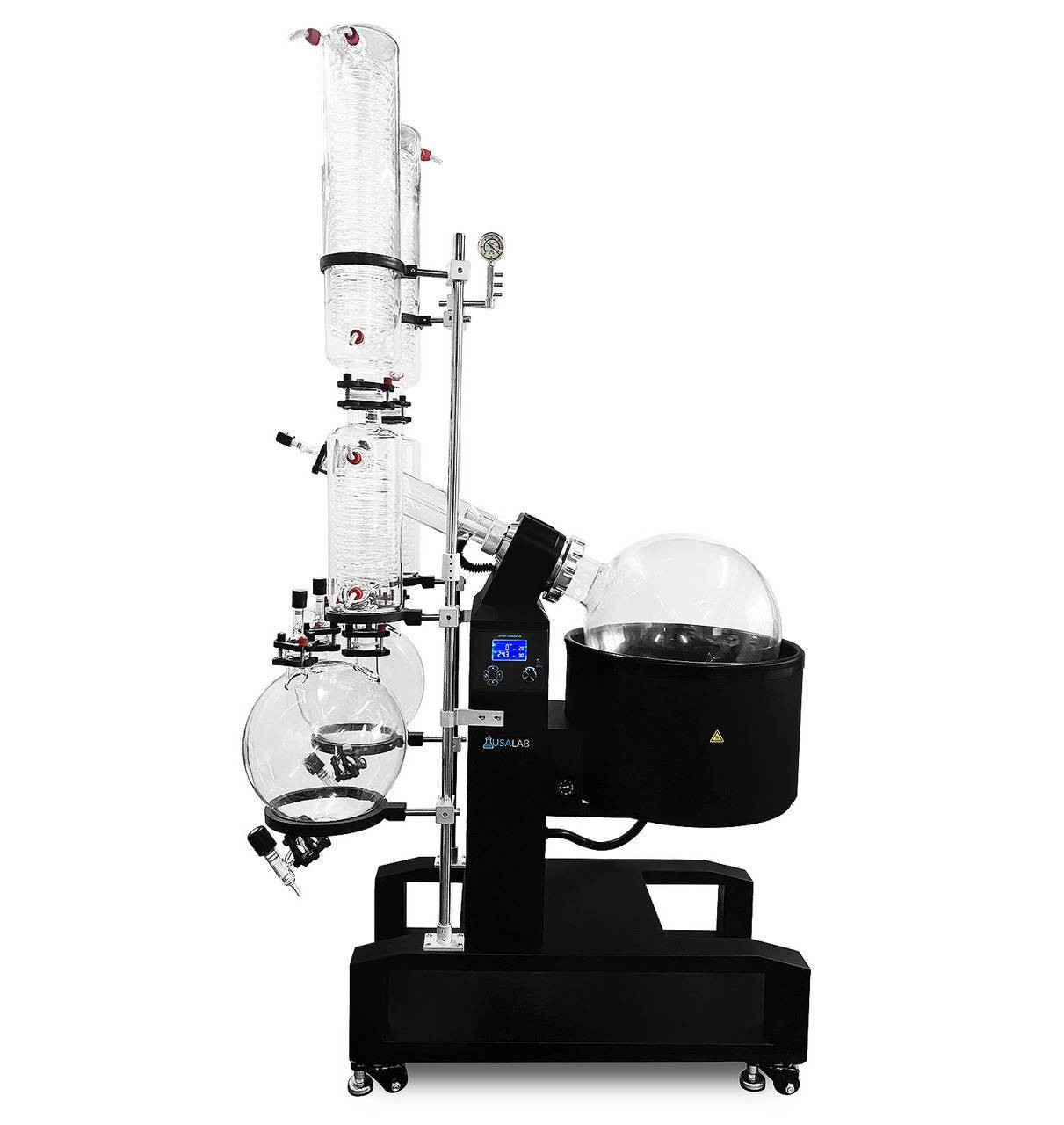

USA Lab UL 50L Dual Rotary Evaporator Rotovap USA-RE50D-UL 85°C 220-240V 20A
| Evaporating Flask Capacity: | 50L / 13.20 gallon |
| Receiving Flask Capacity: | 20L 2pcs / 5.28 gallon |
| Recovery Rate: | Water 15L/Hr | Alcohol 30L/Hr |
| Glass Material: | GG-17 High Borosilicate |
| Rotation Motor: | DC brushless, 250w |
| Lifting Motor: | DC brushless, 100w |
| Temperature Control: | PID Controller |
| Cooling Area（㎡）: | 1.15+0.607 |
| Rotation Speed: | 20~110 rpm |
| Bath Temp. Control Range: | RT + 5 ~ 85 ℃ |
| Maximum Vacuum Pressure: | < 6 torrs |
| Water Bath Size: | Ø540 x 340mm/Ø21.3”x13.4” |
| Heating Power: | 4000W |
| Gross Weight: | 212KG | 467Lbs |
| Item Dimensions (W×D×H ): | 1300x610x2080(mm) | 51.18×24.01×81.88(inch) |
| Packing Dimension (W×D×H ): | 1250x700x1620(mm) 49.20×27.60×63.80(inch) |
| Electrical Requirements: | 220-240V,50/60Hz, 1Φ 18.2 A | 6-20P Plug is Installed |

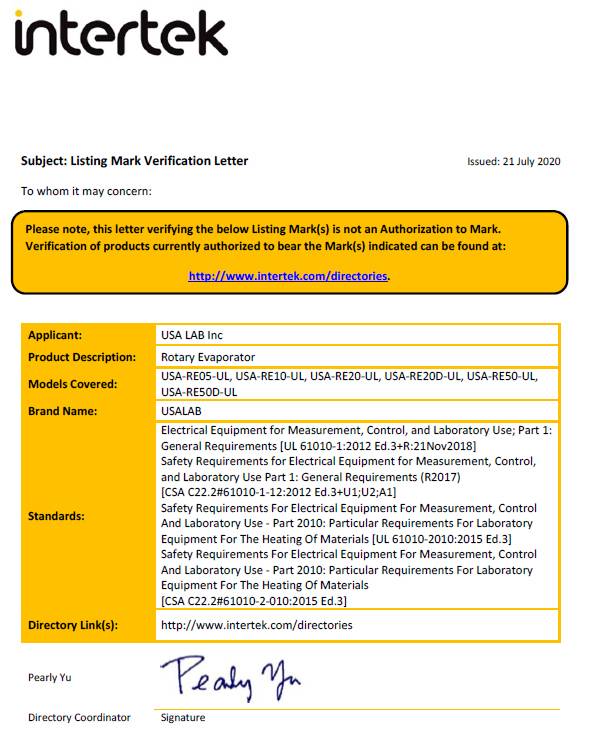

| Certifications: | ETL to UL/CSA standards |
$8,599.00
Our USA Lab ETL Rotary Evaporators are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Our evaporators come with a ETL certification tested to UL and CSA standards which is required by many states and provides a higher standard for product production, safety, and lifespan. Each evaporator comes standard with extremely efficient heat up times with our optimized bath and heating coils. Our systems come with specially designed condensing coils to allow for large condensing surface areas. This increase in condensing area allows for consistent, high production results.
Our evaporators will provide superior quality with Safety features that include over current protection, over temperature protection, anti-dry protection, and a power interruption Alarm.
Our rotary evaporators come equipped with the highest quality parts to serve you better and to make your equipment last longer.
Upgrade today and see the USA Lab quality difference!
|
SPECIFICATIONS |
|
|
Model |
USA-RE50D-UL |
|
Operating Ambient Temp Range |
5℃ to 35℃ (41℉ to 95℉) |
|
Recovery Rate |
Water 15L/Hr | Alcohol 30L/Hr |
|
Glass Material |
GG-17 High Borosilicate |
|
Rotation Motor |
DC brushless, 250w |
|
Lifting Motor |
DC brushless, 100w |
|
Speed Setting |
Knob setting +LCD controller |
|
Vacuum Seal |
PTFE + Teflon coating |
|
Temperature Control |
PID Controller |
|
Cooling Area（㎡） |
2.3+1.214 |
|
Rotation Speed |
20~110 rpm |
|
Bath Temp. Control Range |
RT + 5 ~ 85 ℃ |
|
Maximum Vacuum Pressure |
< 6 torrs |
|
Evaporating Flask Capacity |
50L / 13.20 gallon |
|
Receiving Flask Capacity |
20L x 2pcs/ 5.28 gallon |
|
Condenser Style |
Main + Auxiliary Vertical Double Helix |
|
Water Bath Material |
Stainless steel corrosion resistant coating |
|
Water Bath Size |
Ø540 x 340mm/Ø21.3”x13.4” |
|
Lift Mode |
Auto lift |
|
Lifting Distance |
250mm/98.4” |
|
Heating Power |
4000W |
|
Vacuum Connection |
M18 |
|
Condenser Connection |
M18 |
|
Gross Weight |
212KG | 467Lbs |
|
Item Dimensions (W×D×H ) |
1300x610x2080(mm) | 51.18×24.01×81.88(inch) |
|
Packing Dimension (W×D×H ) |
1250x700x1620(mm) 49.20×27.60×63.80(inch) |
|
Electrical Requirements |
220-240V,50/60Hz, 1Φ 18.2 A | 6-20P Plug is Installed |
|
Safety Features |
Over current, Over temp, & Anti-dry protection. Power interruption Alarm. |
|
Certifications |
ETL to UL/CSA Standards |
|
|
|
|
PACKING LIST |
|
|
Model |
USA-RE50D-UL |
|
USA-RE50-UL Base |
1 |
|
Pole |
2 |
|
50L Evaporating Flask |
1 |
|
20L Receiving Flask |
2 |
|
Main Condenser |
2 |
|
Auxiliary Condenser |
2 |
|
Rotating Shaft – Vapor Duct |
1 |
|
Feeding Valve |
1 |
|
Fixing Flange |
1 |
|
Seal Ring |
2 |
|
Ring Stand |
2 |
|
Bracket |
2 |
|
Nozzle Set |
5 |
|
Manual |
1 |
For Technical Support, Questions, or Other Issues Please Email or Call Us!
