USA Lab UL 3.4 CuFt Vacuum Drying Oven w/ 10 Shelves 150°C 110V 5 Sided Heating

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Temp Range: Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉)
Vacuum Resistance: 0 to 760 mmHg (0 to 0.1MPa)
Heater Capacity: 1.35 kW
Capacity: 96 L | 3.4 CuFt
Dimension Internal: 400x600x400(mm) | 15.74×23.62×15.74(inch)
Dimension External: 879x820x708(mm) | 34.60×32.28×27.87(inch)
Internal Area: 5,858 cubic inches
Area of one Shelf: 345 Sq In
Area of 10 Shelves: 3,450 Sq In

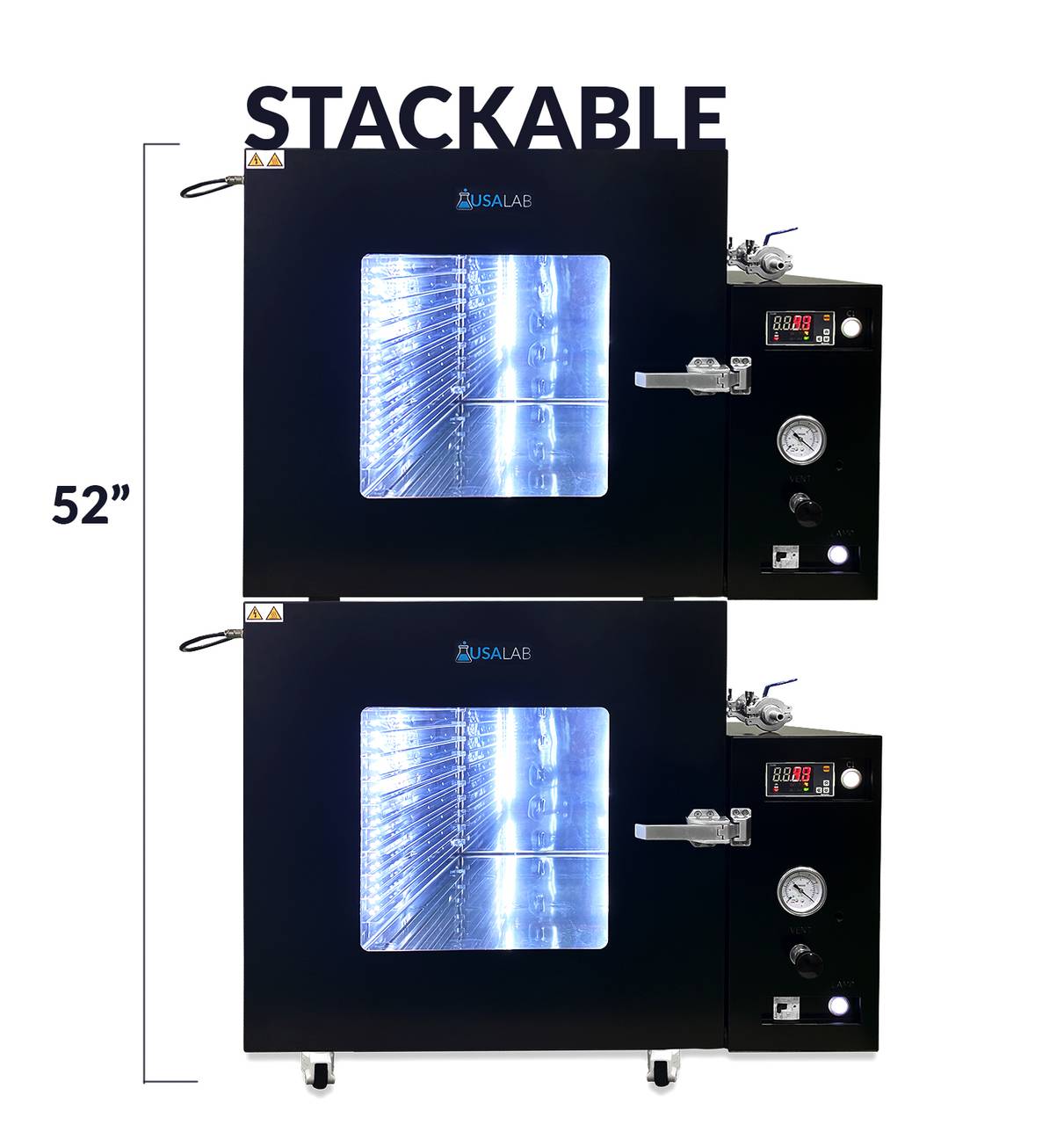

Height of 2 Units: 52 In
Net weight: 116 Kg | 255 Lbs.
Internal Material: Stainless Steel
External Material: Steel Plate With Powder Heating Coated
Shelves: 10 EA
Heating Type: 5 Sided Heating
Electrical: 110-120V, 50/60Hz, 1Φ 12.3 A | 5-15P Plug Installed
Certifications: UL & CE
Warranty: 2 Years

$4,990.00

SKU: USA-VO-34-UL Category: Brand:

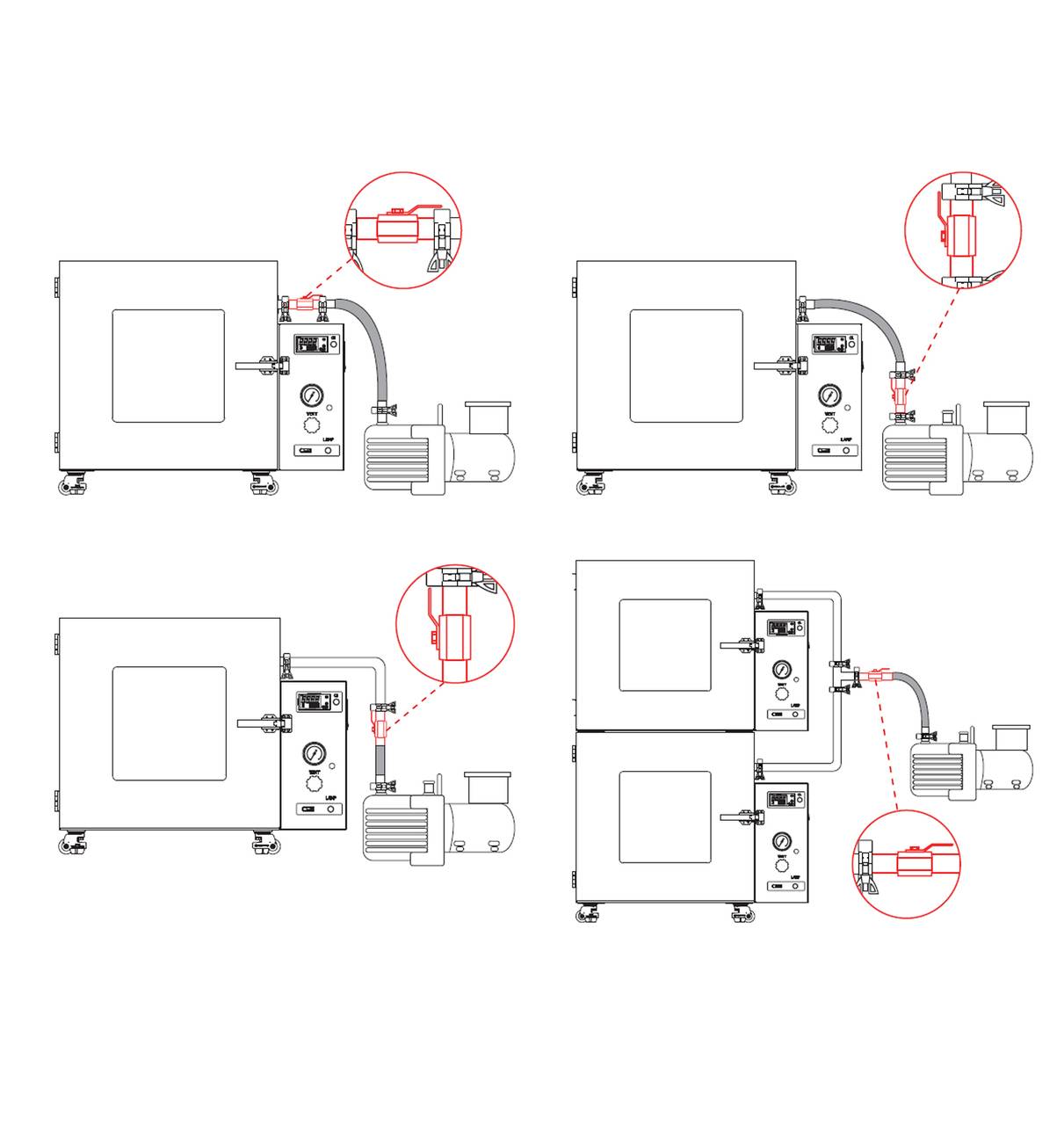

 Our USA Lab vacuum ovens are a top of the line product compared to others that are currently on the market while maintaining an affordable price. Our ovens come with a UL and CE certification which is required by many states and provides a higher standard for product production, safety, and lifespan.  Each oven comes standard with a Microprocessor PID Membrane Touch Digital Controller for ease of use and superior quality. We also provide an all stainless-steel tubing interior, oil filled vacuum gauge, stainless steel vacuum vent & valve, and a 2-year warranty. All ovens come with 10 high quality aluminum shelves for extremely accurate temperature uniformity. Users can stack our ovens with ease and manifold vacuum lines together for ease of use. Our ovens are equipped with 5 sided heating for maximum temperature uniformity.

Our ovens will provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include and electricity leakage circuit breaker and an over temperature controller.

Our ovens come equipped with the highest quality parts to serve you better and to make your equipment last longer.

Upgrade today and see the USA Lab quality difference!

Manual

SPECIFICATIONS

Model

USA-VO-34-UL

Temp Range

Ambient +5 to 150 (Ambient + 9 to 302)

Temp Uniformity

± 1°F at 105°F

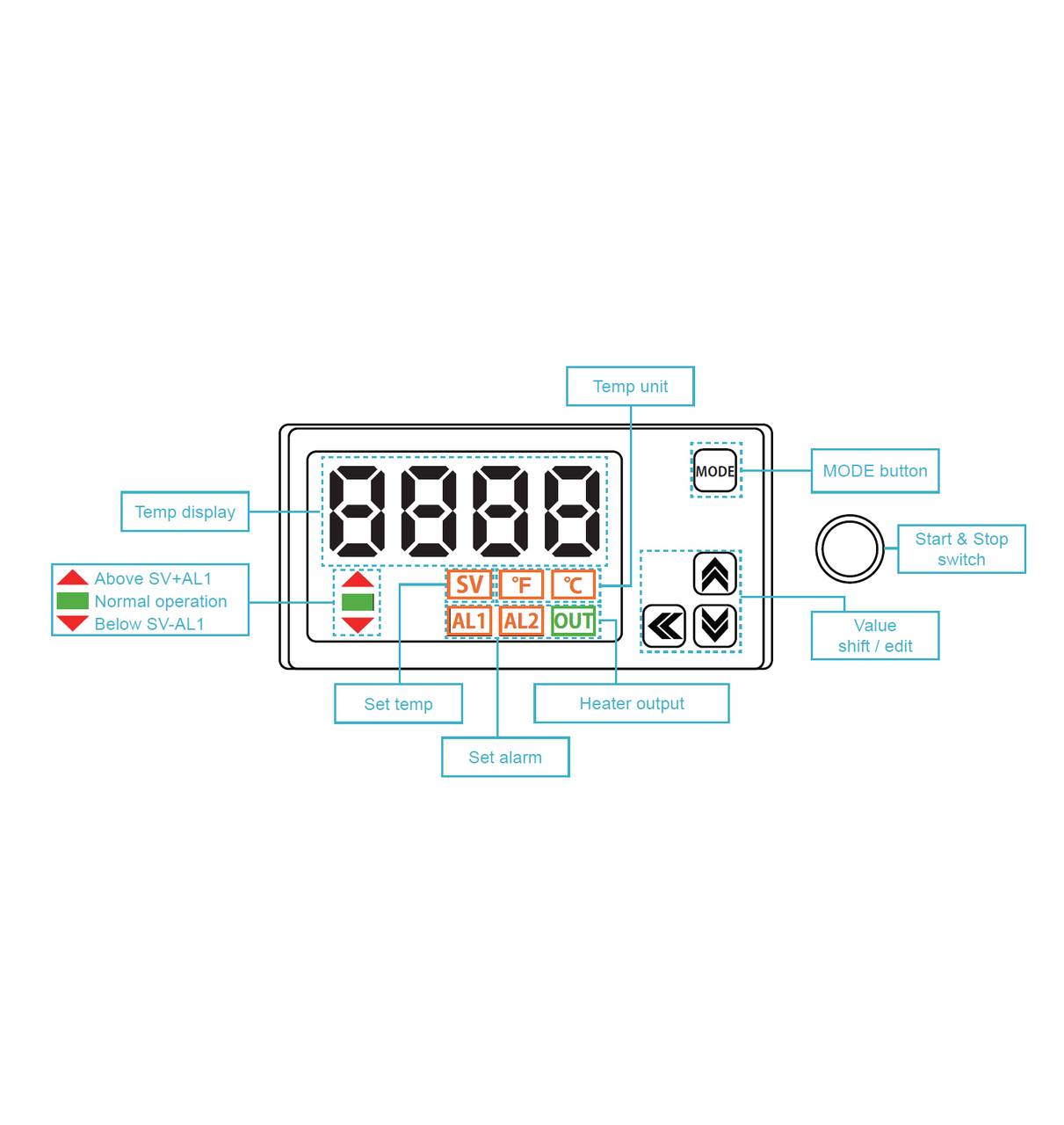

Temp Controller

Microprocessor PID Membrane Touch Digital controller

Vacuum Resistance

0 to 760 mmHg (0 to 0.1MPa)

Heater Capacity

1.35 kW

Capacity

96 L | 3.4 CuFt

Dimension Internal

400x600x400(mm) | 15.74×23.62×15.74(inch)

Dimension External

879x820x708(mm) | 34.60×32.28×27.87(inch)

Internal Area

5,858 cubic inches

Area of one Shelf

345 Sq In

Total Area of 10 Shelves

3,450 Sq In

Net weight

116 Kg | 255 Lbs.

Material Internal

Stainless Steel

Material External

Steel Plate with Powder Heating Coated

Material Packing

Silicon Rubber Packing

View Window

Tempered Glass

Shelves

10 EA

Electrical Requirements

110-120V, 50/60Hz, 1Φ 12.3 A | 5-15P Plug Installed

Warranty

2 Year

Safety

Over Temp. Controller & Electricity Leakage Circuit Breaker

Certifications

UL & CE

PACKING LIST

Model

USA-VO-34-UL

USA-VO-34-UL Oven

1

Shelves

10

Vacuum KF25 Valve

1

KF25 L-Type Pipe

1

KF25 Clamp

3

KF25 O-ring

3

3/8″ Silicone Tubing 6.5ft

1

KF25 to 3/8″ Hose Barb

1

Manual

1





For Technical Support, Questions, or Other Issues Please Email or Call Us!
