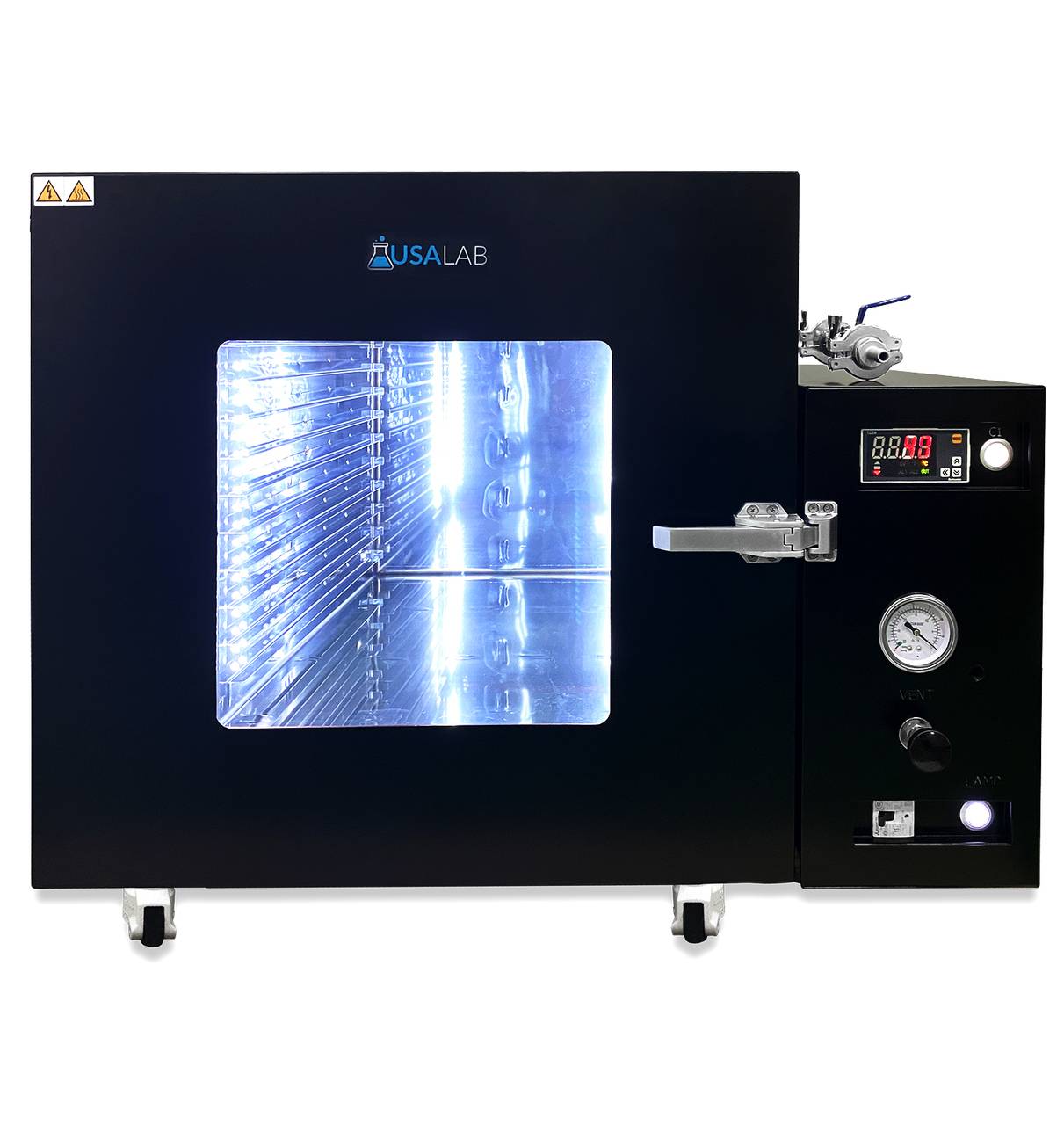

USA Lab UL 3.4 CuFt Vacuum Drying Oven 150°C w/ UVP-21 21CFM Vacuum Pump 110V

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Oven Temp Range: Ambient +5℃ to 150℃ (Ambient + 9℉ to 302℉)
Oven Heater Capacity: 1.35 kW
Oven Capacity: 96 L | 3.4 CuFt
Oven External: 879x820x708(mm) | 34.60×32.28×27.87(inch)
Oven Net weight: 116 Kg | 255 Lbs.
Oven Shelves: 10 EA
Oven Electrical: 110-120V, 50/60Hz, 1Φ 12.3 A | 5-15P Plug Installed
Pump CFM: 21 CFM
Pump Vacuum: 0.3 Microns
Pump Motor Speed: 1,720 rpm
Pump Motor Wattage: 1.1 kW
Pump External: 21×7.5×12(inch)
Pump Net weight: 43 Kg | 95 lbs.
Pump Electrical: 110-120V, 50/60Hz, 1Φ 9.16 A | 5-15P Plug Installed

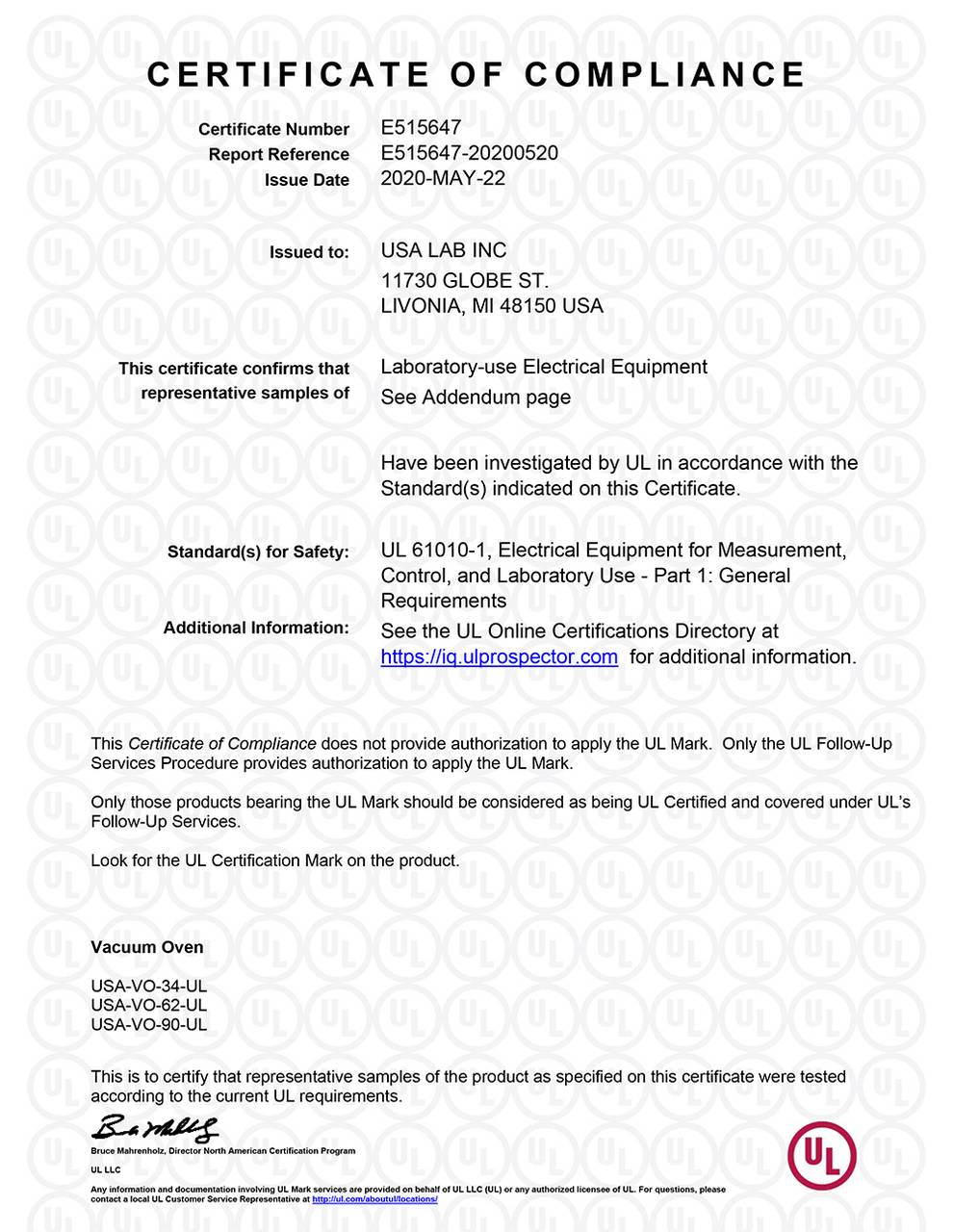

Certifications: UL & CE
Warranty: 2 Year

$8,089.00

SKU: USA-VO-34-UL-TK Category: Brand:

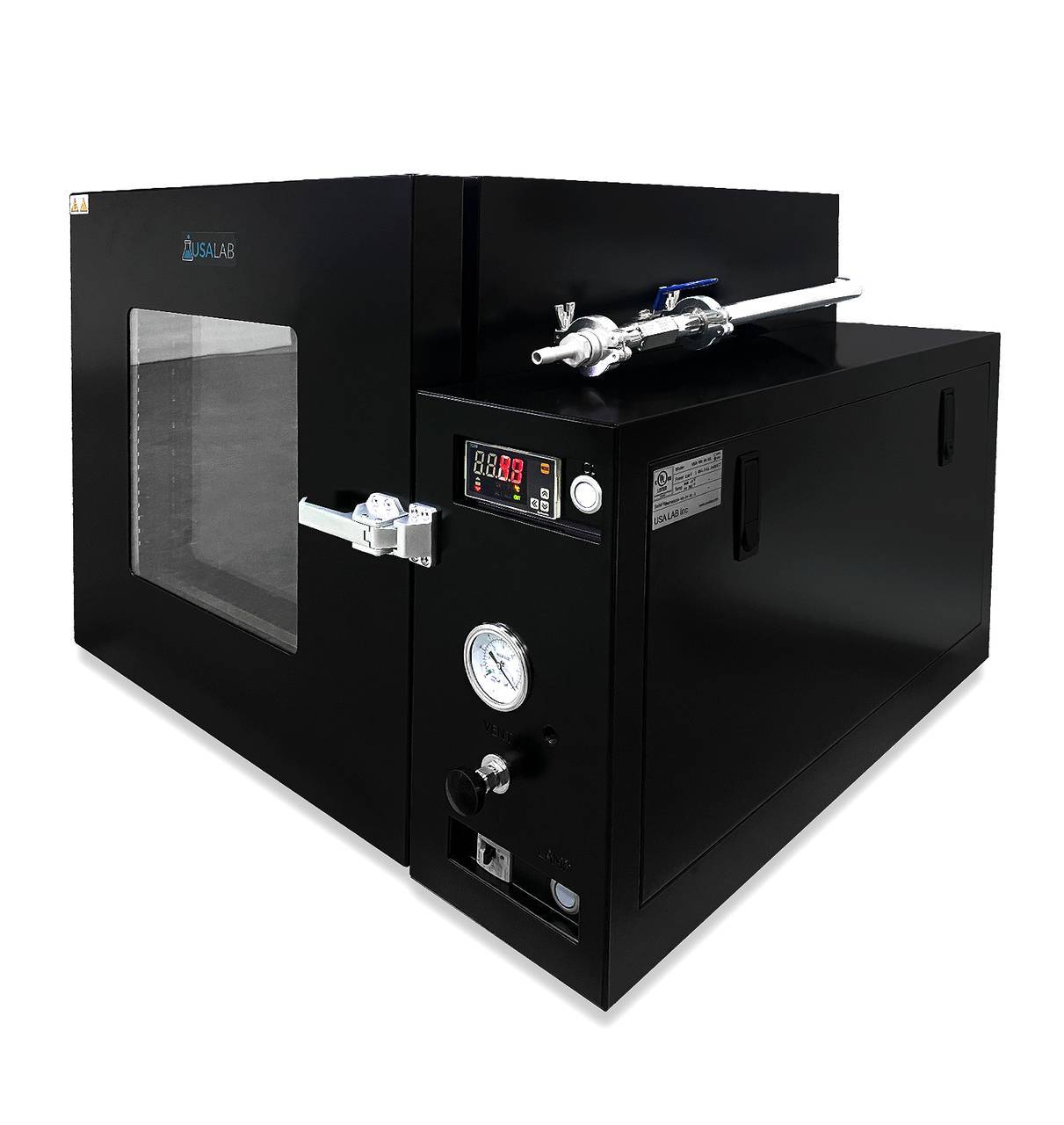

 Our USA Lab turnkey vacuum ovens kits are a top of the line product compared to others that are currently on the market while maintaining an affordable price. The oven and pump come with a UL and CE certification which is required by many states and provides a higher standard for product production, safety, and lifespan.

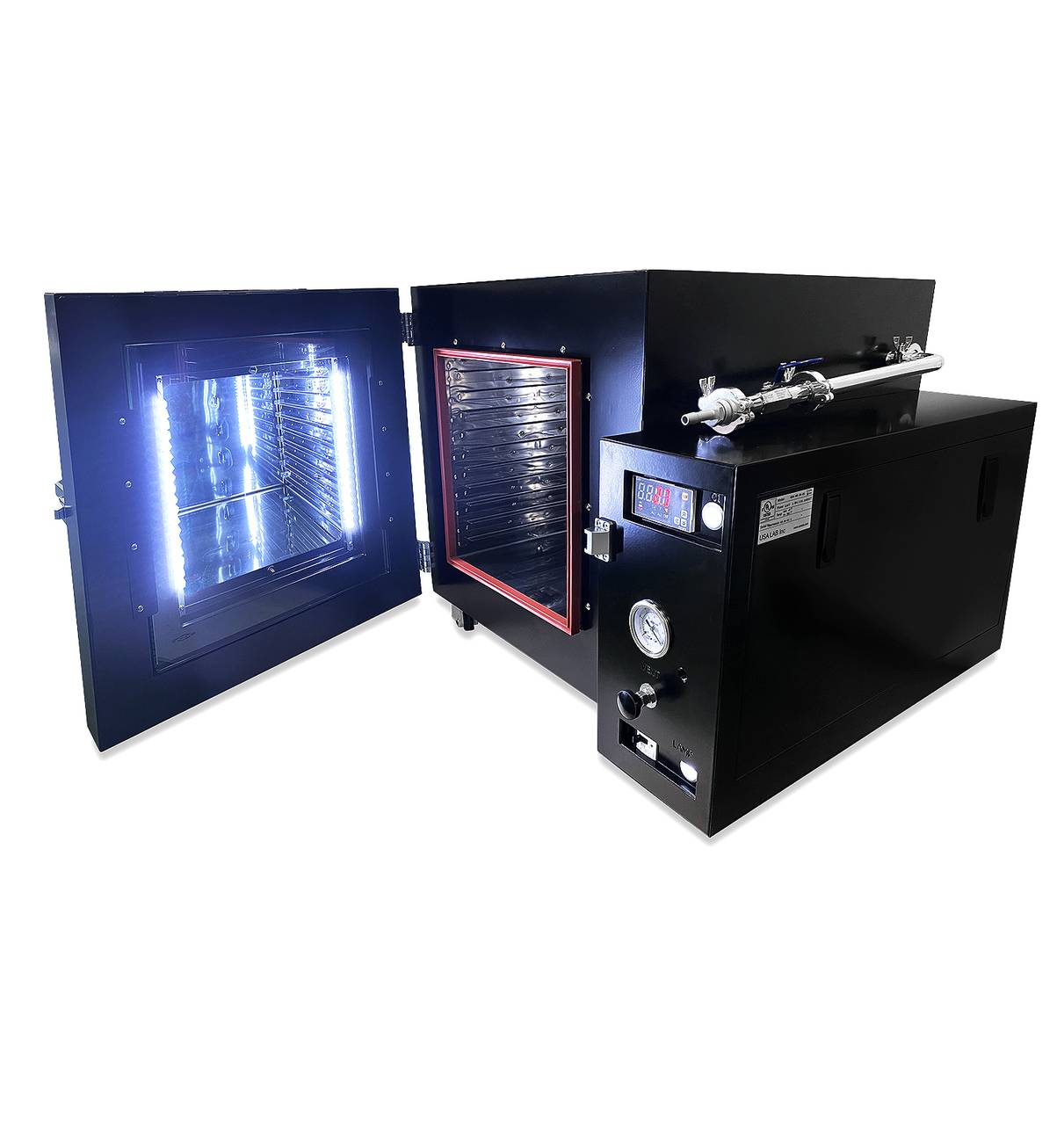

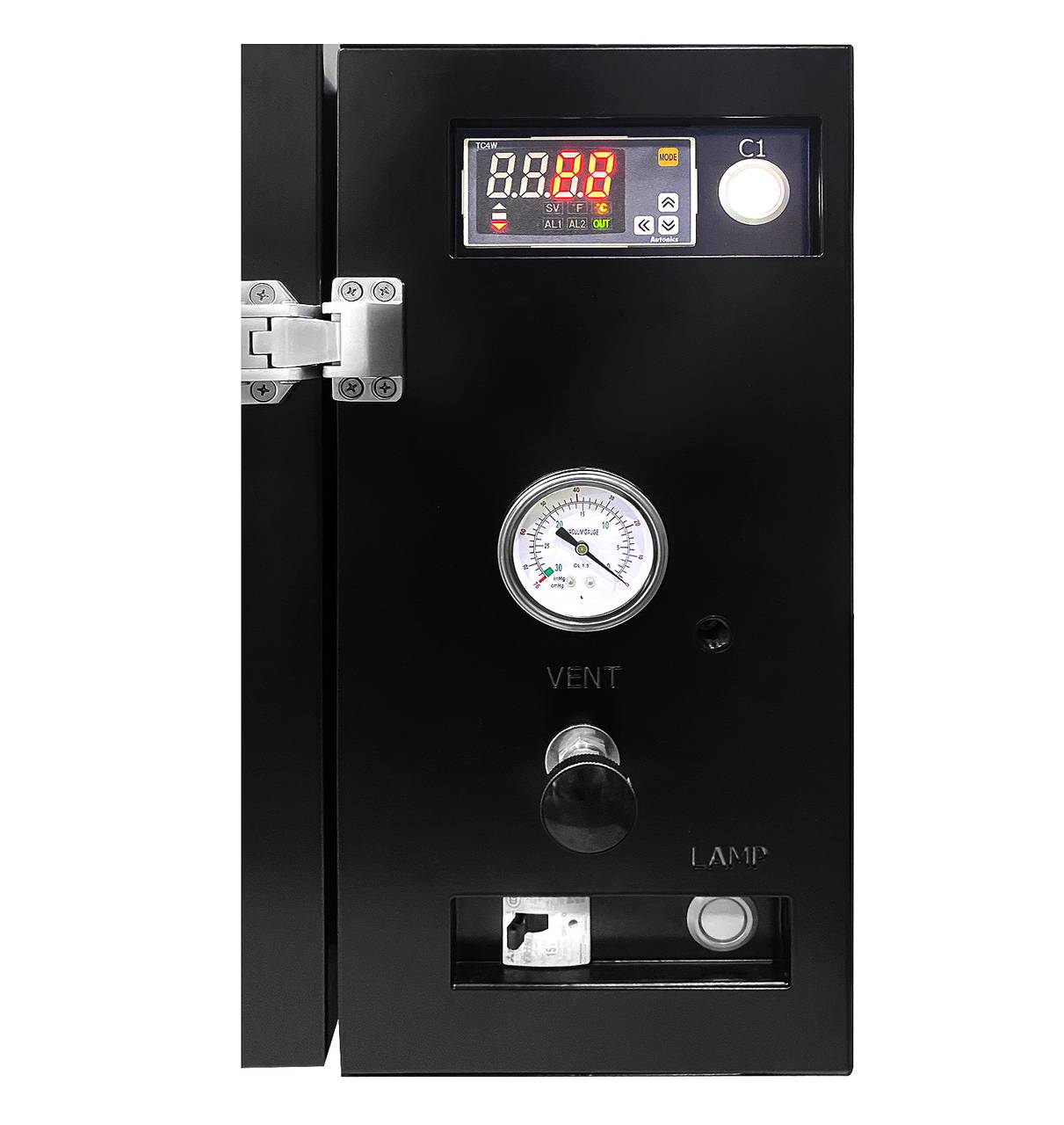

Each oven comes standard with a Microprocessor PID Membrane Touch Digital Controller for ease of use and superior quality. We also provide an all stainless-steel tubing interior, oil filled vacuum gauge, stainless steel vacuum vent & valve, and a 2-year warranty. All ovens come with 10 high quality aluminum shelves for extremely accurate temperature uniformity. Users can stack our ovens with ease and manifold vacuum lines together for ease of use.

Our ovens will provide superior quality and allow users to greatly reduce drying times by pulling a uniform vacuum level inside the oven. Safety features include and electricity leakage circuit breaker and an over temperature controller.

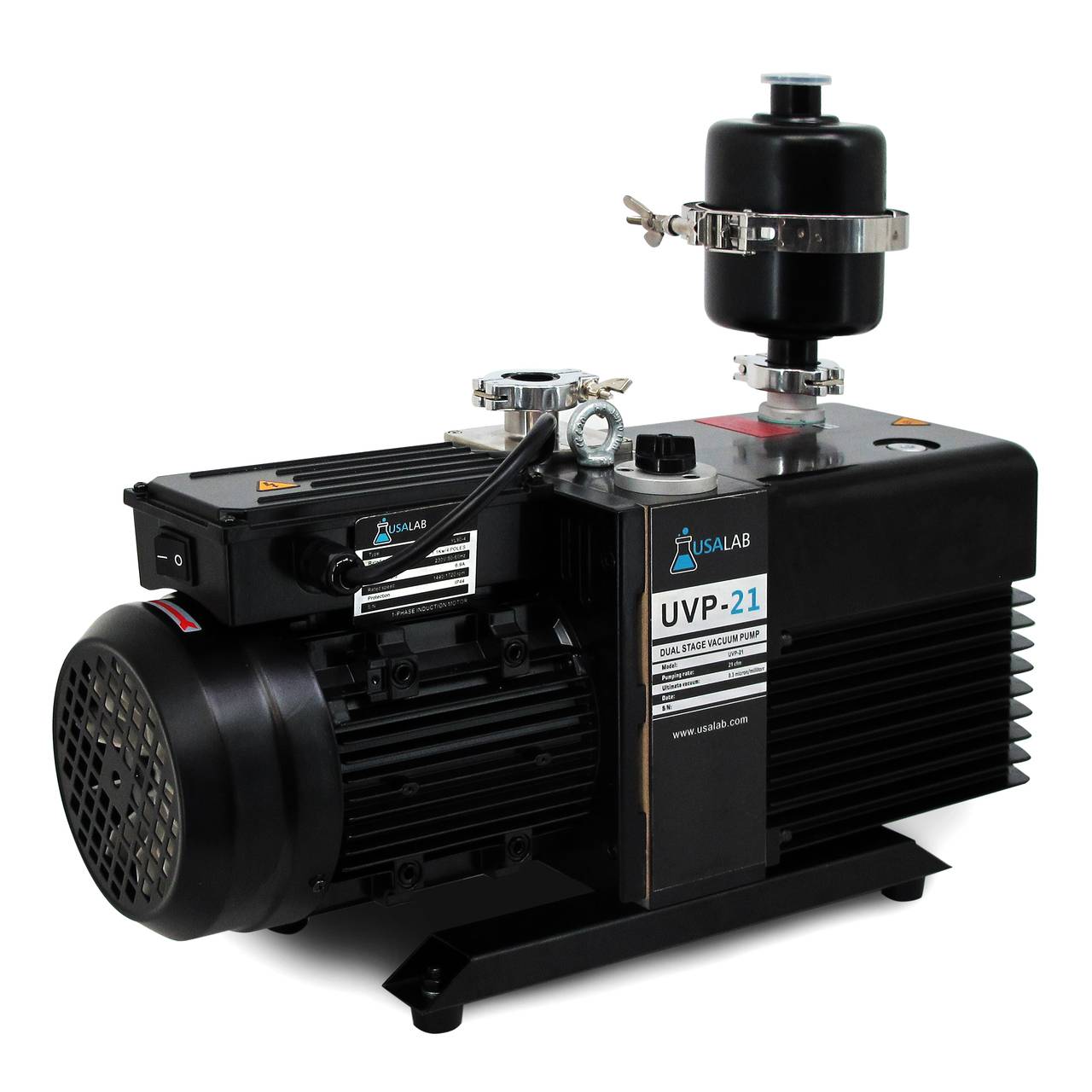

Our corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that complement our vacuum ovens. These pumps are designed for reliable, long term use at 0.3 micron and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to our vacuum oven system for immediate use.

Our ovens turnkey kits come equipped with the highest quality parts to serve you better and to make your equipment last longer.

Upgrade today and see the USA Lab quality difference!

USA-VO Vacuum Oven Manual

UVP-21 Vacuum Pump Manual

SPECIFICATIONS

Model

USA-VO-34-UL

Temp Range

Ambient +5 to 150 (Ambient + 9 to 302)

Temp Uniformity

± 1°F at 105°F

Temp Controller

Microprocessor PID Membrane Touch Digital Controller

Vacuum Resistance

0 to 760 mmHg (0 to 0.1MPa)

Heater Capacity

1.35 kW

Capacity

96 L | 3.4 CuFt

Dimension Internal

400x600x400(mm) | 15.74×23.62×15.74(inch)

Dimension External

879x820x708(mm) | 34.60×32.28×27.87(inch)

Internal Area

2,420 Sq In

Area of one Shelf

345 Sq In

Total Area of 10 Shelves

3,450 Sq In

Net weight

116 Kg | 255 Lbs.

Material Internal

Stainless Steel

Material External

Steel Plate with Powder Heating Coated

Material Packing

Silicon Rubber Packing

View Window

Tempered Glass

Shelves

10 EA

Electrical Requirements

110-120V, 50/60Hz, 1Φ 12.3 A | 5-15P Plug Installed

Warranty

2 Year

Safety

Over Temp. Controller & Electricity Leakage Circuit Breaker

Certifications

UL & CE

Model

UVP-21

Pumping Flow Rate

21 CFM

Ultimate Vacuum without Gas Ballast

0.3 Microns

Ultimate Vacuum with Gas Ballast

6 Microns

Oil Volume

2 Liter / 2.1 Quart

Recommended Oil

Inland 19

Inlet/Outlet Connection

KF25

Motor Speed

1,720 rpm

Noise Level

<58 dB

Working Temperature

5-40°C

Motor Wattage

1.1 kW

Dimension External

21×7.5×12(inch)

Net weight

43 Kg | 95 lbs.

Warranty

2 Year

Electrical Requirements

110-120V, 50/60Hz, 1Φ 9.16 A | 5-15P Plug Installed

Certifications

UL & CE

PACKING LIST

Model

USA-VO-34-UL

USA-VO-34-UL Oven

1

Shelves

10

Vacuum KF25 Valve

1

KF25 L-Type Pipe

1

KF25 Clamp

3

KF25 O-ring

3

3/8″ Silicone Tubing 6.5ft

1

KF25 to 3/8″ Hose Barb

1

Manual

1

Model

UVP-21

UVP-21 Vacuum Pump

1

KF25 to 3/8″ Hose Barb

1

KF25 Clamp

1

KF25 O-ring

1

Vacuum Pump Oil 16oz

1

Oil Mist Filter

1

Manual

1

ADDITIONAL ITEMS

36″ KF25 Bellow Hose

1
