USA Lab 50L Dual Setup Explosion Proof Rotary Evaporator Turnkey System
| Model: | EXRDS-1050-VB-TK |
| Brand: | USA Lab |
$24,597.00

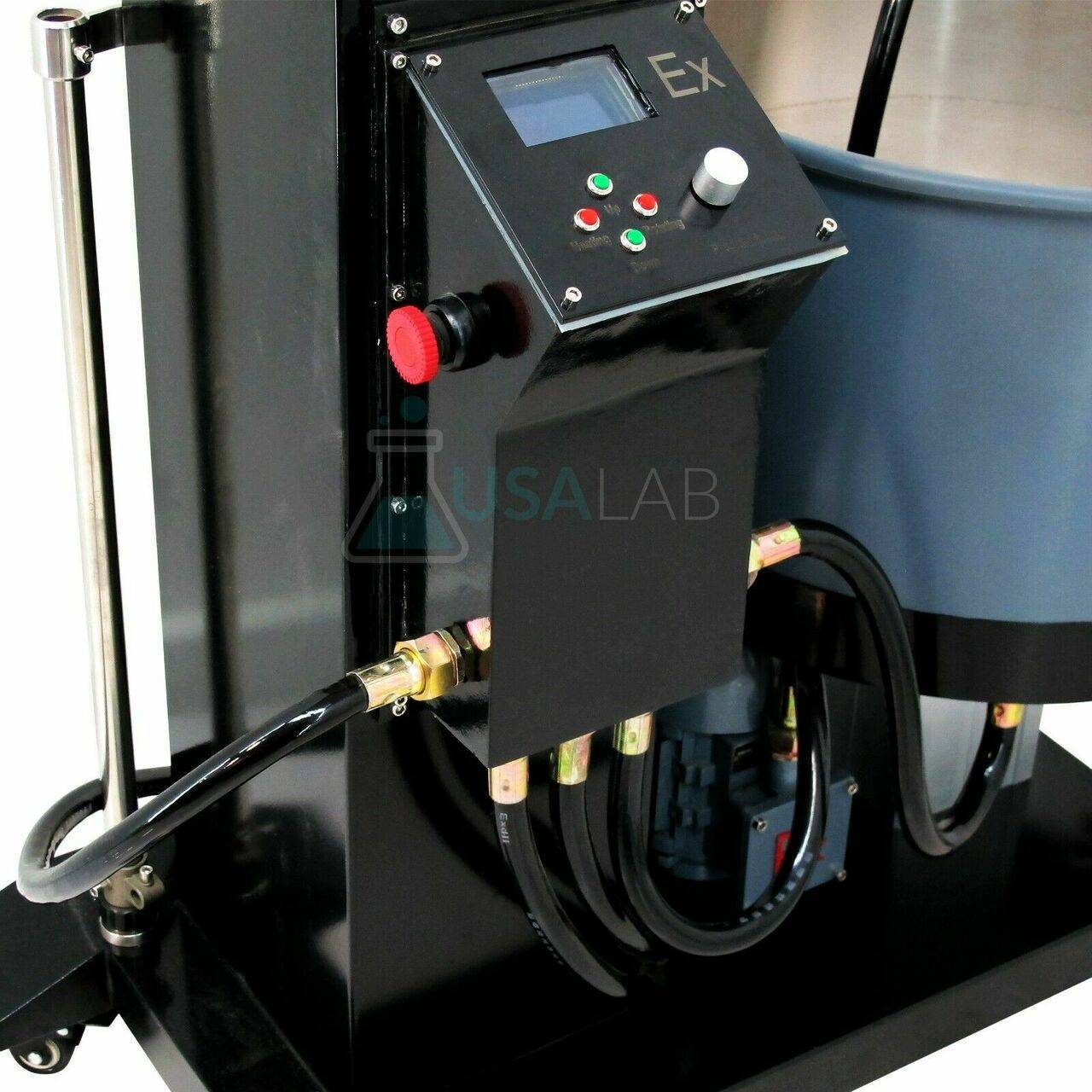

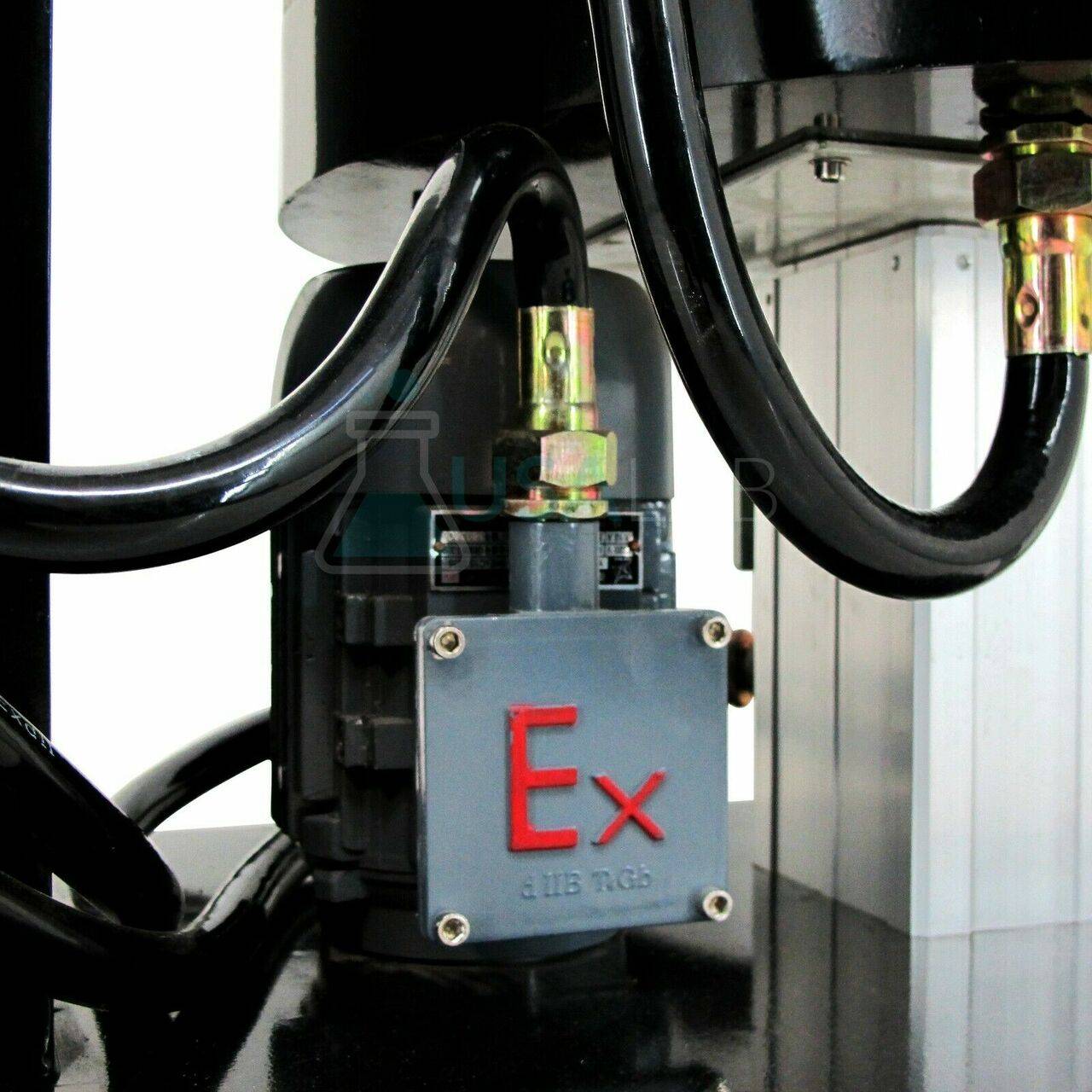

The USA Lab 50L EXRDS Series Rotary Evaporator Turnkey System recovers solvents efficiently and fast with two times the surface area for condensing and twice the recovery volume. Our EXRDS series evaporator is an explosion proof evaporator with brush-less motors and enclosed internals to prevent any flammable / explosive material from touching the internals via seals.Â
Â
This explosion proof rotary evaporator provides consistent and repeatable results at an affordable price. With dual condensers and dual receiving flasks made of GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area, higher capacity’s and higher recovery rates. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum.Â
Â
This 50l rotary evaporator system comes equipped with two of our 50L UC-50/30 -30°C chillers, providing low temperatures and high flow rates for each condensing set-up. This allows for higher recovery rates than a single condenser set-up or using one chiller on two condensers. Our turnkey set-up also comes equipped with one of the highest quality diaphragm pumps made by Vacuubrand. The MD 4C NT 2.2CFM pump is rated for 15,000 hours maintenance free and provides a superior vacuum with an oil-free, corrosion resistant system.
Â
No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.
|
This Kit Includes the Following: |
|
|
EXRDS-1050 50L Explosion Proof Rotary Evaporator with Dual Condenser Set-up |
1 unit |
|
-30°C 50L Recirculating Chiller UC-50/30 |
2 units |
|
Vacuubrand MD 4C NT 2.2CFM Chemistry Diaphragm Vacuum Pump 110V |
1 unit |
|
5 Gallons of Propylene Glycol USP |
2 pcs |
|
10ft Vacuum Hose |
2 pcs |
|
11ft Insulated Chiller Line |
2 pcs |
|
EXR-1050 DUAL SETUP Specifications |
|
|
Glass Material |
GG-17 Borosilicate Glass |
|
Evaporation Flask Capacity |
50L |
|
Collection Flask Capacity |
20L |
|
Rotary Speed |
20-120RPM |
|
Bath Temperature Range |
Room Temp to 180°C /356°F |
|
Lifting Mechanism |
Electric |
|
Power Requirements |
220V 60Hz 30A Single Phase |
|
Power Requirements |
HARD WIRED ONLY |
|
Temperature Control Accuracy |
+/-1°C |
|
Motor Wattage |
250W |
|
Heater BTUs |
22,000BTU |
|
Achievable Vacuum |
399.9Pa |
|
Evaporating Capability |
Water≥13L/H; Alcohol≥27L/H |
|
Water Bath Volume |
77L |
|
Dimensions |
52″L x 45″W x 84″H |
|
Condensing Volume: Main |
0.91m² x2 |
|
Condensing Volume: Auxiliary |
0.52m² x2 |
|
Speed Regulation |
Digital Step-Less |
|
Vacuum Barb |
13.3mm |
|
Condenser Barb |
15.5mm |
|
PACKING LIST |
|
|
USA Lab 50L EXR-1050 Rotary Evaporator Base |
1 set |
|
50L Bath Cover |
1 pc |
|
Main Condenser |
2 pcs |
|
Auxiliary Condenser |
2 pcs |
|
50L Boiling Flask |
1 pc |
|
20L Receiving Flask |
2 pcs |
|
50L Flask Cover |
1 pc |
|
Four-Way Bump Trap |
1 pc |
|
Vapor Duct with Seal (Pre-Installed) |
1 set |
|
PTFE Vacuum Sealing Kit (Pre-Installed) |
1 set |
|
Glass Vacuum Port with PTFE Valve |
6 sets |
|
Glass Feeding Tube with PTFE Valve |
2 sets |
|
PTFE Feeding Tube Extension Hose |
1 pc |
|
Vertical Stand |
2 pcs |
|
Vacuum Gauge |
1 pc |
|
Support Ring |
4 pcs |
|
Rubber Strap for Condenser |
2 pc |
|
Clamp with PTFE Gasket |
16 sets |
|
Evaporating Flask Screw Aid |
1 pc |
|
Allen Key |
2 pcs |
|
63A Fuse |
1 pc |
|
Screw Nuts for Clamps |
2 pcs |
|
Springs for Clamps |
2 pcs |
|
Gasket for Clamps |
4 sets |
|
3oz. Vacuum Grease |
1 pc |
|
Vacuum Hose |
10ft |
|
UC-50/30 SPECIFICATIONS |
|
|
Model |
UC-5030 |
|
Reservoir Capacity |
50L |
|
Reservoir Dimensions |
17.8″ x 13.7″ |
|
Temperature Range |
Room Temperature to -30°C / -22°F |
|
Power Requirements |
220-240V 60Hz 20A 1800W Single Phase |
|
Refrigerating BTUs |
12,000BTU – 25,500BTU |
|
Circulating Pump Wattage |
100W |
|
Temperature Accuracy |
+/- 0.5°C |
|
Pump Flow |
30L/Min |
|
Pump Pressure |
2.2bar |
|
Barb Size |
5/8″ |
|
Refrigerant |
R404 |
|
Dimensions |
31″ x 26″ x 46″ |
|
Weight |
174lbs |
|
UC-5030 Packing List |
|
|
USA Lab UC-5030 Chiller |
1 pc |
|
5/8″ Insulated Tubing |
11ft |
|
5/8″ Barbed Valve |
1 pc |
|
PTFE Sealing Tape |
1 pc |
 Â
MD 4C NT
Three-stage chemistry-design diaphragm pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.
Performance Features
- Outstanding chemical resistance and superior vapor tolerance;Â exceptionally high performance even at low vacuum;Â excellent ultimate vacuum even with gas ballast; whisper quiet and very low vibration; long diaphragm life, maintenance-free drive system
-
-
Technical Data
-
|
Technical Data |
MD 4C NT |
|
Number of Heads / Stages |
4 / 3 |
|
Max. Pumping Speed at 50/60 Hz |
3.4 / 3.8 m3/h |
|
Max. Pumping Speed at 50/60 Hz |
2.0 / 2.2 cfm |
|
Ultimate Vacuum (abs.) |
1.5 / 1.1 mbar/torr |
|
Ultimate Vacuum (abs.) with Gas Ballast |
3 / 2.2 mbar/torr |
|
Ambient Temperature Range (Operation) |
(10°C) – (40°C) |
|
Ambient Temperature Range (Storage) |
(-10°C) – (60°C) |
|
Max. Back Pressure (abs.) |
1.1 bar |
|
Inlet Connection |
Hose nozzle DN 8-10 mm |
|
Outlet Connection |
Hose nozzle DN 8-10 mm |
|
Rated Motor Power |
0.25kW |
|
Rated Motor Speed at 50/60 Hz |
1500/1800 min-1 |
|
Degree of Protection |
IP 40 |
|
Dimensions (L x W x H) |
325mm x 243mm x 198mm |
|
Weight |
14.3 kg |
|
Noise Level at 50 Hz, typ. |
45 dBA |
|
NRTL Certification |
Canada and the USA |
|
ATEX Conformity (only 230V) |
II 3/- G IIC T3 X Internal Atm. only |
|
Items Supplied |
Pump completely mounted, ready for use, with manual |
|
Accessories |
Rubber Vacuum Tubing DN 8 mm (20686001) |
-
MD 4C NT – Pumping Speed Graph at 50 Hz
MD 4C NT – Pump Down Graph at 50 Hz (10L volume)
-
MD 4C NT – Pumping Speed Graph at 60 Hz
-
MD 4C NT – Pump Down Graph at 60 Hz (10L volume)
-
Â
-
-Technical data are subject to change without notice-
-
MD 4C NT – Dimension Sheet
-
 Â
We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
Â
1 Year parts and labor warranty included. Does not include glassware.
