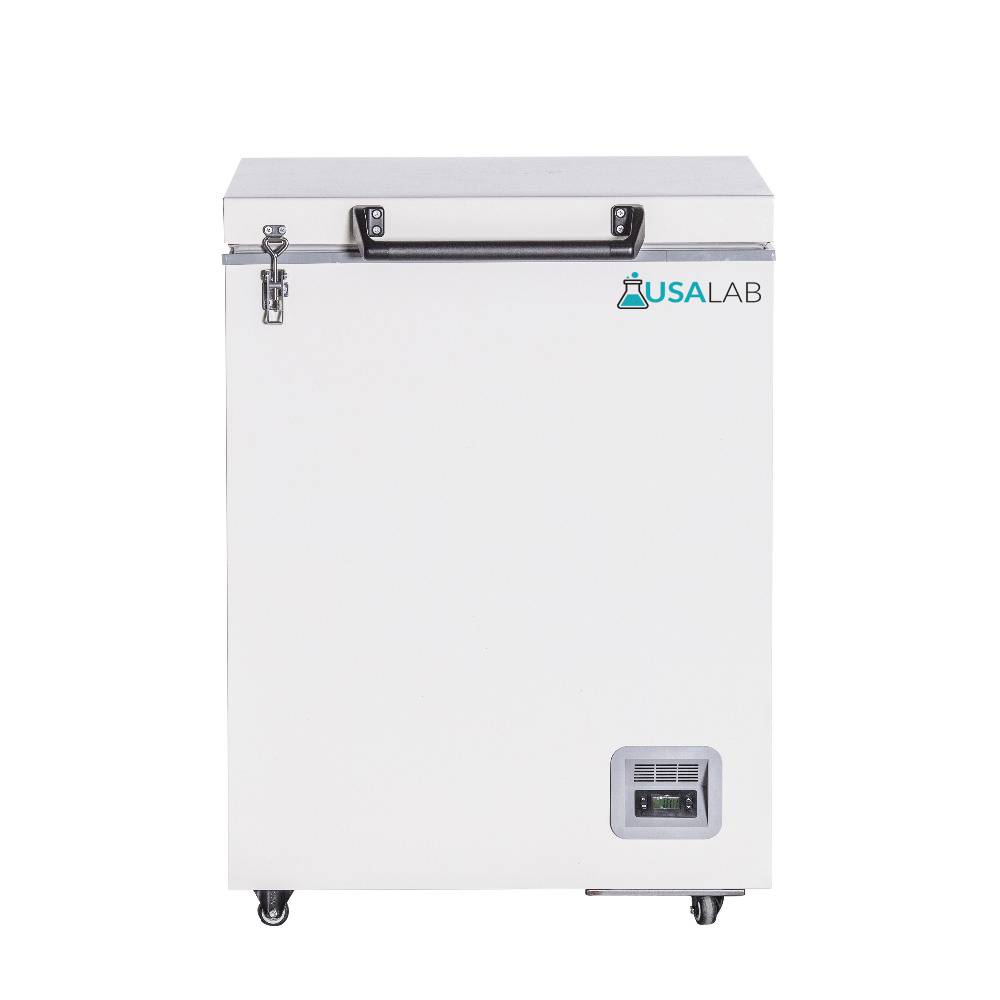

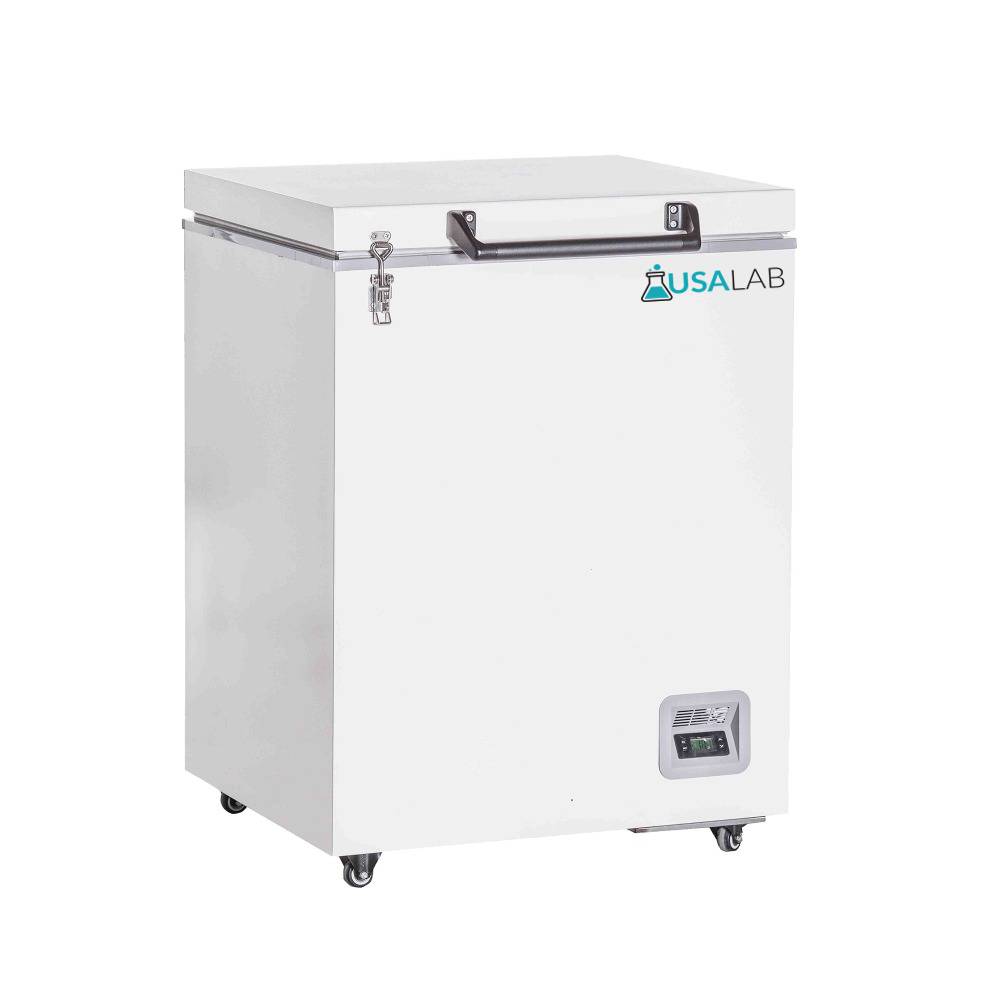

USA Lab 3.7 Cu Ft -86°C Ultra-Low Temperature Freezer 110V
| Brand: | USA Lab |
| Power Requirements: | 110-120V 50-60Hz 15A Single Phase |
| Warranty: | 1 Year |
$4,999.00
The all new USA Lab 3.7 Cu Ft-86°C Ultra-Low Freezer is a fantastic freezer for an affordable price. With a dual independent refrigeration system and a SECOP compressor, this unit will run efficiently and effectively while sporting a sleek design that will fit any lab or facility setting.
Each unit comes with numerous safety and protection features allowing for user and product safety. These features include high and low temperature alarms, and even a locking door.
|
MDF-86H105 Specifications |
|
|
Cooling Method |
Direct Cooling |
|
Defrost |
Manual |
|
Refrigerant |
R290 |
|
Power Consumption (kWh/24h) |
1.65kWh/24h |
|
Noise (dB) |
50dB |
|
Ambient Temperature |
10°C ~ 32°C |
|
Temperature Range |
-40°C ~ -86°C |
|
Compressor: Quantity / Brand |
1 / CUBIGEL |
|
Condenser |
Wire tube |
|
Sensor |
NTC |
|
Temperature Controller |
Microprocessor |
|
Display |
Digital Display |
|
Voltage (V) / Frequency (Hz) |
220V / 50Hz |
|
Power (W) |
160W |
|
Current (A) |
1.15A |
|
Inside Material |
Stainless Steel |
|
Outside Material |
Color Sprayed Steel |
|
Insulation |
PURF |
|
Capacity (L/cu.ft) |
105L/3.70cu.ft |
|
Nt./Gt. (kg) |
52kg / 64.5kg |
|
Exterior Size (LxWxH) |
685mm x 645mm x 930mm |
|
Interior Size (LxWxH) |
480mm x 380mm x 665mm |
|
Package Size (LxWxH) |
750mm x 700mm x 1040mm |
|
CBM |
0.55 |
|
20GP / 40GP / 40HQ |
24 / 51 / 51 |
|
High/Low Temperature |
Y |
|
Power Failure |
Y |
|
Sensor Error |
Y |
|
Filter Check |
/ |
|
Temperature Controller Failure |
Y |
|
Low Battery |
/ |
|
Condenser Clean |
/ |
|
High Ambient Temperature |
/ |
|
Door Ajar |
/ |
|
Power Failure Backup System |
12h Alarm |
|
Foot |
/ |
|
Castor |
Y |
|
Inside Door |
/ |
|
Test Hole: Quantity / Diameter |
1 / 25mm |
|
USB Port |
/ |
|
Remote Alarm Port |
/ |
|
Certification |
ISO9001, 13485, 14001, CE |
