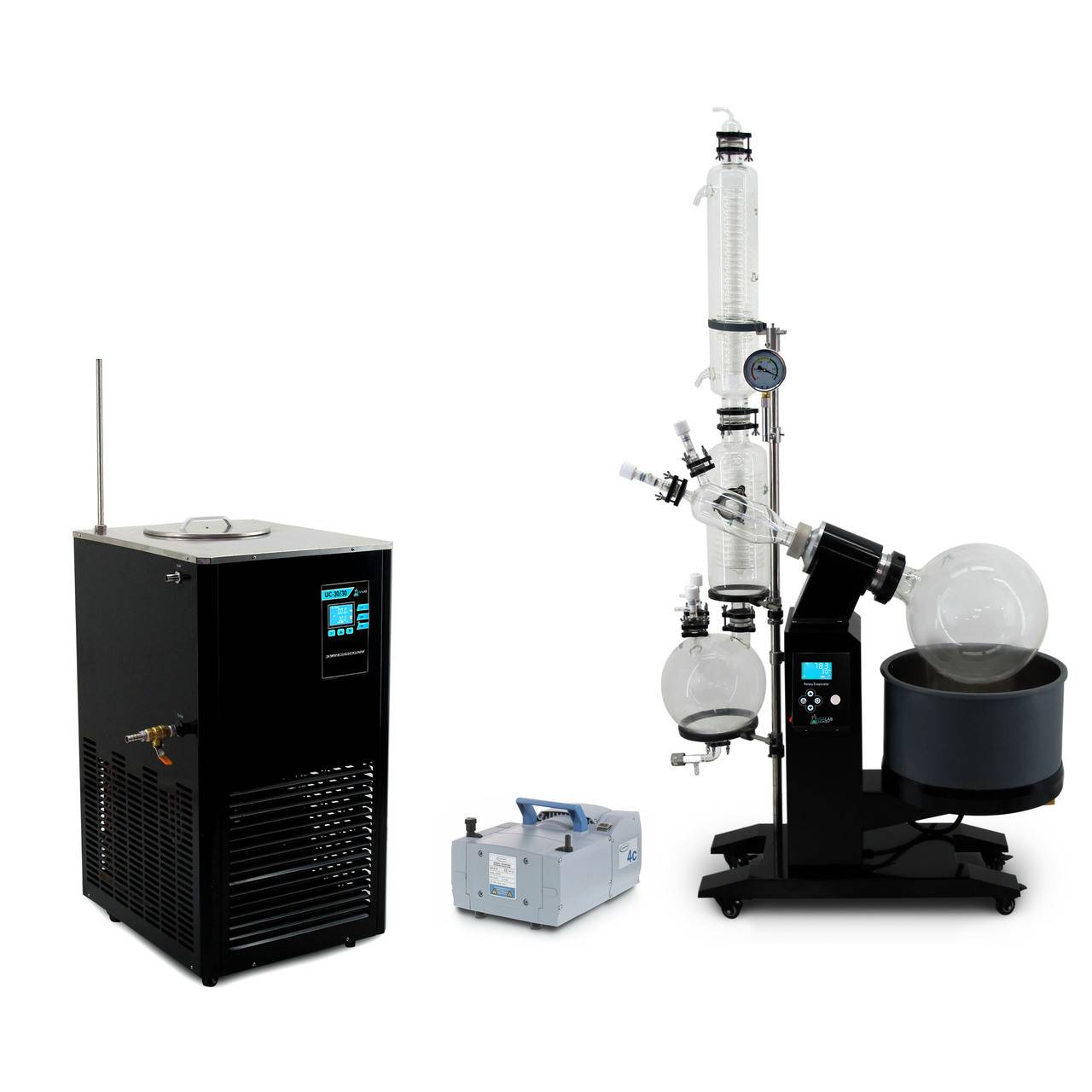

USA Lab 20L Rotary Evaporator Turnkey Rotovap RE-1020 w/ Vacuubrand MD 4C NT (ETL Certification to UL and CSA Standards)

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Warranty: 1 Year (Does Not Included Glassware)

$14,849.00

SKU: RE1020-VB-TK-ETL Category: Brand:
The USA Lab 20L RE-1020 Series Rotary Evaporator Turnkey Kit recovers solvents efficiently and fast. This Kit provides consistent and repeatable results at an affordable price.

The RE-1020 Evaporator is made with GG-17 High Borosilicate Glass, and has been designed for efficient use of surface area. This means faster recovery without compromising quality. Our evaporators come standard with safety features such as over-temperature shut off and dry-run protection. All valves and ports are high efficiency allowing a continuous feed of material as well as draining the receiving flask without breaking vacuum. This kit includes a Vacuubrand MD 4C NT 2.2CFM Diaphragm pump that is rated for 15,000 Hours of use before maintenance. This pump is made from the highest quality parts and will work great with a USA Lab 2L rotary evaporator system.

No expense has been spared with these evaporators, yet we crush the market on pricing to provide great value at a low cost. Our evaporators are the best value on the market and each one comes with fantastic customer service, local product support and a 1 year warranty.

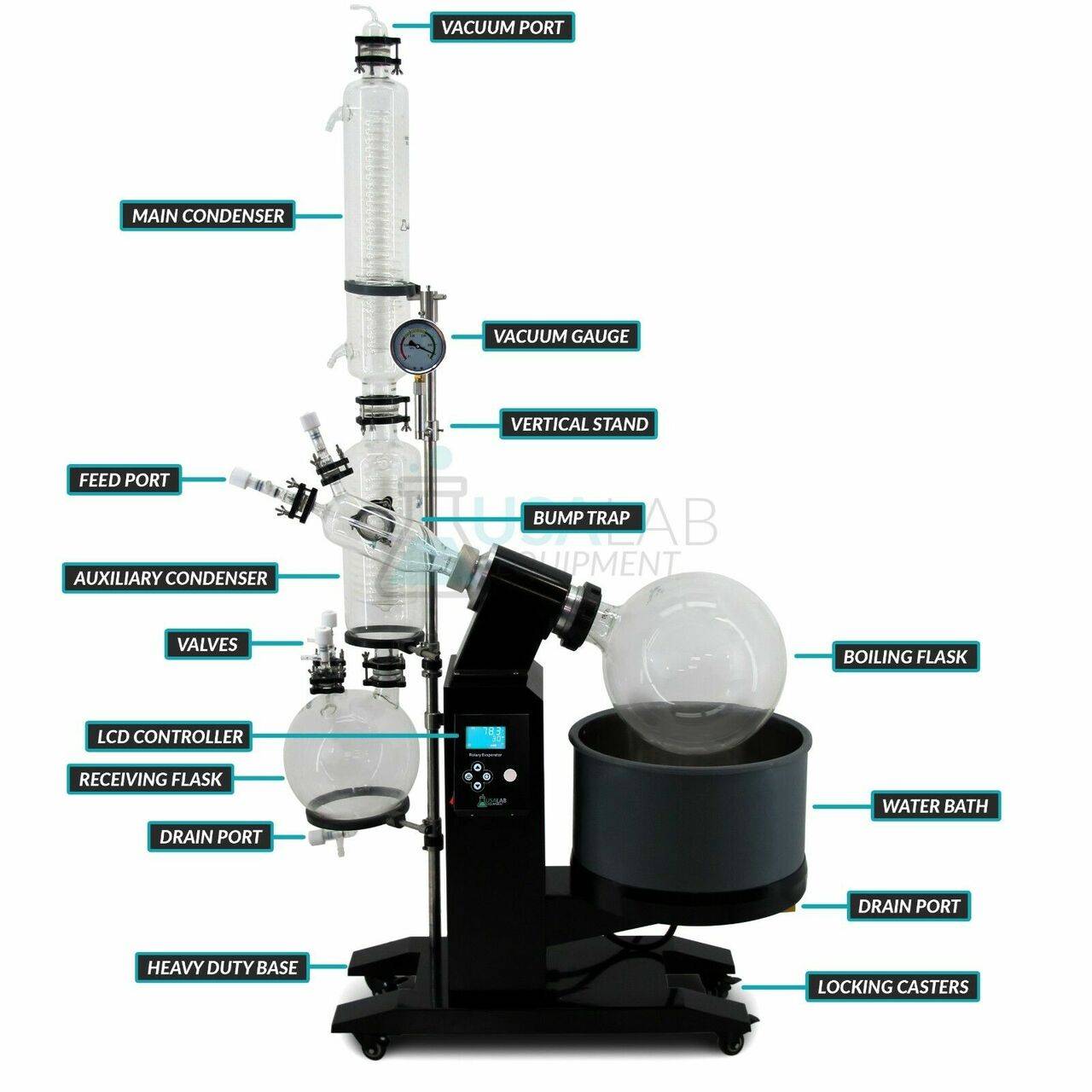

RE-1020 Specifications

Glass Material

GG-17 Borosilicate Glass

Evaporation Flask Capacity

20L

Collection Flask Capacity

10L

Rotary Speed

20-120RPM

Bath Temperature Range

Room Temp to 180°C (356°F)

Lifting Mechanism

Electric

Power Requirements

220-240V 60Hz 30A Single Phase
5000W L6-30P Plug Installed

Temperature Control Accuracy

+/-1°C

Motor Wattage

100W

Heater BTUs

17,000BTU

Achievable Vacuum

399.9Pa

Evaporating Capability

Water≥5L/H

Alcohol≥12L/H

Water Bath Volume

41L

Dimensions

43″L x 30″W x 80″H

Condensing Glass Volume

Main: 0.8m²

Auxiliary: 0.39m²

Speed Regulation

Digital Step-Less

Vacuum Barb

13.3mm

Condenser Barb

15.5mm

RE-1020 Packing List

Item

Quantity

20L RE-1020 Rotary Evaporator Base

1 set

Main Condenser

1 pc

Auxiliary Condenser

1 pc

20L Boiling Flask

1 pc

10L Receiving Flask

1 pc

Three-Way Bump Trap

1 pc

Vapor Duct with Seal (Pre-Installed)

1 pc

PTFE Vacuum Sealing Kit (Pre-Installed)

1 pc

Glass Vacuum Port with PTFE Valve

4 sets

Glass Feeding Tube with PTFE Valve

2 sets

PTFE Feeding Tube with Extension Hose

1 pc

Vertical Stand

1 pc

Vacuum Gauge

1 pc

Support Ring

2 pcs

Rubber Strap for Condenser

1 pc

Clamp with PTFE Gasket

7 sets

Evaporator Flask Screw Aid

1 pc

Allen Key

2 pcs

32A Fuse

1 pc

Screw Nuts for Clamps

2pcs

Spring for Clamps

2 pcs

Gasket for Clamps

4 sets

3oz. Vacuum Grease

1 pc

Vacuum Hose

10ft

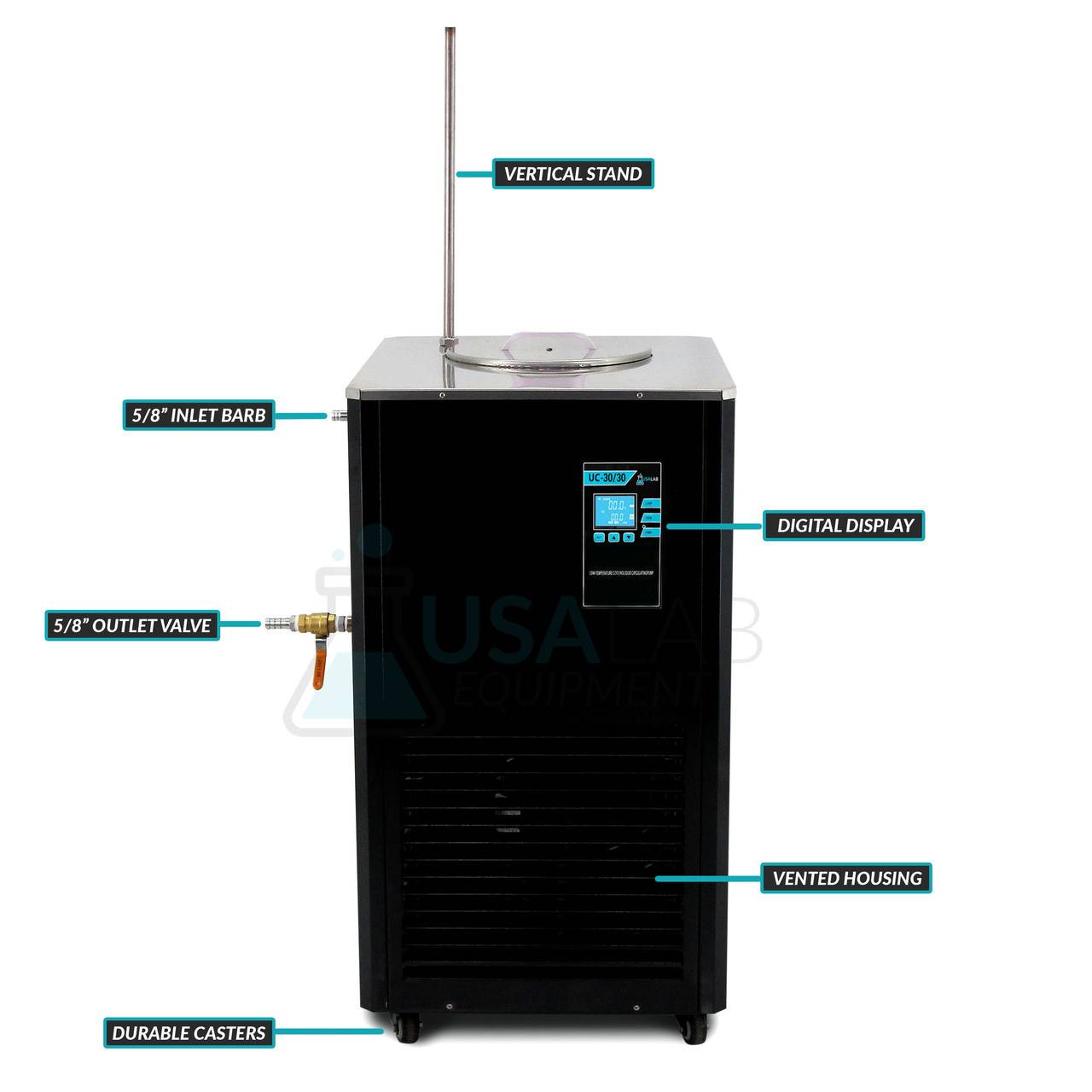

UC-30/30 SPECIFICATIONS

Model

UC-3030

Reservoir Capacity

30L

Reservoir Dimensions

13.7″ x 13.7″

Temperature Range

Room Temperature to -30°C / -22°F

Power Requirements

220-240V 60Hz 20A 1800W Single Phase

Refrigerating BTUs

4,000BTU – 13,500BTU

Circulating Pump Wattage

100W

Temperature Accuracy

+/- 0.5°C

Pump Flow

30L/Min

Pump Pressure

2.2bar

Barb Size

5/8″

Refrigerant

R404

Dimensions

30.3″ x 25.5″ x 39.7″

Weight

171lbs






UC-30/30 Packing List

USA Lab UC-30/30 Chiller

1 pc

5/8″ Insulated Tubing

11ft

5/8″ Barbed Valve

1 pc

PTFE Sealing Tape

1 pc

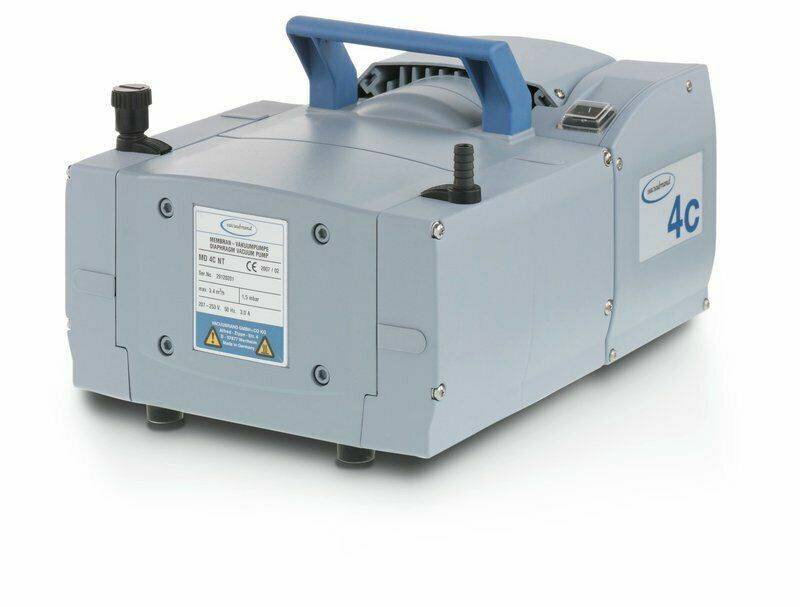

MD 4C NT

Three-Stage Chemistry-Design Diaphragm Pumps are an excellent solution for continuous, oil-free pumping of corrosive gases and vapors and meet even challenging requirements. The three-stage design provides the advantageous combination of high pumping speed and very low ultimate vacuum. All parts of the MD 4C NT in contact with pumped media are made of chemically resistant fluoroplastics. Well-proven PTFE sandwich diaphragms provide increased reliability and extended operating life. Due to the gas ballast valve and its very good ultimate vacuum (even with gas ballast) the MD 4C NT is also suitable for pumping condensable vapors of high-boiling solvents. The NT-series features further improved performance data, easy service and superior vapor tolerance.



Performance Features

Outstanding chemical resistance and superior vapor tolerance

  • Exceptionally high performance even at low vacuum
  • Excellent ultimate vacuum even with gas ballast
  • Whisper quiet and very low vibration
  • Long diaphragm life, maintenance-free drive system
  • Technical Data

Technical data

MD 4C NT

Number Of Heads / Stages

4 / 3

Max. Pumping Speed At 50/60 Hz

3.4 / 3.8 m3/h

Max. Pumping Speed At 50/60 Hz

2.0 / 2.2 cfm

Ultimate Vacuum (Abs.)

1.5 / 1.1 mbar/torr

Ultim. Vac. (Abs.) With Gas Ballast

3 / 2.2 mbar/torr

Ambient Temperature Range (Operation)

(10°C) – (40°C)

Ambient Temperature Range (Storage)

(-10°C) – (60°C)

Max. Back Pressure (Abs.)

1.1 bar

Inlet Connection

Hose nozzle DN 8-10 mm

Outlet Connection

Hose nozzle DN 8-10 mm

Rated Motor Power

0.25 kW

Rated Motor Speed At 50/60 Hz

1500/1800 min-1

Degree Of Protection

IP 40

Dimensions (L X W X H)

325 x 243 x 198 mm

Weight

14.3kg

Noise Level At 50 Hz, Typ.

45 Dba

NRTL Certification

Canada and the USA

Atex Conformity (Only 230V)

II 3/- G IIC T3 X Internal Atm. only

Items Supplied

Pump completely mounted, ready for use, with manual

Accessories

Rubber Vacuum Tubing DN 8 mm (20686001)

  •

  • MD 4C NT – Pumping Speed Graph at 50 Hz

    MD 4C NT - Pumping speed graph at 50 Hz

    MD 4C NT – Pump Down Graph at 50 Hz (10L volume)

    MD 4C NT - Pump down graph at 50 Hz (10 l volume)

  • MD 4C NT – Pumping Speed Graph at 60 Hz

  • MD 4C NT - Pumping speed graph at 60 Hz
  • MD 4C NT – Pump Down Graph at 60 Hz (10L volume)

  • MD 4C NT - Pump down graph at 60 Hz (10 l volume)
  •  -Technical data are subject to change without notice-

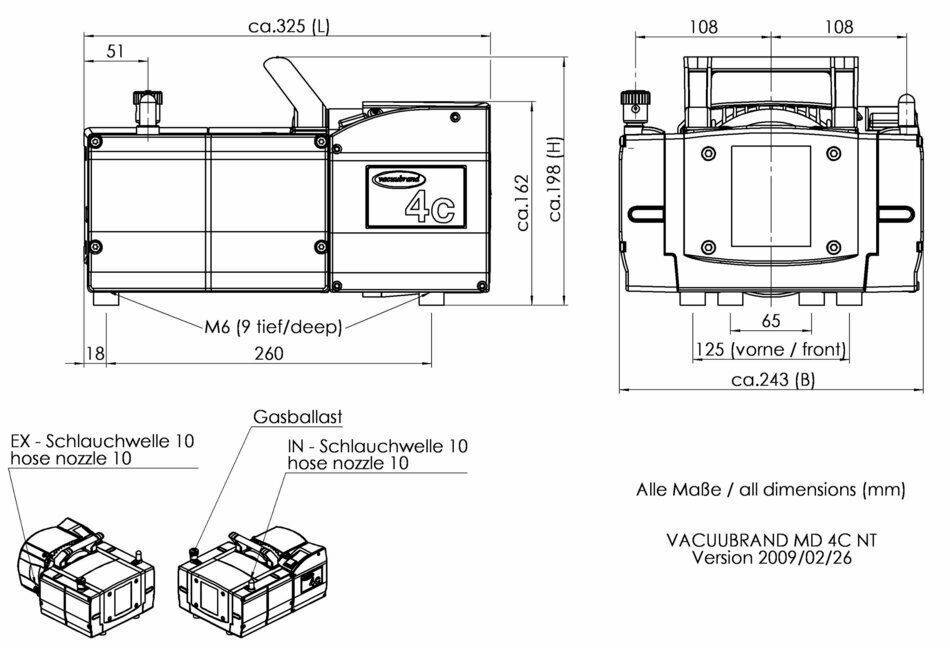

MD 4C NT – Dimension Sheet



 MD 4C NT - Dimension sheet

Extra Packing List

USA Lab Propylene Glycol

4 Gal

3/8″ Vacuum Hose

10ft




We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days
 of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!

1 Year Parts and Labor Warranty Included, Glassware Not Included.
