USA Lab 20L Electric Lift Double Jacketed Glass Reactor

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Power Requirements: 110-120V 50-60Hz 15A Single Phase

$8,999.00

SKU: JRE20 Category: Brand:

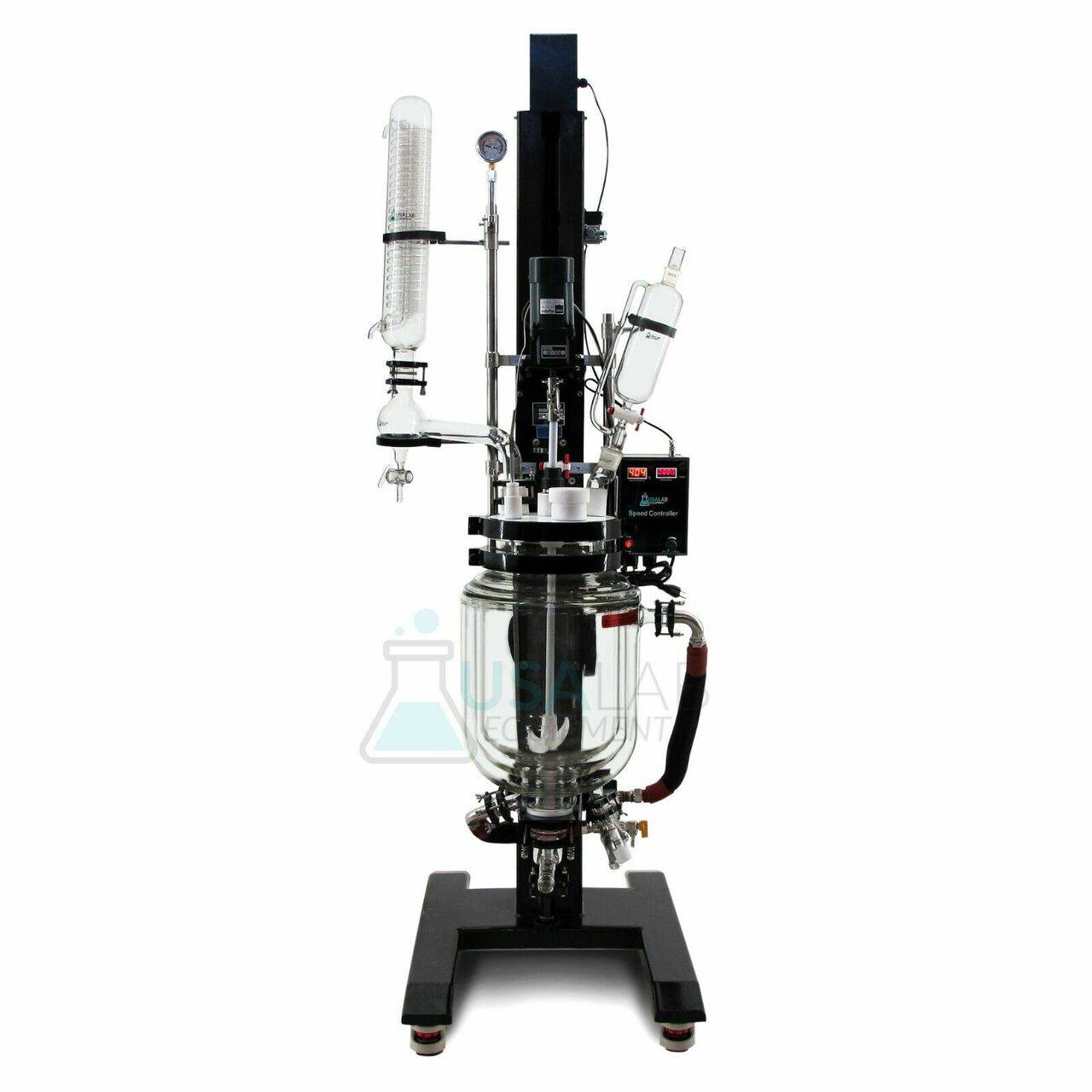

The USA Lab 20L Electric Lift Double Jacketed Glass Reactor is the most advanced reactor on the market. This unit has a built in lift that can raise the entire lid up or down with the touch of a button. Our JRE reactors also have a hand crank in the back to allow near 180° tilt of the jacketed vessel. With these two features, reaction has never been simpler.

Each reactor has an inner jacket allowing circulation of liquid, while the outer jacket allows for vacuum insulation. This creates higher chilling or heating efficiency as well as less temperature loss. Each jacket is able to be drained and released of pressure with ease, due to the convenient drain ports near the bottom portion of the reactor.

No expense has been spared with these reactors, yet we crush the market on pricing to provide great value at a low cost. Our reactors are the best value on the market and each one comes with fantastic customer servicelocal product support and a 1 year warranty.

Bring your lab to the next level, and get started with a USA Lab electric lift jacketed reactor today!


JRE-20 SPECIFICATIONS

Glass Material: GG-17 Borosilicate Glass

Reaction Vessel Capacity: 20L

Material Flask Capacity: 2L

Fluid Jacket Capacity: 8L

Rotary Speed: 0-450 RPM

Glass Temperature Range: -80°C to 250°C / -112°F to 482

Lifting Mechanism: Electric

Power Requirements: 110-120V 60Hz 15A Single Phase

Lift Wattage: 40W

Stirrer Wattage: 90W

Lowest Vacuum: 0.098Mpa / 25 Torr / 2500 Microns

Dimensions: 38″L x 27″W x 85″H

Weight: 400lbs

Speed Regulation: Digital Step-Less

Condenser and Feed Valve Barbs: 12.7MM – 1/2″

Bottom Drain Port: 35MM – 1 3/8″

Receiving Flask Barb: 16MM – 5/8″

Fluid Connection: 12.7MM – 1/2″

JRE-20 PACKING LIST

USA Lab 20L Jacketed Reactor JRE-20

1 set

Main Condenser

1 pc

2L Material Flask

1 pc

Reflux Flask with Valve

1 pc

Glass – Material Flask to Lid

1 pc

29/32 Stopper

1 pc

Lid Glass PTFE Stopper w/ Barb

1 pc

Strap for Condenser and Material Flask

2 sets

Condenser Sealing Flange

1 set

Lid Sealing Flange (Pre-Installed)

1 sets

Fluid Line Sealing Flange (Pre-Installed)

2 sets

Control Box (Pre-Installed)

1 pc

Vacuum Gauge

1 pc

Support Rings (Pre-Installed)

1 pc

Stirring Motor w/ Paddle (Pre-Installed)

1 set

Temperature Probe (Pre-Installed)

1 pc

Liquid 1/2″ Connections (Pre-Installed)

2 pcs

3/8″ Drain Valve (Pre-Installed)

1 pc

Lift Remote Control

1 pc

PTFE Sealing Tape

1 pc

Allen Keys and Hex Screws

1 set

3oz. Vacuum Grease

1 pc

Vacuum Hose

10 ft.


We ship all glassware products with additional care, but sometimes they arrive broken. If glassware arrives broken, please contact us within 3 days of receiving your product and we will either send you a brand new piece or send you a refund! Any glassware broken after delivery voids all warranties. Thank you for understanding!
