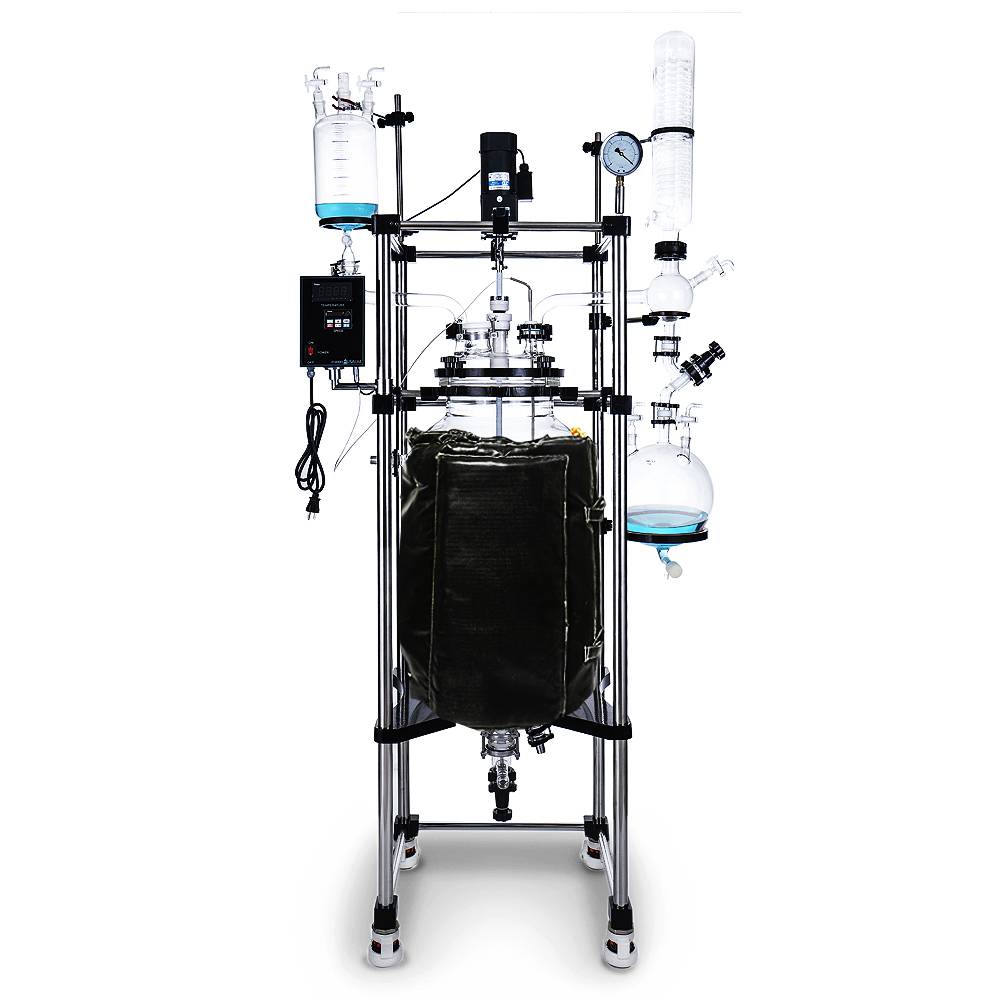

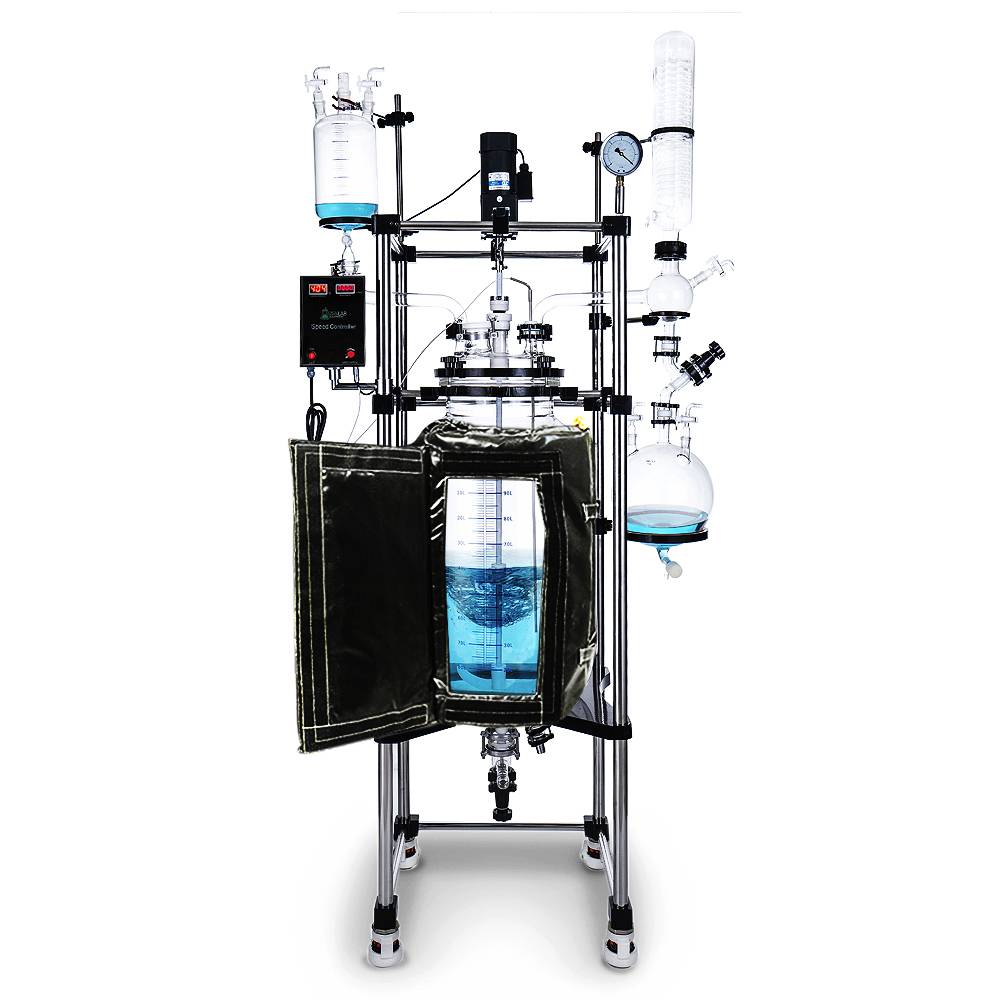

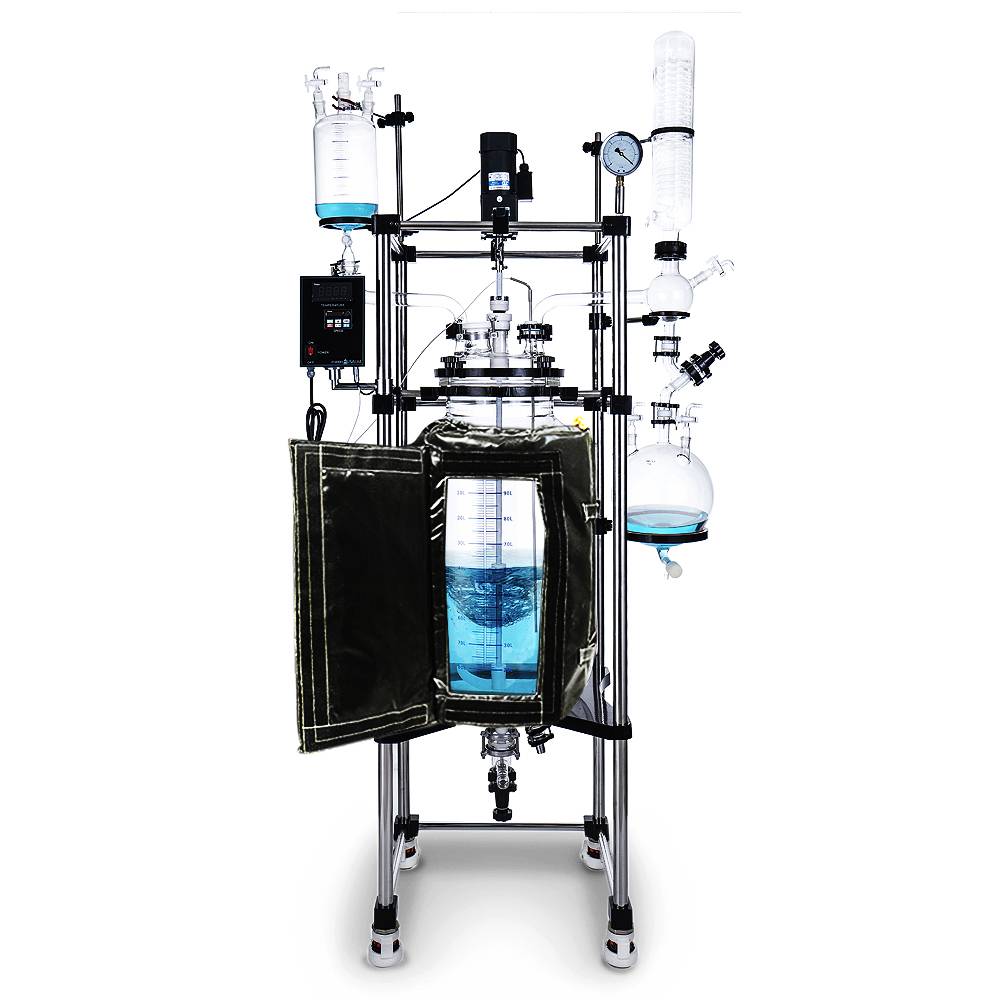

USA Lab 100L Single Jacketed Glass Reactor (Optional ETL Certification to UL and CSA Standards)
| Vessel: | 100L / 26.41Gal |
| Material Flask: | 5L / 1.32Gal |
| Receiving Flask: | 10L / 2.6Gal |
| Jacket Capacity: | 18L / 4.75Gal |
| Rotary Speed: | 0-450RPM |
| Glass Temp: | -80°C to 250°C / -112°F to 482 |
| Non ETL Power: | 110-120V 60Hz 15A 1p |
| ETL Power: | 230V 60Hz 15A 1p |
| Stirrer Wattage: | 200W NON ETL / 250W ETL |
| Certification: | ETL to UL and CSA Standards |
| External LxWxH: | 48 x 34 x 102″ |
| Weight: | 275 lbs |
| d1: | (Optional ETL to UL and CSA Standards) |
$9,499.00 – $10,499.00
Our USA Lab Single Jacketed 100l Glass Reactors are the best reactors on the market. Each lab reactor has an outer jacket allowing circulation of liquid ranging in temperature from -80°C to 250°C.
Â
No expense has been spared with these reactors, yet we crush the market on pricing to provide great value at a low cost. Our reactors are the best value on the market and each one comes with fantastic customer service .
Bring your lab to the next level, and get started with a USA Lab single jacketed reactor today!Â
Â
|
FEATURES |
|||||
|

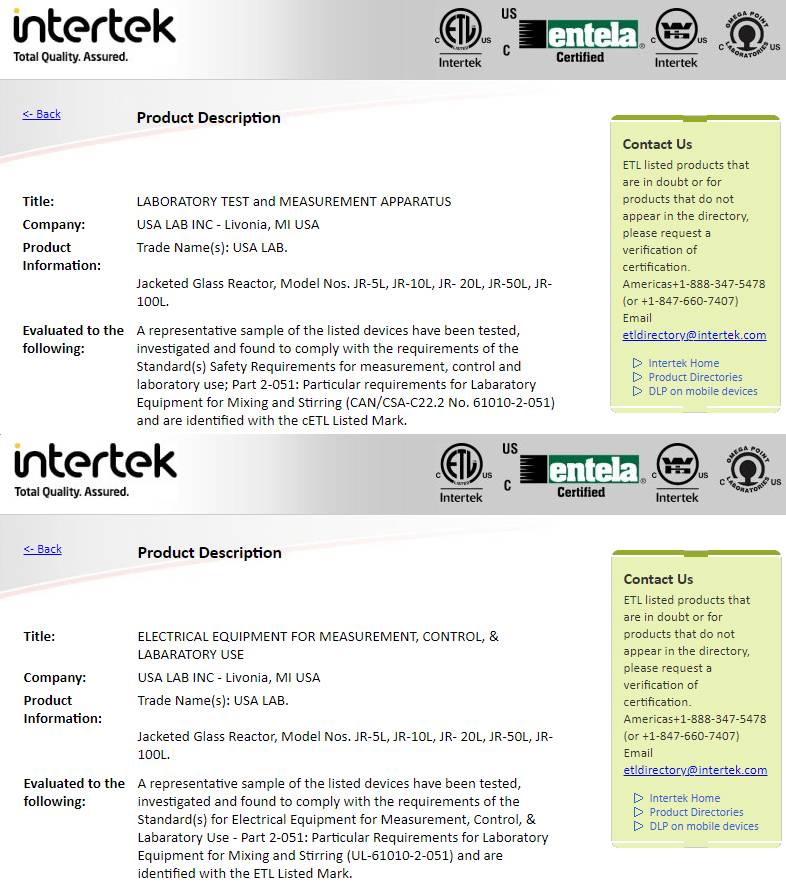

• ETL to UL and CSA Standards (Optional) |
|||||
|
• All glassware is made from high grade borosilicate glass that is durable and resistant. |
|||||
|
• Wide range of temperature operations -80°C to 250°C |
|||||
|
• All seals are PTFE to increase durability and longevity. PTFE is resistant to a large portion of solvents and chemicals. |
|||||
|
• Rugged, High RPM stirring motor for superior stirring power. |
|||||
|
• Large condensing area for faster condensing. |
|||||
|
• Durable stainless steel support frame with casters. |
|||||
|
• 1 Year warranty with US base parts and support. |
|||||
| Â | Â | Â | Â | Â | Â |
|
SPECIFICATIONS |
|||||
|

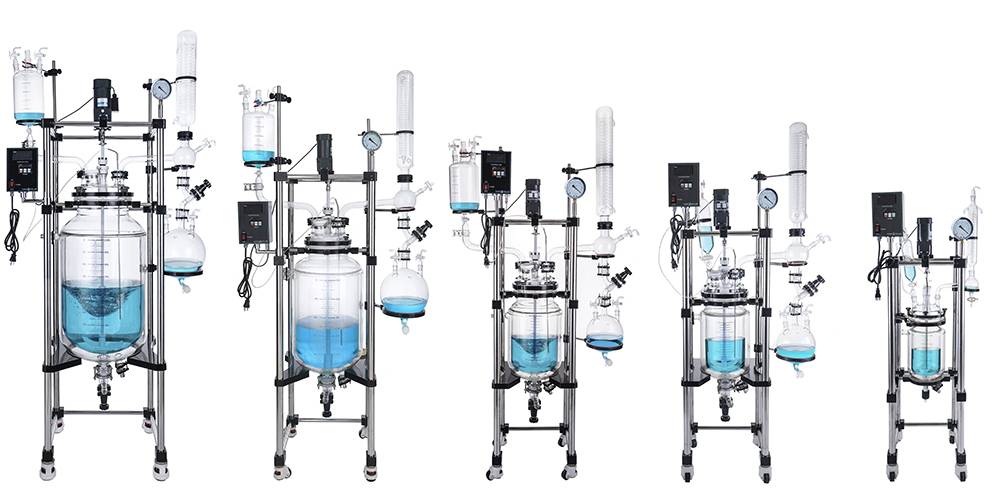

Model |
JR5 |
JR10 |
JR20 |
JR50 |
JR100 |
|
Vessel Capacity |
5L / 1.32Gal |
10L / 2.6Gal |
20L / 5.28Gal |
50L / 13.20Gal |
100L / 26.41Gal |
|
Material Flask Capacity |
1L / 0.26Gal |
1L / 0.26Gal |
5L / 1.32Gal |
5L / 1.32Gal |
5L / 1.32Gal |
|
Receiving Flask Capacity |
Not included |
5L / 1.32Gal |
5L / 1.32Gal |
10L / 2.6Gal |
10L / 2.6Gal |
|
Fluid Jacket Capacity |
0.8L / 0.21Gal |
6L / 1.58Gal |
8L / 2.11Gal |
13L / 3.43Gal |
18L / 4.75Gal |
|
Glass Material |
GG-17 Borosilicate Glass |
||||
|
Rotary Speed |
0-450RPM |
||||
|
Glass Temperature Range |
-80°C to 250°C / -112°F to 482 |
||||
|
Power Requirements |
110-120V 60Hz 15A 1p / ETL is 230V 60Hz 15A 1p |
||||
|
Stirrer Wattage |
90W |
90W |
90W |
90W |
250W |
|
Lowest Vacuum Level |
0.098Mpa / 25 Torr / 25000 Microns |
||||
|
Speed Regulation |
Digital Step-Less |
||||
|
Condenser and Feed Valve Barbs |
10MM – 3/8″ |
||||
|
Bottom Drain Port |
35MM – 1 3/8″ |
||||
|
Receiving Flask Barb |
16MM – 5/8″ |
||||
|
Fluid Connection |
16MM – 5/8″ barb or 1/2″ NPT |
||||
|
Certification |
|||||
