** Pics & Specs Below for Reference Only – Call for Details **

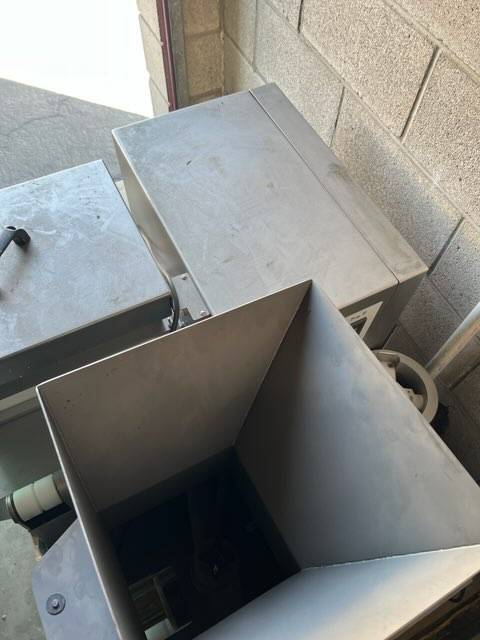

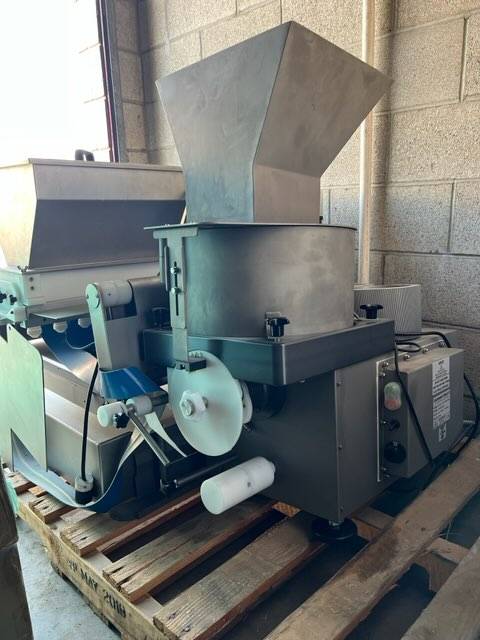

Deighton | Formatic Cookie Machine
The Formatic is a wire-release cookie machine, capable of processing doughs with large inclusions. Their unique drum system also facilitates producing cookies with a variety of different shapes. This includes the ability to produce custom drums to your specifications.
The Formatic also has a variable production speed that depends on the cookie machine’s drum and amount of shapes on the forming drum.
Features
The Deighton Formatic cookie machine includes the following standard features:
Versatility
This cookie machine is also used to form granola bars, protein bars, scones, biscuits, dog treats, and other baking/confectionery products.
Models capable of 1,200 2,200, & 3,000 revolutions per hour
Simple and smooth operation
This machine is easy to use and clean!
Interchangeable Drums
Create a wide variety of cookies types and shapes with a near limitless amount of drum options.
Available Options
The Deighton Formatic cookie machine offers the following available options:
Automatic wire cleaning
Automatic Papering
Additional Drums
Various sized hoppers
Extended conveyors
Technical Specifications
R1200
R2200
R3000
Electrical Specifications
110 v | 1ph | 60 Hz
220v | 3 ph | 60 Hz
Motor
0.75 kW
1.1 kW
1.5 kW
Hopper Capacity
25 lb. | 11.5 kg
45 lb. | 20.5 kg
Output (Revolutions/Hour)
1,200
2,200
3,000
Production Rate
1,200 – 2,400/hour
2,200 – 4,400/hour
3,000 – 6,000/hour
Warranty
1 year parts | 90 days labor
Certifications
BISSC & UL
Standard Dimensions (A x B x C)
Standard Dimensions
42 x 35 x 36″ | 1062 x 889 x 915 mm
42 x 36 x 36″ | 1062 x 915 x 915 mm
45 x 36 x 42″ | 1143 x 915 x 1062 mm
Net Weight
241 lb. | 109 kg
254 lb. | 115 kg
267 lb. | 121 kg
Shipping Dimensions (L x W x H)
Shipping Dimensions
36 x 29 x 44″
36 x 29 x 46″ | 915 x 737 x 1169 mm
Shipping Weight
265 lb. | 120 kg
278 lb. | 126 kg
291 lb. | 132 kg
Particulates & Inclusions
The Formatic can process dough with a wide variety of particulates and inclusions.
via GIPHY
Custom Drum Options
The Formatic can be paired with a variety of custom drums available for additional purchase. The video and images below showcase a small sample of the wide variety of different shapes that are possible.
