MK4c Terpenator©

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

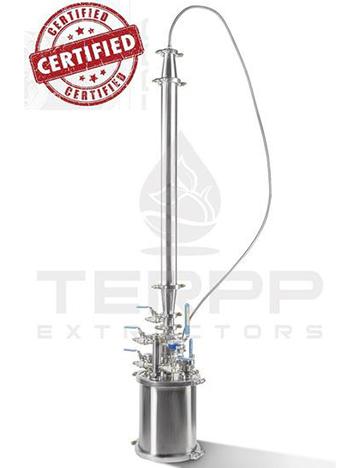

Terpp Extractors MK4c Terpenator© is a closed loop hydrocarbon extractor developed and copyrighted by JD Ellis, aka Grey Wolf, previously of Skunk Pharm Research now Pharmgold and built by Terpp Extractors. The MK4c is designed for Butane & Propane solvents.

Terpp Extractors bottom-flood Terpenator© design allows for superior solvent soaks compared to alternative top-flood designs. The design also allows for heat application on the column to recover all the solvent vapors normally trapped in the column through the liquid “overflow” line without releasing unwanted compounds into the collection pot. for a more convetional design, the solvent input valve can easily be relocated to the top of the material column. The MK4c can also be modified as a bidirectional system allowing you to flood the solvent from the top, bottom, or both in the same cycle.

The bidirectional modification is currently under a review process and is not certified for use in Washington or Colorado facilities as well as other states.  However, the standard MK4c is ready to go in Colorado and Washington facilities.

  • Superior yields
  • Recover Up To 99% of Solvents through closed loop extraction
  • Remove ‘Mystery Oil’ and contamination from dirty solvents
  • No open gases
  • Environmentally friendly
  • Process up to 5 pounds
  • Certified, Assembled & Tested

What’s included

  • MK4c Terpenator©
  • 2 Lb (3″ x 36″) Column (Including reducers & attachments)
  • 5 Lb (4″ x 48″) Column (Including reducers & attachments)
  • Recovery & Gauge Manifold
  • View Port Sight Glasses for Base
  • Operation training (Available in Fort Collins, CO. Terpp Headquarters holds a free demonstration day twice per month.)
  • Operation Manual
  • Terpenator© Operating Schematic
  • Tech Support

What you will need to operate the extractor:

  • Recovery Pump (CPS TRS21, Haskel Model 59025 or EXT420)
  • 3/8″ line Filter-Drier
  • Stainless Steel Condensing Coil or Molecular Transformator (CPS MT69) & additional 3/8″ Teflon lined stainless steel braided hose
  • 50# Refrigerant Recovery Tank
  • Refrigerant Scale
  • High Vacuum Pump
  • Teflon lined stainless steel braided hoses
  • Butane (EcoGreen Industries or local gas supplier)


  • Extra safety precaution equipment: Combustible Gas Leak Detector

Specification: MK4c Terpenator©

Weight 150 lbs
