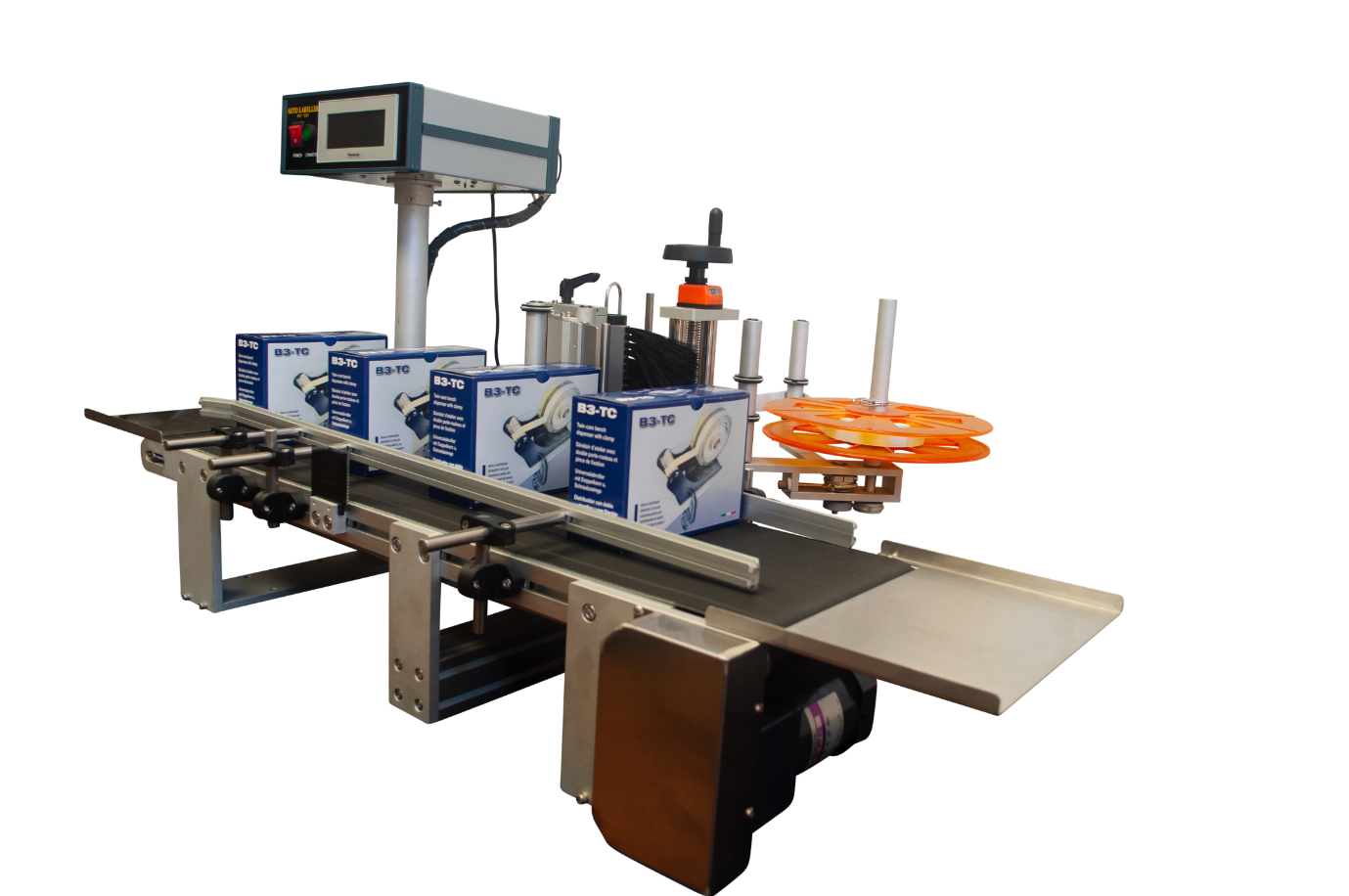

MINI CON S – LABEL APPLICATOR MACHINE
- Automatic Wipe-On Label Applicator with Integrated Conveyor.
- Applies the label to the side surface of the product.
- Has built in 10 inch wide by 39 1/2 inch long adjustable speed high friction conveyor.
- Touch Panel controls include target counter and 5 programmable memory presets.
- Dwell setting in control panel for exact label placement on the package.
- Non-contact technologically advanced controls and label sensors.
- Can be integrated into existing conveyor systems or installed over existing conveyors using an optional stand.
Realizing a need in the market for a machine between a semi-automatic label dispenser and a full inline labeling system, Tach-It created a table top unit that will feed product on a conveyor through a wipe on label applicator and apply a label precisely on the desired location on the side of a product each time. The Mini-Con-S requires no special operator training or tools for label or product changeovers, has a touch sensitive display screen with 5 memory programmable presets where all settings are made and viewed, uses only non-contact sensors for product and labels, has a product and target counter, a 10 inch wide high friction conveyor making it perfect for most applications, extra large roll capacity, and the reliability of stepper motors for consistent label placement. To use, an operator simply puts the items to be labeled at one end of the conveyor and it travels along the label head where the label is applied and exits at the other end of the conveyor. If you have a pre-existing conveyor, the Tach-It Mini-Con-S can be purchased with an adjustable height stand on casters that can be rolled right to and set up above your existing conveyor.
- Machine: Length – 57 inch, Width – 38 inch, Height – 20 inch
- Weight: 130 Lbs
- Label Size: Minimum – 3/8 inch x 3/4 inch, Maximum – 5 inch x 11 inch
- Label Roll Diameter: 11 1/2 inchSpeed: 59 ft per minute
- Power: 110 Volt / 220 Volt Dip Switch Controlled
- Core Size: 3 inch
Specification: MINI CON S – LABEL APPLICATOR MACHINE
|Dimensions||57 × 38 × 20 in|
