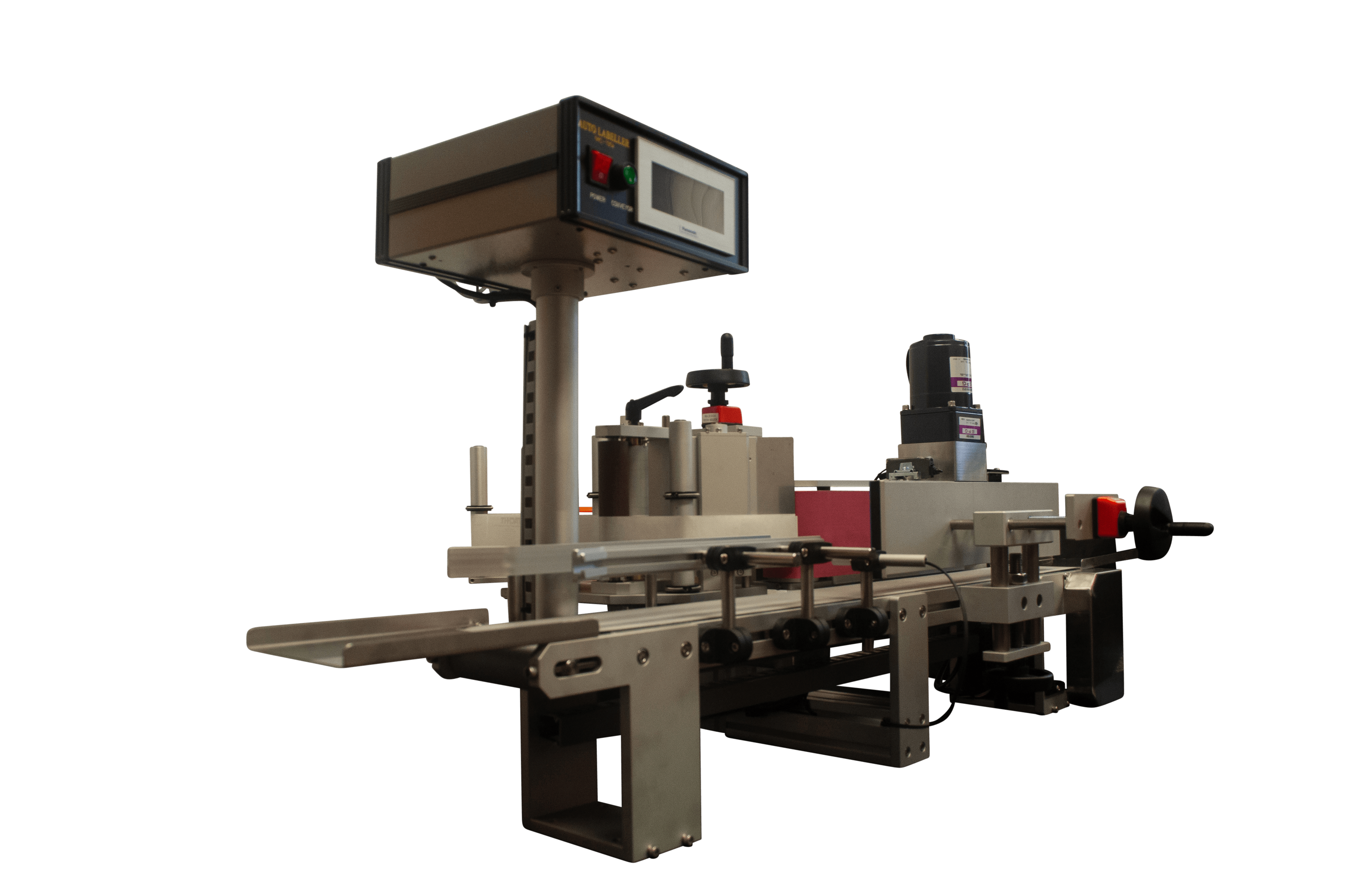

MINI CON R – LABEL APPLICATOR MACHINE
- Automatic Wipe-On Label Applicator with Integrated Conveyor for the labeling of bottles or cylindrical products.
- Applies the label to the side surface of the product.
- Has built in 4 1/4 inch wide (wider conveyors available) by 39 1/2 inch long adjustable speed high friction conveyor.
- Touch Panel controls include target counter and 5 programmable memory presets.
- Dwell setting in control panel for exact label placement on the package.
- Non-contact technologically advanced controls and label sensors.
- Small table top design and fully portable.

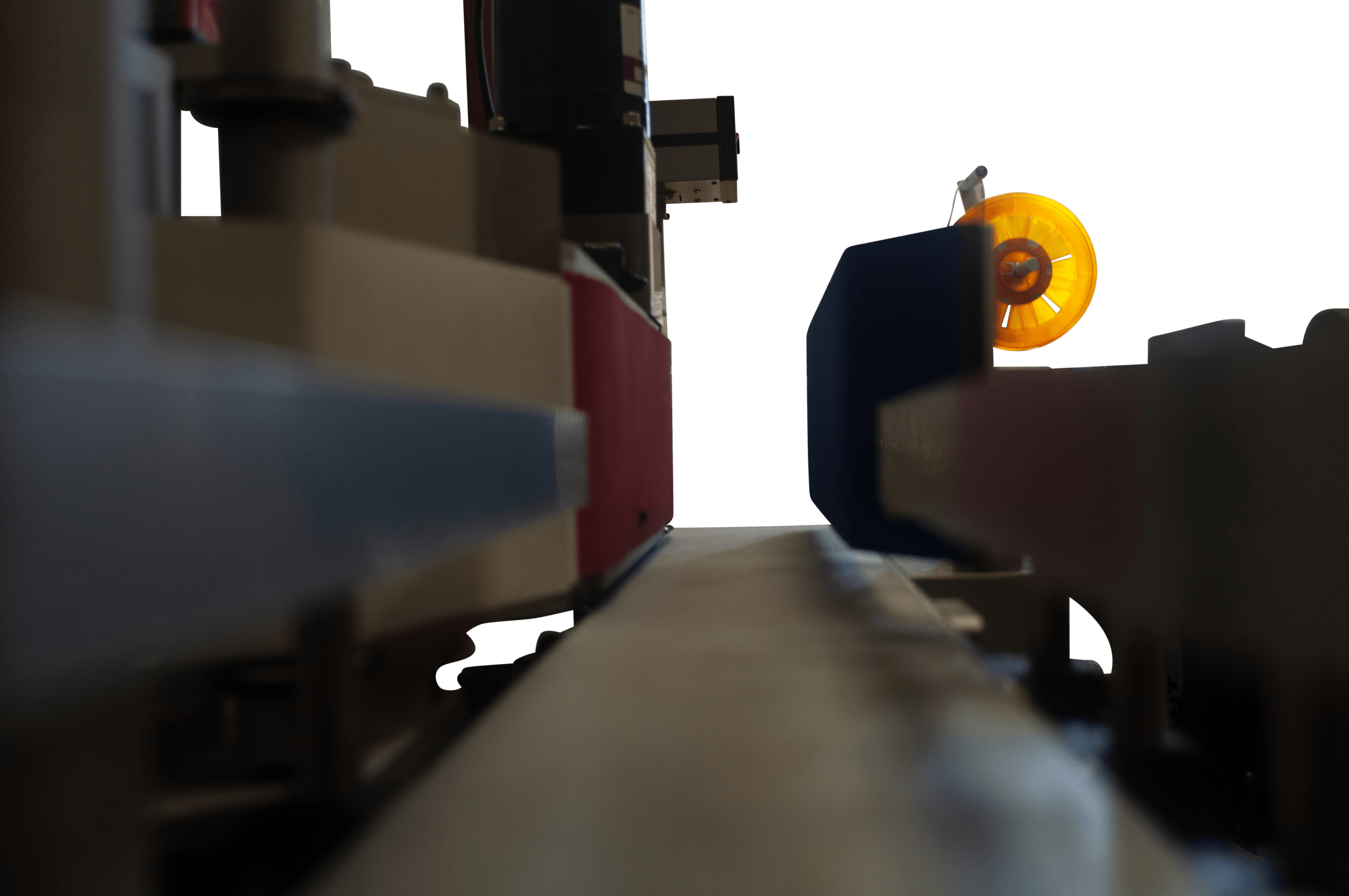

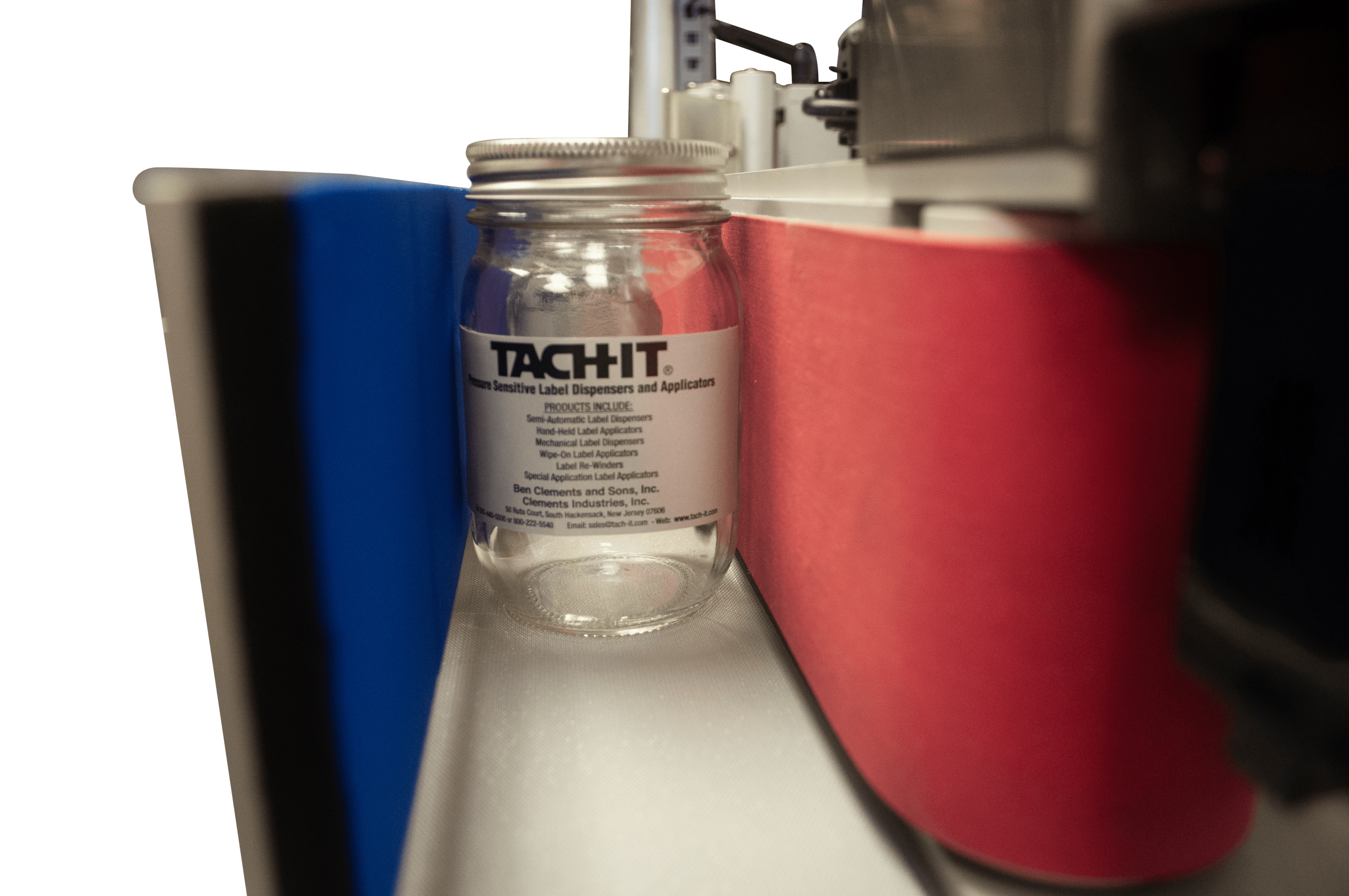

Realizing a need in the market for a machine that can label bottles and round products that is between a semi-automatic label dispenser and a full inline labeling system, Tach-It created a table top unit that will feed the product on a conveyor through a wipe on label applicator and apply a label precisely at the desired location. The Mini-Con-R requires no special operator training or tools for label or product changeovers, has a touch sensitive display screen with 5 memory programmable presets where all settings are made and viewed, uses only non-contact sensors for product and labels, has a product and target counter, a 4 1/4 inch wide high friction conveyor (wider conveyors are available) making it perfect for most applications, extra large roll capacity, and the reliability of stepper motors for consistent label placement. To use, an operator simply puts the item to be labeled at one end of the conveyor and it travels along the label head, where the label is applied. The product then enters a vertical conveyor which rotates the bottle against a specially designed platen adhering the label to the product. The product then exits at the other end of the conveyor.
- Machine: Length – 57 inch, Width – 38 inch, Height – 20 inch
- Weight: 130 Lbs
- Label Size: Minimum – 3/8 inch x 3/4 inch, Maximum – 5 inch x 11 inch
- Label Roll Diameter: 11 1/2 inchSpeed: 59 ft per minute
- Power: 110 Volt / 220 Volt Dip Switch Controlled.
- Core Size: 3 inch
Download Brochure Download Manual
Specification: MINI CON R – LABEL APPLICATOR MACHINE
|Dimensions||57 × 38 × 20 in|
