MINI-CON-L Label Dispenser Machine

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
  • Automatic L-Clip Label Applicator.
  • Applies a label or wafer seal from the top to the front of a package.
  • Can apply a wafer seal or label from 3/4 inch x 3/4 inch up to 2 inch x 4 inch.
  • Provides a secure and attractive closure to any package.
  • Perfect for use in the pharmaceutical, medical, vitamin and supplement, food service and for other items that need an L-Clip closure.
  • Has adjustable speed bottom conveyors and side belt conveyors for high production speeds.
  • Can be used as a stand alone table top unit or integrated into fully automated packaging lines.

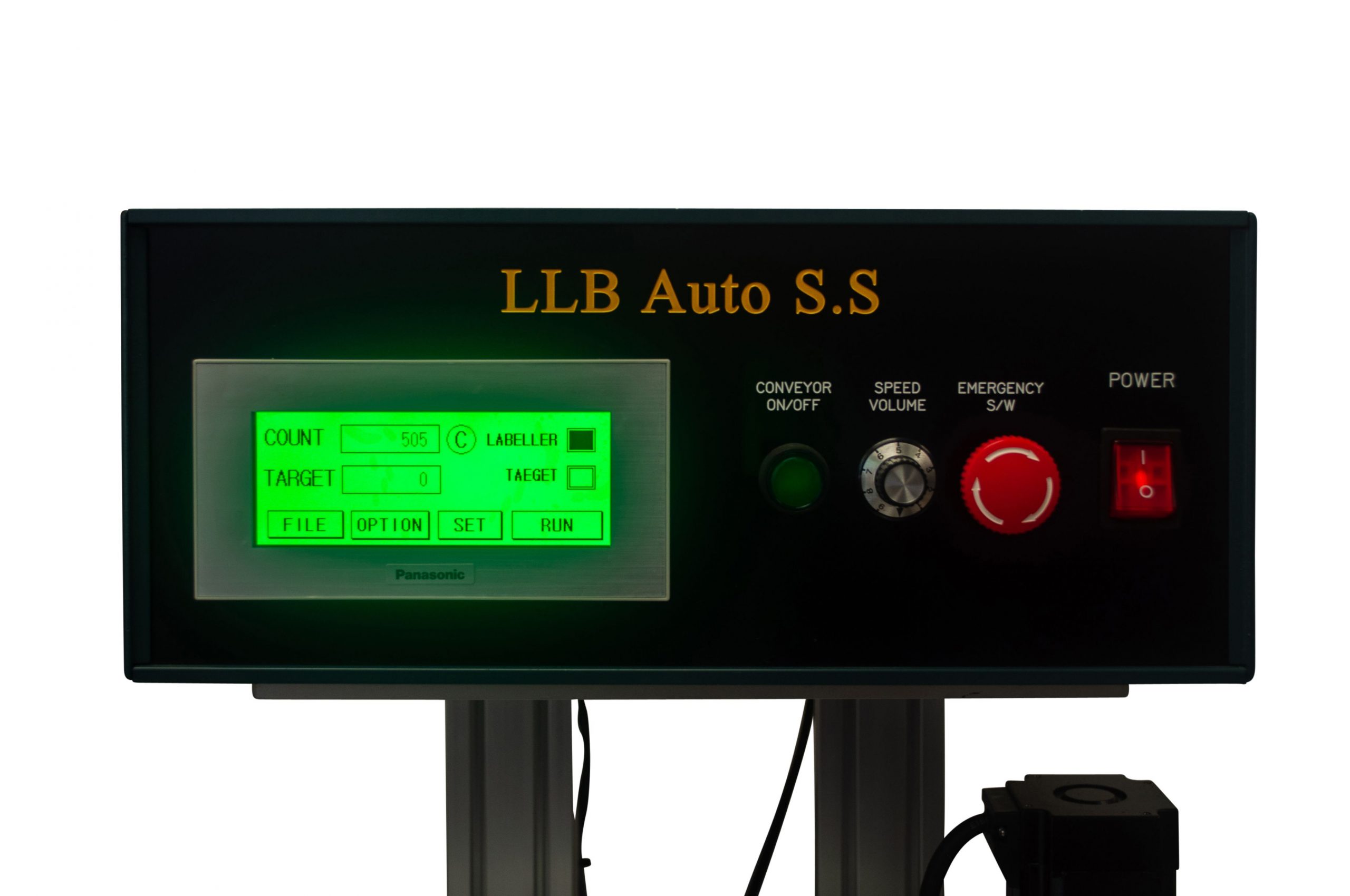

  • Touch Panel controls includes target counter and 5 programmable presets for all computer functions.
  • Dwell setting in control panel for exact label placement on the container.

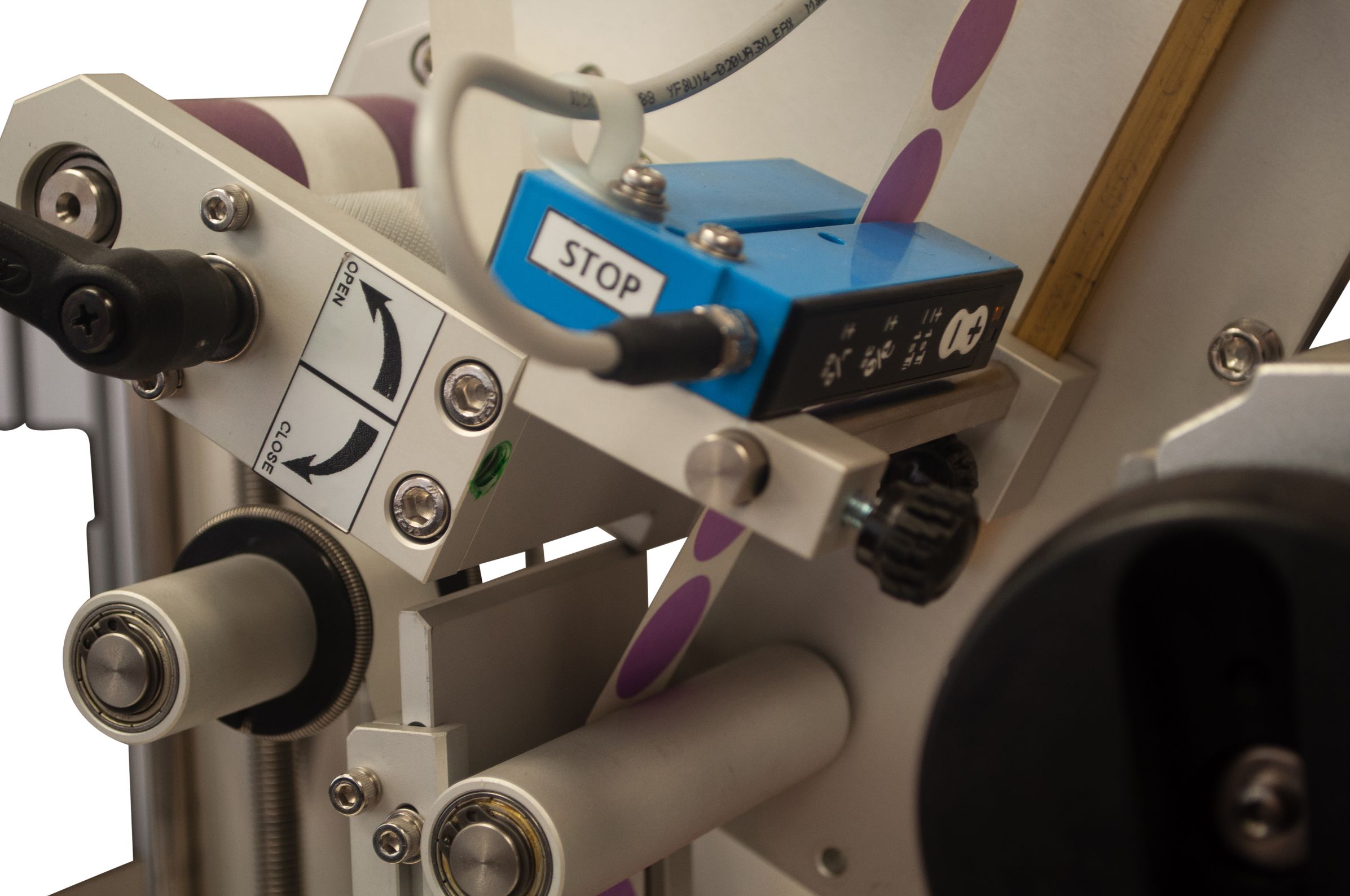

  • Non-contact technologically advanced controls and label sensors for transparent or opaque labels.
  • No special operator training or tools needed. Easy to use and setup.

$20,995.00

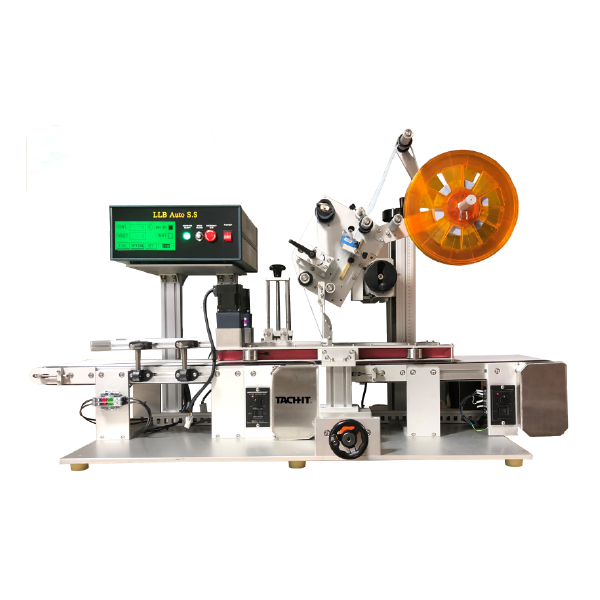

The Tach-It Mini-Con L is an automated L-Clip Label Applicator that applies a label or wafer seal from the top to the front of a package. Offering a secure and attractive closure, the Mini-Con L has applications in many industries including; pharmaceuticals, medical, vitamin and supplement markets, food service and retail applications. Utilzing a wafer seal or label up to 2″ in diameter, the Mini-Con L can be used as a table top machine or put inline as part of an integrated packaging system. Equipped with a touch screen control panel with 5 memory presets and a target counter the Mini-Con L has 2 variable speed bottom conveyors and variable speed side belt conveyors to move the product quickly through the label application process.

SPECIFICATIONS

  • Machine: Length – 52 inch, Width – 34 inch, Height – 31 inch
  • Weight: 300 Lbs
  • Label Size: Minimum – 3/4 inch x 3/4 inch, Maximum – 2 inch x 4 inch
  • Package Size Minimum: 3/4 inch high x 3 1/2 inch wide
  • Package Size Maximum: 7 3/4 inch high x 5 1/2 inch wide
  • Label Roll Diameter: 11 1/2 inch
  • Speed: 60 ft per minute
  • Power: 110 Volt- 270 Watts
  • Core Size: 3 inch

Download Brochure

Specification: MINI-CON-L Label Dispenser Machine

Weight 300 lbs
Dimensions 52 × 34 × 31 in

Videos: MINI-CON-L Label Dispenser Machine
