Julabo FL4003

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$17,637.00$19,977.00

SKU: N/A Category: Brand:

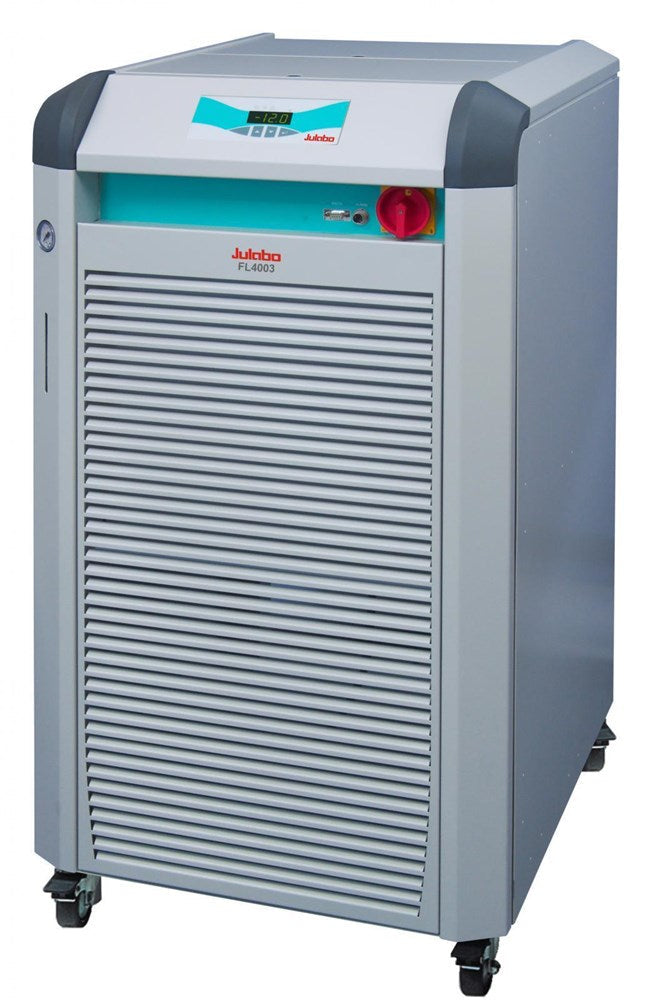

Julabo FL4003

The FL series of chillers for routine cooling applications for the laboratory and industry. The PID control provides a temperature stability of ±0.5°C. All units can be cleaned easily and have a water-proof keypad with LED temperature indication. All instruments include an RS232 interface and alarm shutdown on the front of the units. The filling port is easily accessible from the top under a lift-up cover. Another hinged tray serves as a file for the operating manual or other documents concerning the installation. The removable venting grid allows for easy cleaning of the condenser with the drain tap accessible behind the grid. All models include a visible level indication. Air-cooled units have venting slots are on the front and rear enabling installation next to a wall or another apparatus (space saving).

Specifications
Order No. 9663040
Model Series FL Series
Category Recirculating Coolers
Working Temperature Range (°C) -20 … +40
Temperature Stability (°C) ±0.05
Display Resolution 0.01 °C
Temperature Display LED
Cooling capacity (Medium Ethanol) °C 20 0 -10 -20

kW 4 2.4 1.5 0.65

Pump capacity Flow Rate (l/min) 40
Pump Capacity Flow Pressure (psi) 7.25…43.51
Pump Connections G3/4″
Barbed fittings diameter (inner dia. / mm) 3/4″
Filling Volume Liters 24 … 30
Refrigerant stage 1 R452A
Filling volume refrigerant stage 1 (g) 2220
Global Warming Potential for 2140
Carbon dioxide equivalent stage 1 (t) 4.751
Digital Interface RS232, Optional Profibus
Ambient Temperature 5…40 °C
Dimensions W x L x H (inch) 23.6 x 29.9 x 45.3
Weight (LBS) 271
Noise Level (dBA) 67
Description Suitable fluids: water, water-glycol mixture, JULABO Thermal bath fluids
Included with 2 barbed fittings for tubing 3/4″ inner dia. (pump connections G3/4″ male)
Cooling of Compressor Air
Available Voltage Versions -400 V / 3 Ph. / 50 Hz

-230 V / 3 Ph. / 60 Hz
