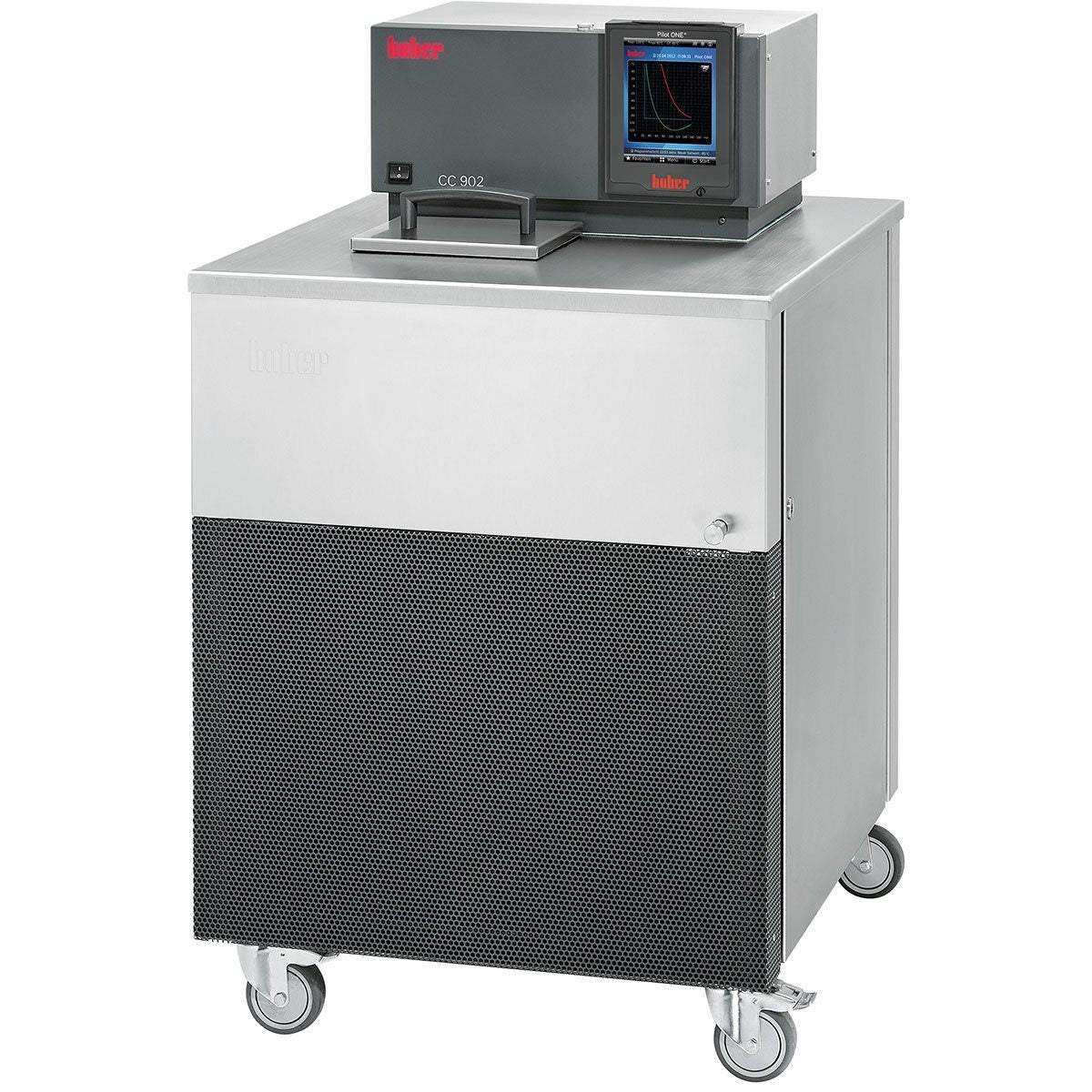

HUBER CC-902 208V Refrigerator Bath Circulator
HUBER CC-902 Refrigerator Bath Circulator
(Please Note: There is up to 3 weeks Shipping lead time)
The Refrigeration Bath Circulators are created to control the temperature of externally connected. Applications are: photometers, refractometers, viscometers, double-jacketed reaction vessels and autoclaves. the units can be used, for determining the freezing point, for deep temperature calibration, for petroleum tests, for temperature control of measuring devices and experimental setups as well as for materials testing and quality control.
| General information & Temperature Controller | |
|---|---|
| Temperature range | -90…200 °C |
| Temperature stability ±0.02 °C | ±0.02 °C |
| Controller Pilot ONE (E-grade “Basic”) | Pilot ONE (E-grade “Basic”) |
| Safety class | III / FL |
| Protection class | IP20 |
| Dimensions (W x D x H) | 550 x 600 x 911 mm | 21.65 x 23.62 x 35.87 inches |
| Weight | 139 kg | 306.5 pounds |
|
Heating / Cooling Capacity |
|
| Heating capacity | 1,2 kW |
| Cooling capacity | 100 20 0 -20 -40 -60 -80 °C
1,2 1,2 1,2 1,1 0,9 0,6 0,2 kW |
| Cooling machine | air-cooled |
| Refrigerant 1. stage | R452A (A1, H280) (0,78 kg) |
| Refrigerant 2. stage | R508B (A1, H280) (0,46 kg) |
|
Circulation Pump |
|
| Pressure pump max. | 25 lpm ; 0.7 bar | 6.6 gpm ; 10.15 psi |
| Suction pump max. | 18.5 lpm ; 0.4 bar | 4.89 gpm ; 5.8 psi |
| Pump Connection | M16x1 AG male |
| Permissible viscosity | 50 mm²/s |
|
Connections |
|
| Pt100 connection | Pt100 |
| Digital interface | RS232, Ethernet, USB Device, USB Host |
|
Operating Data |
|
| Permissible ambient temp. | 5…40 °C |
| Bath opening W x D / BD | 120 x 110 / 150 mm | 4.72 x 4.33 / 5.91 inches |
| Bath volume | 5 Liters | 1.32 gal |
| Power supply | 208V 2~ 60Hz |
| Current max. | 18 A |
| Fusing | 2×20 A |
