DESCRIPTION

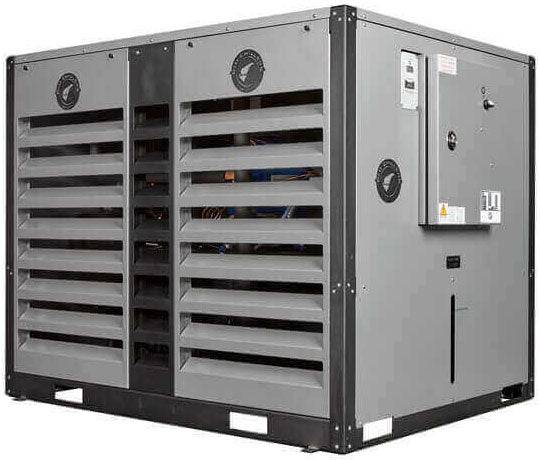

Our Micro Chill Series offers compact chillers available in 3 HP, 5 HP and 7 HP to cover the range of needs in smaller process cooling applications. With an oversized stainless steel reservoir and heavy-duty process pump with a built-in fluid dynamic bypass valve, these compact chillers provide precise cooling with the same quality components as their larger siblings, but in a more compact design with an equally compact price.
KEY SPECS

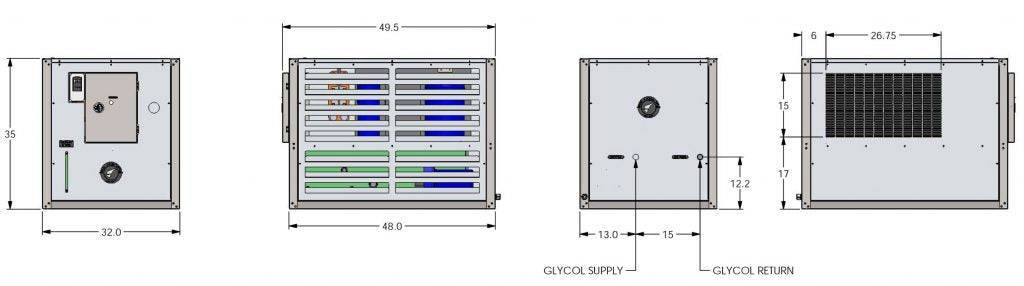

- (WxLxH): 32” X 48” X 35”
- Tank Volume: 30 GALLONS
- Process Pump: .75 HP
- GPM @ 25PSI: 25 GPM
- Operating Weight: 810 LBS.
- Connection Size: 1″
FEATURES
- Complete refrigeration circuit
- Engineered high-efficiency heat exchanger for maximum energy savings
- Glycol pump
- Dynamic fluid bypass valve
- Insulated stainless steel glycol reservoir with level indicator
- All insulated copper piping
- High and low-pressure controls
- Freeze stat safety switch
- High temp alarm
- Low ambient control
- Anti-cycle timer to prevent short cycling of the compressor
- On/pump down/off switch
- Single-stage digital temperature controller for simple operation
- Fully powder-coated steel frame
- Powder-coated aluminum housing
- Louvered access panels for easy service and maintenance
- Factory run tested and fully charged with refrigerant
- Two-year parts and one-year labor warranty
- ETL 508A listed complete control panel with single point electrical connection, breakers, starters & safety switches
