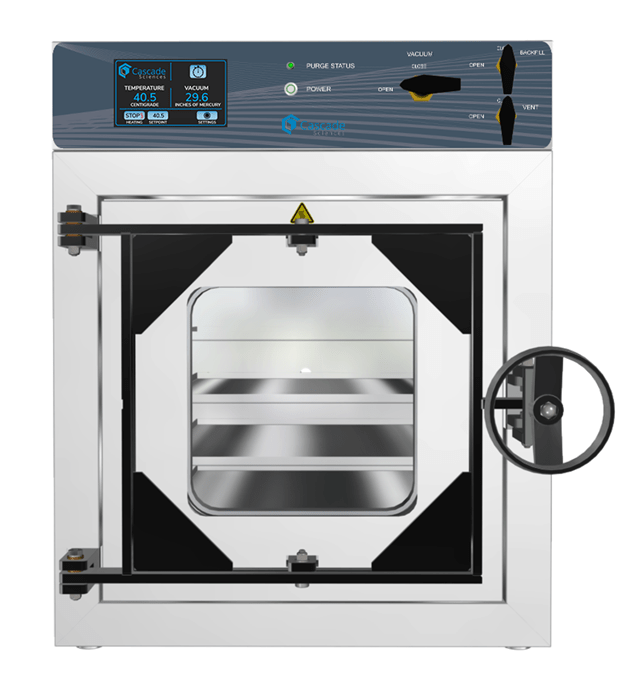

Large, 5 cubic ft benchtop Vacuum Oven with certified to meet hazardous location, C1D2 environments as well as NFPA 70 Article 496, 500, 505, requirements for hazardous (classified) location equipment.
Explosive Atmospheres: Cascade Sciences CVO-5-EX have been tested and certified by Intertek to meet relevant IEC 60079 Ex equipment safety directives with UL, CSA, and ATEX national and group differences. CVO-5-EX compliances cover operating in Zone 2, Class 1 Zone 2, and Class 1 Division 2 hazardous locations.
Performance:
• Temp Range: Ambient +26° to 392°F (Ambient +15°C to 200°C)
• Temp Uniformity: ± 3% of Setpoint (°C or °F)
• Temperature Stability: ± 0.3°F (±0.2°C)
• Exterior 29.3”W x 39.1”D x 34.4”H (744 x 993 x 874 mm)
• Interior 18.1”W x 24.0”D x 18.1”H (460 x 611 x 460 mm)
*Units with optional MAXEVAP side-mounted vacuum valve have exterior dimensions 33.3”W x 42.4”D x 34.4”H (846 x 1077 x 874 mm)
• 5 each height adjustable shelves (aluminum)
• 120V / 1ph or 220V / 1ph Power Configurations
• NRTL Certified, Made in USA
