Ai ETL C1D1 Dual-Jacketed 300L 316L-Grade Stainless Steel Reactor

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare

$31,990.00

Category: Tag: Brand:

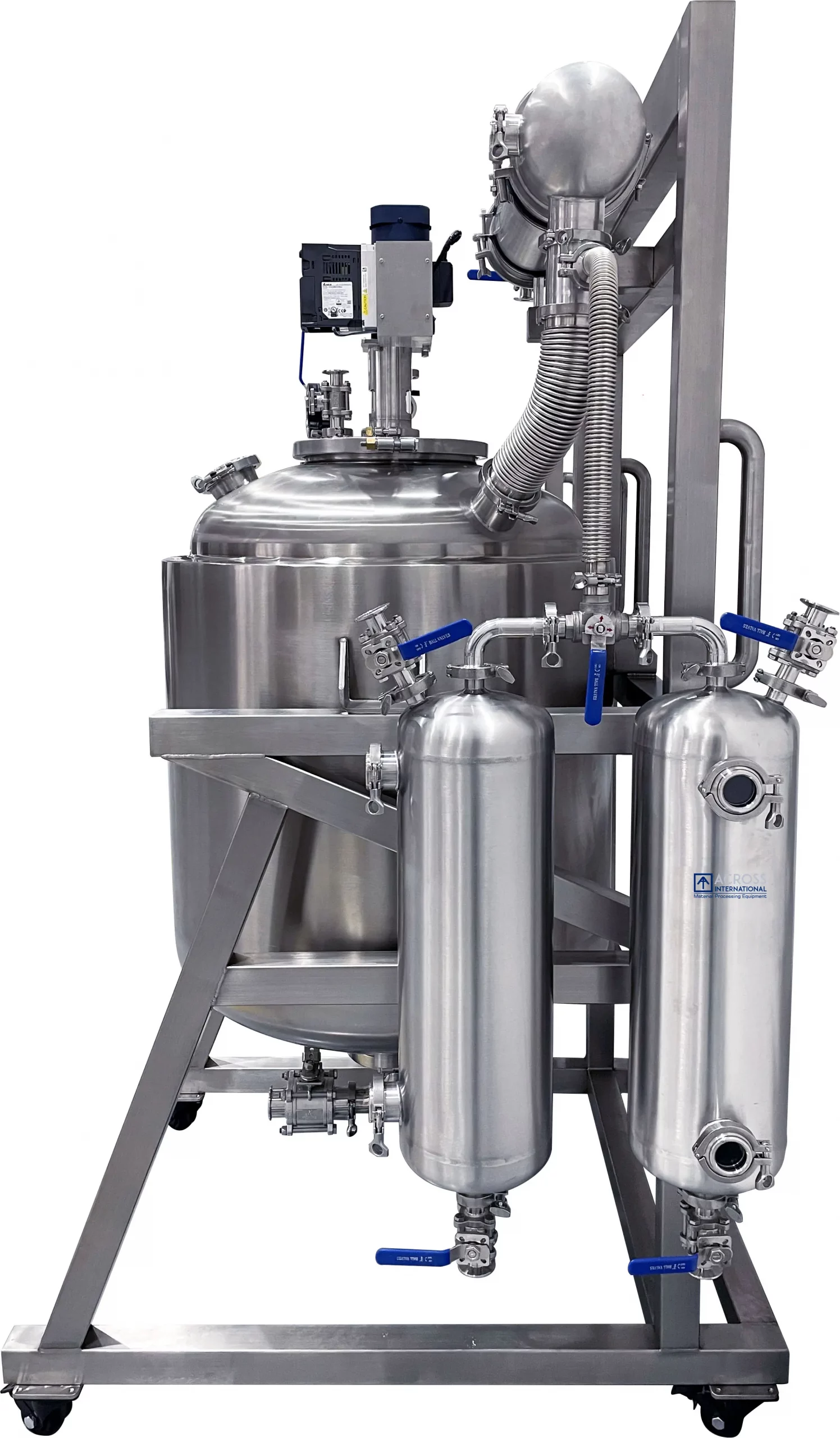

Ai 316L Grade Stainless Steel Reactor Features

  • Side-way condenser for low center of gravity
  • Dual jacketed. Sealed outer insulation jacket provides best temperature performance inside chamber
  • All wetted parts on main vessel and lid built with pharmaceutical grade 316L SST
  • Shell and tube heat exchanger for the best condensing results
  • ElectroPolished internal chamber
    • Greatly reduces surface roughness by leveling micro-peaks and valleys
    • Improved vacuum pressures, out-gassing rates, and pumping speed
    • Prolong equipment lifespan by reducing friction and wear
    • Much better sterilized and semiconductor grade surface
    • Essential for the food and pharmaceutical industries
  • Detachable condenser and collection tanks
  • Dual collection tanks with big sight glass allows you to drain without breaking vacuum
  • High drain port clearance for easy draining or added filtration
  • Large ports (top 12″ bottom 6″) allows easy chamber cleaning
  • Top placed vacuum port on condenser provides better flow and condensing results
  • No messy cable, with space saving integrated stirring motor controller
  • Heavy-duty stainless-steel frame with swivel casters
  • Positive/negative pressure gauge
  • Matte finish stainless steel
  • Customizable lid for various application
  • Tons of tri clamps adapters available, e.g. tri clamp to hose barb/KF25/NPT
  • Choice of bolted or pin clamp for various pressure applications
  • Flexible bellow condenser connection reduces shipping damage

CAUTION!

  • Never fill circulated heaters or chillers with water, always use Ai or manufacturer’s recommended thermal fluid
  • Always leave ample fluid space in heater reservoir to allow fluid heat expansion
  • Always keep system vacuum passage or drain valve open when heating up circulation jackets
  • Always make sure your vacuum pumps and diffusion pump fluid is clean and within limits
 Model
 SR300
 Electric stirring motor  220V, 50/60Hz, 1~Phase, 200 watts, 1/4 HP
Rotation: 450 rpm max. (±8%)
Starting torque: 3.0 N.m
Rated torque: 1.54 N.m
Built-in gearbox ratio: 3:1 to 180:1
Controller: Delta, UL listed
 Pneumatic stirring motor  – Power: 1/4 HP
– Rotation: 450 rpm max. (±8%)
– Compressed air pressure range: 30 to 80 psi (0.2 to 0.55 MPa)

 – Working temperature: -10C to +70C
 – For constant use: set rpm to 80% of maximum rpm
 – Motor lubricant

  • Daphne Eponex EP-No. 1
  • Check/replenish/replace every 500 hours

 – Air lubricant

  • Type: JIS K2213-1 (ISOVG32)
  • Recommended products: Shell Vitrea Oil 32, JOMO Turbine 32, COSMO Turbine 32
  • Speed: 2-3 drops per minute

 – For safety purpose, detach compressed air supply when not in use, left un-attended or at night
 – Do not run motor un-loaded
 – Set Air Adjuster to minimum at initial run, make sure motor is working properly, before increasing CFM
 – Before inspecting unit, stop the motor and detach air supply. Do NOT inspect unit when motor is in action.
 – Make sure exhaust port/hole is clear from any debris or blockage
 – Check every 2-3 days: Air Lubricant, Air Filter water drain

 Port configuration  Lid: 12″ triclamp
Center motor port: 3″ triclamp
Drain port: 6″ triclamp
Drain port on/off valve: 2″ triclamp
Vacuum port: 1.5″ triclamp
Condenser recirculating fluid port: 1/2″ female NPT
Vessel jacket recirculating fluid port: 1″ female NPT
50L/100L collection tank lid: 6″ triclamp x 1, 1.5″ triclamp x 4
 Main vessel  Volume: 300L
Material: 316L grade stainless steel
Interior finish: ElectroPolished
 Agitator  Structure: propeller, 3-blade, dual-layer
Material: 316L grade stainless steel
 Center fluid jacket  Volume: 50L
Pressure rating: 20 psi
Material: 304 grade stainless steel
 Outer insulation jacket  Sealed
Material: 304 grade stainless steel
 Collection tank  Option 1: 20L x 2, 316L stainless steel, with manifold
Option 2: 50L x 1, 304 stainless steel, with dolly (15.5″ diameter, 23.5″ height, 30″ with dolly)
Option 3: 100L x 1, 304 stainless steel, with dolly (15.5″ diameter, 43″ height, 49.5″ with dolly)
 Material  All wetted parts 316L grade stainless steel on main reactor body
Rest of reactor in 304 grade stainless steel, including motor coupling, triclamps, temp/pressure gauge adapters, and chassis.
 Main Condenser  Style: shell and tube heat exchanger
Number of tubes: 110
Condensing area: one sq meter
 Pressure  Ultimate vacuum level: 1 Torr
 Temperature range  -55°C to +250°C (-67°F to +482°F)
 Temperature sensor/display  Regular: BOOST.TTA.0101, -200C to 480C, 50.5 clamp
Explosion proof: BOOST.TTA.0102, -200C to 480C, 50.5 clamp
 Sealing gasket  Food grade Viton
 Main Mounting Frame  Heavy duty 2.5 x 2.5″ 304 grade stainless steel, mounted on four casters
 Drain port ground clearance  Drain port: 19.5 inches
Drain valve: 14 inches
 Shipping Weight (Unit)  770 Lbs / 990 Lbs
 Shipping Dimensions  48 x 38 x 88″ (WxDxH)
 Assembled Dimensions
 38″ x 47″ x 81″ (WxDxH) without 20L receiving flasks assembled

 51″ x 47″ x 81″ (WxDxH) with 20L receiving flasks assembled

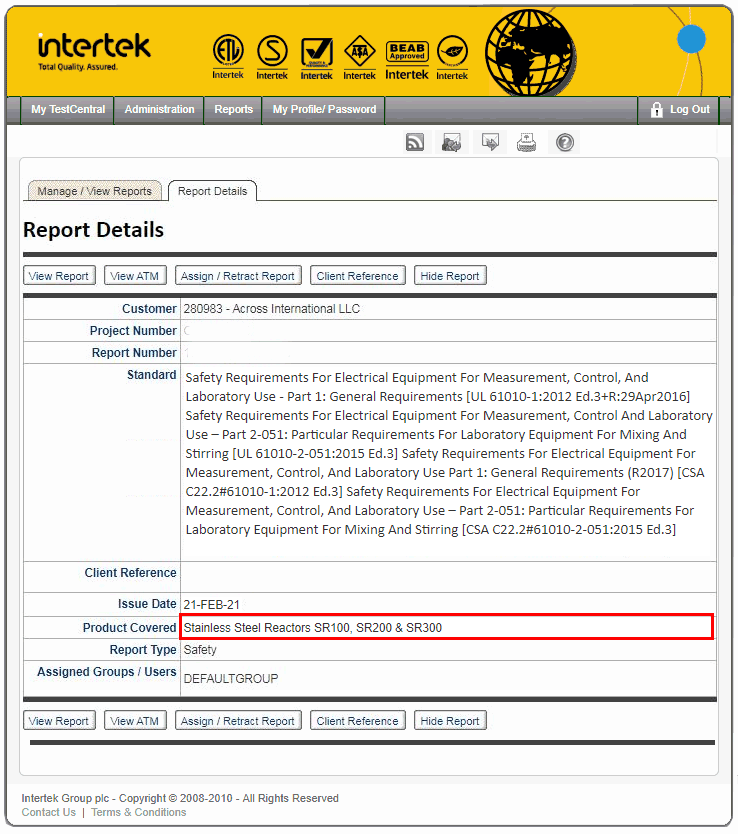

 Compliance  ETL tested to UL and CSA standards

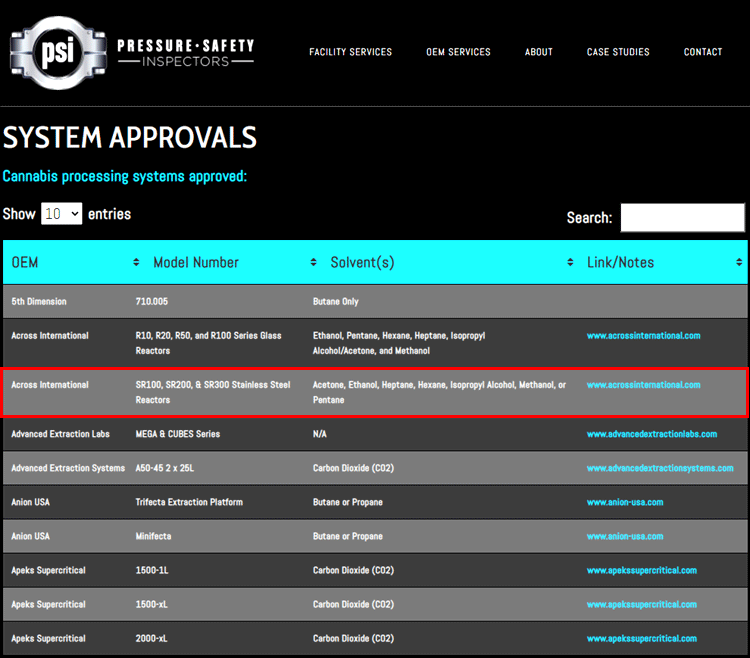

C1D1 peer review by PSI (optional)

Shell and Tube Heat Exchanger
