Borosilicate Tri-Clamp Sight Glasses

Add to wishlistAdded to wishlistRemoved from wishlist 1
Add to compare

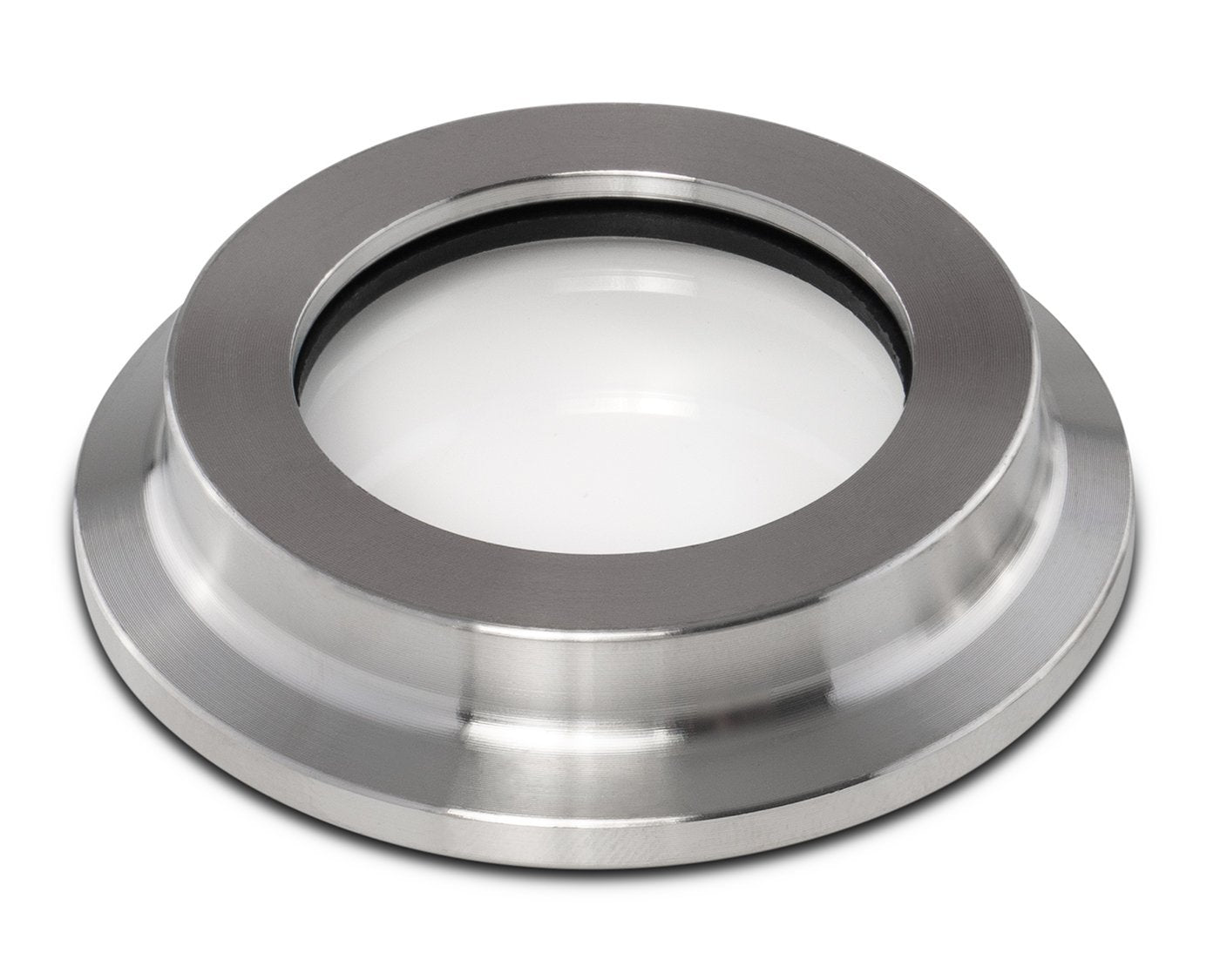

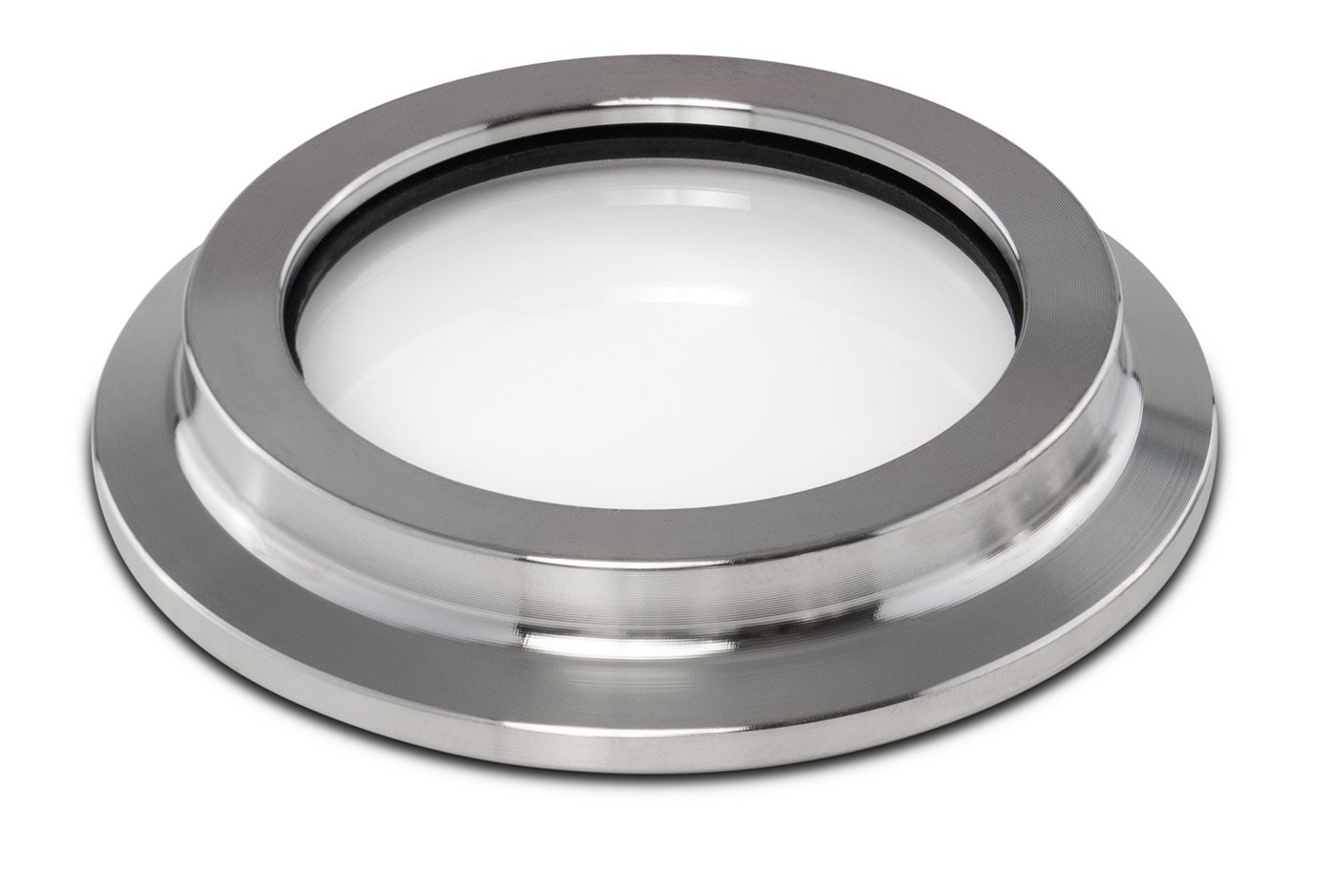

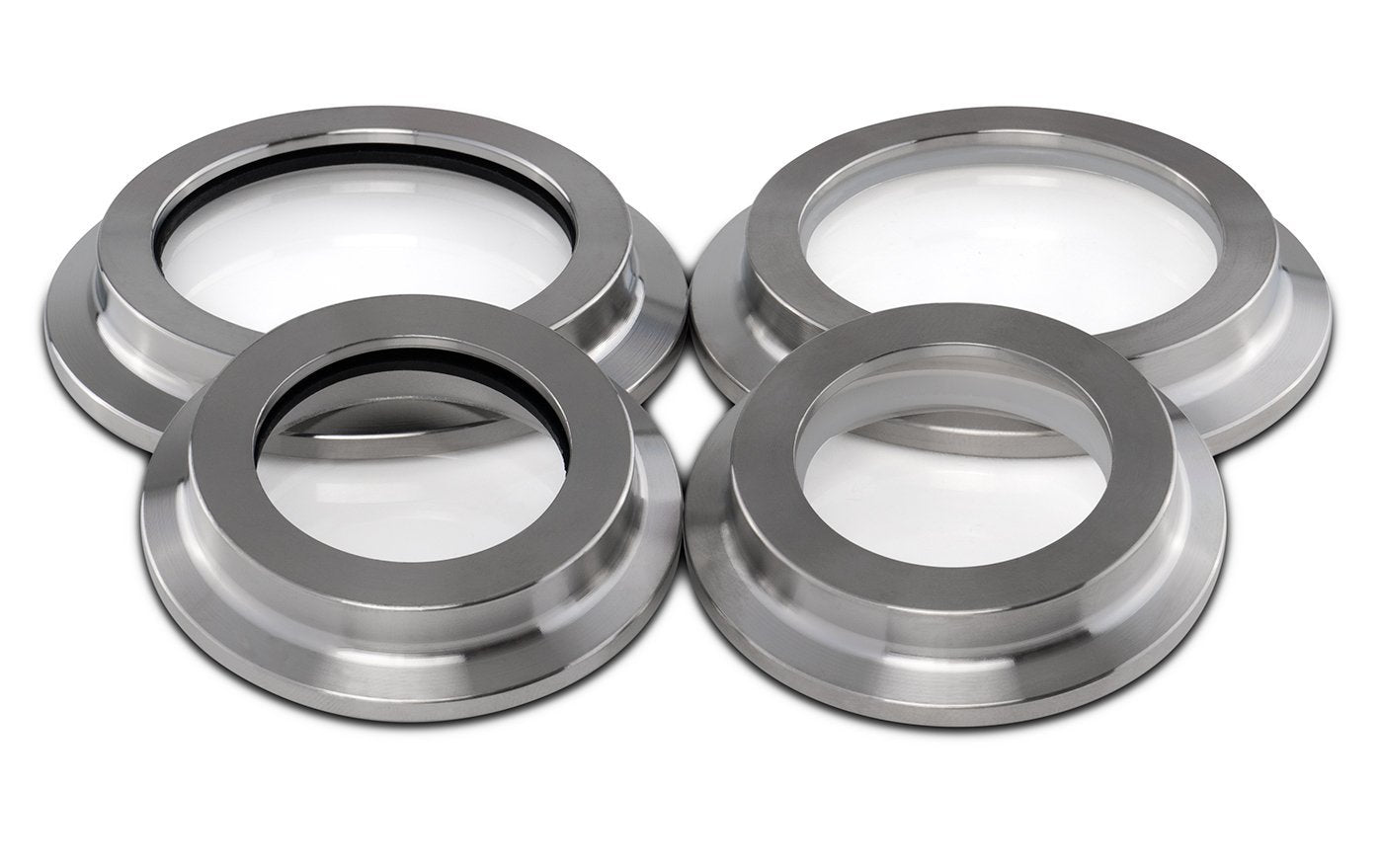

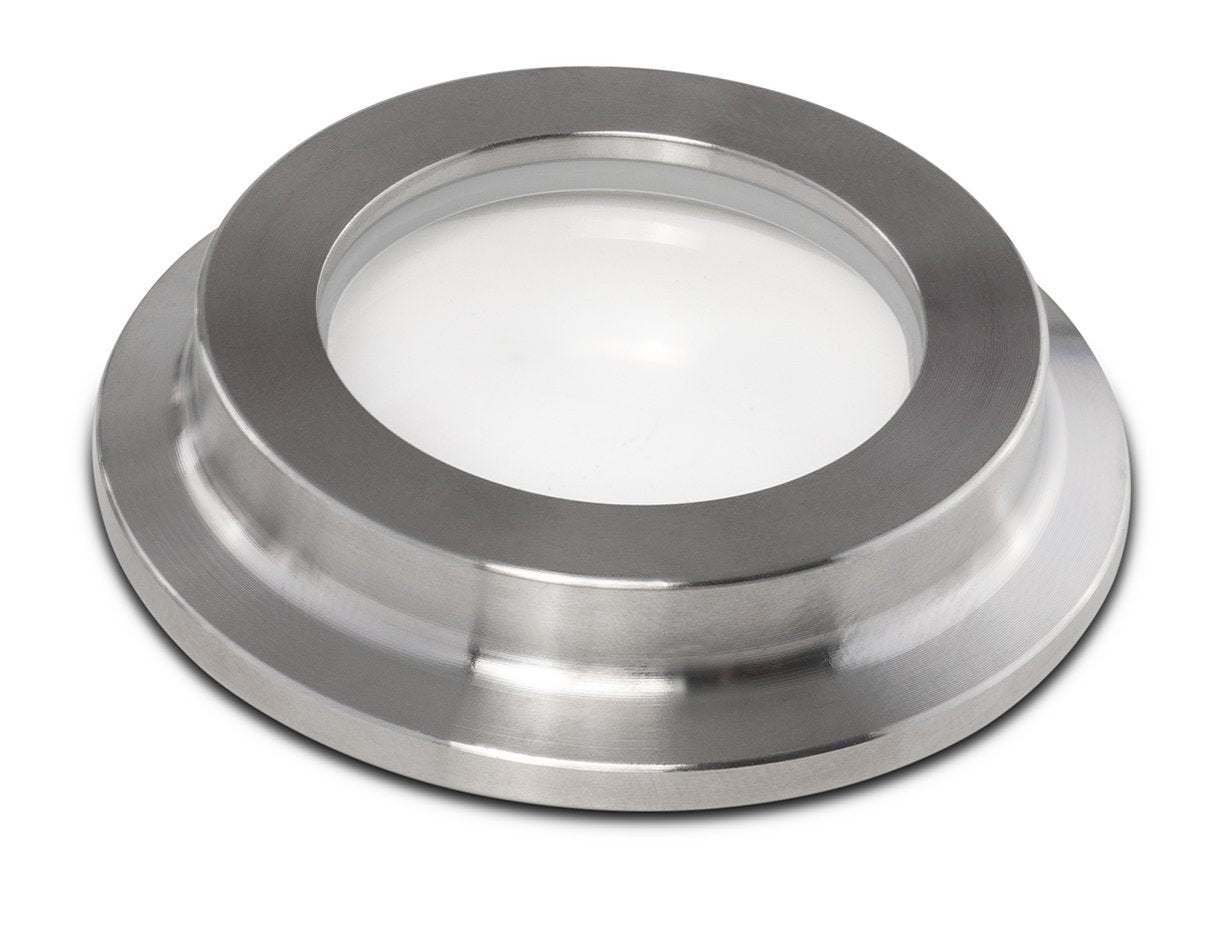

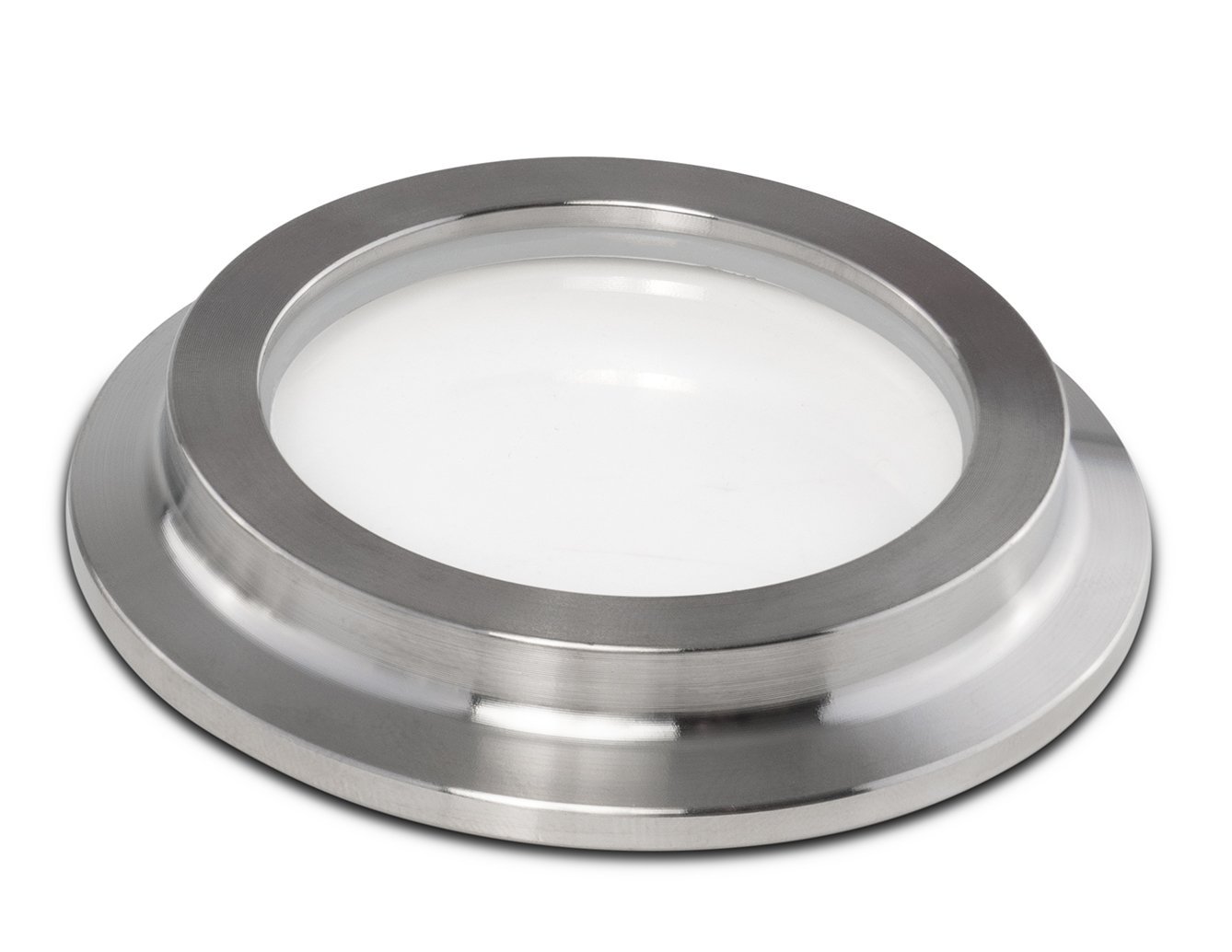

Borosilicate Tri-Clamp Tri Clover Sight Glasses

***Note:(Only comes with 1 sight glass.)

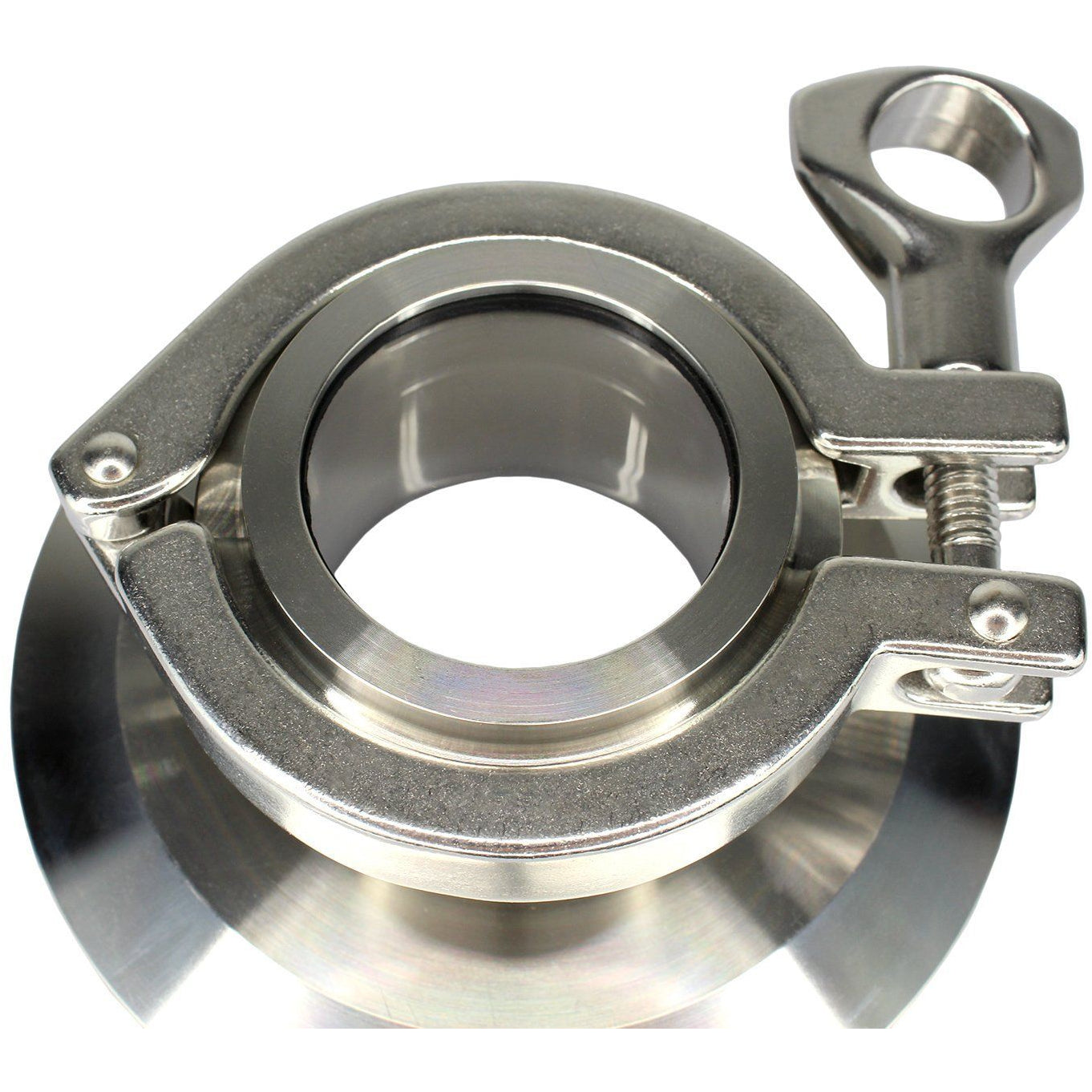

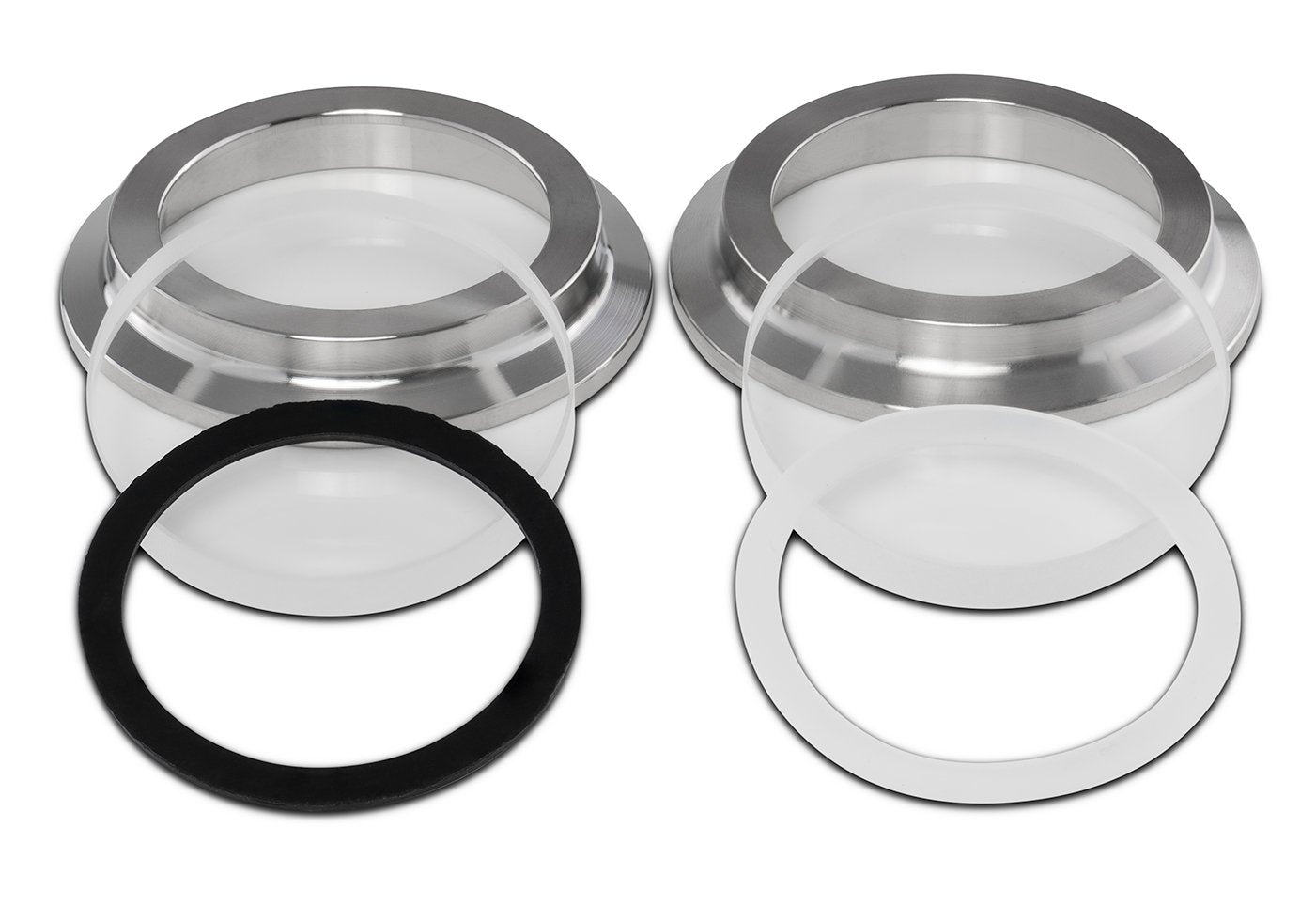

3 piece borosilicate sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the borosilicate glass disc, Viton or Silicone gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 800 (pending 3rd party peer review). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures.

***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip.

Sizes Available:

    • 1.5″ Tri-Clamp

    • 2″ Tri-Clamp

Ferrule Material 304 Stainless Steel
Glass Material BOROFLOAT
Gasket Material Viton(FKM) or Silicone
Connection Type(s) Tri-Clamp
PSI Rating 800 (pending peer review)
