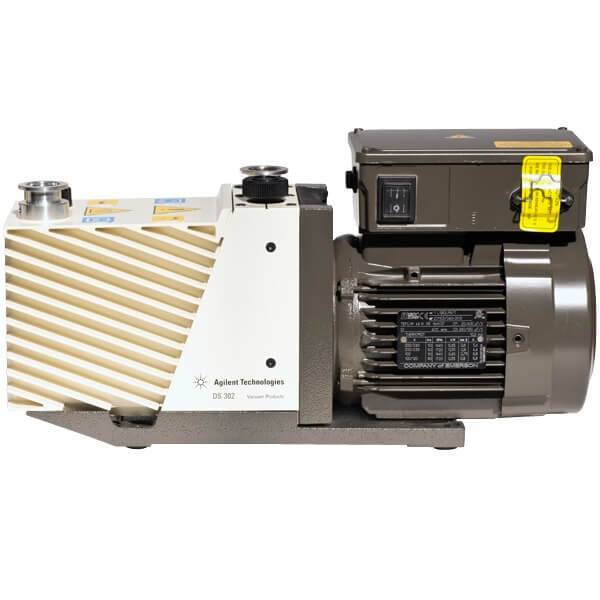

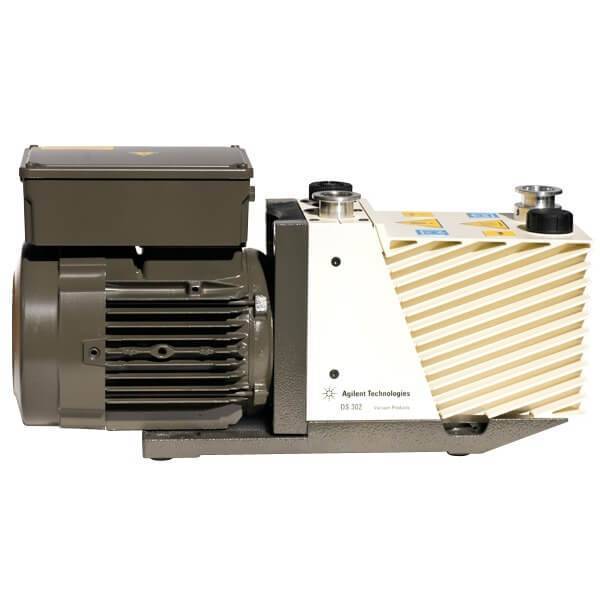

Agilent DS302 8.2 CFM
Popular for vacuum drying in 5+ cubic foot vacuum ovens. Rotary vane pumps are economical, powerful pumps for industrial applications or where risk of oil hydrocarbon contamination is not a factor. They contain oil which must be changed.
- Gas Ballast Valve injects dry air into the pump which facilitates outgassing and clean up of water vapor or other condensable gases from the oil.
- Anti-suckback Valve and Vent Device isolates the pump should it stop or be idle and Prevents inadequate venting and oil contamination of the vacuum system when the pump is switched off, or in case of power fail.
- Built-in Oil Shield minimizes oil mist at the pump exhaust and Drastically reduces the oil consumption over long periods of operation. Reduces air pollution limiting the impact on the environment.
- 1 Year Warranty
- Certified, Expert Rebuild/Maintenance from Cascade
- UL/CSA Approved
Pump Type: Oil, Rotary Vane
Pumping Speed: 8.2 CFM
Ultimate Pressure: 2 × 10-3 mbar
Power: 120V / 1ph (220V available)
Intake Connection: KF-25
Dimensions: 19.33”L x 5.27”W x 8.34”H (491mm x 134mm x 212mm)
Weight: 53 lbs (24 kg)
Specification: Agilent DS302 8.2 CFM
