6 inch Diameter Tri Clamp Jacketed Spools

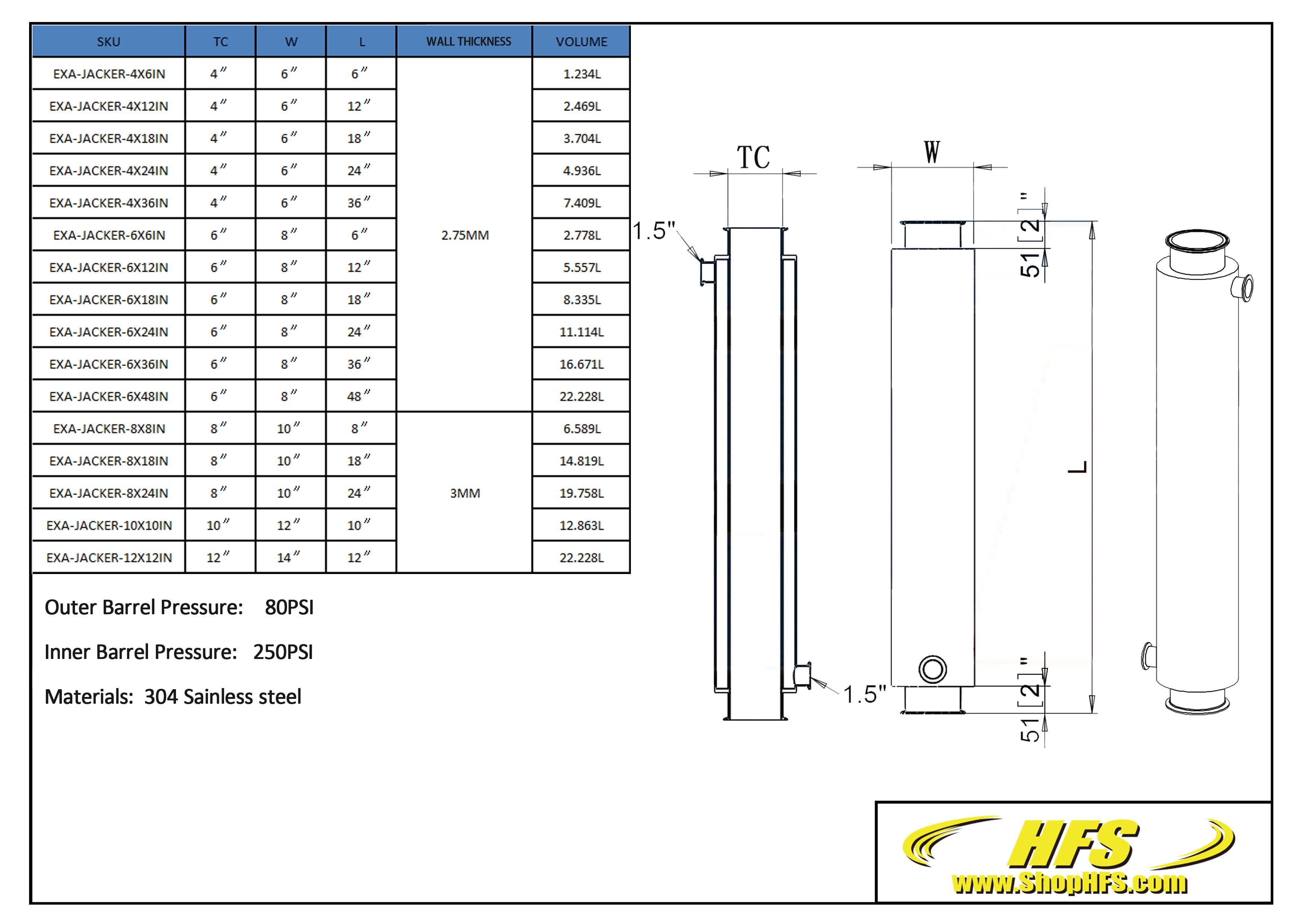

CLICK HERE TO VIEW THE SIZECHART

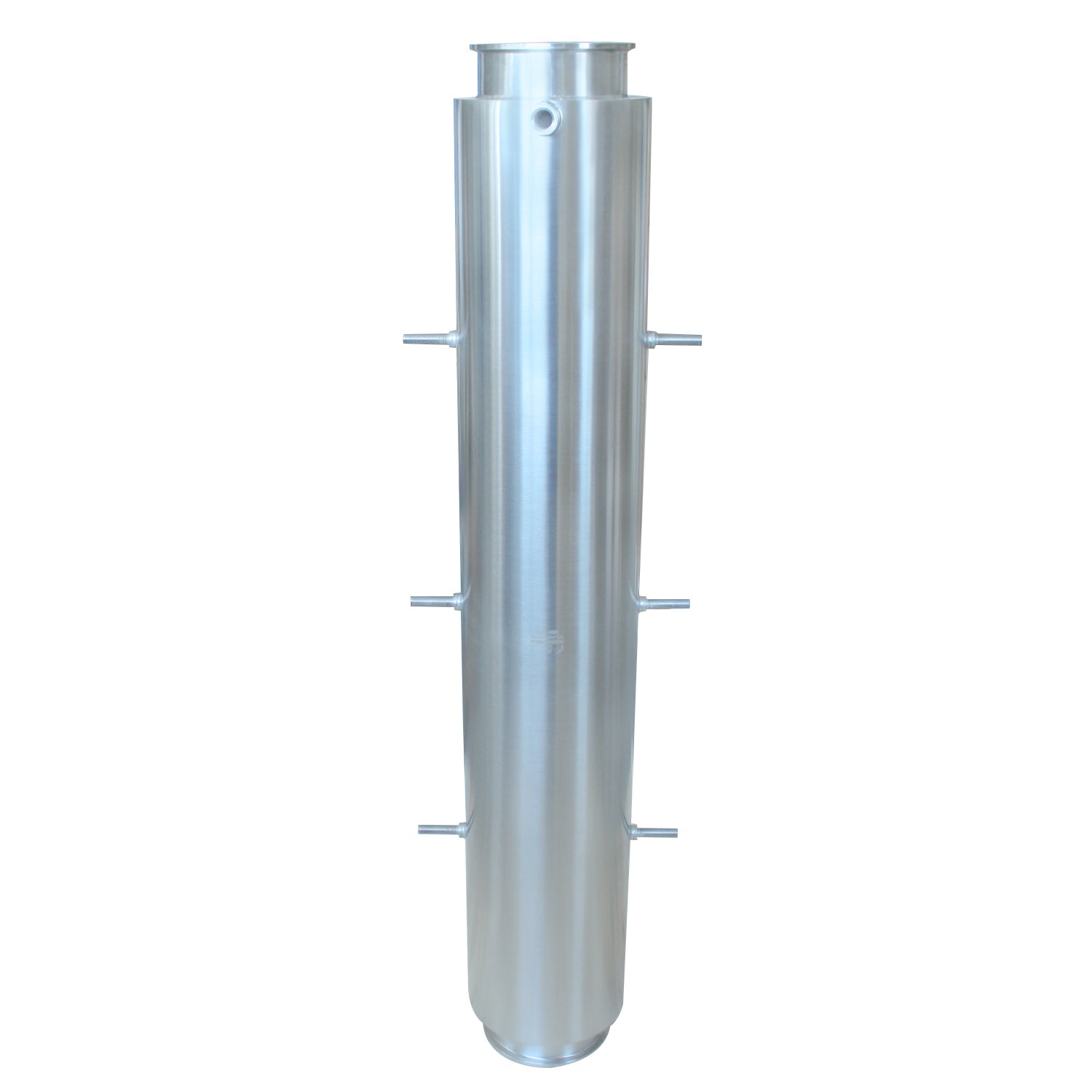

A jacketed spool is a standard spool but with as enclosed shell. This feature provides the user the option to thermally influence the inner tube and its content without disrupting any ongoing process. Thermal fluid can be circulated through the bottom and top port. The user can also choose to use the jacket as an insulation tool by isolating the jacket with valves and then evacuating it completely.

[Size]: 6″TC x 48″/36″/24″/12″, w/ 2 x 1.5″TC.
Thickness of 6″TC port: 2.75mm
Thickness of jacket: 2.75mm
outer barrel pressure: 80psi
inner barrel pressure: 250psi

[Quality Materials]: The Jacketed Spool is made of high quality 304 stainless steel, which is durable, stable, rust and corrosive resistance and good for long time using.

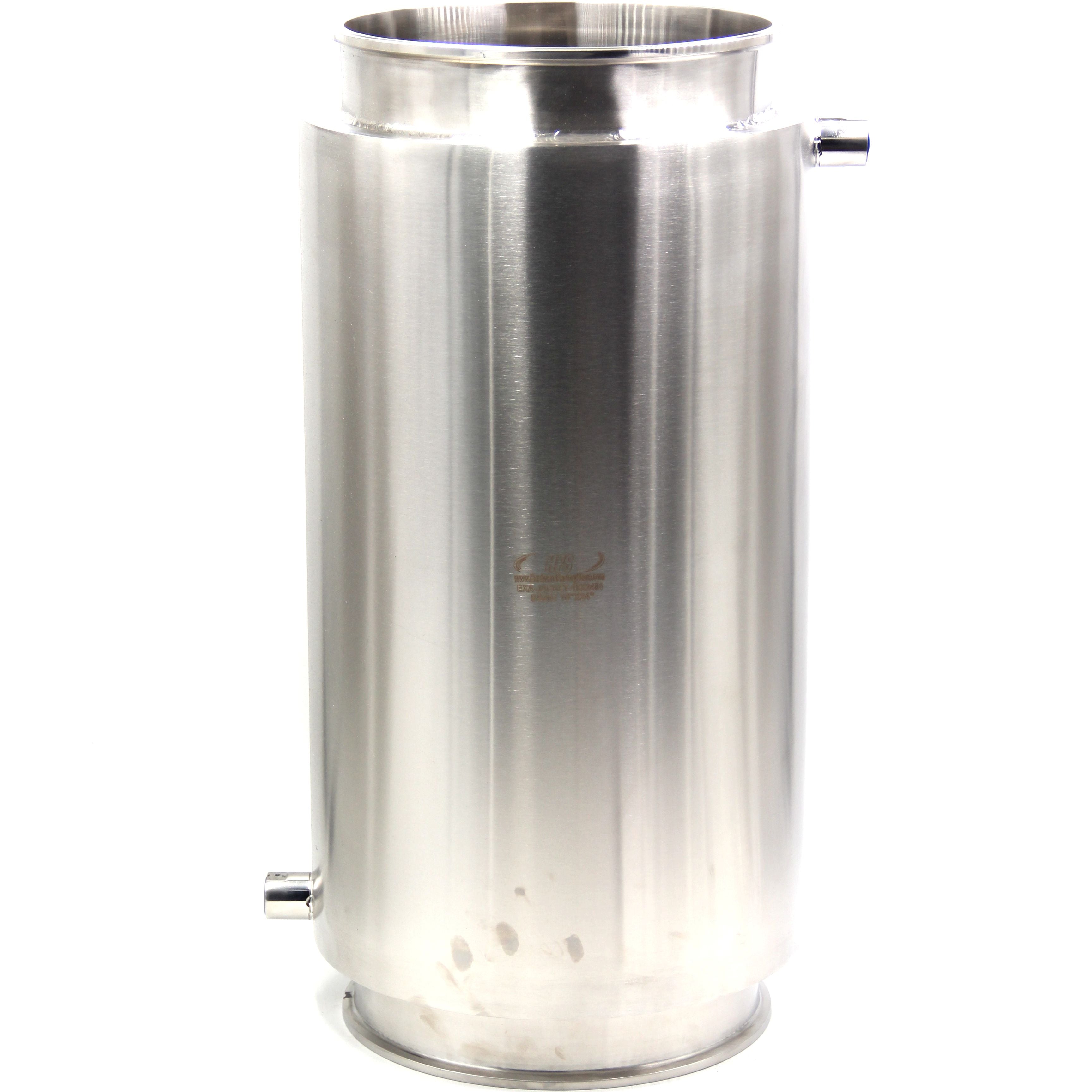

[Precise Design]: The Jacketed spools have a outer sleeve around the main spool that’s welded shut on both ends. At the top and bottom of the spool you’ll find NPT ports that allow the cycling of fluid through the outer sleeve. This can be used with either cold or hot liquid to aid in the solvent recovery and dewaxing processes.

[High Working Temp]: It is suitable for liquid with working at -58°F~392°F.

[Convenient organization and storage]: Packed in a carton box with label.
