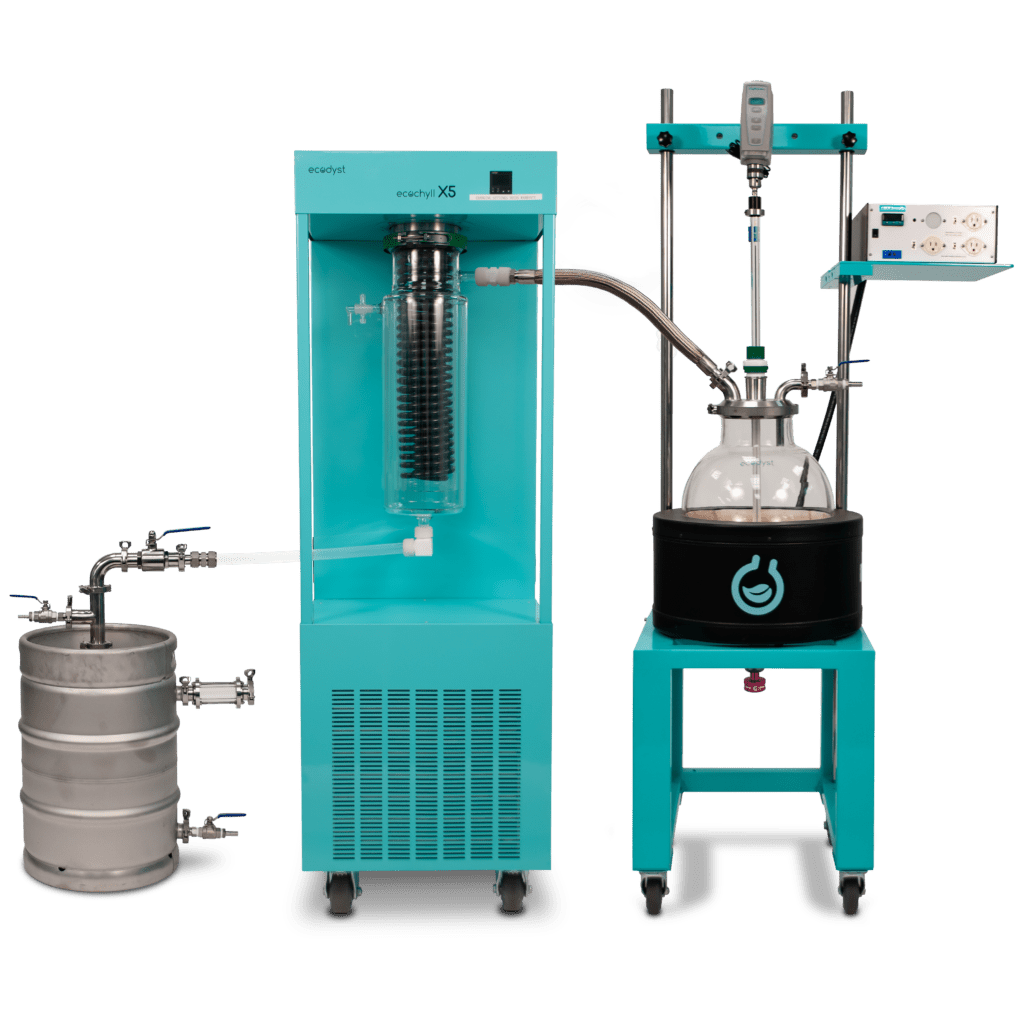

50L EcoChyll X5 High-Speed Evaporator
Large Scale Solvent Recovery
The 50L EcoChyll X5 offers a turnkey solution for solvent recovery and decarboxylation that outstrips traditional 20L rotary evaporators.
- Recovers all residual solvents (below 500ppm)
- Designed to handle an extremely wide range of solvents, including water and all common solvents used in the cannabis and hemp industries
- No need to move glassware: The stationary evaporation flask is filled with a siphon feed valve and emptied with a drain valve for uninterrupted operation
- Can be incorporated in-line with botanical extraction or winterization systems and fully automated
- Digital interfaces and data monitoring for stirring rod, vacuum pump, chiller, and heating mantle
$79,999.00
Features:
- Patented EcoChyll condensation unit reaches -40°C on the coils in under one minute
- Spacious evaporation flask prevents “bumping” of solution into condensation unit
- Single user operation with minimal interference required
- Capable of evaporating ethanol at low temperatures (38C)
- Extremely energy efficient
- Safety features for automatic shutdown
Specifications:
Equipment
- Dimensions (approx.) – 50″ L x 20″ W x 72″ H
- Mobility – All components on locking wheels
Electrical
- Total power usage – 5.1kW
- Heating mantle – 15 amp, 230V single phase line, 3.5kW
- X5 EcoChyll – 15 amp, 230 single phase line, 1.6kW
- Vacuum pump, stirring rod, liquid transfer pump all use standard 115V (or 230V) lines
Technical
- Evaporation flask load volume – 50L
- Evaporation flask minimum load volume – 2L
- Receiving keg load volume – 60L
- EcoChyll minimum temperature – -50°C
- Condenser single-coil surface area – ~4,500 cm2
- Heating mantle maximum temperature – 250°C
- Overhead stirrer maximum speed – 1800rpm (recommended 150rpm)
- Overhead stirrer maximum torque – 50 in-lbs = 800 in-oz
- Metal parts – Stainless steel 316
- Glass parts – Borosilicate glass
- Sealing and tubing materials – PTFE and FEP
- Warranty** – Two-Years Manufacturer (includes parts & labor, excludes all glass components)
50L EcoChyll X5 Hi-Speed Evaporator
Turnkey System Designed for: |
Large Scale Solvent Recovery and Decarboxylation |
Solvent Recovery Throughput: |
Up to 10L of ethanol per hour |
Decarboxylation Capacity: |
Yes |
Automation: |
Optional |
Designed for budget-conscious users of evaporation lab equipment, the EcoChyll® X5 is an extremely efficient alternative to all existing evaporative technologies. Based on the same metallic condenser coil technology that elevates each instrument in the EcoChyll line, the EcoChyll® X5 features a single coil in a robust, space-friendly unit. With a 50L capacity and a small footprint, it is a premium compromise between cost and convenience.
Our cost-competitive evaporation unit is a turn-key solution for solvent recovery and decarboxylation. Built with pioneering smart cooling technology, the EcoChyll® X5 automates the vapor cooling process to free-up user time for other operations. This method is now the preferred solution for evaporation in a wide range of botanical extraction applications.
Budget-Conscious Lab Equipment from Ecodyst
Ecodyst is the world’s first lab equipment manufacturer to use metallic condensers in evaporation and decarboxylation processes. Our disruptive approach has set a new standard of cost-efficiency and results reliability in emerging markets, like the hemp industry. The EcoChyll® X5 is a novel solution for cost-limited researchers in botanical markets like cannabis extraction.
-NRTL-certified to UL 61010-1 electrical equivalent
-GMP compliant for US, EU and Canadian regulations
Note: The X5 EcoChyll can be paired with 22 and 50 liter evaporation units. The X7 EcoChyll can be paired with 22, 50, 72, and 100 liter evaporation units.
