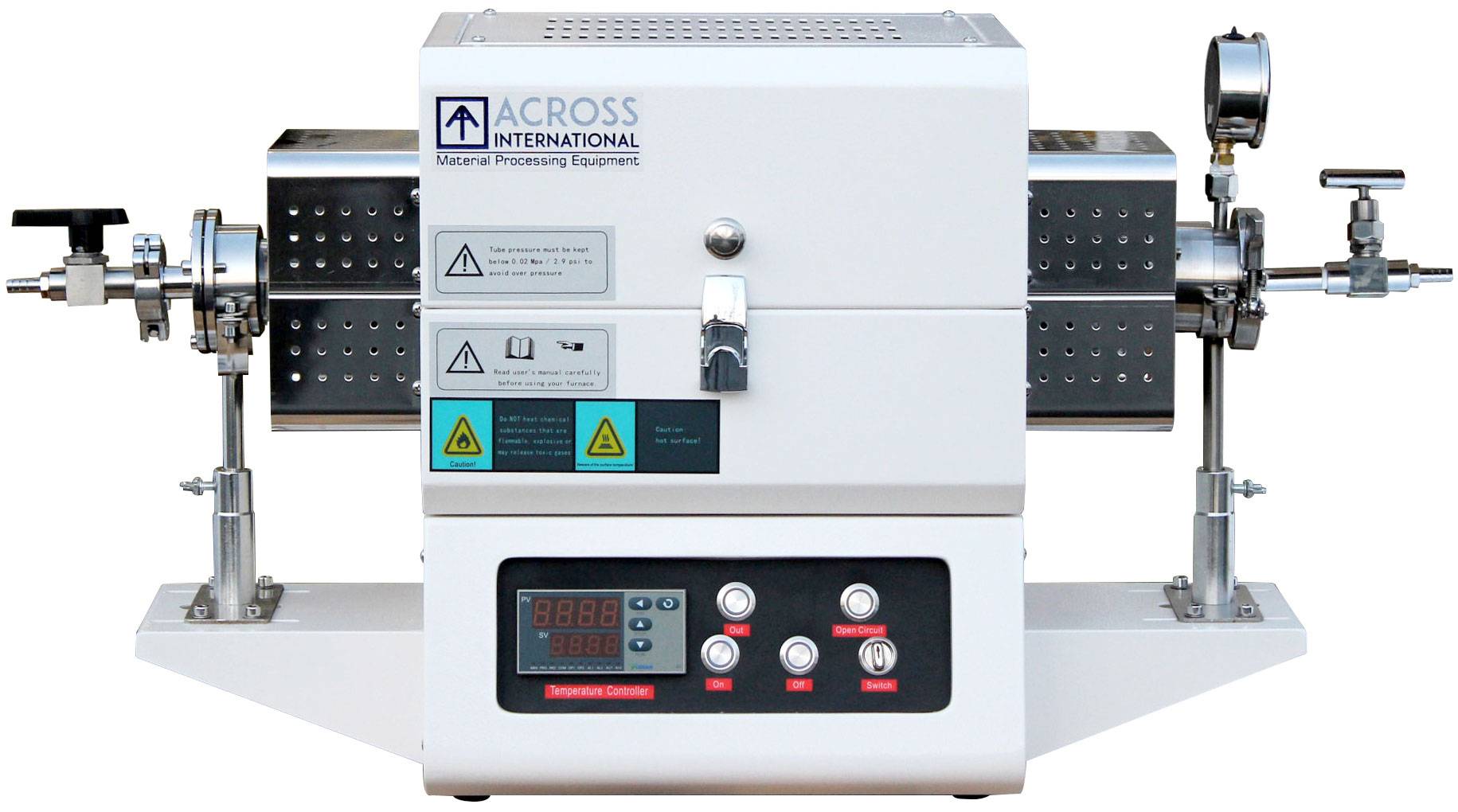

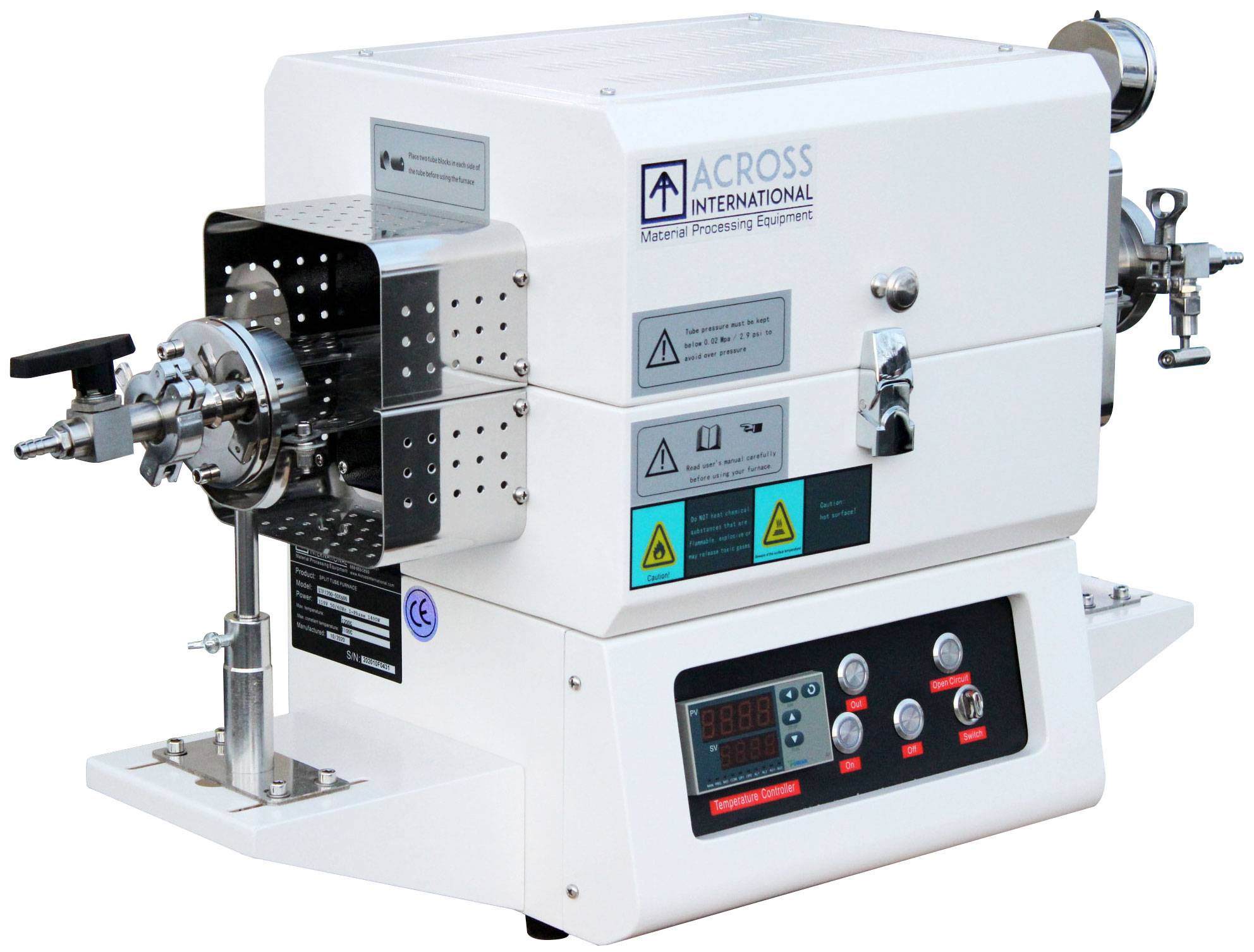

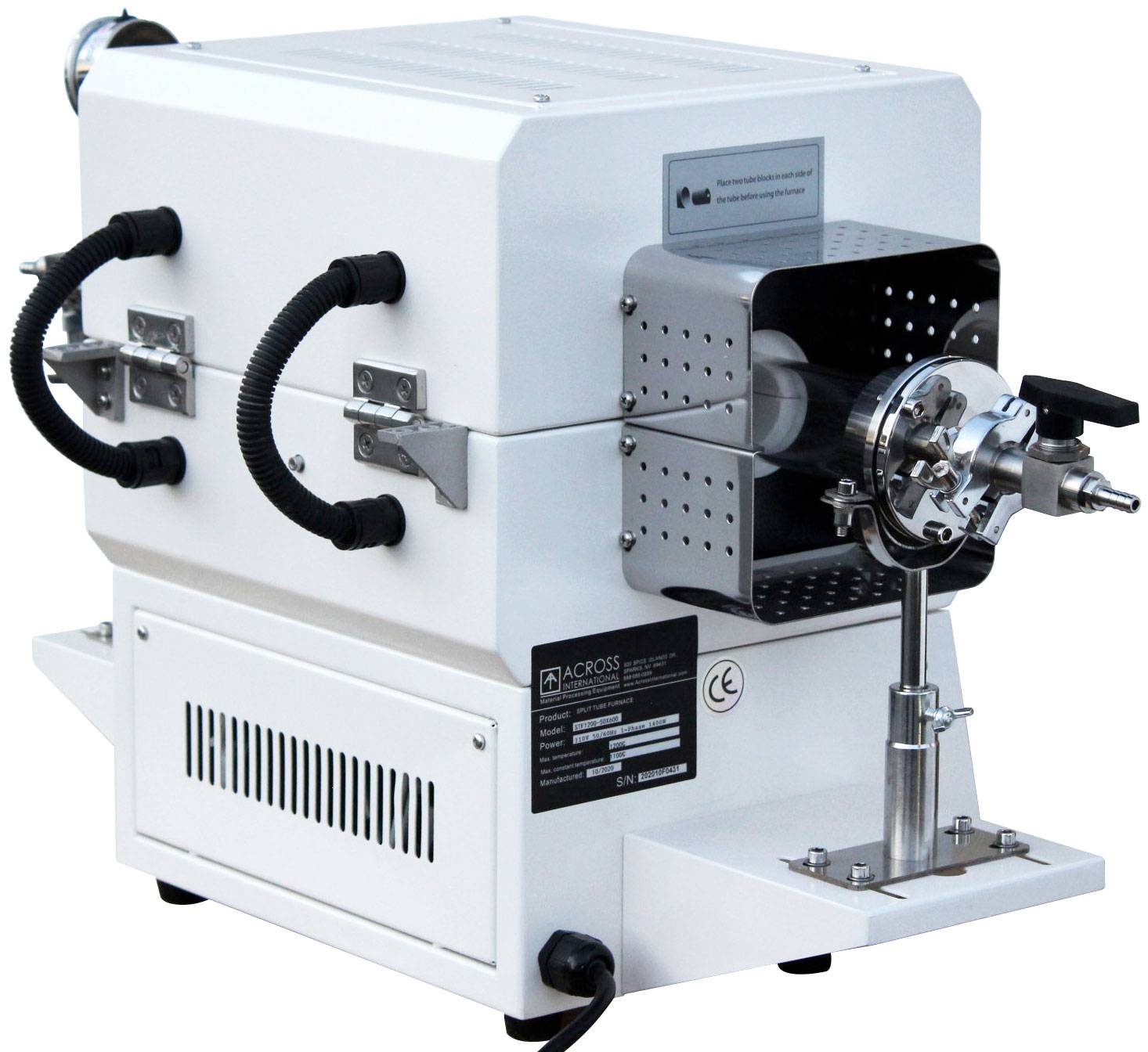

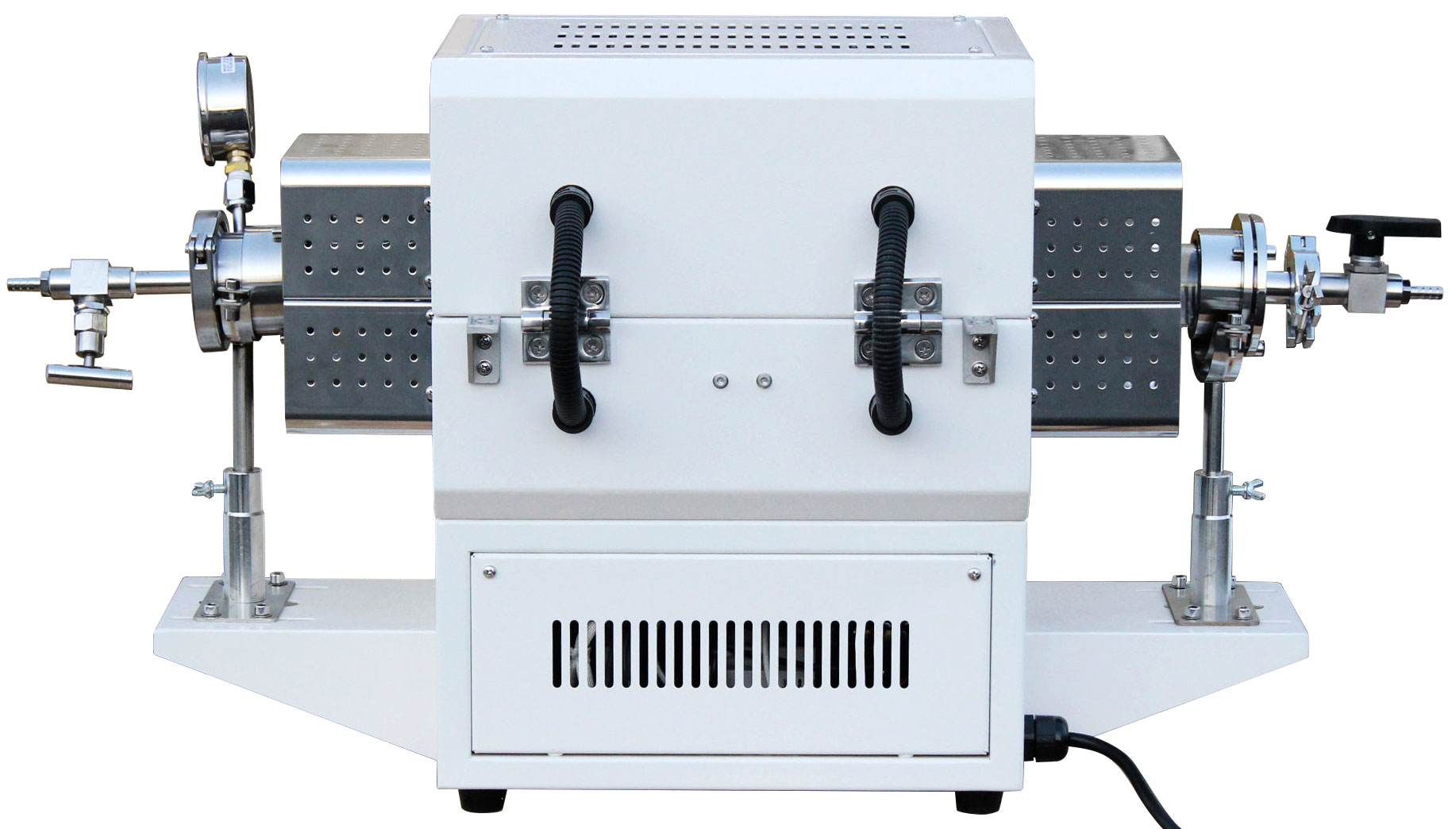

1200C 1-Zone 50mm OD Top-Open Tube Furnace with Quartz Tube

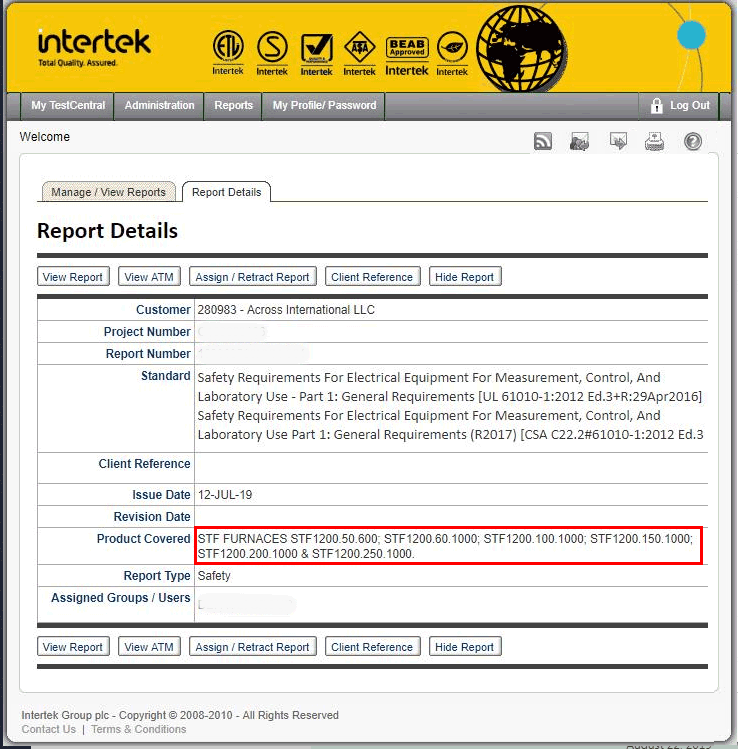

STF1200 50x600mm (ODxlength) portable split tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.

Features

• Compact, portable and lightweight design.

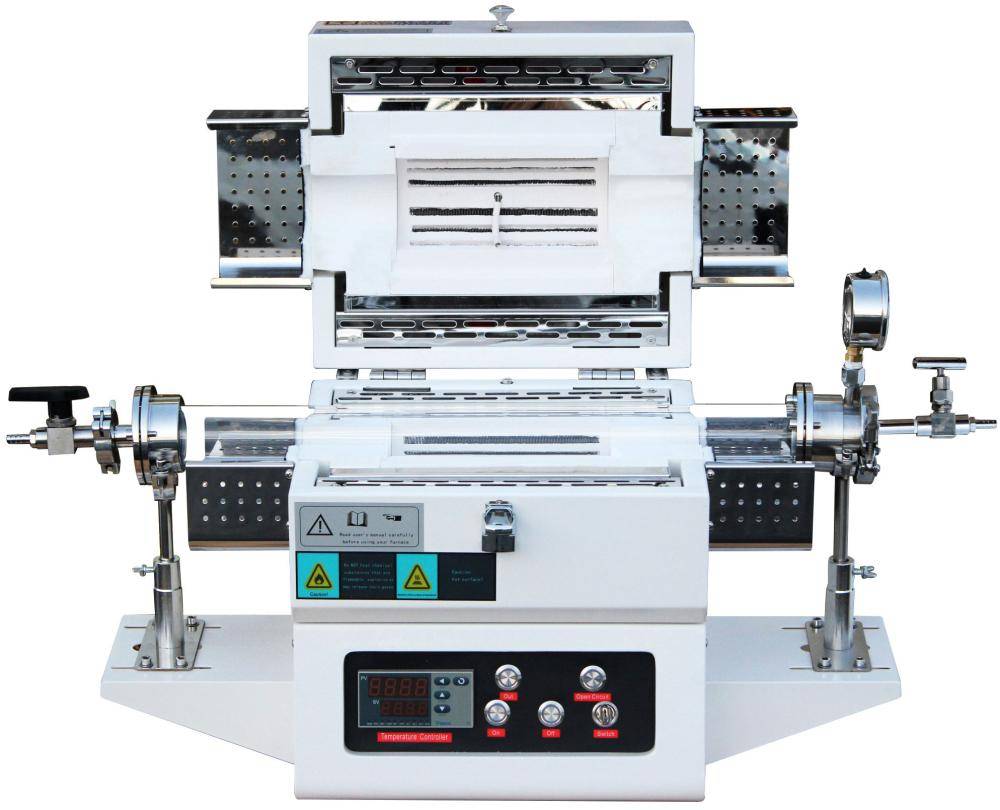

• Split furnace chamber for fast and easy tube access.
• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Long life type K thermocouple.


Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.
