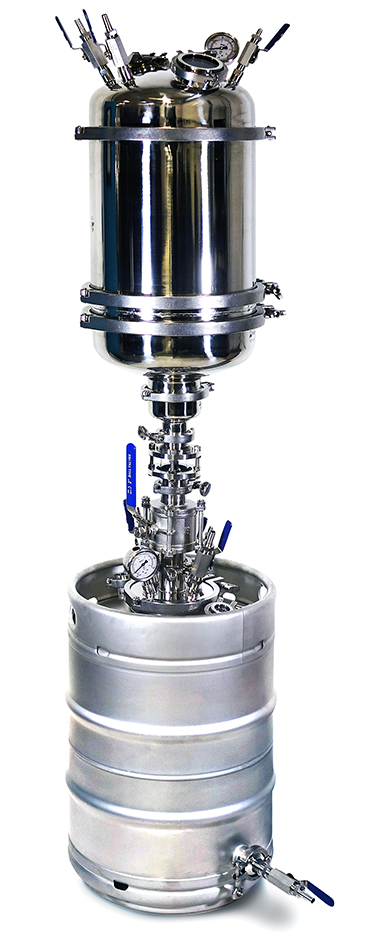

12″ Pressurized Buchner Funnel with 50L Keg

12BUCHNERKEG SPECIFICATIONS

•Material: 304 Stainless Steel

•Side Connections: 1.5″ TC (1.5″ to KF25 Included)

•Top Connection: 2x (3″ TC for Glass), 2x (1/2″MNPT to 1/2″ Barb), 1x (3/8″MNPT to 1/4″MJIC for Nitrogen), 1x (1/4″ FNPT for Gauge)

•Keg Connection: 2x (1.5″ TC for Glass), 2x (1/2″ FNPT to 1/2″ Barb), 1x (1/2″ FNPT to 1/4″MJIC for Nitrogen or Vacuum), 1x (1/4″ FNPT for Gauge), 1x (2″ TC for Top Port)

•Keg Bottom Connection: 1.5″ TC to 1/2″ Barb

•Buchner Capacity: 22L

•Keg Capacity: 50L

12BUCHNER KEG PACKING LIST

50L Keg with 1.5″ TC Sight Glass

1 pc

50L Keg Lid with Dip Tubes

1 pc

2″ TC Ball Valve

1 pc

2″ Short Sight Glass

1 pc

2″ TC to 12″ TC Hemi Reducer

1 pc

12″ Filter Plate Kit

1 pc

12″ x 12″ TC Spool

1 pc

12″ Hemi Lid with 2x 3″ TC

1 pc

1.5″ Borosilicate Sight Glass

2 pcs

2″ Borosilicate Sight Glass

2 pcs

1.5″ Buna-N Gasket

1 pc

2″ Buna-N Gasket

2 pcs

12″ Buna-N Gasket

3pcs

1.5″ Standard Pressure Tri-Clamp

3pcs

2″ Standard Pressure Tri-Clamp

3 pcs

4″ Standard Pressure Tri-Clamp

1 pc

12″ Standard Pressure Tri-Clamp

3 pcs

1/4″ Superlok Valve

2 pcs

1/2″ Superlok Valve

5 pcs

1/2″ MNPT to 1/2″ Barb

5 pcs

1/4″ MNPT to 1/4″ MNPT

1 pc

1/2″ MNPT to 1/4″ MNPT

1 pc

1/4″ MNPT to 1/4″ MJIC

2 pcs

1/2″ MNPT to 1/2″ MNPT

5 pcs

1/4″ Gauge

2 pcs

1.5″ TC to 1/2″ FNPT

1 pc
