0.9 CuFt Vacuum Oven – 7 Shelf

Hardware Factory Store® proudly offers the DZF family of vacuum ovens. Available in both 0.9 and 1.9 Cu-Ft sizes, and as full kits including pumps and fittings.

Before ordering call 626.332.7744 and ask for a sales representative for current discounts!

As always, HFS® has these ovens IN STOCK in our CALIFORNIA warehouse and provides FREE SHIPPING to contiguous US on all models. We also provide free phone/email support along with a 30-day Money Back Guarantee and 1-Year Warranty.

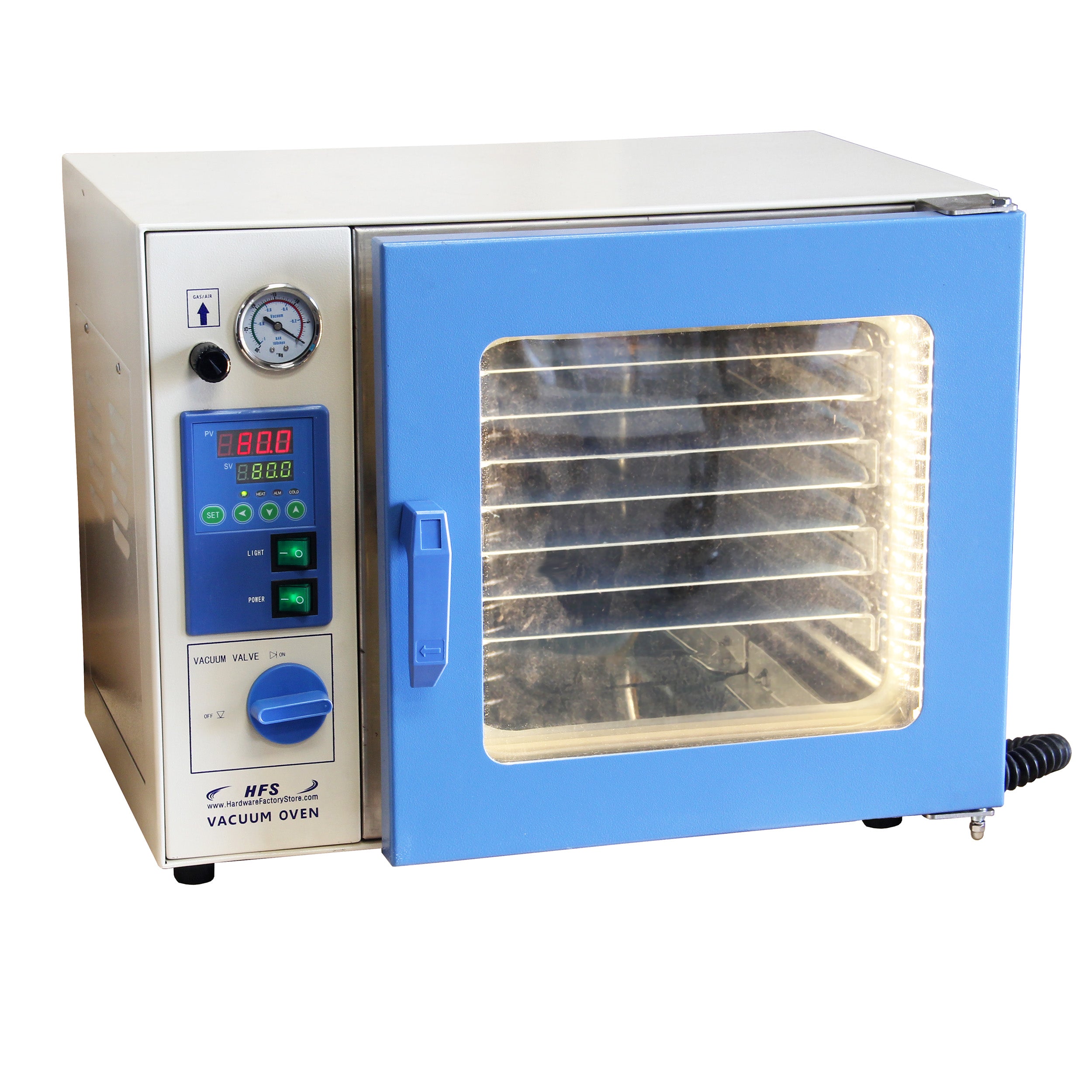

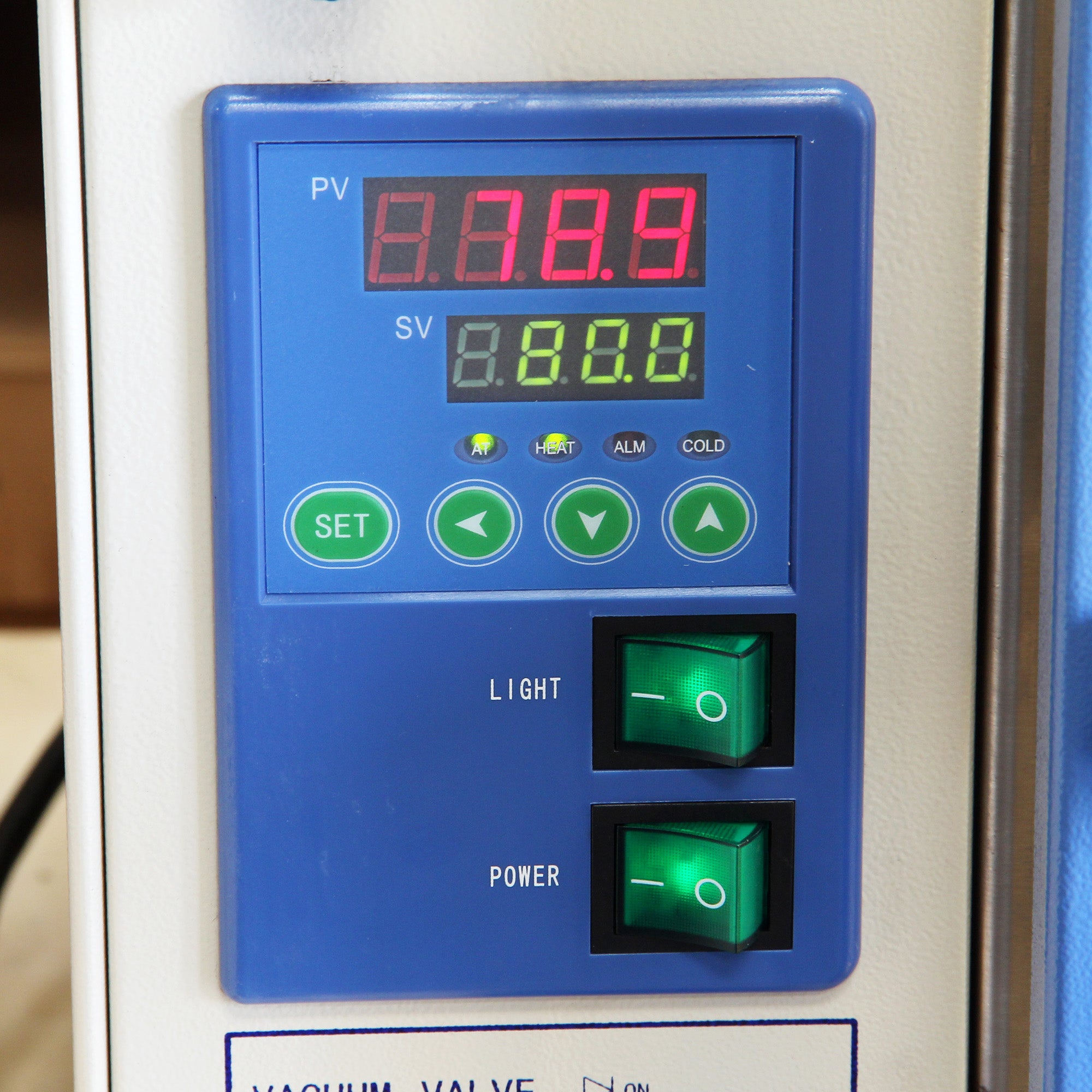

The DZF-6020 features a 0.9 Cu-Ft 304 stainless steel chamber, large enough to accommodate large samples on multiple shelves. A highly accurate heating rate and wide operating temperature allow for precise extraction and processing. Controlling the DZF oven is a breeze with the easy-to-read digital control panel which displays temperature and timer control settings. A large Hg vacuum gauge adorns the front of the oven allowing for quick easy vacuum level detection down to -30″ Hg. On the front of the oven you will find the vacuum control valve and a vacuum evacuation valve that let you control the amount of vacuum in the chamber quite accurately. The port also allows for muffin control on samples which tend to rise as they are under vacuum.

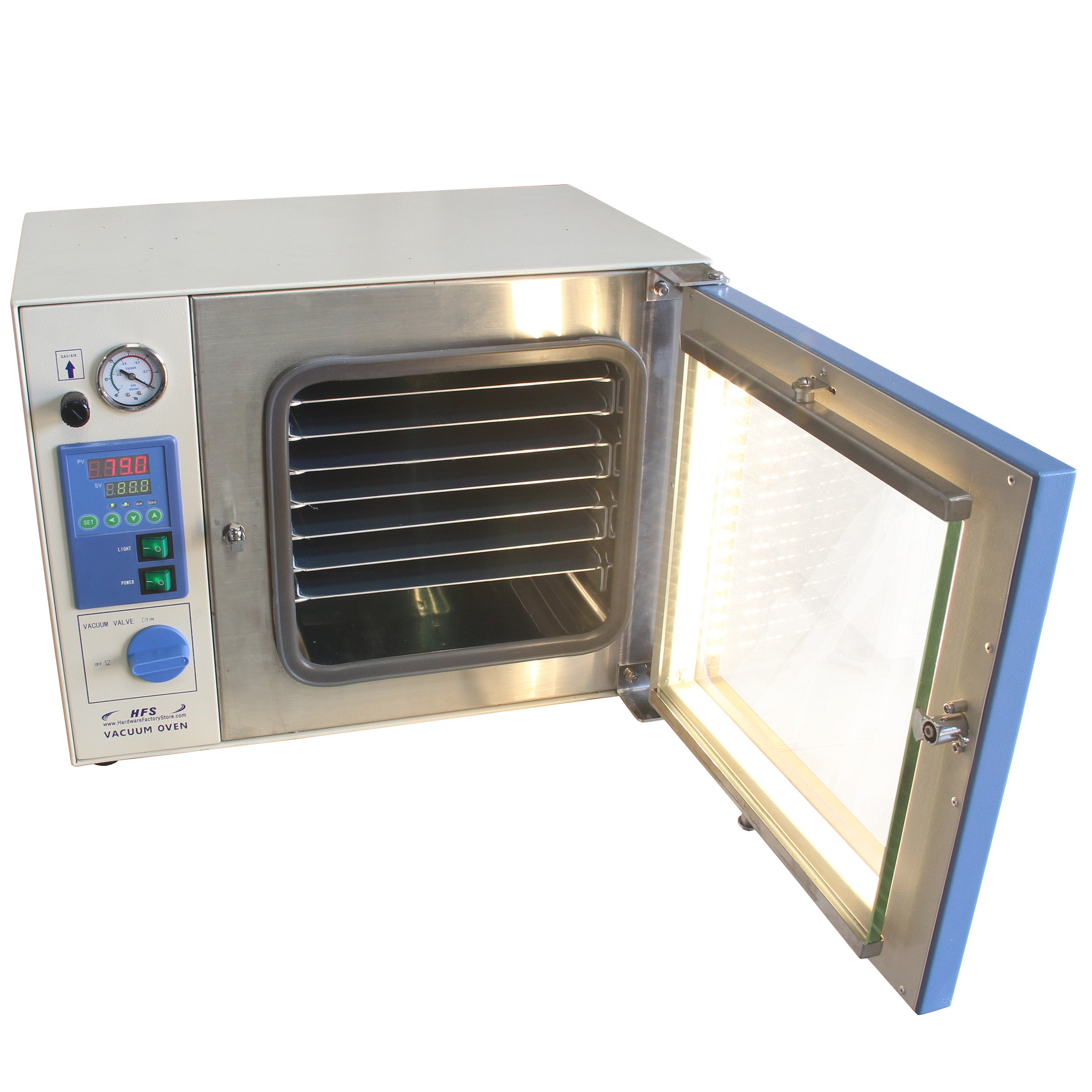

The large access door on the front of the oven opens over 180 degrees, offering plenty of space for placing and removing samples. HFS® ovens offer the largest viewing windows in the industry, made from 1/2″ safety glass and fitted with built-in LED lights. The LED lights have a dedicated switch on the front of the oven to easily turn them on or off. A tight seal around the perimeter of the door ensures a solid vacuum with no loss of suction.

Like all vacuum ovens, an external vacuum pump and fittings to connect them are needed. If you already have a pump then you may only want the oven, but if you need a read-to-go kit, make sure you are looking at the right listing by checking the “What’s Included” list below.

Features

• 0 to -30″ Hg gauge for quick vacuum level observation
• 4 Sided Heating, extremely even heat pattern
• 1/2″ safety glass viewing window, the largest windows in the industry
• Digital temperature and timer control with +/- 1 degree accuracy
• 304 grade stainless steel inner chamber

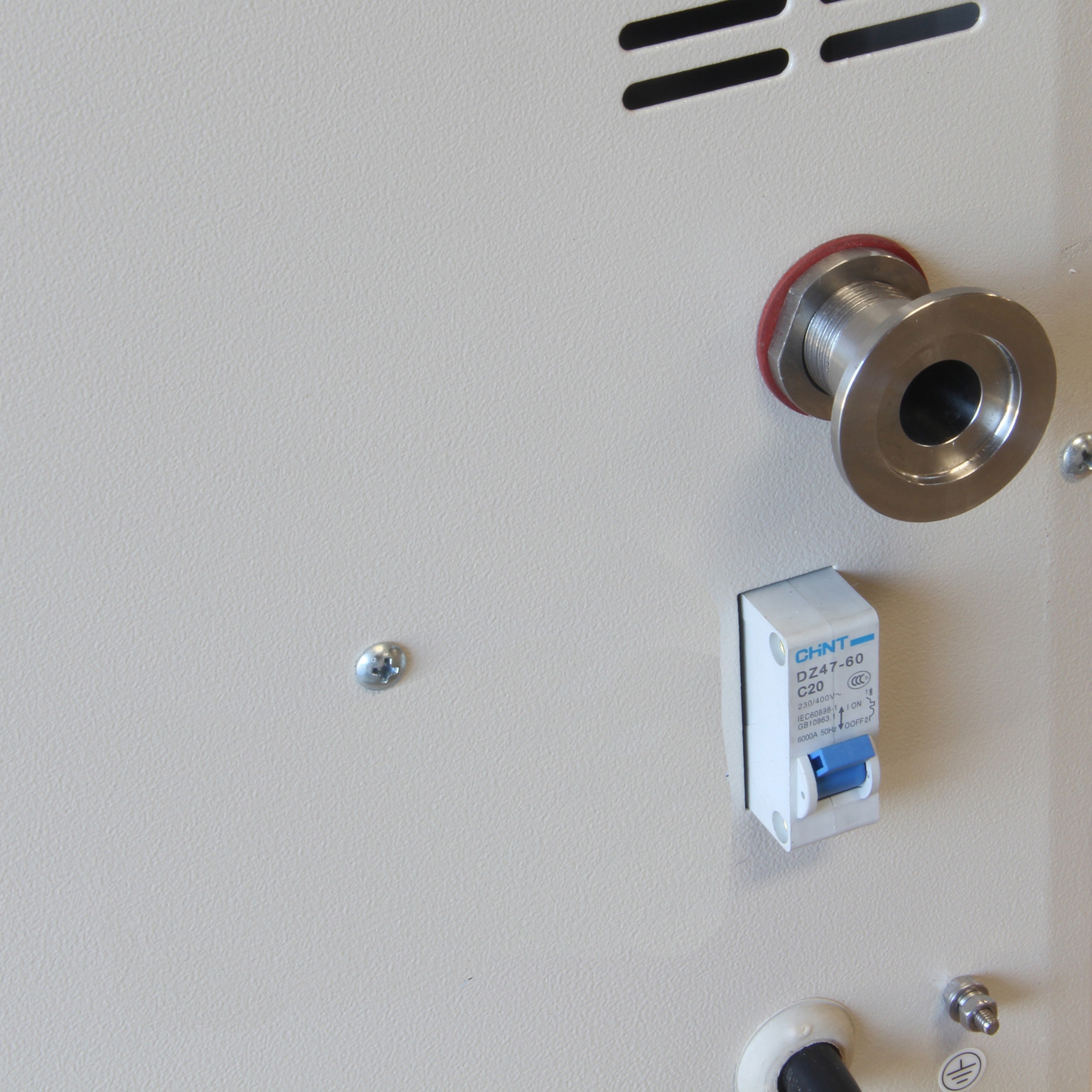

• Industry standard KF-25 fitting for easy connectivity

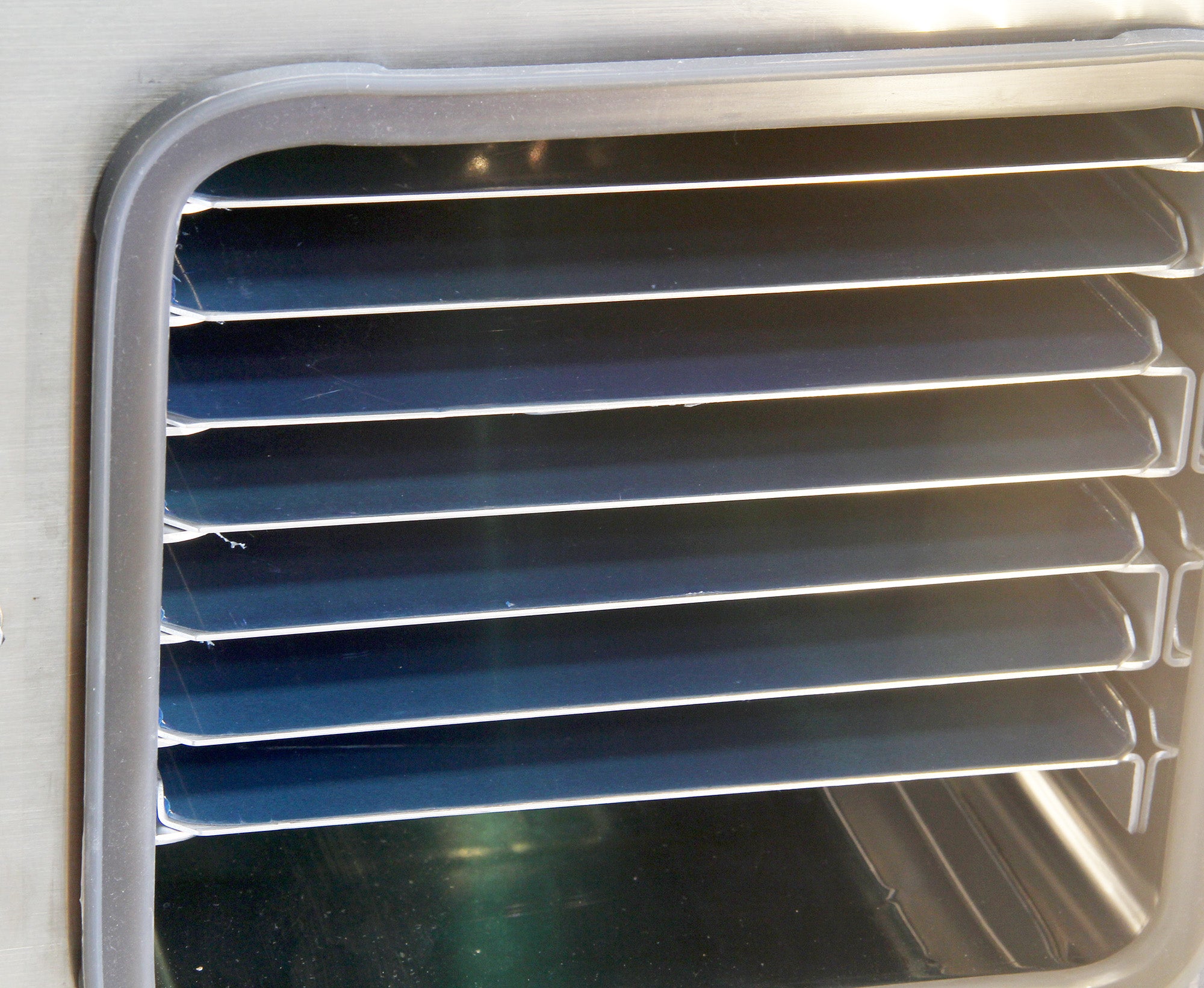

• 7 solid aluminum shelves included

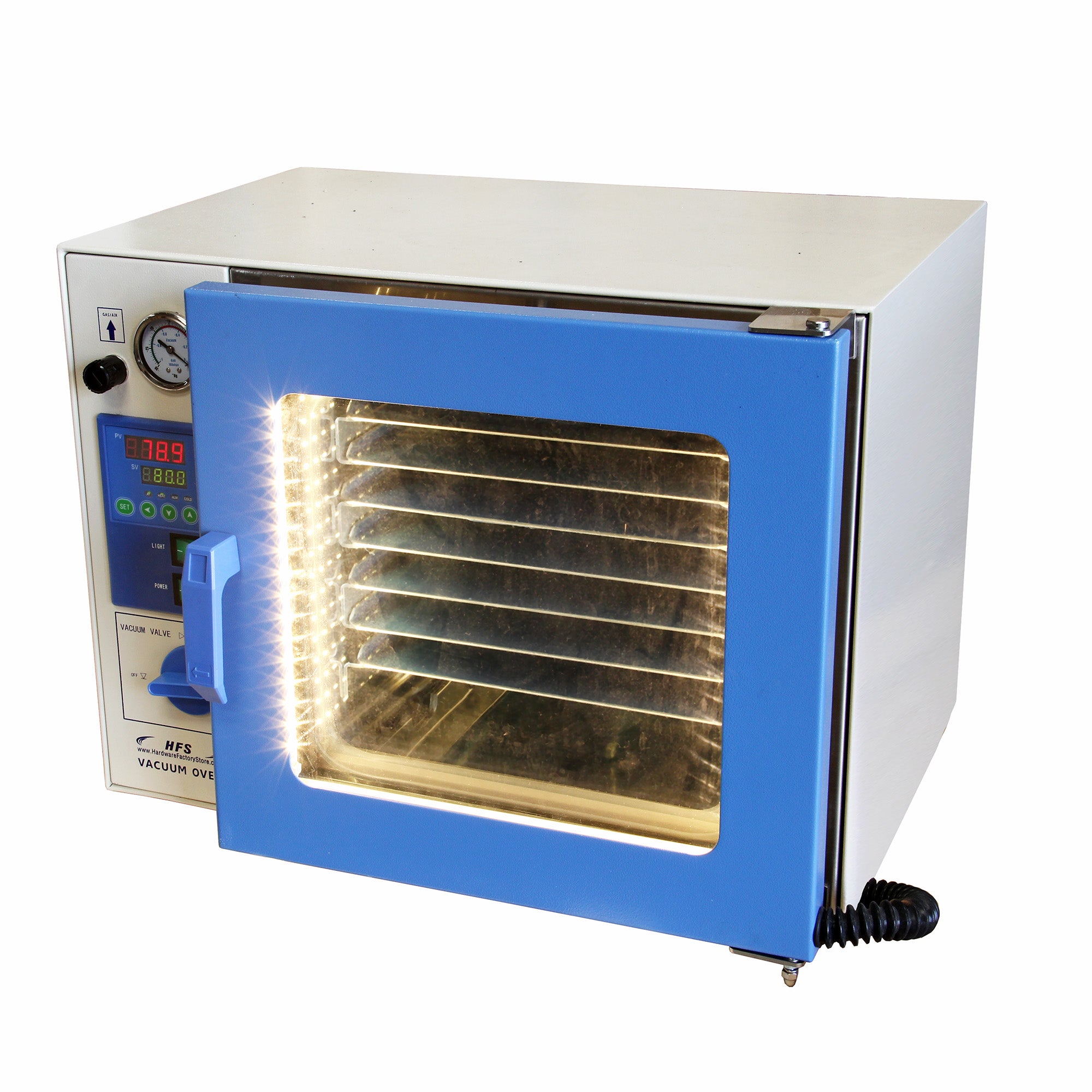

• Built-In LED Lights with Toggle Switch
• No assembly required
• 30 day Money-Back Guarantee
• 1-Year Warranty

What’s Included

• DZF-6020 Oven
• Owner Manual
• KF-25 Clamp & Centering Ring,
• 3/8″ Barb Hose Fitting
• 1/2″ Barb Hose Fitting
• 7 Solid Aluminum Shelves

Standards in Manufacturing

• CE Certified
• ENISO12100-1:2003, ENISO12100-2:2003, EN1050:1996
• EN294:1992, EN418:1992, EN60204-1:2006

Specifications
