SS304 Sanitary Pipe Weld Ferrule + Tri Clamp + PTFE Gasket Set
$13.00 – $30.00
[Size]: 1.5″, 2″, 3″.
 CLICK HERE TO VIEW THE DATASHEET.
[Quality Materials]: The Sanitary Pipe Weld Ferrule and Tri Clamp are made of high quality 304 stainless steel and the gasket set is made of PTFE which is durable, stable, rust and corrosive resistance and good for long time using.
[Precise Design]: Disc on two fittings are clamped together with a high temp PTFE gasket in between, providing a clean efficient connection for valves, hoses, etc.and the thumb screw is easy to tighten, it makes a good seal.
[High Working Temp. & Wide Range of Applications]: The tri-clamp fitting can be used for connecting two pipes in the same direction in the double seal system. It is suitable for different media including liquid and gas, with working at -40°F~302°F.
[Convenient organization and storage]: Packed in a small carton with label.
|

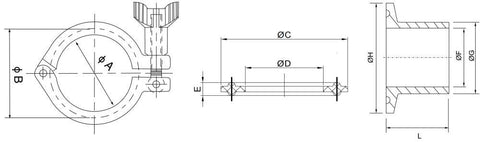

SKU |
SIZE |
ΦA |
ΦB |
ΦC |
ΦD |
E |
ΦF |
ΦG |
ΦH |
L |
|
EXA-WELD-1.5IN |
1 1/2″ |
44.4 |
53.6 |
50.5 |
35 |
4.8 |
34.8 |
38.1 |
50.5 |
21.5 |
|
EXA-WELD-2IN |
2″ |
57.8 |
67 |
64 |
48 |
4.8 |
47.5 |
50.8 |
64 |
21.5 |
|
EXA-WELD-3IN |
3″ |
84 |
94.2 |
91 |
72 |
4.8 |
72.9 |
76.2 |
91 |
21.5 |
|
Dimensions and pressures for reference only, subject to change. |
||||||||||
