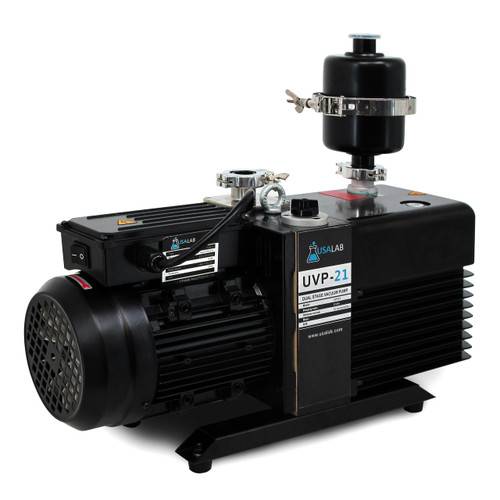

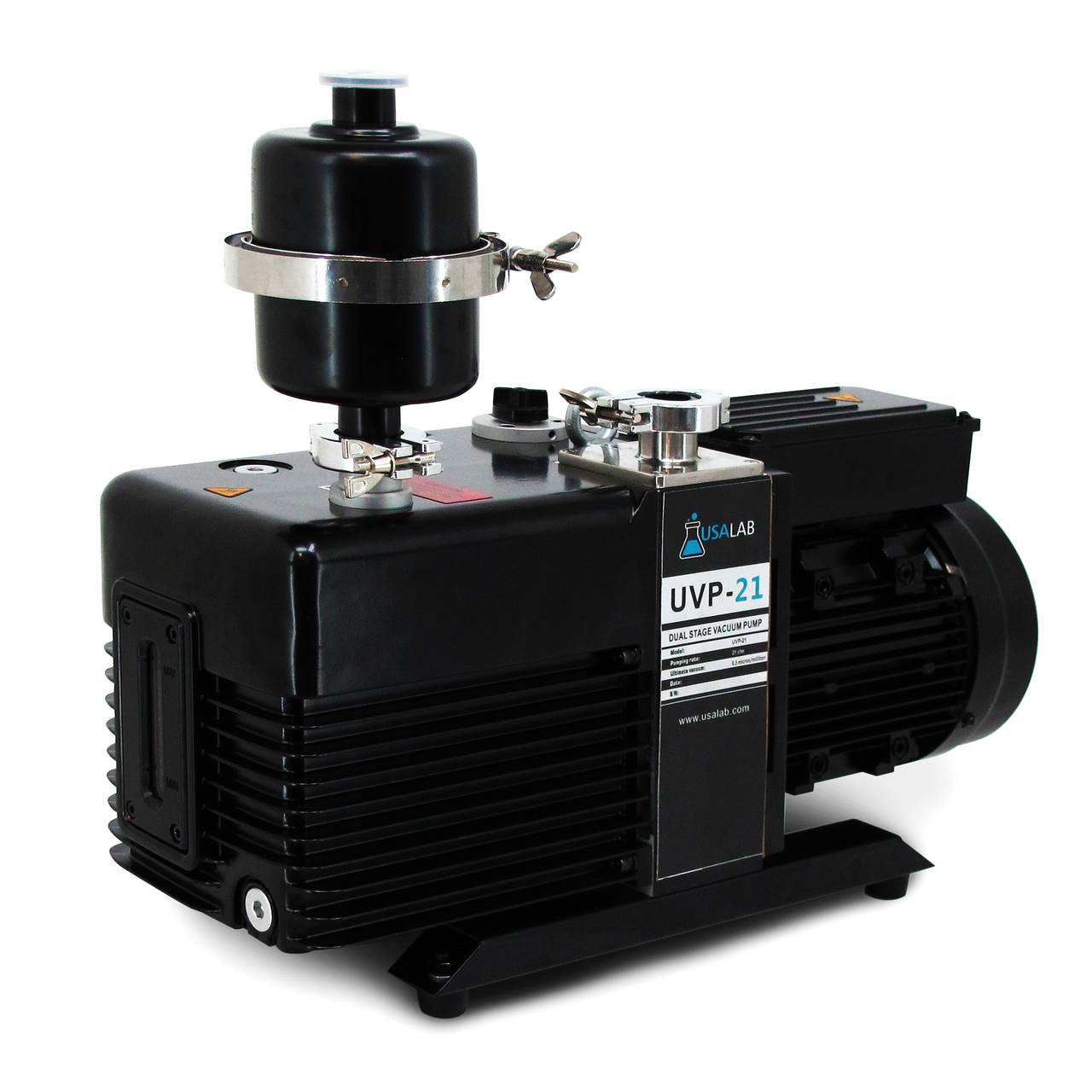

USA Lab UL Listed 21CFM UVP-21 Corrosion Resistant 2-Stage Vacuum Pump

Our new line of corrosion resistant UVP-21 21 cfm vacuum pumps provide superior quality that can compliment multiple applications. These pumps are designed for reliable, long term use at 0.3 microns and a powerful pumping speed of 21 cfm. Each pump comes standard with an exhaust oil mist filter and all parts needed to connect to any system for immediate use. Our UVP-21 pump is great for any laboratory application, including short path distillation, vacuum ovens, and many more. Upgrade today and get one of the most superior vacuum pumps on the market at an affordable price.

• Allows users to control the gas ballast for multiple vacuum levels.

SPECIFICATIONS
Model	UVP-5	UVP-11	UVP-21
Pumping Speed(60Hz)	5.5 cfm	11 cfm	21 cfm
Ultimate total pressure gas ballast close	4×10-2 Pa (3.0×10-4 torr) 0.3 Micron
Ultimate total pressure gas ballast open	8×10-1 Pa (6×10-3 torr) 6 Micron
Power supply	1 Phase (110V, 60Hz)
Power rating(kW)	0.4	0.75	1.1
Inlet/Exhaust Flange	KF 25
Oil capacity(L)	0.6~1.0	0.9~1.5	1.3~2.0
Ambient temperature(℃)	10~40℃
Noise level(dB)	≤56	≤60	≤60
Weight(kg)	21	30	43

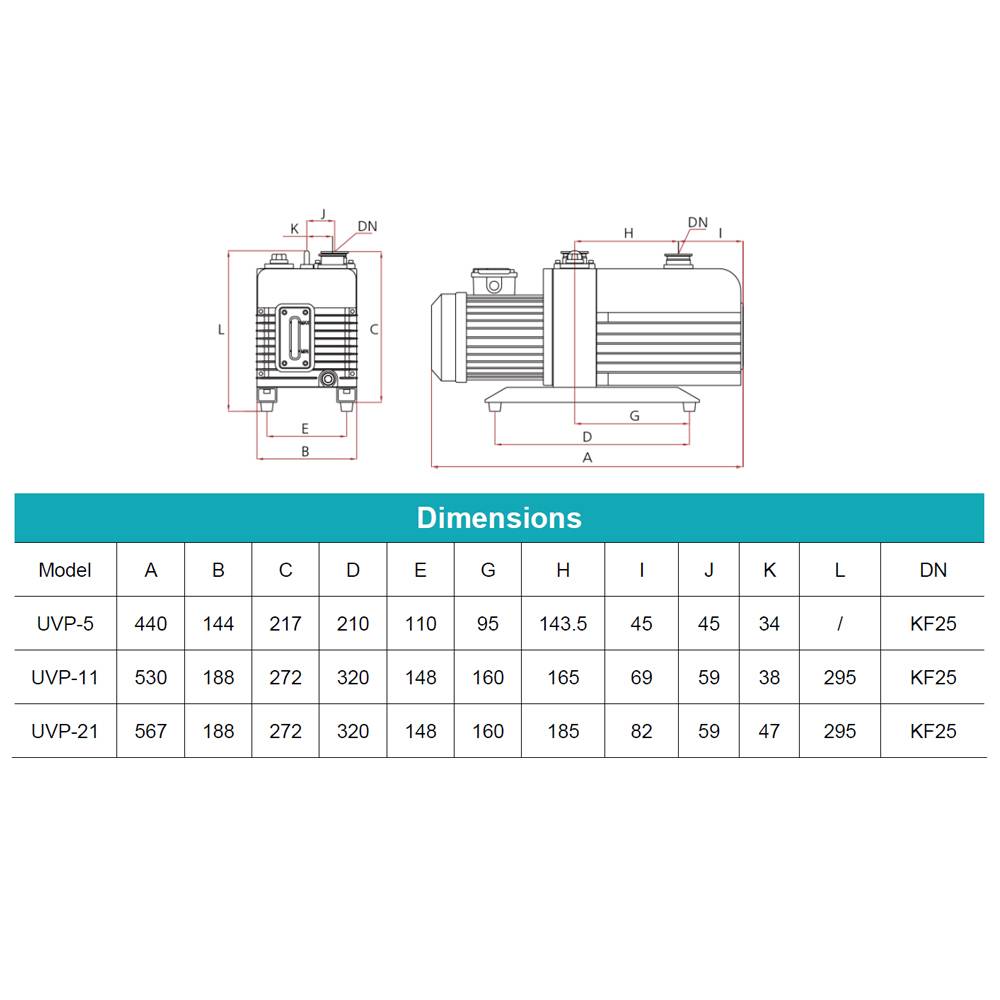

External Dimensions	440x144x217MM 17.3×5.6×8.5″	530x188x272MM 20.8×7.4×10.7″	567x188x272MM 22.3×7.4×10.7″
Certification	UL
Warranty	2 Year

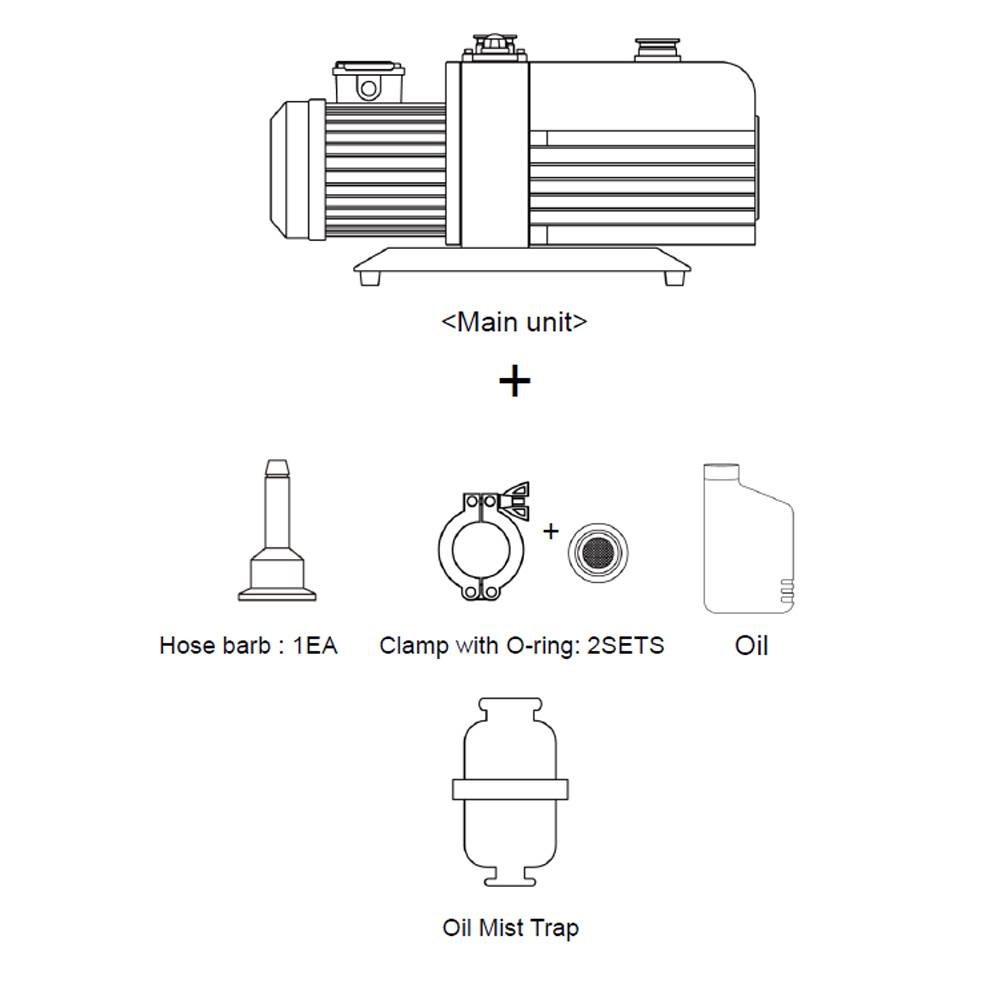

PACKING LIST
Model	UVP-5	UVP-11	UVP-21
Main Vacuum Pump	1	1	1
KF25 x 3/8″ Barb	1	1	1
KF25 Clamp	2	2	2
KF25 O-ring	2	2	2
Oil Mist Trap	1	1	1
Quart of Oil	1	1	1
Manual	1	1	1
