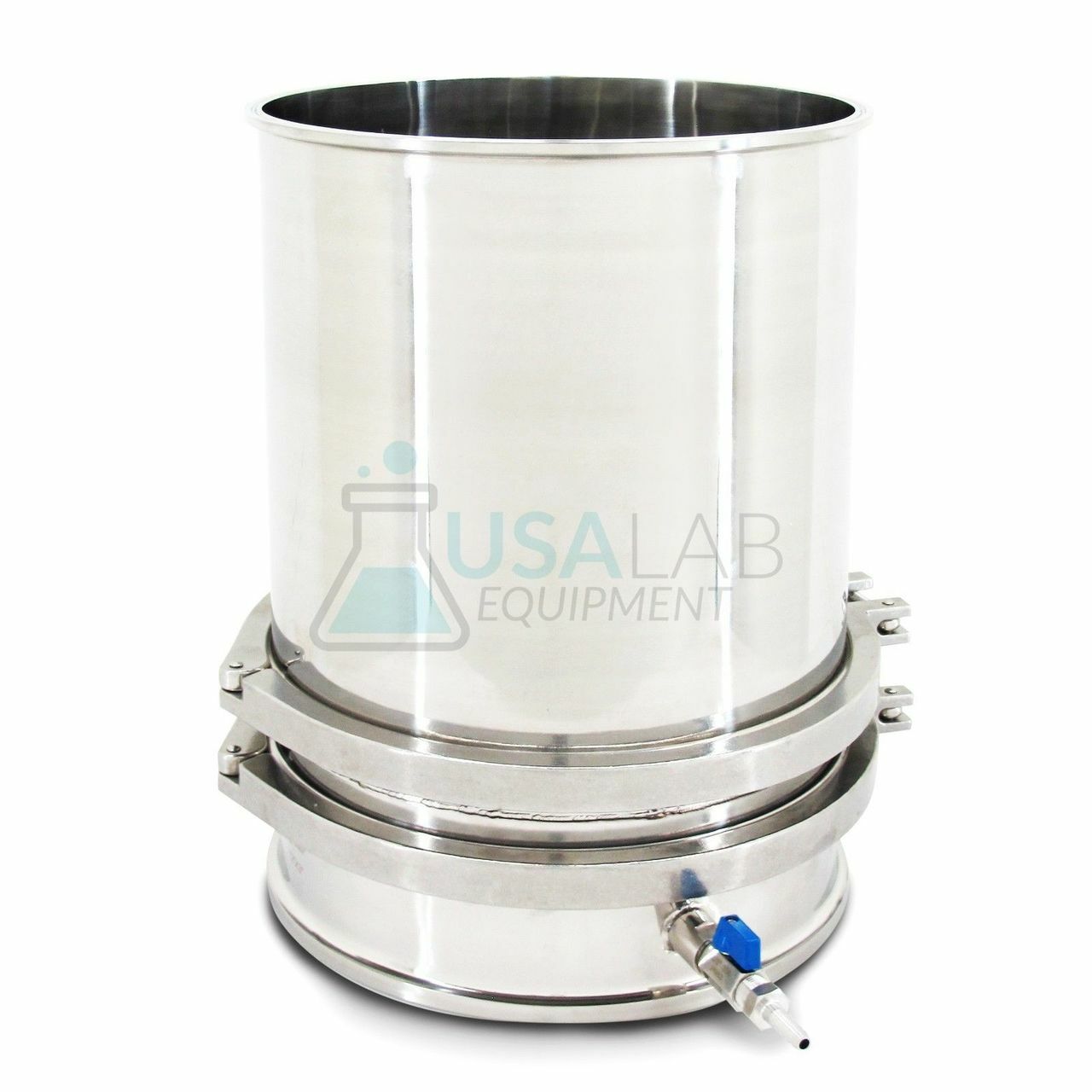

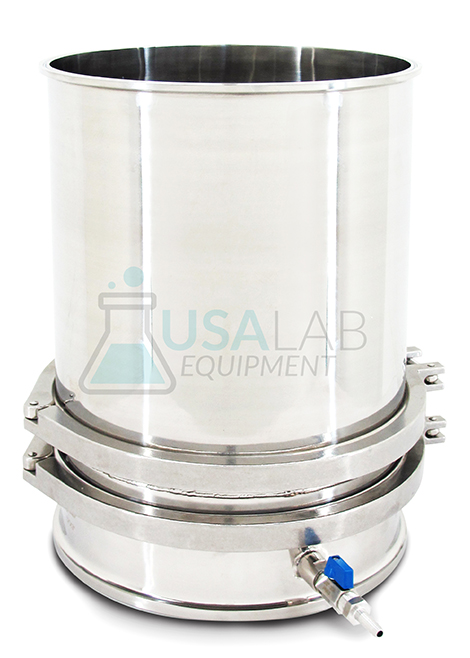

USA Lab Stainless Steel 12″ in. Buchner Funnel SS 304
| Model: | BSSBF12 |
| Brand: | USA Lab |
$959.00
TRI-CLAMP FITTING SIZES
|
Tube Outer Diameter |
Flange Outer Diameter |
Tube Inner Diameter |
|
1.5″ |
1.98″ |
1.37″ |
|
2″ |
2.52″ |
1.87″ |
|
3″ |
3.58″ |
2.87″ |
|
4″ |
4.68″ |
3.83″ |
|
6″ |
6.57″ |
5.78″ |
|
8″ |
8.57″ |
7.78″ |
|
10″ |
10.57″ |
9.73″ |
|
12″ |
12.57″ |
11.81″ |
Â
The USA Lab 12″ Diameter Stainless Steel Buchner Funnel is designed to be a durable option for filtering at an affordable price. Don’t break the bank with expensive filters, start filtering today at a fraction of the cost!
Â
|
BSSBF12 Specifications |
|
|
Material |
304 Stainless Steel |
|
Capacity |
22.2L |
|
Connection Type |
Tri-Clamp |
|

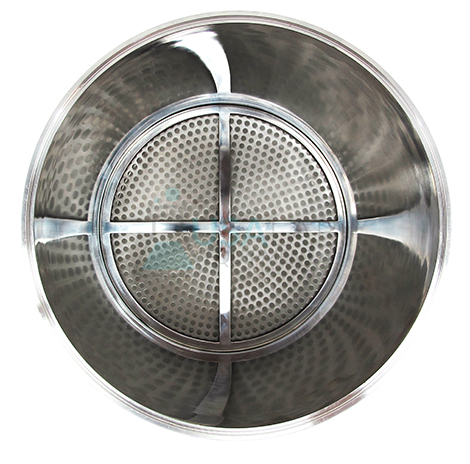

Mesh Specs |
150 Mesh (100 Micron) |
|
Filter Plate Size |
12″ |
|
Bottom Connections |
3/8″ FNPT |
|
Exterior Dimensions |
17″ L x 15″ W x 17″ H |
|
Weight |
51lbs |
|

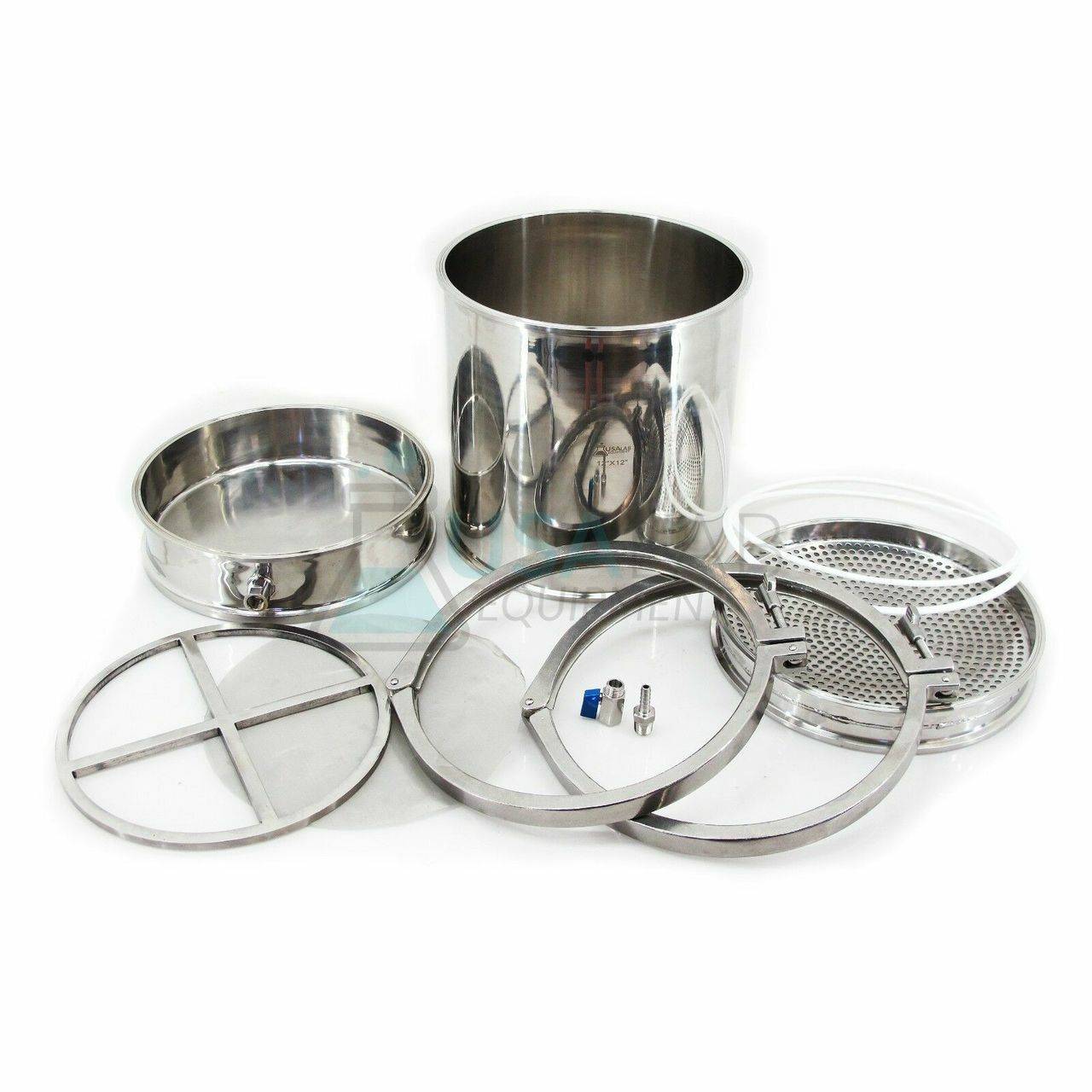

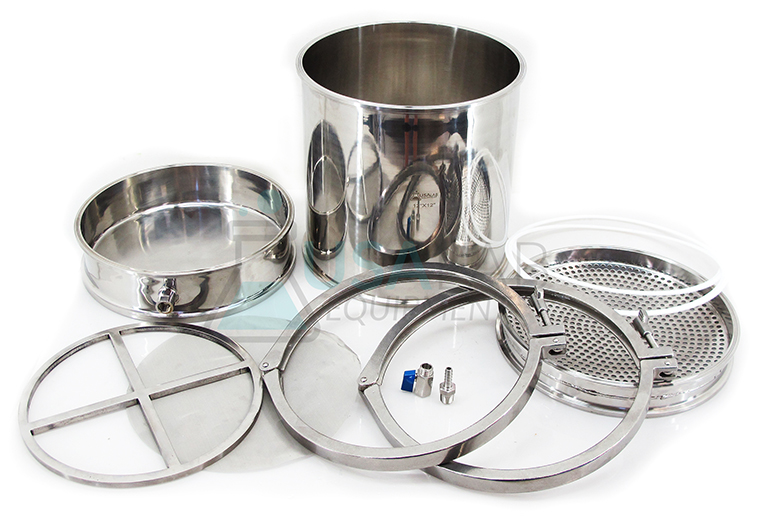

BSSBF12 Packing List |
|
|
12″ x 12″ Tri-Clamp Spool |
1pc |
|
12″ Tri-Clamp Filter Plate |
1pc |
|
Filter Ring – 12″ |
1pc |
|
12″ Mesh – 150 Mesh (100 Micron) |
1pc |
|
12″ Standard Pressure Tri-Clamp |
2pcs |
|
12″ Buna Gasket |
2pcs |
|

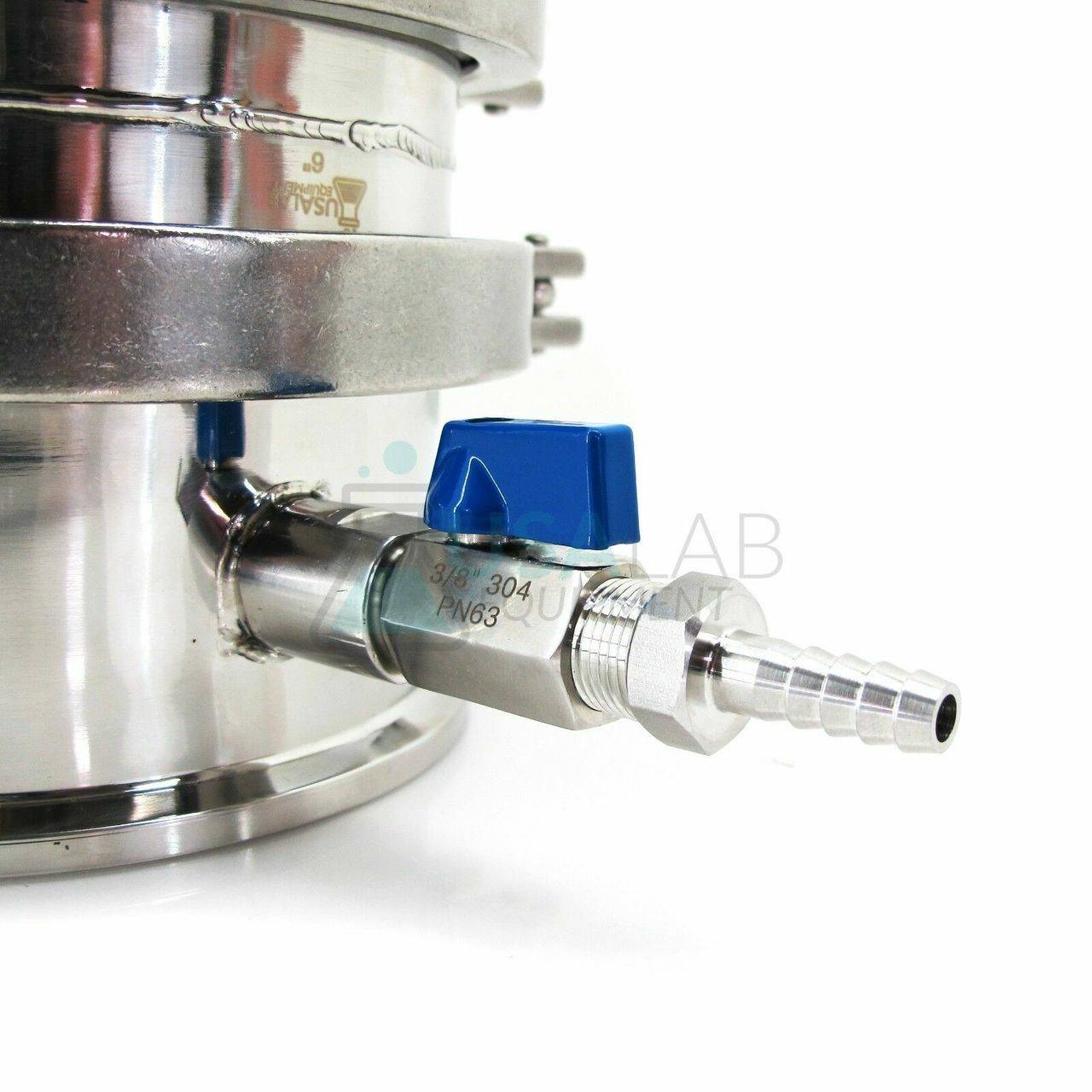

Superlok Ball Valve – 3/8″ FNPT |
1pc |
|
3/8″ MNPT to 3/8″ Barb |
1pc |
|
Vacuum Hose |
10ft. |
Â
Â
For Technical Support, Questions, or Other Issues Please Email or Call Us!
