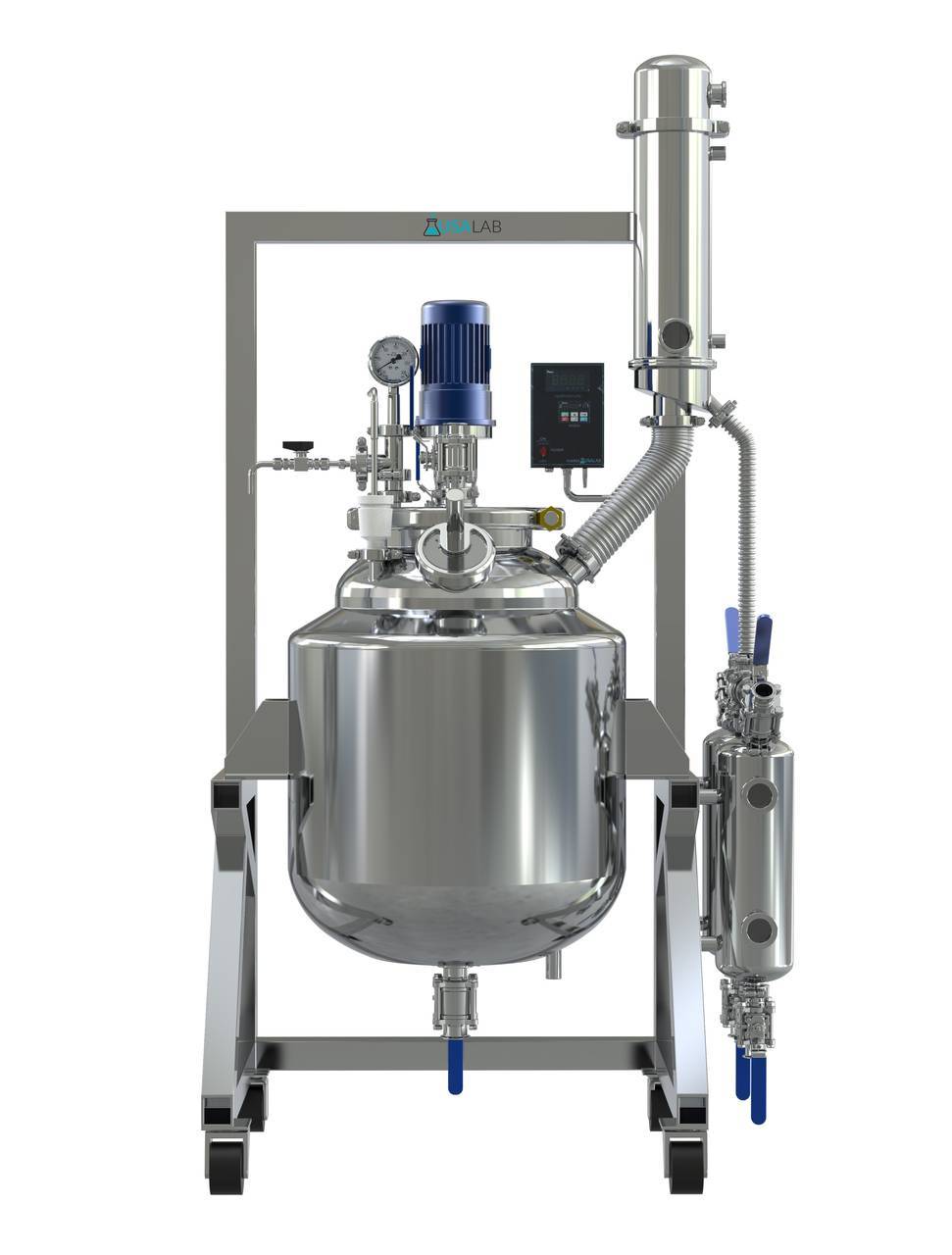

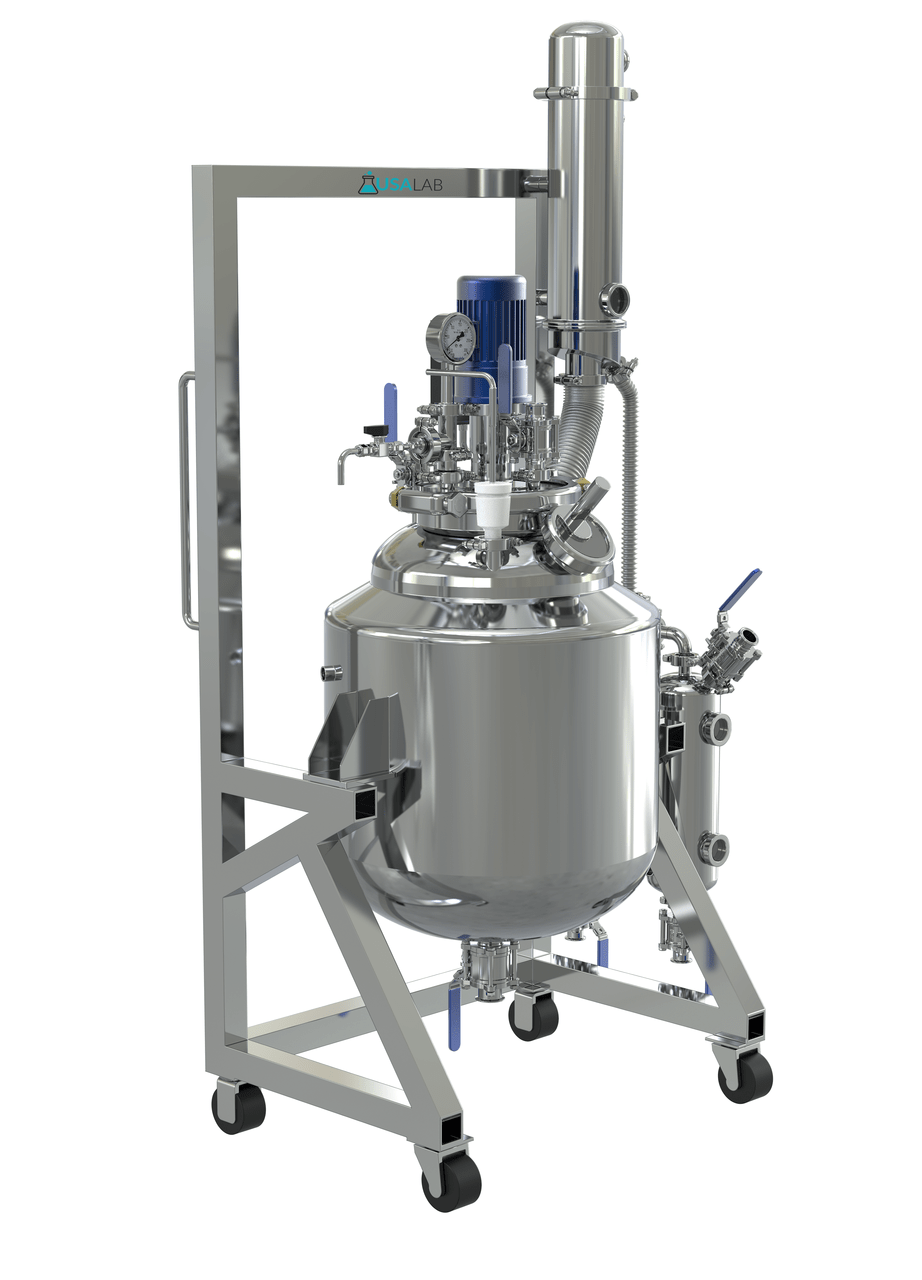

USA Lab Dual-Jacketed 100L 316L-Grade Stainless Steel Reactor

Add to wishlistAdded to wishlistRemoved from wishlist 0
Add to compare
Brand: USA Lab
Material: 316L SS / 304 SS
Motor: ETL Certified to UL/CSA Standards
Power Requirements: 220V 3 Phase

$18,999.00

SKU: USA-SR100 Category: Brand:

USA Lab Dual-Jacketed 100L 316L-Grade Stainless Steel Reactor



Dual-Jacketed 100L Reactor Specifications

Motor Power

220V | 50/60Hz | Single Phase | 200 watts

Motor

ETL Certified to UL/CSA Standards

Rotation Speed

0-450 rpm max.

Lid Connections

12″ Tri-Clamp | Center Port 3″ Tri-Clamp | 2x 1.5″ Tri-Clamp

Top Connections

2x 1.5″ Tri-Clamp | 1x 3″ Tri-Clamp | 4″ Sight Glass w/ flashlight

Bottom Connections

6″ Tri-Clamp | 6″ to 2″ Reducer | 2″ Tri-Clamp Ball Valve

Accessories

Pressure Gauge | Thermometer Probe | Vapor Release Valve

Reactor Volume

100L

Material

316L Grade Stainless Steel | Interior ElectroPolished

Agitator

2x 3″ Blade Propeller | 20″ Shaft

Agitator Material

316L Grade Stainless Steel

Inner Jacket Connection

1″ NPT

Inner Jacket Volume

22L

Inner Jacket Rating

15 PSI

Outer Jacket

Sealed

Jacket Material

304 Stainless Steel

Pressure Rating

Ultimate Vacuum

Temperature Range

-55°C (-67°F) to 250°C (482°F)

Gasket Material

Silicone / Buna-N

Weight

300lb

Frame Material

304 Stainless Steel

Dimensions

40″ x 28″ x 80″ (WxDxH)



Tube-In-Shell Specifications

Material

316L Grade Stainless Steel

Number of Tubes

70

Condensing Area

0.9m²

Connections

2x 1/2″FNPT | 2x 1.5″ Tri-Clamp |
1x 3″ Tri-Clamp | 2x 2″ Tri-Clamp Sight Glasses



Collection Specifications

Material

316L Grade Stainless Steel

Volume

10L

Number of Collections

2

Connections

6x 1.5″ Tri-Clamp | 4x 1.5″ Tri-Clamp Ball Valves Manifold Included

Sight Glass

4x Sight Glasses





For Technical Support, Questions, or Other Issues Please Email or Call Us!
